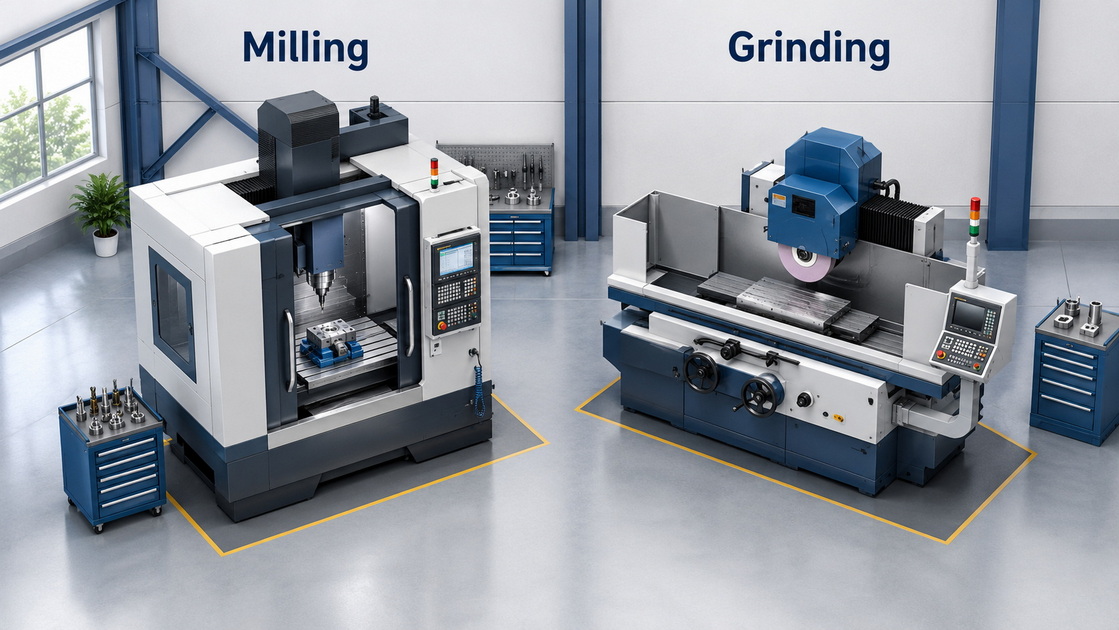

● Milling vs. Grinding – Core Process Differences
>> How Milling Achieves Precision
>> How Grinding Achieves Precision
● Process Selection: When Milling, When Grinding?
>> Situations Where Milling is the First Choice
>> Situations Where Grinding is Essential
● Industry Case Study – Automotive Hydraulic Valve Spool
● Process Capability: Accuracy, Surface Finish, and Throughput
>> Dimensional Accuracy and Stability
>> Surface Integrity and Fatigue Behavior
● Cost, Lead Time, and Scalability Considerations
>> Cost Drivers
● Practical Selection Framework for OEMs and Engineers
>> Step-by-Step Process Selection
● How Shenzhen Feifan Supports Sub-Micron Projects
>> Integrated Milling + Grinding Capabilities
>> Expert Insight – Designing for Manufacturability
● Call to Action – Plan Your Sub-Micron Machining Strategy
● FAQs on Milling vs. Grinding for Sub-Micron Tolerances
Milling and grinding are both capable of reaching sub‑micron tolerances, but they achieve this performance in very different ways and at very different cost levels. For global OEMs and industrial buyers, understanding those differences is critical when choosing the right CNC machining partner in China for high‑precision parts. [developers.google]
For many engineers I work with, the real question is not "which is better, milling or grinding?" but "when is each process the most economical way to hit sub‑micron tolerances on real production parts." From my experience helping overseas OEMs source precision components from China, the answer depends on geometry, volume, tolerance band, and surface integrity requirements.

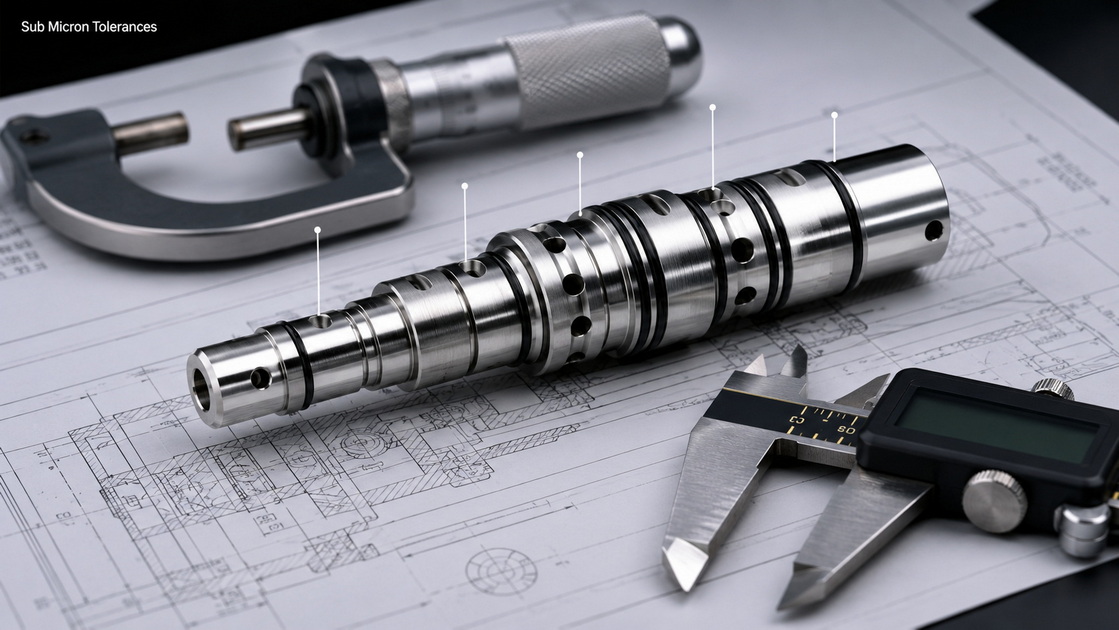

In precision manufacturing, "sub‑micron" typically refers to dimensional tolerances tighter than 1 µm (0.001 mm), such as ±0.5 µm on critical features. This level of accuracy is common in high-end applications such as fuel system components, high‑speed spindles, medical implants, optical mounts, and semiconductor tooling. [developers.google]
From a process capability standpoint:
- Standard CNC milling machines can reliably hold in the 5–10 µm range on production parts, with local optimization reaching lower in controlled environments.
- High‑precision grinding (especially cylindrical and surface grinding) routinely operates in the 0.5–2 µm band on stable, hardened components. [developers.google]
Because Shenzhen Feifan Hardware & Electronics focuses on CNC precision parts for overseas OEM/ODM projects, we typically treat sub‑micron targets as a system-level challenge: machine tool capability, fixturing, cutting strategy, tool condition, measurement feedback, and environmental control all have to work together.
Milling is a subtractive machining method using rotating multi‑point cutters to remove material in discrete chips. Modern 3‑ to 5‑axis CNC milling centers can deliver high productivity and tight tolerances with the right setup. [developers.google]
Key strengths of milling:
- Geometry flexibility – Complex 3D contours, pockets, freeform surfaces, and prismatic features in one clamping.
- High throughput – Ideal for medium to high volumes once the process window is validated.
- Cost efficiency – Lower cost per part for the same tolerance band compared with grinding (when tolerances are ≥5 µm).
- Process integration – Drilling, tapping, chamfering, and basic finishing in a single setup.
Typical technical strategies we use to push milling toward sub‑micron territory include:
1. Stable fixturing and short overhangs to minimize vibration and deflection.
2. Toolpath optimization (constant engagement, trochoidal milling, climb cutting) to stabilize cutting forces.
3. Cutter selection (micro‑grain carbide, balanced toolholders) and strict tool life management.
4. Thermal compensation via warm‑up routines and in‑process calibration.
Even with these controls, milling alone usually tops out around a few microns on real‑world production parts; anything tighter often needs grinding or lapping as a finishing step.
Grinding uses a rotating abrasive wheel with thousands of cutting edges to remove very small amounts of material with extremely fine chip thickness. This gives it outstanding dimensional and surface performance. [developers.google]
Key strengths of grinding:
- Sub‑micron capability – Cylindrical and surface grinders can routinely hit ±1 µm or better on stable features when combined with proper gauging and environment control.
- Excellent surface finish – Ra below 0.2 µm is common, which helps wear resistance and fatigue performance.
- Hard materials – Ideal for hardened steel, carbides, and high‑temperature alloys after heat‑treatment.
- Geometry refinement – Perfecting roundness, flatness, and parallelism after rough machining.
Trade‑offs with grinding:
- Slower material removal rates than milling.
- Higher per‑part cost when applied to full‑profile machining instead of local finishing.
- More demanding wheel selection, dressing, and coolant control.
In our OEM projects, we typically treat grinding as a precision finishing step after milling and turning, targeting just the critical datums or sealing surfaces that need sub‑micron control.
From a practical OEM/ODM perspective, you rarely choose between milling and grinding in isolation; instead, you design a process route that combines them smartly.
Milling is usually preferable when:
- Tolerances are tight but not extreme (e.g., ±10–20 µm on most features, ±5 µm on a few critical ones).
- Parts have complex geometries with pockets, ribs, or 5‑axis contours.
- The main driver is cost per part and overall cycle time, not absolute minimum tolerance.
- You are in prototype or small batch mode and need flexible setups and rapid changes.
- The material is relatively easy to machine, such as aluminum, brass, or standard stainless steel grades.
In these cases, an optimized CNC milling process at Shenzhen Feifan Hardware & Electronics can often deliver "good enough" tolerances without adding grinding cost, especially for foreign brands balancing performance and cost in competitive markets.
Grinding becomes essential when:
- Sub‑micron tolerances are critical for function (for example, bearing seats, hydraulic spool diameters, sealing faces).
- Part surfaces require mirror‑like finish for low friction or sealing performance.
- The material is hardened (e.g., HRC 58–64) after heat treatment.
- Roundness, flatness, or taper must be tightly controlled over the entire length or area.
- You need low surface damage and compressive residual stresses to improve fatigue life.
In those scenarios, we typically rough‑mill features, semi‑finish to leave a controlled grinding allowance, then grind the critical surfaces to final size.

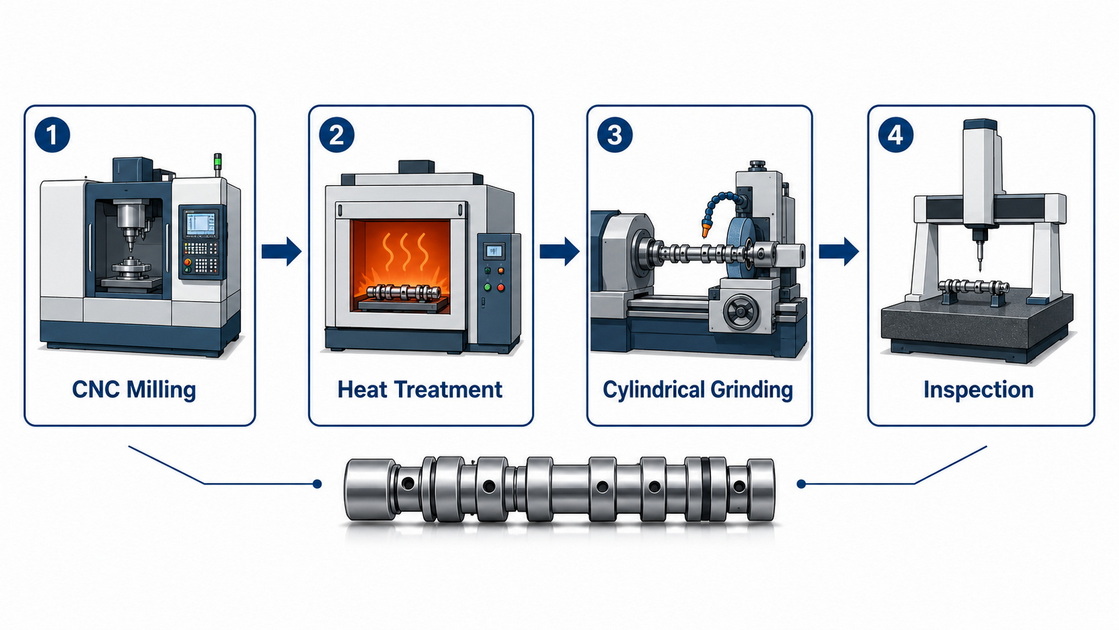

To illustrate the trade‑offs, consider a typical project we support: a European automotive Tier‑1 sourcing hydraulic valve spools from China.
- Material: Hardened alloy steel.
- Key feature: Spool diameter with tolerance of ±0.5 µm and roundness ≤1 µm.
- Functional requirement: Zero internal leakage and predictable flow under pressure and temperature variations.
Below is a simplified view of how a milling‑only approach compares with a combined milling+grinding route for this kind of part (values are illustrative but consistent with typical industry practice).
| Aspect | Milling Only Route | Milling + Grinding Route |
|---|---|---|
| Dimensional capability | 3–5 µm on diameter (best case) | 0.5–1 µm on diameter via cylindrical grinding |
| Surface roughness (Ra) | ~0.4–0.8 µm | ~0.05–0.15 µm after grinding |
| Leakage performance | Variable, risk of marginal parts | Stable sealing, robust function |
| Cycle time per part | Shorter | Longer |
| Cost per part | Lower, but higher scrap risk | Higher, but lower risk of functional failures |
| Recommended for | Non‑critical valves or prototyping | Production parts in safety‑critical systems |
For this project, we recommended a combined route. Milling delivered productivity on non‑critical features, while cylindrical grinding gave the automotive client the confidence to run parts in safety‑relevant assemblies over millions of cycles.
From a process capability (Cp, Cpk) perspective, grinding tends to deliver more stable results at sub‑micron levels because:
- The cutting forces are lower and more consistent.
- Tool wear (wheel wear) can be controlled via scheduled dressing.
- Thermal input into the part is lower at fine passes.
Milling can achieve excellent accuracy as well, but requires more attention to:
- Tool deflection and wear.
- Machine thermal drift over long cycles.
- Chip evacuation and coolant management for small tools.
For high‑volume OEM programs, we routinely evaluate gauge R&R and process capability data before locking the route, especially when our overseas partners need PPAP or similar approvals.
Surface integrity is often overlooked when comparing milling vs. grinding, but it is critical in high‑load applications:
- Milled surfaces can show tool marks and micro‑steps that act as stress raisers, especially if not deburred properly.
- Ground surfaces can induce beneficial compressive residual stress if parameters are optimized, improving fatigue life, but poor grinding can cause burns or micro‑cracks.
Our engineering team typically collaborates with customer design engineers to specify not just Ra, but also:
- Rz (peak‑to‑valley) and bearing area ratio where relevant.
- Post‑process treatments (e.g., honing, superfinishing) when grinding alone is not enough.
For buyers and product managers, the choice between milling and grinding affects more than just tolerances.
Main cost elements include:
- Machine hourly rate (grinders are often more specialized).
- Setup and dressing time for grinding wheels.
- Fixturing complexity and gauging.
- Scrap rate due to out‑of‑tolerance parts.
A common pattern we see:
- For tolerances down to ~±10 µm, optimized milling usually achieves the best cost‑to‑performance ratio.
- Between ±10 µm and ±2 µm, a mix of high‑precision milling and selective grinding on critical features tends to be optimal.
- Below ±2 µm, grinding (or grinding plus lapping) on the key surfaces becomes almost unavoidable for stable, serial production.
Milling offers faster changeovers:
- CAM updates are straightforward.
- Fixtures are often more modular.
- Prototype iterations are quicker.
Grinding is less flexible but more stable once tuned:
- Wheel selection and dressing conditions take time to optimize.
- Once stable, the process tends to deliver consistent output over long runs, which is ideal for established OEM product lines.
At Shenzhen Feifan Hardware & Electronics, we typically recommend starting new designs with more milling and limited grinding, then gradually increasing grinding coverage as design freezes and annual volumes grow.

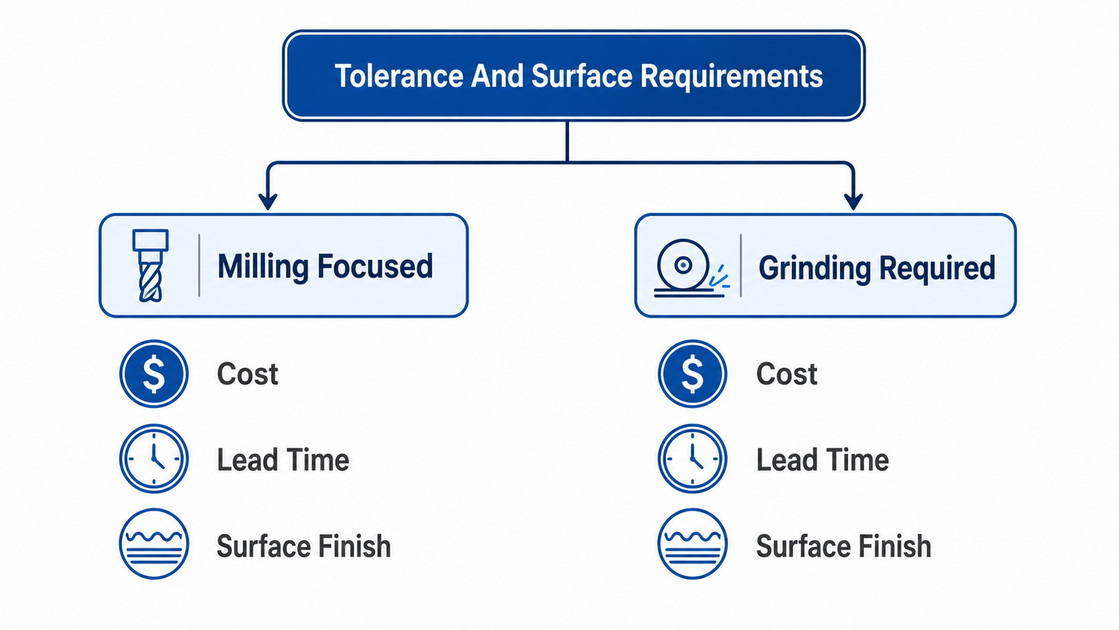

When I consult overseas buyers or design engineers, we walk through a simple decision framework:
1. Define functional requirements
- What features actually need sub‑micron tolerances?
- Which surfaces control leakage, bearing fit, or alignment?
2. Map tolerances to features
- Split the drawing into critical, important, and non‑critical dimensions.
- Assign realistic tolerance bands to each category.
3. Choose a base process
- Use CNC milling (and turning) for the bulk of the material removal and all medium‑tolerance features.
4. Allocate finishing operations
- Apply grinding only to critical surfaces where Sub‑micron tolerances and outstanding surface finish are truly necessary.
- Consider honing or lapping for ultra‑critical sealing or optical surfaces.
5. Validate with measurement data
- Run a trial lot, collect dimensional data, and calculate Cp/Cpk.
- Adjust process windows, offsets, and allowances as needed.
This structured approach keeps total cost under control while ensuring the required sub‑micron performance where it matters most.
From the perspective of a Chinese CNC precision parts manufacturer serving global OEM and ODM customers, delivering sub‑micron performance is not about one single machine or operation. It is about the entire ecosystem.
For overseas brands, wholesalers, and manufacturers, we typically provide:
- High‑precision CNC milling centers for complex and multi‑axis geometries.
- Surface and cylindrical grinding for critical datums, bearing seats, and sealing surfaces.
- In‑house metrology (CMM, air gauges, surface profilometers) to verify sub‑micron features.
- Process design support, including DFM (design for manufacturability) suggestions focused on tolerance zoning and cost optimization.
By combining these capabilities, we help customers:
- Decide when milling alone is sufficient.
- Identify where additional grinding or superfinishing is justified.
- Balance performance, lifetime, and cost in their end products.
From an engineering standpoint, one of the most powerful ways to control cost is drawing optimization. Small decisions can have big impact:
- Avoid specifying sub‑micron tolerances on non‑functional surfaces.
- Use datums and GD&T thoughtfully so that grinding is focused on a small number of reference surfaces.
- Allow slightly looser tolerances where possible and compensate via assembly methods or selection processes.
We often collaborate with our international customers to propose tolerance relaxation on less critical features while strengthening control on those that truly drive performance.
If your next project involves sub‑micron tolerances on critical components, the choice between milling and grinding is not either–or. The most cost‑effective solution usually combines high‑precision milling with targeted grinding on the right features.
We recommend:
- Sharing your drawings and functional requirements early.
- Discussing which features truly require sub‑micron tolerances.
- Co‑developing a process route that balances precision, cost, and lead time.
Our engineering team at Shenzhen Feifan Hardware & Electronics can review your design, propose process options, and provide DFM feedback tailored to your OEM or ODM needs. Get in touch to discuss your next precision machining project and explore how an optimized milling‑plus‑grinding strategy can reduce risk while protecting your budget.
1. Can CNC milling alone achieve sub-micron tolerances?
In controlled environments and on limited features, high‑end CNC milling can approach the low micron range, but for stable sub‑micron performance in production, grinding or additional finishing is usually required.
2. When is grinding overkill for a part?
Grinding becomes overkill when tolerances are wider than about ±10 µm and surface finish requirements are moderate; in such cases, optimized milling is typically more cost‑effective.
3. Does grinding always improve surface integrity?
Not automatically. Proper wheel selection, dressing, and coolant control are essential; otherwise, grinding can cause burns, tensile stresses, or micro‑cracks.
4. How should I decide which features to grind?
Focus grinding on features that directly impact sealing, bearing fit, alignment, or motion accuracy, and keep non‑critical surfaces in the milling domain to control cost.
5. What information should I provide my machining supplier for sub-micron projects?
Share detailed drawings with GD&T, functional descriptions of each critical feature, expected volumes, material and heat‑treatment conditions, and any test or validation requirements (such as leak rates or fatigue life).
