Medical device OEMs today face intense pressure: components are getting smaller, regulatory expectations are rising, and launch timelines are shrinking. I have seen many engineers struggle with a core question: when should you specify micro milling instead of standard CNC milling for a medical component, and how does that choice impact quality, risk, and cost?
In this article, I will walk through that decision from both a practical shop‑floor perspective and a strategic sourcing perspective, drawing on industry best practices for precision CNC machining and typical OEM/ODM engagements with Chinese precision suppliers like Shenzhen Feifan Hardware & Electronics Co.,Ltd. [cncprotolabs]

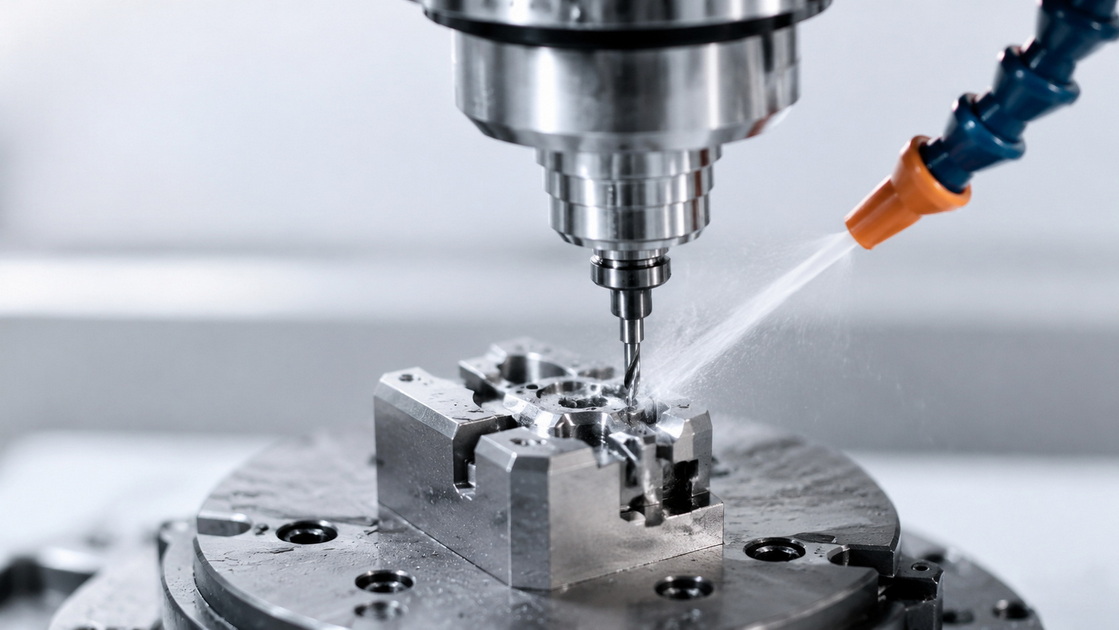

Micro milling is a form of high‑precision CNC milling that uses very small cutting tools (often below 1 mm in diameter) and optimized spindles to machine intricate features at the micron level. It is commonly used for parts such as micro‑fluidic channels, tiny slots, pockets, and micro‑textures on implants or surgical tools. [cncprotolabs]
Because micro milled features can be smaller than a human hair, the process typically runs on high‑speed machining centers with advanced control systems, stable thermal management, and carefully tuned tool paths to avoid chatter and tool breakage. [gfms]

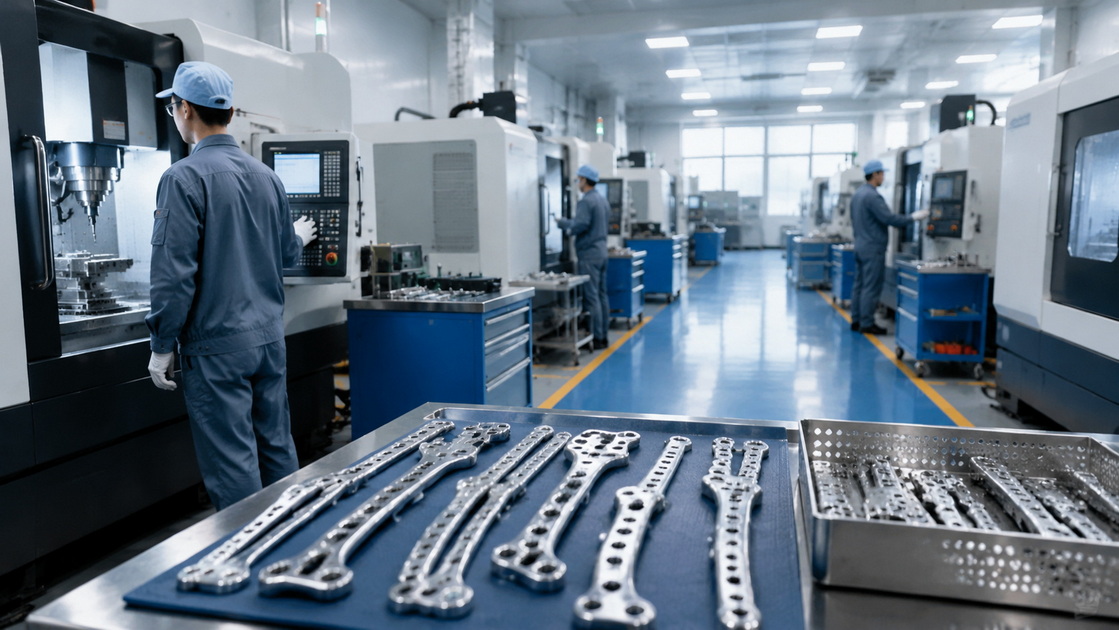

Standard CNC milling uses more conventional tool sizes (for example 3–12 mm end mills) and typical spindle speeds to machine the overall geometry of medical components from metals and engineering plastics. It is ideal for structural features, larger pockets, contours, and planar faces. [lsrpf]
In medical manufacturing, standard CNC milling is widely used for parts such as orthopedic plates, instrument handles, housings, and brackets, where the feature size is measured in millimeters rather than microns. It forms the backbone of most OEM machining workflows, often combined with turning, grinding, and surface finishing. [lsrpf]

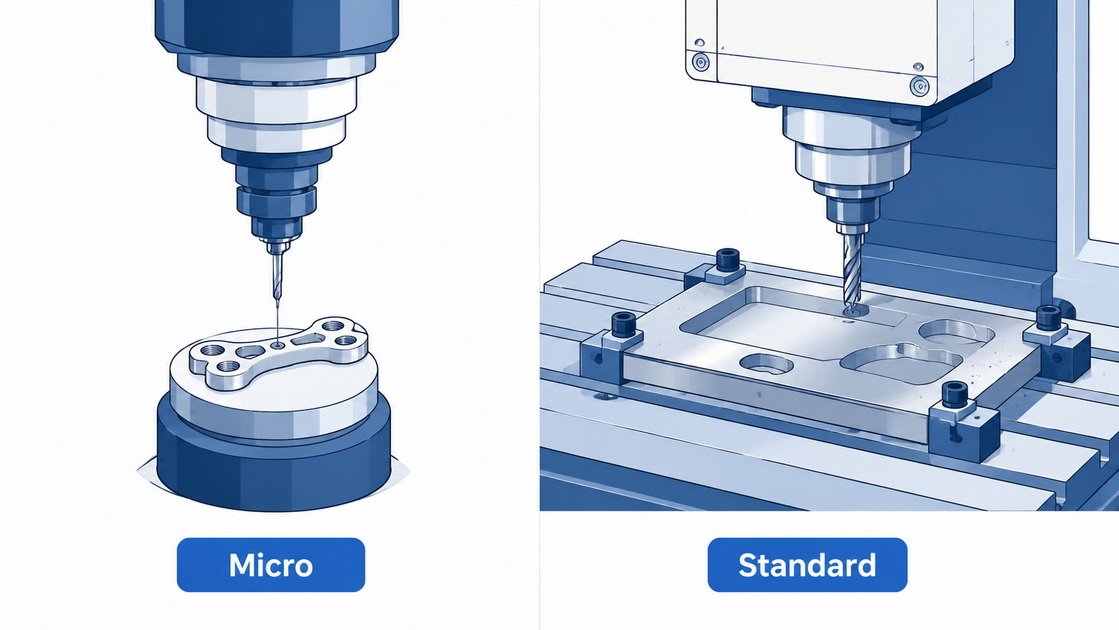

From a sourcing and engineering standpoint, the most useful way to compare micro milling and standard CNC milling is to map them against tolerance, feature size, surface finish, cost, and scalability.
| Aspect | Micro milling for medical devices | Standard CNC milling for medical devices |
|---|---|---|
| Typical feature size | Features often below 0.5 mm, micro‑channels and micro‑slots. cncprotolabs | Features generally above 0.5–1 mm, structural details and larger pockets. cncprotolabs |
| Tolerance capability | Can reach very tight tolerances in the low micron range with proper setup. cncprotolabs | Tight but usually less extreme; high‑quality shops often hold ±0.01 mm for many features. cncprotolabs |
| Surface finish | Excellent fine finishes on small features; ideal for precise functional surfaces. cncprotolabs | Good general finishes; additional polishing or bead blasting often used for cosmetic surfaces. cncprotolabs |
| Typical applications | Micro‑fluidic components, tiny valve seats, miniature connectors, micro‑implant details. cncprotolabs | Housings, brackets, plates, instrument handles, larger implant structures. cncprotolabs |
| Equipment & setup | Requires high‑speed spindles, rigid machines, stable temperature, and expert programming. cncprotolabs | Uses widely available milling centers; easier to source among global CNC suppliers. cncprotolabs |
| Cost per part | Higher per‑part cost due to slower cycle times, smaller tools, and specialized setups. cncprotolabs | Lower per‑part cost for medium‑to‑large features and volumes. cncprotolabs |
When I review RFQs from medical customers, I often find the same part needs both processes: micro milling for critical micro‑features and standard milling for the main body. Treating them as complementary, not competing, usually gives the best cost‑to‑performance ratio.
Regulatory frameworks and clinical performance often push medical components to extremely tight tolerances. Many precision machining providers for medical parts promote tolerance capabilities around ±0.01 mm for standard precision milling operations. [cncprotolabs]
If your design requires tolerances tighter than this on very small features, micro milling becomes the more reliable path. It reduces the risk of fit issues, leakage in micro‑fluidic channels, or inconsistent dosing in drug delivery components.
For parts like surgical tools, implant interfaces, or sensor housings, surface finish is not just cosmetic—it can affect friction, wear, and biological response. High‑speed micro milling can produce very smooth surfaces on small functional areas, often reducing the need for manual polishing that might damage delicate features. [gfms]
Standard CNC milling, in contrast, is often combined with secondary finishing (vibratory finishing, bead blasting, polishing) to achieve the final aesthetic and tactile feel on larger surfaces, which is usually cost‑effective at scale. [lsrpf]
Most medical components are produced from stainless steels, titanium alloys, aluminum, and engineering plastics like PEEK or medical‑grade PVC. Precision CNC shops in China and worldwide typically support a similar materials portfolio across both micro and standard milling. [madearia]
From my experience, the choice between micro and standard CNC milling depends less on the base material and more on feature size and geometry. However, harder materials and sticky polymers increase the importance of toolpath strategy, coolant, and spindle stability, which micro milling machines and experienced OEM partners are better equipped to handle on tiny features. [gfms]

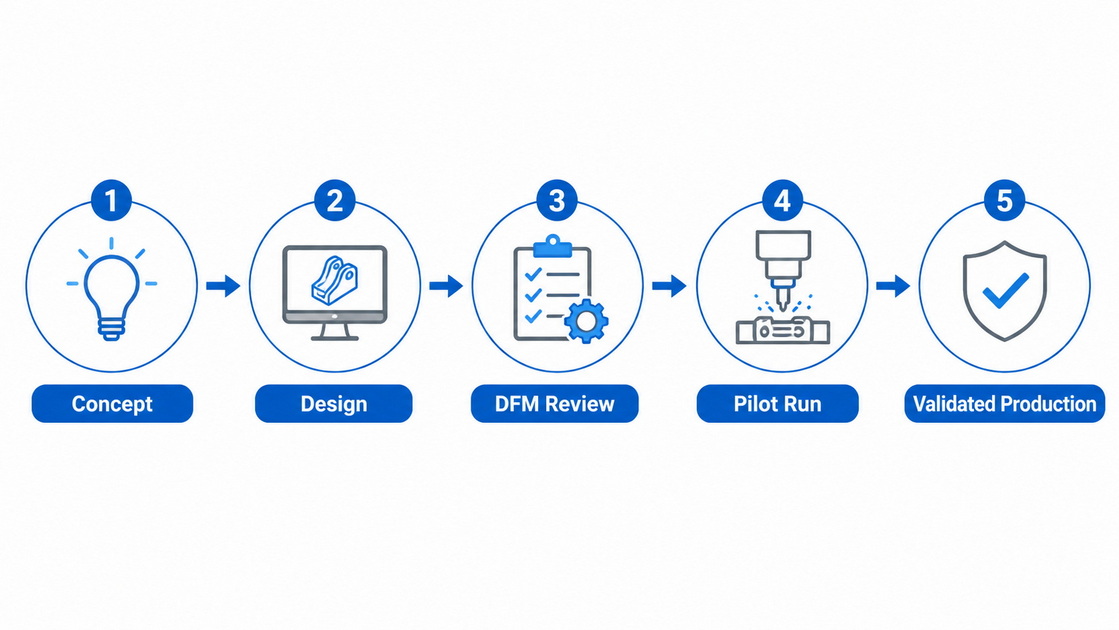

From a UX and engineering perspective, one of the highest‑value steps is to integrate DFM (Design for Manufacturability) early with your machining partner. Below is a practical 5‑step workflow many successful OEMs follow when deciding between micro and standard CNC milling for new medical parts.
1. Map all critical features
- Identify micro‑channels, small sealing faces, and any feature below 0.5–1 mm that directly affects performance or regulatory testing.
2. Assign tolerance bands
- Classify features as critical, important, or non‑critical, with clear tolerance ranges; only truly critical micro‑features should push into micro‑milling ranges.
3. Simulate process flow
- Work with the supplier to simulate whether micro milling, standard milling, or a hybrid route best hits your tolerance and yield targets.
4. Run a process capability study
- Use a short pilot run to verify Cpk on critical dimensions; adjust design or process parameters before full validation.
5. Lock the validated route in your drawings
- Clearly specify which features require micro milling and what inspection plan applies, reducing ambiguity for future production runs.
In real projects, this kind of structured collaboration with an OEM/ODM supplier significantly reduces iteration loops, scrap, and launch delays, especially for complex assemblies.
Because micro milling requires specialized machines, highly skilled programmers, and longer cycle times, it often carries a premium per part compared with standard CNC milling. [cncprotolabs]
The cost is justified when:
- The component is clinically critical (for example, drug delivery channels, valves, micro‑fluidics).
- Design changes would be far more expensive than machining the part correctly.
- The volumes are relatively moderate and precision clearly outweighs the added process cost.
Standard CNC milling capacity is widely available across global manufacturing hubs, including China, which helps shorten lead times and reduce supply risk for large structural components. [madearia]
Micro milling capacity is more specialized, so it pays to secure a stable relationship with a trusted supplier early—ideally one that can also handle the standard milling of mating parts so you control variation within a single process chain. [madearia]
As a precision CNC parts producer in China, a company like Shenzhen Feifan Hardware & Electronics Co.,Ltd. supports overseas brands, wholesalers, and manufacturers with OEM and ODM services for CNC‑machined components. [feifanhardware]
Working with a specialized Chinese vendor offers several benefits:
- Integrated micro and standard milling in one factory for better consistency and simplified logistics.
- Cost‑competitive production based on optimized machining strategies and high‑volume experience.
- Flexible OEM/ODM engagement, from build‑to‑print projects to co‑engineering of new medical components.
These strengths matter most when you must scale from prototype to mass production without changing your supplier or compromising on quality.
Based on typical medical projects, here is how I usually guide engineering teams:
- Choose micro milling when your design includes ultra‑fine features and micro‑channels that directly influence device performance, fluid flow, or drug dosage.
- Choose standard CNC milling when you are machining larger structural parts, mounting plates, or housings, and your tolerances can be met with conventional precision.
- Use a hybrid approach when the part has both types of features: rough and semi‑finish with standard milling, then pass the part to micro milling for the final critical details.
This hybrid strategy often yields the best balance of cost, lead time, and quality, especially when supported by a single OEM/ODM partner that understands your entire device architecture.
Before you send your next RFQ for a medical device component, run through this short checklist to align your expectations with your machining partner:
- Have you clearly identified all micro‑features and their exact sizes?
- Are tolerance requirements realistic compared to what modern precision CNC machining can cost‑effectively achieve (for example around ±0.01 mm for many features)? [cncprotolabs]
- Is the drawing explicit about which features are critical, and which can accept more relaxed tolerances?
- Have you discussed production volume and ramp‑up plans, so the supplier can propose the right machine mix and process routing?
- Have you invited DFM feedback from your supplier early, especially on features that may require micro milling?
Sharing this information upfront helps your supplier propose the optimal combination of micro milling and standard CNC milling and avoids unpleasant surprises in pricing or feasibility.
If your engineering team is evaluating micro milling vs. standard CNC milling for new or existing medical components, this is the ideal moment to engage a precision OEM/ODM partner. A shop like Shenzhen Feifan Hardware & Electronics Co.,Ltd. can review your drawings, highlight where micro milling adds real value, and where standard CNC milling is fully sufficient. [feifanhardware]
You can prepare a compact drawing package, tolerance summary, and target annual volume, then request a joint DFM review and quotation to align process choice with your quality, regulatory, and cost goals.
Q1: Can one supplier realistically provide both micro milling and standard CNC milling for medical devices?
Yes, many advanced precision machining suppliers integrate both capabilities in‑house, allowing them to machine micro‑features and larger structural parts on the same site for better consistency and simpler logistics. [madearia]
Q2: Is micro milling always the better choice for high‑end medical devices?
No, micro milling should be reserved for features that truly require micron‑level control; using it on every feature drives up cost and lead time without measurable clinical benefit. Standard CNC milling remains ideal for most structural geometries.
Q3: How early should I involve my machining partner in the design process?
The most successful medical projects involve the machining partner before design freeze, so DFM feedback on tolerances, radii, and feature sizes can be incorporated while changes are still inexpensive.
Q4: What documentation should I provide when requesting a quote?
At minimum, provide 3D models, 2D drawings with tolerances, material specifications, surface finish requirements, and approximate annual volumes so the supplier can propose an appropriate mix of micro and standard CNC processes. [madearia]
Q5: How does CNC machining compare to additive manufacturing for micro‑scale medical parts?
Additive manufacturing can create very complex internal geometries, but micro milling and standard CNC milling still offer superior dimensional accuracy and surface finish on many critical metal and plastic components, especially when tight tolerances and stable, validated processes are required. [lsrpf]
