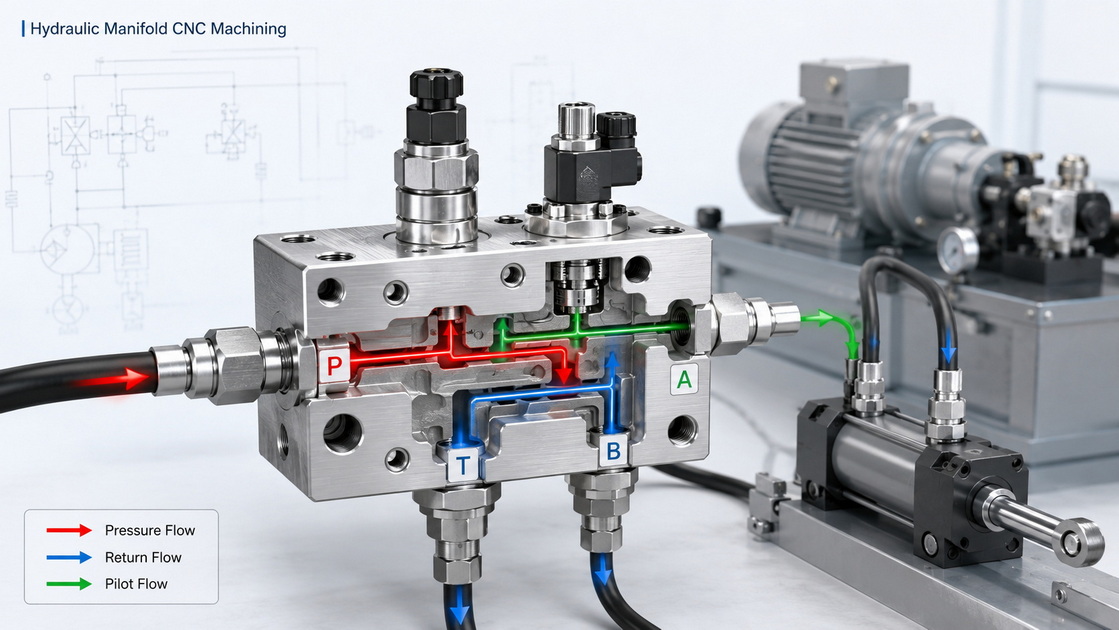

Hydraulic manifolds are the central "brain" of many hydraulic systems, routing pressurized oil through valves, actuators, and safety circuits. For OEM and ODM projects, CNC machining is the dominant way to produce reliable manifold blocks with precise oil passages, threaded ports, and cavity features. In this guide, I'll walk through practical design rules, tolerance choices, and manufacturing workflows we use for export-grade hydraulic manifolds, so engineers and purchasing teams can move from CAD to stable long‑term production with confidence. [manifold-block]
Hydraulic manifolds are solid blocks (often steel, cast iron, or aluminum) that integrate multiple valve functions and flow paths into a compact assembly. Rather than plumbing dozens of discrete fittings and hoses, OEMs embed check valves, relief valves, directional valves, and cartridge cavities into a single manifold block. [le-creator]
Key characteristics of CNC‑machined hydraulic manifolds:
- High-pressure operation, typically from 6 MPa up to 35 MPa or more depending on material and design. [manifold-block]
- Precise internal channels with controlled wall thickness to prevent cracking or cross‑port leakage. [manifold-block]
- Accurate port positions and threads to avoid misalignment, sealing problems, or assembly downtime. [le-creator]
From a user's perspective, a well‑designed manifold reduces installation space, minimizes leak points, and simplifies troubleshooting compared with traditional "hose-and-fitting" layouts. [falconcncswiss]
Choosing manifold material starts with working pressure and environmental conditions. Common practices include: [le-creator]
- Cast iron (e.g., HT20–40) for lower‑pressure systems around 6.3 MPa, often in standardized blocks. [manifold-block]
- Aluminum alloy forgings or low‑carbon steels (Q235, 20#) for mid‑pressure systems up to about 21 MPa, especially where weight is critical. [falconcncswiss]
- Forged steels such as 35# with conditioning to HB200–240 hardness for high‑pressure manifolds above 21 MPa. [le-creator]
For aggressive environments (mobile machinery, offshore, or corrosive fluids), additional surface treatments such as zinc plating, nickel plating, or phosphating are used to extend service life. [protolabs]

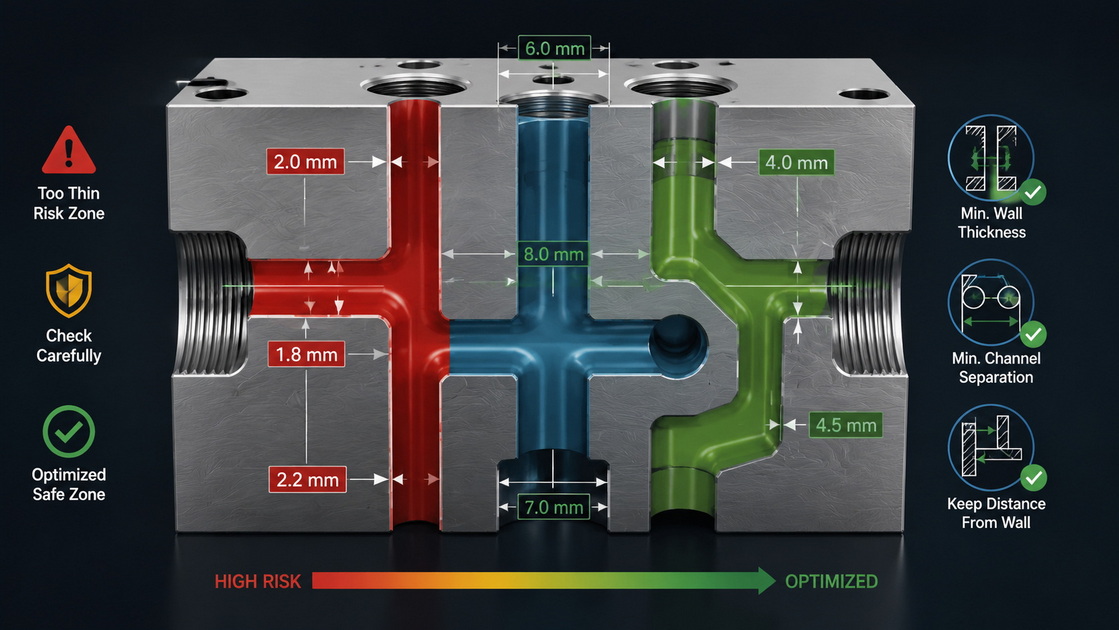

Early in design, engineers must size the block and route channels to balance strength, machinability, and flow efficiency. A common starting rule is to make the initial block thickness roughly five times the maximum valve cavity diameter, then refine based on actual layout. [grprototypes]
Critical layout guidelines:
- Keep safe wall thickness between channels at least 3–5 mm once machining tolerances and drill wander are considered. [manifold-block]
- Minimize extremely deep and highly inclined holes, which complicate machining and increase risk of misalignment. [grprototypes]
- Design main flow channels first, then pilot and control oil channels, to keep routing logical and debuggable. [manifold-block]
- Size return channels 20–40% larger than inlet channels to keep oil velocity below about 12 m/s and reduce pressure drop. [le-creator]
When I review customer CAD, I look specifically for overly thin walls, deep intersecting holes, and "hidden" cross‑drilled features that would be difficult to verify or deburr. These are red flags for both quality and life‑cycle cost. [protolabs]
CNC machining can reliably hold tight dimensional tolerances, but every extra micrometer has a cost. Typical ranges for manifold features are: [nolteprecise]
- General machined dimensions: about ±0.005″ (±0.127 mm) for metals, good for non‑critical surfaces and overall block size. [makerverse]
- High‑precision features: around ±0.002″ (±0.051 mm) for tight fits and critical interfaces such as valve cavities or locating shoulders. [nolteprecise]
- Reamed holes and precision pin bores: around ±0.0005″ (±0.0127 mm) where alignment and press fits matter. [makerverse]
In practice, machinists often achieve tolerances in the ±0.01–0.05 mm range on CNC horizontals for manifold manufacturing, provided the design is stable and setups are well‑controlled. [nolteprecise]
Beyond linear dimensions, manifolds depend heavily on geometric tolerances such as flatness, perpendicularity, and parallelism. Typical targets include: [makerverse]
- Surface flatness around 0.02 mm to keep gasketed or O‑ring interfaces sealing properly. [manifold-block]
- Perpendicularity between adjacent faces around 0.05 mm, and parallelism between opposite faces around 0.03 mm. [manifold-block]
- Thread axis perpendicularity to sealing faces around 0.05 mm to avoid side‑loading on fittings or valves. [manifold-block]
Using GD&T (ASME Y14.5) with symbols for flatness, concentricity, position, and parallelism helps communicate these needs clearly and avoids over‑tightening basic size tolerances where they are not required. [geomiq]

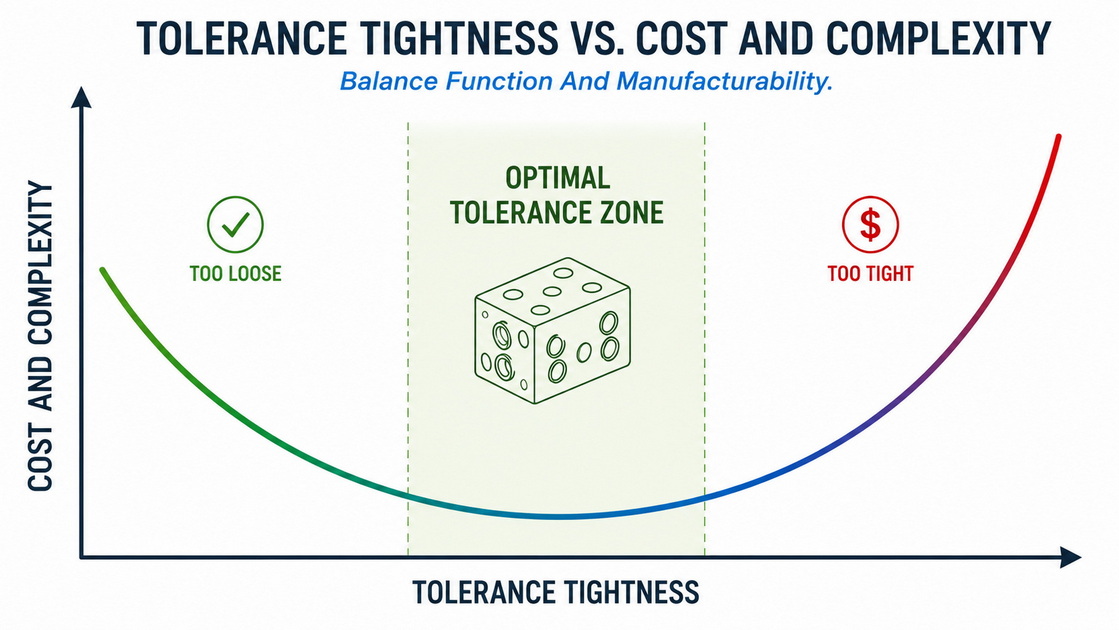

From a DFM standpoint, the best practice is to apply tight tolerances only where function demands them. Key strategies: [protolabs]
- Start with standard tolerances (e.g., ±0.005″) on non‑critical dimensions. [makerverse]
- Tighten tolerances selectively for port locations, gasket faces, and cartridge cavities that directly affect sealing and valve performance. [falconcncswiss]
- Avoid specifying ultra‑small features (<0.5 mm) without clear justification, as they may require specialized tooling and inspection. [grprototypes]
An example: a manifold top face might use standard tolerances, while the interface pattern for a proportional valve block uses high‑precision tolerances plus flatness and surface finish controls. This keeps cost in check while preserving system performance. [protolabs]
Before machining, blanks must be checked for internal integrity and prepared to minimize distortion. Typical steps include: [le-creator]
- Inspect forgings or castings for laminations and defects that would compromise pressure integrity. [manifold-block]
- Perform aging or stress‑relief treatment on cast iron and large steel blocks prior to machining. [protolabs]
- Cut bar or block stock with at least 2 mm machining allowance to account for warpage and clamping. [manifold-block]
This "front‑loading" of quality dramatically reduces scrap and makes it easier to hold tight tolerances in later stages. [le-creator]

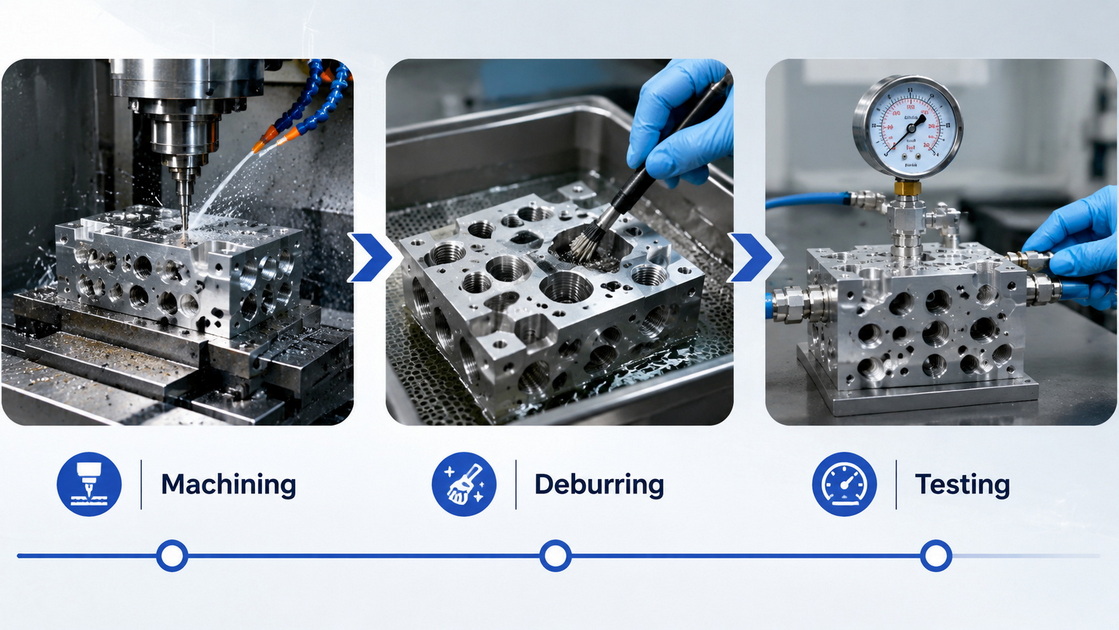

Most hydraulic manifolds go through a multi‑stage CNC process to control geometry and surface quality. A typical sequence: [rekithhydraulics]
1. Rough milling of all six faces, leaving 0.2–0.4 mm for grinding or finish milling. [manifold-block]
2. Rough grinding or finish milling to bring parallelism and perpendicularity into the 0.03–0.05 mm range. [nolteprecise]
3. CNC drilling of all ports and intersecting channels, usually on horizontal machining centers with dedicated fixtures. [rekithhydraulics]
4. Final grinding or face machining to achieve surface roughness around Ra 0.4 μm on sealing faces. [protolabs]
Port threads, valve cavities, and special features may be machined using dedicated tooling to maintain repeatability across large batches. [falconcncswiss]
Internal burrs and contamination are among the most common causes of early‑life failure in hydraulic systems. Effective manifold finishing includes: [le-creator]
- Manual brush deburring or thermal/methane deburring of internal passages. [protolabs]
- Endoscope inspection of internal channels to confirm burr removal, especially on deep cross‑drilled holes. [le-creator]
- Thorough cleaning to remove chips, corrosion products, and machining oils from internal and external surfaces. [protolabs]
For corrosion protection, internal oil paths often receive pickling and phosphating, while outer surfaces are treated with blueing, cadmium, zinc, or nickel plating depending on the application. [protolabs]
Hydraulic manifold blocks must be pressure‑tested to confirm they will not leak or crack under working conditions. A common approach is to set test pressure as a multiple of working pressure, with safety factors such as: [le-creator]
- Working pressure <16 MPa: test at 1.5× operating pressure. [manifold-block]
- Working pressure up to 25 MPa: test at about 1.25×. [manifold-block]
- Working pressure up to 31 MPa: test at about 1.15×. [manifold-block]
Holding time typically ranges from 5 to 10 minutes, during which sealing faces and joints are inspected for leakage. [le-creator]
Quality control teams also measure critical dimensions, check concentricity and straightness of channels, and verify surface finish on sealing interfaces against design specifications. For OEM programs, documenting these checks in a PPAP‑style or inspection report format builds traceability and supports long‑term fleet reliability. [makerverse]
Design choices strongly influence cost, cycle time, and achievable tolerances in CNC machining. Proven DFM tips include: [grprototypes]
- Avoid deep pockets or channels deeper than about 5× tool diameter; consider splitting the design into modular blocks if needed. [grprototypes]
- Match internal corner radii to tool sizes (e.g., using R0.3 mm for a 6 mm end mill) to reduce tool deflection and chatter. [grprototypes]
- Design manifolds to minimize setups, for example machining most features in a single orientation on a multi‑axis machine. [grprototypes]
These practices improve accuracy and repeatability while keeping cycle times competitive in production. [grprototypes]
Surface finish and edge design significantly impact sealing performance and handling safety. Typical rules: [grprototypes]
- Default to as‑machined finishes, specifying finer finishes only where needed for sealing or cosmetic reasons. [protolabs]
- Use small edge breaks (about R0.1 mm) or chamfers at external edges to eliminate sharp corners that may cause injuries or stress concentrations. [grprototypes]
- Apply chamfers (≥1.5× thread pitch) at thread ends to prevent binding and make assembly smoother. [grprototypes]
Balancing finish requirements across the manifold prevents over‑processing and keeps unit cost in line with functional needs. [protolabs]
While this guide focuses on hydraulic manifolds, many OEMs also purchase pneumatic blocks. Their design priorities differ in pressure, materials, and tolerance tightness. [falconcncswiss]
| Aspect | Hydraulic manifolds | Pneumatic manifolds |
|---|---|---|
| Typical pressure | 6–35 MPa working pressure. manifold-block | Often <1 MPa. falconcncswiss |
| Materials | Cast iron, steel, aluminum forgings. manifold-block | Mainly aluminum or plastics. falconcncswiss |
| Tolerance focus | Port positions, sealing faces, cavity geometry. manifold-block | Flow passages, quick‑connect interfaces. falconcncswiss |
| Surface treatment | Phosphating, plating, blueing, coatings. manifold-block | Lightweight anodizing or basic treatments. falconcncswiss |
Understanding these differences helps procurement teams specify the correct manifold type and avoid over‑engineering pneumatic blocks with hydraulic‑grade requirements. [falconcncswiss]
For OEM and ODM cooperation, a structured workflow keeps projects on schedule and reduces design rework. A typical step‑by‑step process: [falconcncswiss]
1. Functional specification – Define target pressure, fluid type, valve brands, required flow rates, and envelope size.
2. DFM design review – Check wall thickness, drill orientations, port clearances, and tolerance strategy before locking the design. [makerverse]
3. Prototype machining and testing – Produce initial blocks, perform pressure tests, and validate valve and actuator performance. [rekithhydraulics]
4. Tolerance refinement – Adjust tolerances and surface finishes based on test data and assembly feedback. [makerverse]
5. Scaling to batch production – Implement fixtures, inspection plans, and SPC monitoring for stable, repeatable output. [rekithhydraulics]
This approach aligns engineering and manufacturing and gives overseas buyers more predictable lead times and quality levels. [falconcncswiss]
For international customers, additional risk controls are essential. Recommended practices include: [rekithhydraulics]
- Clear documentation of material certifications, heat treatment records, and surface treatment processes. [protolabs]
- Standardized pressure test procedures with recorded results for each batch. [le-creator]
- Alignment with international standards (e.g., ISO general tolerances and GD&T practices) to ease integration into global equipment. [geomiq]
This level of transparency improves trust and simplifies audits for overseas OEMs and distributors. [rekithhydraulics]
If you're planning a new hydraulic platform or upgrading an existing system, partnering with a specialized CNC manifold manufacturer helps you translate theoretical design into robust, repeatable production. Look for suppliers that combine DFM support, strict tolerance control, thorough deburring and cleaning, and documented pressure testing across every batch. [falconcncswiss]
When you're ready to move forward, share your hydraulic circuit, pressure and flow requirements, and preferred valve brands with your manufacturing partner to start a targeted manifold design review and quotation. [falconcncswiss]
Q1: What is the most important design factor for hydraulic manifold reliability?
The most critical factor is maintaining adequate wall thickness and proper channel spacing so the block can safely withstand working and test pressures without cracking or cross‑port leakage. [le-creator]
Q2: How tight do tolerances need to be on hydraulic manifolds?
General manifold dimensions can often use standard tolerances around ±0.005″, while critical sealing surfaces and valve cavities should use tighter ranges such as ±0.002″ and additional flatness or position controls. [nolteprecise]
Q3: Why is deburring so important for hydraulic manifolds?
Internal burrs and chips can break loose, damage valve spools, block orifices, and contaminate the hydraulic system, leading to premature failure or erratic performance. [le-creator]
Q4: How are hydraulic manifolds pressure‑tested before shipment?
Manufacturers typically test manifolds at 1.15–1.5 times the rated working pressure for several minutes, checking for visible leaks and dimensional deformation at all sealing surfaces and joints. [manifold-block]
Q5: What information should I provide to an OEM/ODM manifold supplier?
You should share hydraulic schematics, target pressure and flow, valve brands and models, installation envelope, material preferences, and any standards or certification requirements you must meet. [falconcncswiss]
