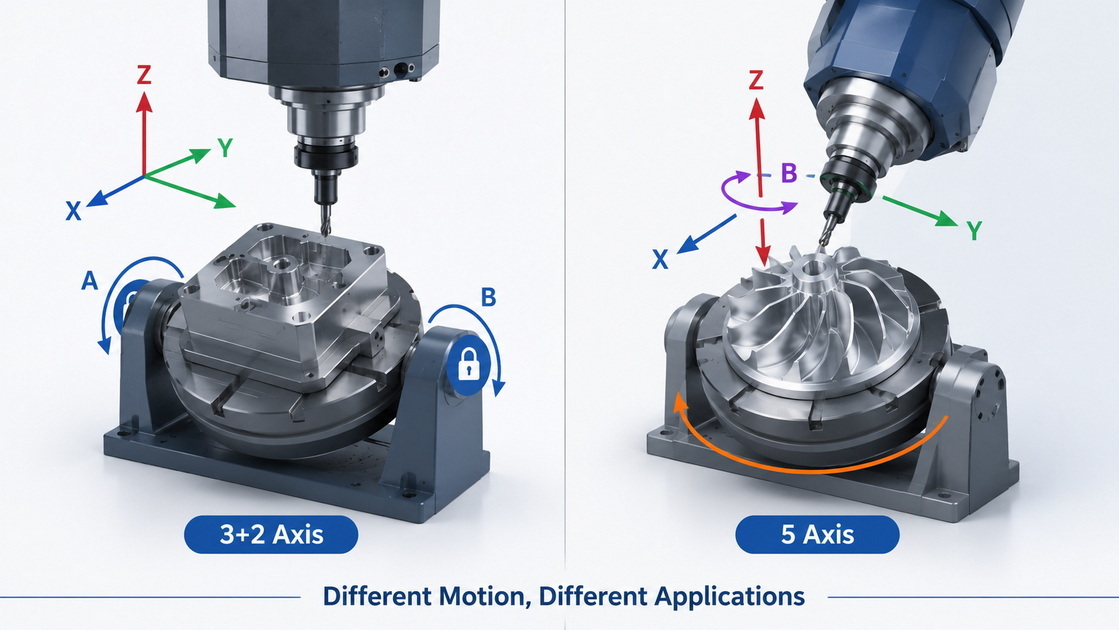

The key difference between 5‑axis and 3+2 axis CNC machining is that 3+2 (positional 5‑axis) locks the part at a fixed angle and then cuts in three axes, while simultaneous 5‑axis moves all five axes at the same time for faster, more precise machining of complex geometries. This article explains both methods from a practical, shop‑floor perspective and helps engineers, buyers, and product owners choose the right process for their CNC projects. [methodsmachine]
3+2 axis CNC machining is often called positional 5‑axis machining. You start with a standard 3‑axis machine (X, Y, Z), then add two rotary axes (typically a tilting table and a rotary trunnion) to orient the workpiece. Once the part is clamped at a specific angle, the cutting operation itself still happens in three axes, just from a better orientation. [runsom]
In practice, 3+2 machining is ideal when:
- You need to machine multiple sides of a part in a single setup.
- Features are relatively "flat" but located at different angles.
- You want to reduce fixtures and manual repositioning compared with pure 3‑axis machining.
Because the tool can be kept short and rigid (the part is tilted toward the tool instead of the tool reaching down deep), 3+2 machining improves dimensional stability and surface quality versus conventional 3‑axis setups. [lsrpf]

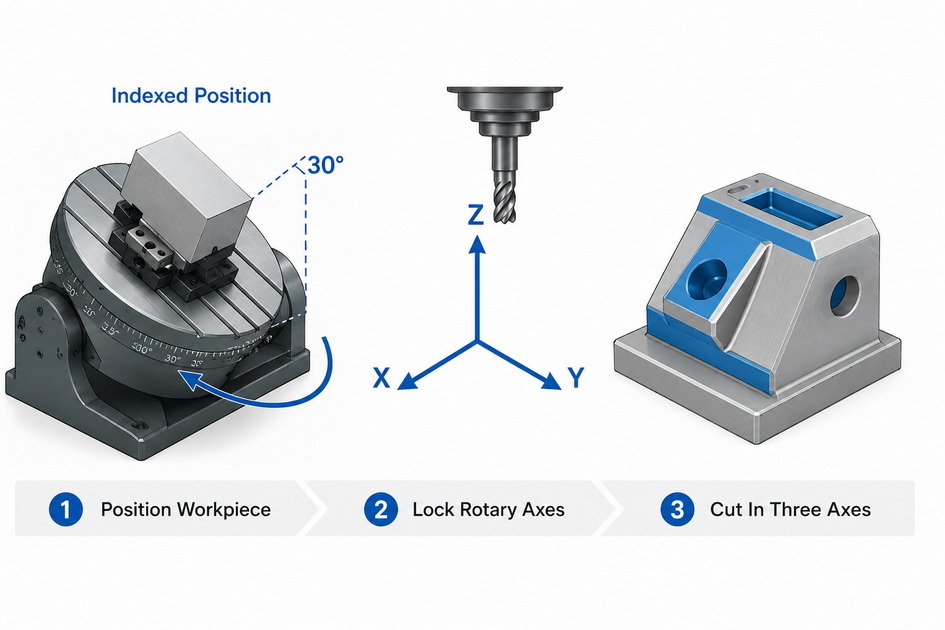

The core idea of 3+2 machining is "3‑axis cutting at a chosen angle". The extra two axes are only used to position the part, not to move continuously during cutting.
Typical 3+2 workflow:
1. Fixture and clamp the workpiece on a tilting‑rotary table.
2. Index (rotate/tilt) the table to a defined angle (for example, A = 30°, B = 90°).
3. Lock the rotary axes; the machine now runs as a 3‑axis mill at that orientation.
4. Machine the target surfaces in X, Y, Z.
5. Re‑index to another angle if needed and repeat.
Because only the linear axes move while the part is held at a fixed angle, the NC programs are typically shorter and easier to generate than full 5‑axis toolpaths, which simplifies CAM programming and reduces programming time.

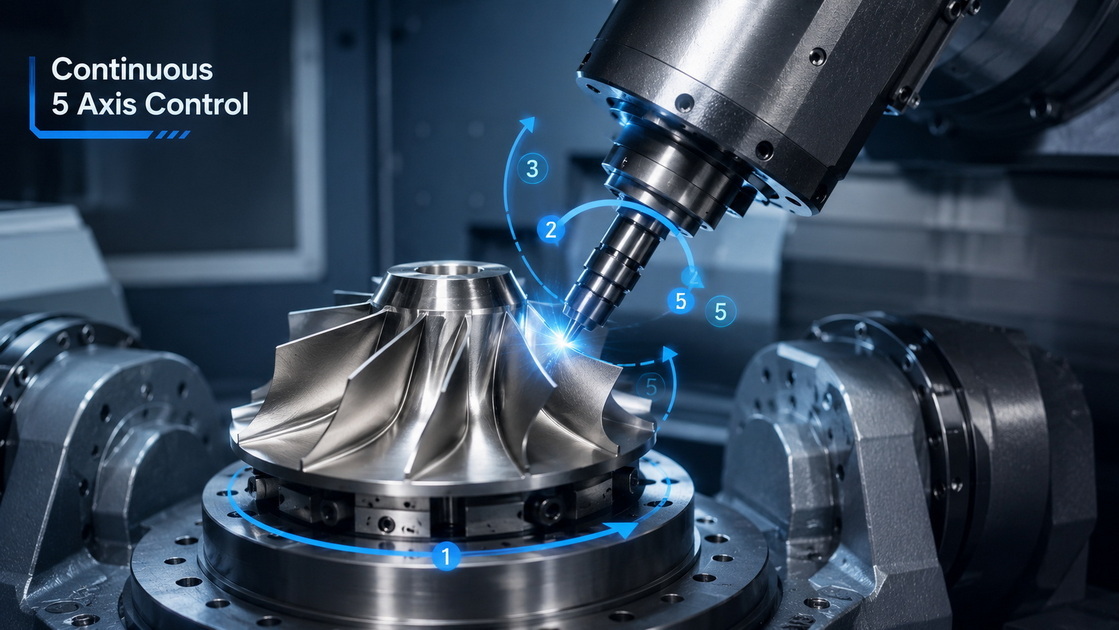

In simultaneous 5‑axis machining, all five axes – three linear (X, Y, Z) and two rotary (A, B or B, C) – can move at the same time during cutting. The tool can approach the part from virtually any direction, keeping an optimal cutting angle on complex surfaces. [methodsmachine]
Typical axis definition in a 5‑axis center:
| Axis | Movement range |
|---|---|
| X | Left to right. |
| Y | Front to back. |
| Z | Up and down. |
| A | Rotation around X, often ±180°. |
| B or C | Rotation around Y or Z, often ±180°. |
This extra freedom lets the machine cut complex free‑form surfaces, deep pockets, and undercuts in a single setup with excellent precision and surface finish. [pdfs.semanticscholar]
From a buyer's perspective, the physics behind each method matters less than how it affects lead time, cost, and tolerance. The table below summarizes the most important differences.
| Aspect | 3+2 Axis CNC Machining | Simultaneous 5‑Axis CNC Machining |
|---|---|---|
| Motion during cutting | 3 axes move while 2 axes stay fixed (positional). | All 5 axes move together during cutting (simultaneous). methodsmachine |
| Geometry complexity | Great for prismatic parts, angled holes, multi‑side features. | Best for complex free‑form surfaces, blades, impellers, orthopedic implants. pdfs.semanticscholar |
| Programming difficulty | Easier CAM, shorter code, simpler post‑processors. | Higher programming skill and advanced CAM required. methodsmachine |
| Machine & setup cost | Lower machine price, easier to justify upgrades from 3‑axis. | Higher investment, complex setup and maintenance. |
| Cycle time | Significantly shorter than pure 3‑axis, but may need multiple indexed views for very complex parts. | Shortest cycle time on highly complex parts; can finish 5 sides in a single pass. methodsmachine |
| Typical industries | General machining, tooling, fixtures, many automotive and industrial components. lsrpf | Aerospace, defense, medical devices, high‑end electronics housings. pdfs.semanticscholar |
| Dimensional accuracy | High accuracy if workpiece is properly fixtured; some limits on extremely contoured surfaces. | Excellent accuracy on complex geometries due to optimal tool orientation and fewer setups. pdfs.semanticscholar |
3+2 machining offers a very attractive balance between capability and cost. Key advantages include:
- More complex features than 3‑axis: Shorter, more rigid tools can reach steep walls, undercuts, and angled surfaces without chatter.
- Simpler programming: Because the toolpaths remain 3‑axis at each indexed angle, CAM programming and post‑processing are more straightforward than full 5‑axis.
- Lower investment and maintenance costs: You can often retrofit a 3‑axis machine with a 2‑axis table or purchase a 3+2 machine at much lower cost than a high‑end 5‑axis center.
- Shorter cycle times vs 3‑axis: Machining multiple faces in one setup reduces changeovers, fixture change, and manual handling time.
This is why many shops use 3+2 as a stepping stone to full 5‑axis: they gain much of the flexibility without the full capital expense and learning curve at the beginning. [methodsmachine]
However, 3+2 is not a universal solution:
- Multiple views required for complex parts: Very intricate geometries may require several indexed positions, which creates overlapping toolpaths and extra machining time.
- Limited continuous curvature: Because the axes do not move simultaneously during cutting, surface transitions can be less smooth than on a truly continuous 5‑axis path. [methodsmachine]
- Still some manual process risk: If many setups or re‑indexing operations are required, the risk of human error and cumulative tolerance stack‑up increases.
For parts that fall in a "medium complexity" range – not simple blocks, not turbine blades – 3+2 often delivers the best cost‑to‑performance ratio.
Simultaneous 5‑axis machining is the gold standard for complex, high‑value components. Its main strengths are:
- Single‑setup manufacturing: Many parts can be fully machined on all five sides in one operation, sharply reducing setup time and handling. [methodsmachine]
- Superior quality and precision: Continuous tool orientation reduces re‑clamping errors and improves tolerance control on contoured surfaces. [pdfs.semanticscholar]
- Outstanding surface finish: The tool can remain tangent to the surface, enabling higher cutting speeds, less vibration, and fewer chatter marks, which cuts down on polishing and post‑processing.
- Higher productivity and repeatability: Optimized tool angles and shorter tools allow more aggressive feeds, longer tool life, and consistent repeatability over long production runs.
For industries like aerospace, defense, and medical implants, 5‑axis machining is often the only practical way to achieve the necessary geometries and tolerances. [pdfs.semanticscholar]
The power of 5‑axis machining comes with trade‑offs:
- Higher programming and operation requirements: 5‑axis toolpaths involve complex spatial trajectories and collision risks, so they demand advanced CAM software and experienced programmers. [methodsmachine]
- Significant capital investment: Machines, high‑end controllers, and software licenses cost considerably more than 3‑axis or 3+2 setups, and maintenance is more demanding.
- Not always necessary: For many plane or prismatic parts, the full capability of 5‑axis is underutilized; in these cases, a 3+2 approach can be more economical.
- Geometric constraints: If the cutter is too short or the holder is too wide, certain tilted configurations can still lead to vibration and limit tool access.
From an engineering and sourcing perspective, "better" means "best fit for your specific part, volume, and budget", not simply "most advanced machine." [lsrpf]
In general:
- Choose 3+2 axis machining when:
- Your part is mainly prismatic with pockets, side holes, or angled features.
- Tolerances are tight, but not extreme on complex free‑form surfaces.
- You want to control cost without sacrificing reliability.
- Choose simultaneous 5‑axis machining when:
- Your part includes complex organic shapes, turbine‑like curves, blisks, blades, or molds with flowing surfaces.
- Tolerances are critical over the full 3D surface.
- You care about minimal setup marks and top‑tier surface finish.
A common strategy in advanced shops is to run mixed workflows: roughing and semi‑finishing on 3‑axis or 3+2 machines, then finishing critical surfaces on a 5‑axis center. This approach maximizes machine utilization and ROI while maintaining quality. [pdfs.semanticscholar]
As someone who works with overseas customers on long‑term CNC projects, I recommend evaluating total cost of ownership, not just the per‑piece machining quote. Industry research and shop‑floor experience show that the main cost drivers are:
- Number of setups and fixtures.
- Scrap rate due to dimensional errors.
- Programming and changeover time.
- Machine and tool maintenance. [plantautomation-technology]
In many cases, a slightly higher hourly rate on a 5‑axis center is offset by:
- Fewer setups and fixtures.
- Lower scrap and rework.
- Faster time‑to‑market for new designs. [blog.thomasnet]
For medium‑complexity parts, a 3+2 solution often offers the best ROI: near‑5‑axis flexibility with far lower equipment and programming overhead. [methodsmachine]
When you send RFQs or design reviews to your CNC supplier, use this simple decision checklist:
1. Map the critical features
- Are there free‑form 3D surfaces or mainly flat faces?
- Are there deep undercuts or angled holes that are hard to reach?
2. Define tolerance and surface requirements
- Where do you need the tightest tolerances?
- What is the required surface roughness (Ra)?
3. Estimate annual volume
- Prototype and small batch: you may prioritize flexibility.
- Mass production: swing toward the most automated, stable process.
4. Review fixture and setup strategy
- Can you reach all features in one or two indexed positions?
- If not, full 5‑axis may cut the total cost despite a higher hourly rate.
5. Discuss with your CNC partner early
- Share 3D models and drawings early.
- Ask for process suggestions: 3‑axis, 3+2, 5‑axis, or a hybrid approach.
As a Chinese CNC precision parts manufacturer serving global OEM and ODM customers, a typical high‑end shop will:
- Operate a mix of simultaneous 5‑axis machining centers and 3+2 axis equipment to match each part's geometry and quantity. [plantautomation-technology]
- Use structured engineering reviews to suggest design‑for‑manufacturability (DFM) improvements that reduce machining risk and cost.
- Apply standardized process control, including FAI (First Article Inspection) and in‑process measurement, to guarantee repeatability.
For overseas buyers, this integrated capability means you do not have to decide every detail of the machining strategy yourself; instead, you can focus on functional requirements, tolerances, and deadlines, and your machining partner will select the optimal mix of 3+2 and 5‑axis processes.
In global supply chains, the choice between 3+2 and 5‑axis machining also affects:
- Lead time and flexibility: Shops with 5‑axis capacity can react quickly to design changes on complex parts without creating new fixtures. [plantautomation-technology]
- Quality consistency across regions: 5‑axis programs can be standardized across multiple facilities, while 3+2 strategies can be more sensitive to local fixturing practices.
- Scalability from prototype to mass production: 3+2 is often used in early runs to validate a design with moderate investment, while 5‑axis is introduced when volume and complexity justify the higher TCO. [blog.thomasnet]
For Western brands sourcing in Asia, partnering with a supplier who understands both methods – and when to use each – is a strategic advantage.
In many RFQs, buyers simply request "CNC machining." Based on experience, you should explicitly request 5‑axis machining or ask for a 5‑axis option when:
- The 3D model includes continuous curved surfaces where surface finish and dimensional accuracy are critical (e.g., optical housings, turbine‑like features).
- You require tight positional tolerances across multiple angled features that would otherwise need several manual setups.
- You want to minimize visible tool marks and blend lines on a premium, customer‑facing product.
If in doubt, send your 3D CAD and drawings and ask your supplier:
Choosing between 5‑axis and 3+2 axis machining should not be guesswork. If you are planning a new product launch, redesigning an existing part, or relocating production to a new supplier, involve your CNC partner early.
Share your CAD files, annual volume estimates, and key functional requirements, and ask for a detailed manufacturing proposal explaining:
- Recommended machining strategy (3‑axis, 3+2, 5‑axis, or hybrid).
- Expected tolerances and surface finishes.
- Estimated lead time and cost breakdown.
A qualified precision machine shop with both 5‑axis and 3+2 axis capabilities can help you balance performance, cost, and lead time – and turn your design into stable, repeatable production.
1. Is 5‑axis CNC machining always better than 3+2?
No. 5‑axis is more capable for complex 3D surfaces, but 3+2 often delivers similar results at lower cost for prismatic parts with angled features. The "best" choice depends on geometry, tolerance, and budget. [methodsmachine]
2. Does 3+2 machining require special CAD models?
In most cases, no. The same 3D model used for 3‑axis or 5‑axis programming can be used for 3+2; the difference lies in how the CAM software defines work planes and indexed positions.
3. Why is 5‑axis machining more expensive?
5‑axis machines and controllers are more complex and costly, and they require advanced CAM software and experienced programmers. However, for complex parts the higher hourly rate is often offset by fewer setups and shorter cycle times. [methodsmachine]
4. Can I mix 3‑axis, 3+2, and 5‑axis within one project?
Yes. Many shops rough on 3‑axis machines, use 3+2 for multi‑side features, and finish critical surfaces on 5‑axis centers to optimize total cost and lead time. [pdfs.semanticscholar]
5. What information should I send my CNC supplier to help them choose the right process?
Provide 3D CAD models, technical drawings, tolerance requirements, surface finish requirements, annual volume estimates, and any special material or certification needs. This allows the supplier to propose the most efficient machining strategy. [blog.thomasnet]
