Single-pass and multi-pass milling can both deliver excellent surface integrity, but they do it in very different ways and are suited to different parts, materials, and production goals. For OEMs working with a precision CNC partner like Shenzhen Feifan Hardware & Electronics Co., Ltd., the smartest strategy is usually not "one is better," but choosing the right pass strategy per feature and surface requirement. [06116812855608011094.googlegroups]

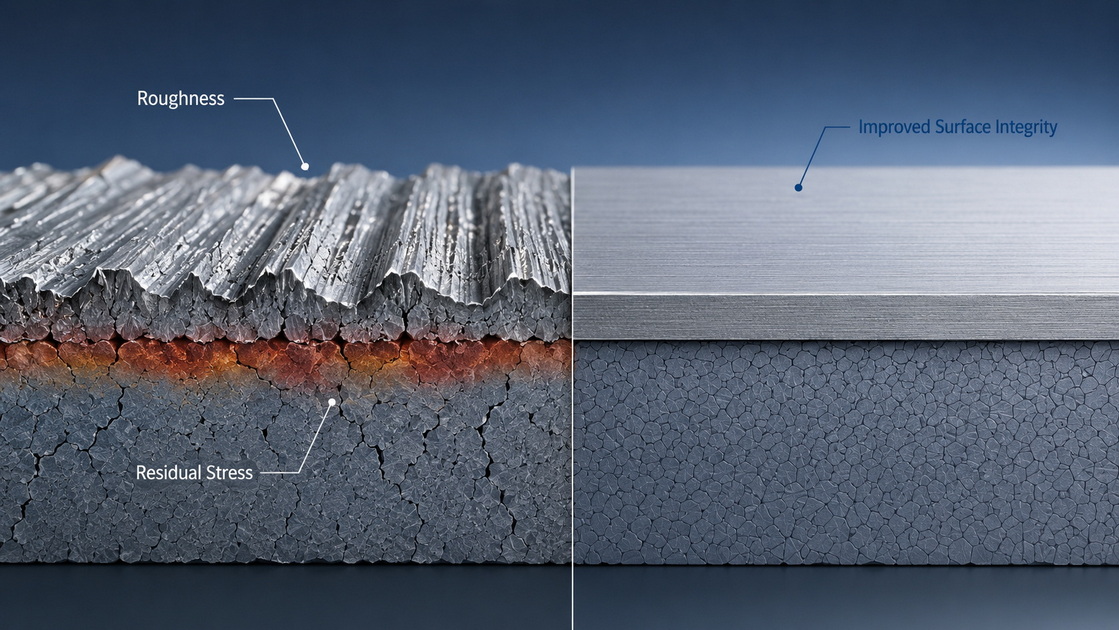

In precision CNC machining, surface integrity is more than just "smoothness." It includes: [minaprem]
- Surface roughness (Ra, Rz)
- Micro-cracks and residual stresses
- Microhardness and work hardening
- Surface layer defects like burns, tears, or white layers
Research and industry practice show that surface integrity directly affects fatigue life, sealing performance, corrosion resistance, and dimensional stability of precision parts. That is why high-end OEMs in automotive, aerospace, electronics, and medical devices now specify not only dimensional tolerances, but also target roughness, residual stress conditions, and even microstructure requirements. [pmc.ncbi.nlm.nih]
> From our experience at Shenzhen Feifan, surface integrity is often the hidden reason why parts from different suppliers perform very differently, even when they "measure" the same on a caliper. [accurateautomaticmfg]

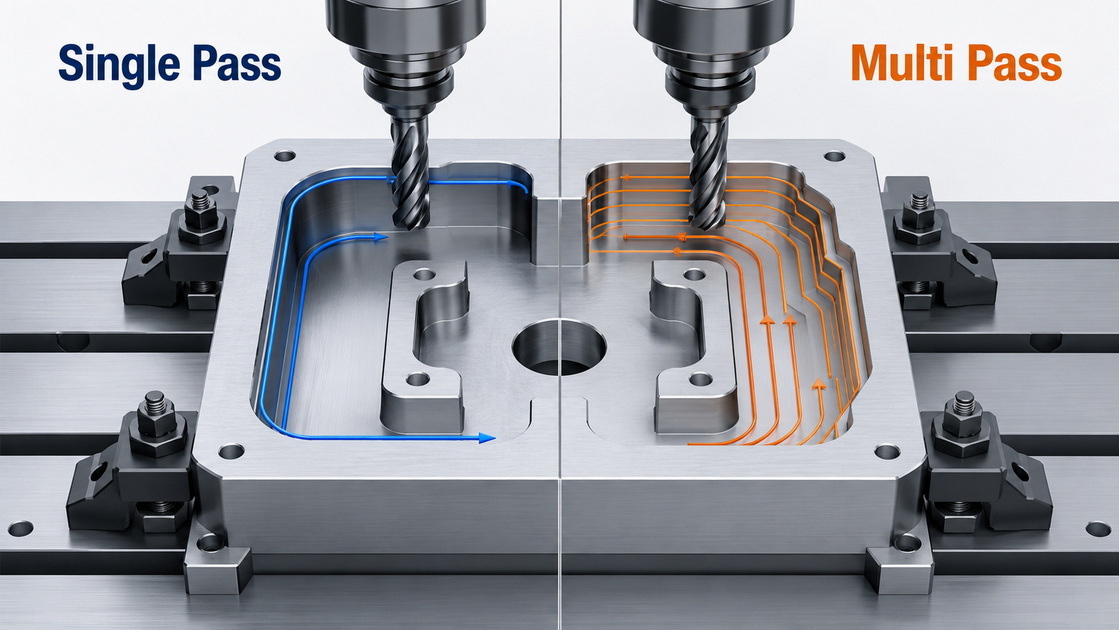

In single-pass milling, the required material is removed to near-net shape and final dimension in one cutting pass (or one roughing + one very light finishing pass on the same toolpath, often still treated as a "single" effective pass strategy in production). [06116812855608011094.googlegroups]
Typical characteristics:
- Larger depth of cut in one pass
- Higher material removal rate
- Stronger cutting forces and heat generation
- Good for stable setups and medium roughness targets
Single-pass strategies are common in high-rigidity setups, production parts with generous tolerances, and cost-sensitive components where top-tier surface integrity is not critical. [anebon]
In multi-pass milling, material is removed in several controlled passes: roughing, semi-finishing, and finishing, sometimes with a dedicated "skim cut" or "spring pass." [distantreader]
Typical pattern:
- 2–4 roughing passes with higher depth of cut
- 1–2 semi-finishing passes
- 1 very light finishing pass (and sometimes an extra no-stock spring pass)
Research on multi-pass face milling shows that optimizing depth of cut per pass, feed rate, and cutting speed across multiple passes significantly improves surface roughness and tool life compared with a single heavy pass. [distantreader]
At Shenzhen Feifan, we rely heavily on multi-pass strategies for tight-tolerance sealing faces, optical housings, high-pressure hydraulic components, and parts with demanding fatigue life requirements. [moranalytics]
- Single-pass milling concentrates forces and heat into one operation, increasing the risk of:
- Plastic deformation on the surface layer
- Tensile residual stresses
- Localized micro-cracks or smeared material in difficult materials (stainless, nickel alloys)
- Tool chatter if rigidity is marginal [minaprem]
- Multi-pass milling spreads cutting forces and heat over several passes:
- Roughing passes remove bulk material with robust parameters
- Finishing passes use lighter depth of cut, lower feed, and optimized tool geometry to minimize heat and mechanical damage
- This makes it easier to control residual stresses and microhardness near the surface [06116812855608011094.googlegroups]
Studies on composite and metal milling confirm that optimizing pass sequence and parameters can reduce cutting forces by over 20%, which is directly linked to better surface integrity and longer tool life. [pmc.ncbi.nlm.nih]
Key levers affecting roughness are feed per tooth, depth of cut, tool nose radius, and vibration. [drachmacnc]
- Single-pass:
- Feed marks and scallops are created in one operation
- Any vibration or tool wear immediately prints into the final surface
- Good for moderate Ra if setup is rigid and tools are fresh
- Multi-pass:
- Roughness can be progressively reduced
- Finishing tools often have wiper geometry or larger nose radius to "smooth out" peaks left by roughing passes [anebon]
- Final pass at lower feed and shallow depth gives more consistent Ra and Rz
For high-spec surfaces in sealing, bearing seats, or sliding interfaces, multi-pass finishing almost always wins in practice. [minaprem]
| Aspect | Single-Pass Milling | Multi-Pass Milling |
|---|---|---|
| Material removal rate | Higher per pass, shorter cycle for simple features 06116812855608011094.googlegroups | Lower per pass, but more predictable and stable overall 06116812855608011094.googlegroups |
| Surface roughness (Ra) | Moderate, sensitive to setup rigidity and tool wear minaprem | Typically lower Ra, more consistent on complex surfaces 06116812855608011094.googlegroups |
| Residual stress & micro-damage | Higher risk of tensile stress, burns, and deformation in hard alloys minaprem | Better control of residual stress and microstructure, especially with controlled finishing passes 06116812855608011094.googlegroups |
| Tool life | Can shorten tool life if parameters are aggressive minaprem | Often longer tool life due to better parameter distribution across passes 06116812855608011094.googlegroups |
| Process robustness | Sensitive to vibration, clamping, and tool condition minaprem | More stable; final quality less dependent on one single cut 06116812855608011094.googlegroups |
| Programming & setup time | Simpler toolpaths, easier CAM and setup | More complex CAM, more passes and toolpath tuning 06116812855608011094.googlegroups |
| Best use cases | Simple geometries, liberal tolerances, cost-first parts | High-value parts, tight tolerances, critical surfaces, difficult materials minaprem |
From an OEM cost and lead-time perspective, single-pass milling still makes excellent sense in several scenarios. [accurateautomaticmfg]
Use single-pass strategies when:
- Tolerances are moderate and surfaces are non-critical
- Material is easy to machine (e.g., free-cutting aluminum)
- Part geometry is simple and setup is extremely rigid
- You prioritize lowest piece price and fastest throughput over maximal surface perfection
In our daily work, we adopt single-pass or near-single-pass strategies for:
- Brackets, fixtures, non-critical covers
- Internal features that will never contact seals or moving parts
- Test samples or prototype parts where speed matters more than finish
With proper parameter selection (feed rate, cutting speed, and tool radius), single-pass milling still reaches surface finishes that satisfy many industrial applications. [drachmacnc]
For precision OEM components, multi-pass milling offers clear advantages in terms of surface integrity and risk control. [pmc.ncbi.nlm.nih]
Key benefits:
- Optimized roughing: High removal rate without worrying about final surface
- Dedicated finishing: Low feed, shallow depth, and optimized tool geometry for the last pass
- Reduced chatter and vibration impact: Any vibration during roughing can be corrected by finishing passes
- Better residual stress control: Spread heat and load across passes to avoid surface damage
Research on multi-pass optimization demonstrates that fine-tuning feed, speed, and depth across passes minimizes roughness while respecting tool life and cycle time constraints. This is exactly the logic we apply in our process engineering at Shenzhen Feifan for export orders. [distantreader]
If you or your machining partner must run a single-pass strategy, we recommend:
1. Choose a stable parameter window
- Moderate cutting speed and feed rate
- Avoid pushing depth of cut to machine or tool limits
- Use positive rake tools and appropriate nose radius to reduce cutting forces [drachmacnc]
2. Control vibration
- Shorter tool overhang
- Proper clamping and fixture design
- Regular spindle and machine maintenance [anebon]
3. Watch heat and chip evacuation
- Use the right cutting fluid strategy (flood or MQL depending on material)
- Ensure chip evacuation is unobstructed to avoid recutting and scratching
4. Apply strict tool management
- Replace tools before they are visibly worn
- Set tool life in the CNC control to prevent running a dull tool on a critical batch [minaprem]
With these controls, single-pass milling can still deliver acceptable surface integrity for many OEM components while minimizing cycle time.
For multi-pass milling, parameter design is an engineering task, not guesswork. Our general framework: [06116812855608011094.googlegroups]
1. Roughing passes
- Higher depth of cut and feed
- Priority on material removal and chip control
- Allowable roughness as long as there is enough stock for finishing
2. Semi-finishing pass (if needed)
- Reduce depth of cut and feed
- Equalize leftover stock on the final surface
- Prepare a stable, uniform layer for finishing
3. Finishing pass
- Very low depth of cut (often 0.1–0.3 mm for many materials)
- Lower feed per tooth, tailored for target Ra
- Optimized tool geometry: wiper inserts, polished cutting edges, and appropriate nose radius [anebon]
4. Optional spring pass
- Same path as finishing, zero or near-zero stock
- Used when spring-back or residual stress risk is high
By combining this with online monitoring of tool wear, cutting force, or vibration, ODM/OEM suppliers can keep surface integrity very stable across large batches. [06116812855608011094.googlegroups]

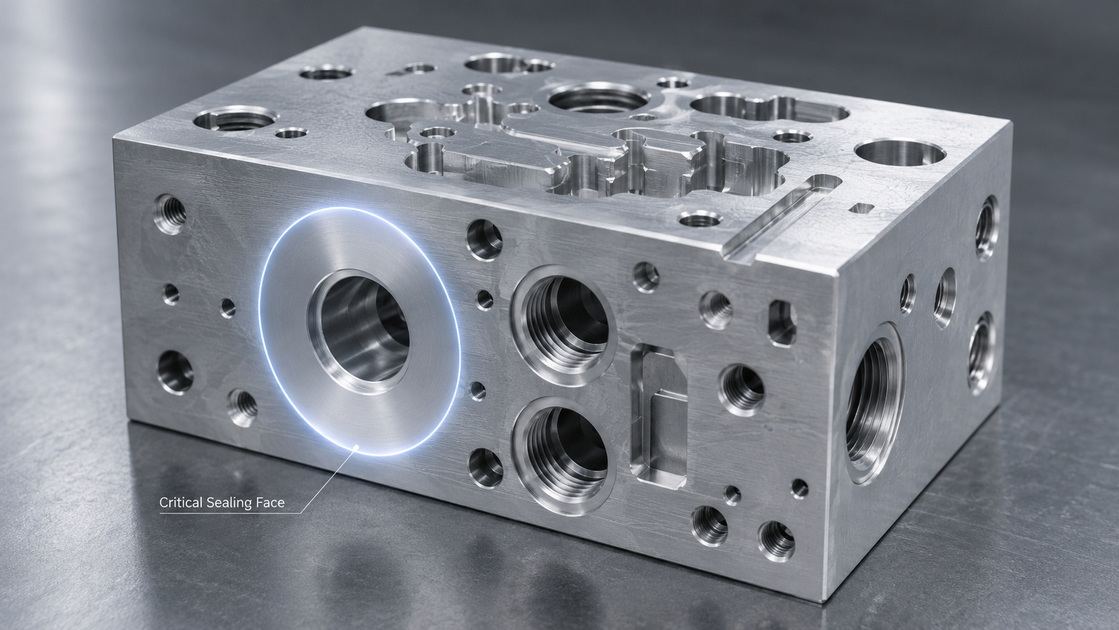

Here is how we typically align pass strategy with function for international OEM customers:
- Pressure sealing faces (valves, pumps, hydraulic blocks)
- Multi-pass milling with dedicated finishing tool
- Sometimes followed by grinding or lapping depending on leakage requirements
- Bearing seats and sliding interfaces
- Multi-pass finishing to achieve low roughness and controlled residual stress
- Very stable clamping and toolpath to avoid shape distortion
- Decorative but non-critical covers
- Single-pass or light finishing only
- Emphasis on visual uniformity rather than extreme Ra
- Heat-sensitive alloys and hardened steels
- Multi-pass with conservative parameters to avoid surface burns and micro-cracks
- Careful coolant and tool material selection [pmc.ncbi.nlm.nih]
From an OEM perspective, this functional segmentation is often the most practical way to decide where you should invest in multi-pass finishing and where single-pass is sufficient.
As a Chinese CNC precision parts manufacturer, Shenzhen Feifan Hardware & Electronics Co., Ltd. focuses on exported OEM and ODM projects where surface integrity directly impacts brand reputation in overseas markets. [moranalytics]
Our typical approach:
- Early design-for-manufacturing (DFM) review with your engineering team to classify surfaces by function
- CAM strategy selection for each surface: single-pass, multi-pass, or hybrid
- Parameter optimization based on material, geometry, and your target Ra / functional requirements
- First Article Inspection (FAI) including roughness measurement and visual inspection of surface integrity
- Continuous optimization across batches, informed by tool wear and inspection data
This integrated approach lets us balance cost-per-piece with surface performance, rather than simply choosing the fastest cycle or the most conservative process.
If you are reviewing a drawing or quoting a project, use this quick decision checklist:
1. Is the surface functional and critical?
- Yes → Strong candidate for multi-pass finishing
- No → Single-pass might be enough
2. What is the required Ra and tolerance?
- Ra below ~0.8 μm and tight flatness/parallelism → Multi-pass plus finishing tools
- Ra above ~1.6 μm and generous tolerances → Single-pass may be acceptable
3. What is the material?
- Hardened steel, stainless, nickel alloys → Prefer multi-pass with conservative finishing
- Soft aluminum or brass → Single-pass feasible if setup is rigid
4. What is the lifetime and risk level of the part?
- Safety or mission-critical component → Multi-pass, tightly controlled
- Low-risk, non-critical component → Cost and speed can dominate
5. What are your total lifecycle costs?
- Slightly higher machining cost per piece can be far cheaper than warranty claims, recalls, or brand damage caused by premature failure.
At Shenzhen Feifan, we routinely walk customers through this type of decision so that each project has an optimal, documented pass strategy aligned with their technical and commercial goals. [accurateautomaticmfg]
If you are planning a new CNC project or reviewing an existing supplier, it is worth asking: Is our pass strategy aligned with the surface integrity we actually need?
Shenzhen Feifan Hardware & Electronics Co., Ltd. can analyze your drawings, understand your functional requirements, and propose optimized single-pass or multi-pass milling strategies that balance surface integrity, cost, and lead time for your specific market.
You can share a sample drawing or specification with us, and we will provide a manufacturability review and suggested milling strategy tailored to your parts.
1. Does multi-pass milling always give better surface integrity than single-pass?
Not always, but for critical surfaces, tight tolerances, and difficult materials, multi-pass strategies usually deliver more consistent roughness and better control of residual stress than a single heavy cut. [minaprem]
2. How many passes are typical in multi-pass milling?
Industrial studies and shop-floor practice commonly use 3–5 total passes, combining roughing, semi-finishing, and finishing, depending on stock allowance and surface requirements. [distantreader]
3. Can I switch from multi-pass to single-pass to reduce cost?
Yes, but only after reviewing function, tolerances, and material; for non-critical surfaces you can often safely simplify to single-pass and save cycle time and tooling cost. [accurateautomaticmfg]
4. What surface roughness can milling realistically achieve without grinding?
With optimized tools, parameters, and multi-pass finishing, many CNC shops can reach sub-micron Ra on suitable materials, but very high-end finishes may still require grinding or lapping for certain applications. [anebon]
5. How should I specify surface integrity on my drawings?
Beyond Ra, OEMs increasingly specify flatness, waviness, residual stress expectations, and sometimes process notes; partnering with a CNC supplier to translate functional requirements into realistic surface specs is often the best approach. [moranalytics]
