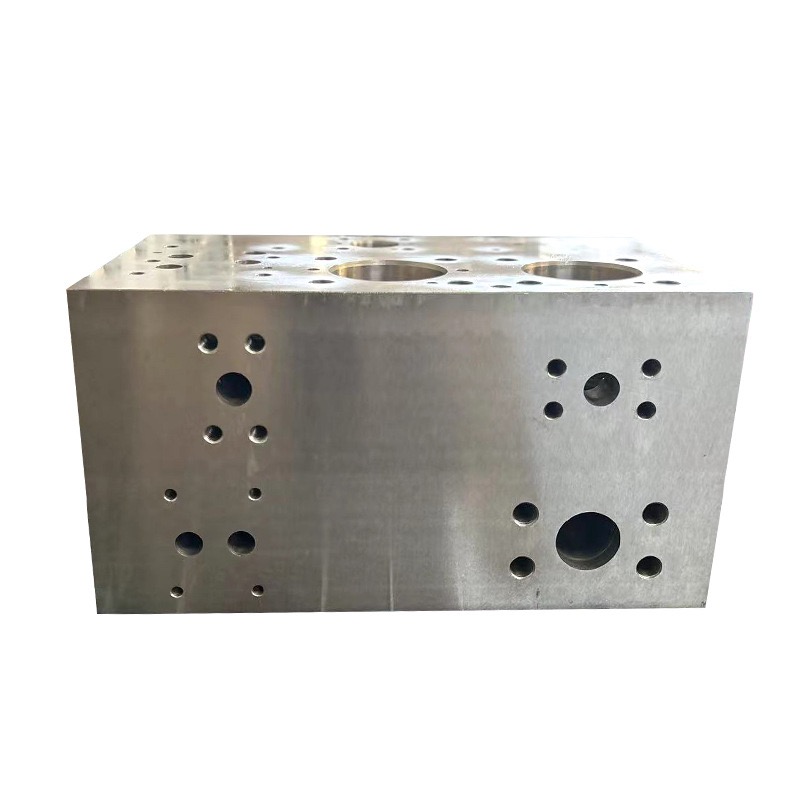

In the realm of advanced fluid control and pressure distribution systems, the hydraulic manifold serves as a critical junction, dictating the operational reliability of the entire assembly. For our client, a leader in high-performance fluid systems, the development of a custom manifold presented significant technical hurdles that directly impacted their market position and project timeline.
The project required manufacturing a structurally complex manifold. The primary challenges our client faced included:
Intricate Internal Geometry: The manifold featured highly complex internal flow channels with multiple intersecting geometries. Traditional machining approaches struggled to maintain precision within these hidden pathways, leading to inconsistent flow dynamics.
Leakage Under High Pressure: Previous suppliers failed to meet the rigorous sealing requirements necessary for high-pressure operation. This failure was attributed to both surface finish quality and the inability to maintain necessary positional accuracy of mating surfaces.
Tolerance Stack-up and Assembly Instability: Cumulative errors arising from repeated clamping and setup operations led to tolerance stack-up, rendering the final assembly unstable and requiring significant manual rework at the client's end.
Batch Inconsistency: Maintaining repeatable quality across large production volumes remained an elusive goal, directly affecting the customer's supply chain efficiency.
Material and Regulatory Compliance: All components had to meet strict EN standards, requiring a manufacturing partner capable of processing high-strength alloys without compromising toughness or long-term structural stability.
The core of the problem was a misalignment between the design's complexity and the manufacturing strategy employed by previous suppliers. The customer needed a partner with not just high-end machinery, but the engineering expertise to optimize the production process for repeatability, precision, and efficiency.
At Shenzhen Feifan Hardware & Electronics Co., we believe that successful manufacturing is a partnership between design intent and fabrication reality. We approached this hydraulic manifold project by shifting focus from simple execution to comprehensive process optimization.
To address the complexity of the internal flow channels, we deployed advanced 5-axis CNC machining. Unlike 3-axis machining, which requires multiple setups and increases the risk of positioning errors, 5-axis technology allows for more complex geometries to be machined in fewer operations. This significantly reduced the opportunity for accumulated positioning errors.
For the intersecting internal channels, we developed dedicated, customized machining strategies. By optimizing the tool access and feed rates, we ensured that even the most difficult-to-reach areas received consistent cutting pressure, resulting in uniform surface finish throughout the internal architecture—a critical factor in reducing turbulence and potential leaks.
We identified the sealing and mating surfaces as the highest-risk areas for failure. Our team applied strictly controlled finishing parameters, focusing on geometric dimensioning and tolerancing (GD&T) to ensure flatness and positional accuracy. This attention to detail ensured that, upon assembly, the manifold formed a hermetic seal under high-pressure conditions.
 |  |
The path to mass production was iterative. Before committing to a full production run, we engaged in a structured prototype validation process. During the first stage, our inspection protocols identified minor machining and assembly deviations. Rather than proceeding, we utilized this data to refine our 5-axis strategy, improving our dimensional control methods. This feedback loop allowed us to "learn" the part's behavior, ensuring the second prototype met the client's specifications with a significant margin of safety.
To guarantee batch-to-batch consistency, we integrated Coordinate Measuring Machine (CMM) inspections into our standard manufacturing workflow. We implemented a 100% inspection protocol for all critical dimensions, ensuring that every manifold leaving our facility conformed precisely to the engineering requirements.
Through our iterative process and engineering-first mindset, this project transformed from a high-risk development task into a stable, repeatable manufacturing success. The final results exceeded our client's expectations, delivering substantial improvements across all key performance metrics:
Enhanced Sealing Performance: Through superior surface control and precision positioning, the manifolds performed flawlessly under high-pressure conditions, eliminating the leakage issues that plagued previous iterations.
Improved Batch Consistency: The combination of 5-axis machining and rigorous CMM validation resulted in a high degree of uniformity, ensuring that every unit in a production batch was interchangeable and reliable.
Optimized Assembly Efficiency: With reduced tolerance stack-up, the manifold assembly process was streamlined, significantly reducing rework for the client and accelerating their time-to-market.
Lead Time and Process Stability: By refining the machining strategy during the prototype phase, we established a robust, repeatable process that allowed for more predictable lead times and reduced waste.
This project significantly enhanced our core competencies at Shenzhen Feifan Hardware & Electronics Co. While we have extensive experience in manufacturing various manifold types, the unique demands of this project pushed our team to refine our expertise in:
Advanced Multi-Axis Path Planning: Our ability to simulate and execute complex toolpaths for intersecting channels is now more precise, allowing us to handle even more intricate fluid control components.
Internal Flow Path Management: We have refined our proprietary techniques for finishing internal surfaces, ensuring both structural integrity and optimal fluid dynamics.
Batch Management for High-Precision Components: We have solidified our internal quality management systems, making us more efficient in balancing precision with high-volume production needs.
At Shenzhen Feifan, we understand that for OEM and ODM partners, a component is only as good as the reliability of the supply chain that produces it. This manifold project stands as a testament to our commitment to engineering excellence and our dedication to helping our global clients overcome complex manufacturing hurdles. We continue to invest in our people, our 5-axis CNC capabilities, and our rigorous quality protocols to ensure we remain at the forefront of precision parts manufacturing.
