As a CNC manufacturing engineer who has supported OEM and ODM customers in Europe and North America for more than a decade, I've learned that well‑designed slide bearings often determine whether a product feels premium or cheap. When we machine custom slide‑bearing components for our overseas clients at Shenzhen Feifan Hardware & Electronics Co., Ltd., we see the same pattern: material selection, CNC process control, and testing strategy are the three levers that make or break performance. [premiumparts]
In this guide, I'll walk you through CNC machining for slide bearings, share real shop‑floor lessons, and explain how an experienced OEM/ODM CNC partner can help you get reliable low‑friction movement without over‑engineering or cost overruns. [seller.alibaba]

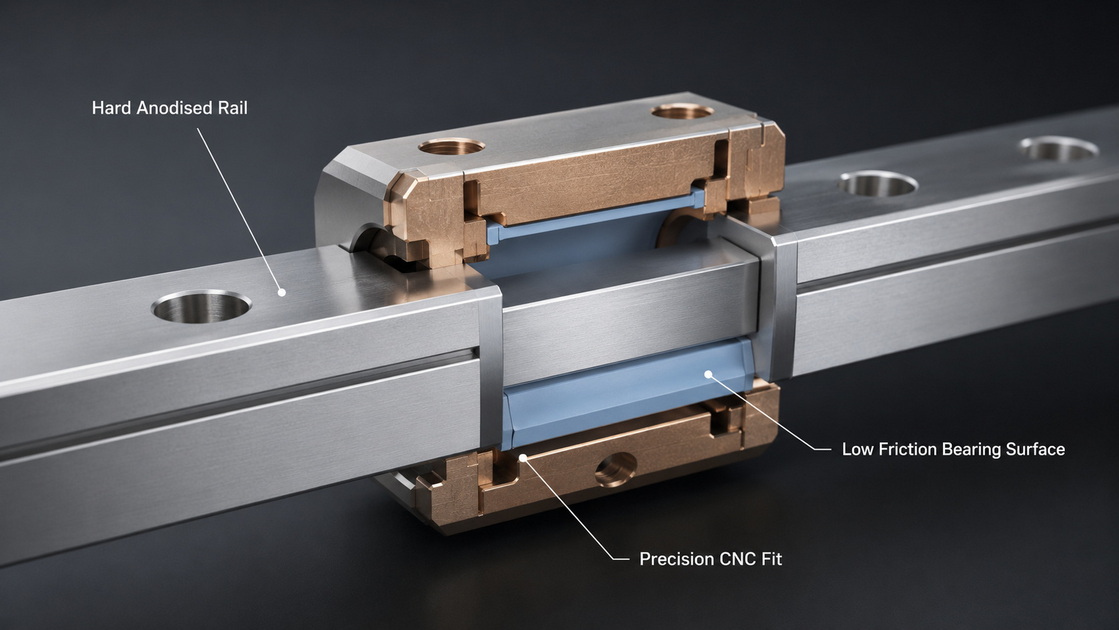

A slide bearing (or sliding bearing) is a mechanical element that allows relative motion between two parts with minimal friction and controlled wear, for example in a robot joint, an engine mechanism, or a sliding door system. Unlike ball or roller bearings, slide bearings usually rely on sliding surfaces rather than rolling elements, which makes them compact, quiet, and cost‑effective for linear or oscillating motion. [athenaswc]
In OEM projects, we most often see slide bearings used in:
- Linear guides and slide rails in automation equipment
- Hinges and sliding mechanisms in consumer products
- Bushings and bearing faces in pumps, small engines, and gearboxes
Because these components see repetitive motion and long service life, CNC machining is frequently the preferred process to achieve tight tolerances, repeatability, and smooth surface finishes in both the bearing and mating parts. [hubs]
When you design relative motion, you typically choose between three low‑friction strategies. [athenaswc]
Rolling solutions use balls, rollers, or wheels to convert sliding friction into rolling friction. [athenaswc]
- Excellent for continuous rotation or heavy loads
- Easy to source from catalog components
- Often sealed and pre‑lubricated
However, they add cost, complexity, and space, which is why many of our OEM clients switch to CNC‑machined slide bearings for compact linear mechanisms or cost‑sensitive assemblies. [athenaswc]
Adding liquid lubricants is a traditional way to reduce friction and wear. [athenaswc]
- Very effective in metal‑on‑metal contacts
- Common in CNC cutting processes and rotating machinery
Yet lubricants can evaporate, attract contaminants, and complicate maintenance, which is a concern in clean environments like medical devices, electronics, and food equipment. [hubs]
Dry sliding systems rely on material properties and engineered surfaces to provide low friction without continuous lubrication. [athenaswc]
- Typically pair a harder surface (e.g., anodised aluminium or carbon steel) with a softer sacrificial layer (e.g., PTFE or bronze)
- Over time, the softer material deposits microscopic films that polish and stabilize the interface
Dry slide bearings are especially attractive for compact, low‑maintenance designs—exactly where CNC machined parts deliver the precision alignment and clearances required. [hubs]
From both an engineering and manufacturing standpoint, a successful slide‑bearing design must balance life cycle, loading, environment, and manufacturability. [hubs]
When we review customer drawings, these are the first questions we ask:
- Life cycle: How many cycles or rotations do you expect over the product's life? [athenaswc]
- Load and stress: What are the compressive loads, operating loads, and fatigue requirements? [athenaswc]
- Environment: Will the bearing see dust, moisture, corrosive agents, or extreme temperatures? [athenaswc]
- Material behavior: How do the candidate materials handle wear, creep, and dimensional stability over time? [premiumparts]
Answering these questions early helps narrow down both material choices and CNC process parameters (tolerances, finishing operations, and quality controls).
For the soft, sliding element, certain polymers and copper alloys consistently perform well in CNC‑machined slide bearings. [athenaswc]
PTFE is widely used in aerospace and mechanical engineering where exceptionally low friction is critical. [athenaswc]
- Among the lowest coefficients of friction of any plastic
- Minimal maintenance, strong chemical and UV resistance, and flame retardancy
- High load‑bearing capacity for larger, heavier applications such as engines and automatic sliding doors [athenaswc]
Its main drawback is that PTFE is relatively soft, so it must be paired with a smooth, well‑machined mating surface to avoid deformation and premature wear. [athenaswc]
PEEK is the "do‑everything" high‑end plastic of choice in aerospace, motorsport (F1), and medical devices. [jiga]
- Excellent sliding friction properties
- High thermal stability and resistance to radiation, chemicals, and moisture
- Very high wear resistance compared with most plastics
PEEK can replace metal in many demanding slide‑bearing components, but it comes with a significantly higher material cost, making it suitable for critical or high‑value applications. [jiga]
Acetal (POM) is a classic choice for precision sliding components that require tight tolerances at a reasonable cost. [athenaswc]
- Low friction and good wear resistance
- High stiffness and excellent dimensional stability
- Less hygroscopic than nylon, so it absorbs far less moisture and maintains size better
We commonly machine POM for ball bearings, small gears, fasteners, and slide components in automotive and electronics applications. [premiumparts]
Phosphor bronze is one of the most popular metallic slide‑bearing materials, and with good reason. [athenaswc]
- High strength and good corrosion resistance
- Low coefficient of friction due to a thin tin oxide layer that forms on the surface
- Effectively "self‑lubricating" and capable of outlasting the equipment it serves when correctly maintained [athenaswc]
It is widely used in bearings, gears, springs, and bushes across aerospace, automotive, engineering, and marine sectors—and it machines well on CNC equipment, making it ideal for custom OEM geometries. [jiga]
The corresponding harder surfaces in a slide‑bearing pair are often machined metals, carefully finished to achieve low friction and long life. [athenaswc]
Aluminium by itself is not ideal for high‑wear sliding surfaces, but anodising transforms its performance. [athenaswc]
- Anodised aluminium offers increased surface hardness and corrosion resistance
- Hard anodising creates an even thicker, more wear‑resistant layer
- When paired with PTFE or engineered plastics, it delivers smooth, lightweight slide mechanisms at competitive cost [athenaswc]
For OEM projects, hard‑anodised aluminium slide rails are common in doors, industrial equipment covers, and lightweight machinery. [athenaswc]
Carbon steels such as EN8 can be heat‑treated to provide a hard, moderately wear‑resistant sliding surface. [athenaswc]
- Often used when mild steel cannot meet hardness or fatigue requirements
- Typical CNC‑machined components include axles, gears, spindles, bolts, studs, and general engineering parts [athenaswc]
In slide‑bearing assemblies, we often pair hardened carbon steel with bronze or brass bushings to balance durability with machinability and cost. [athenaswc]

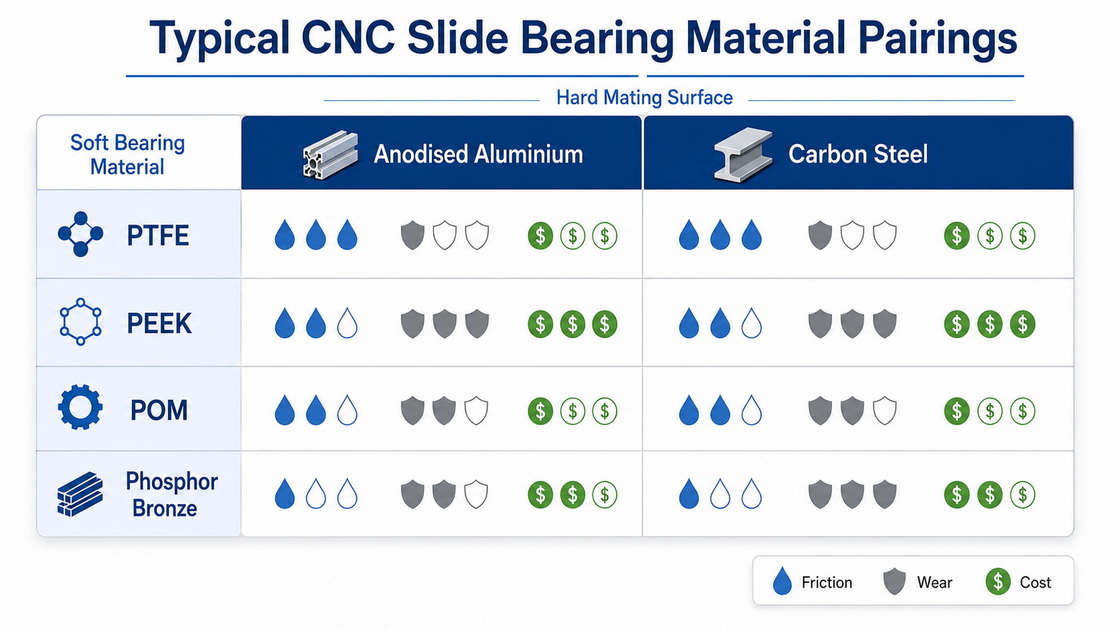

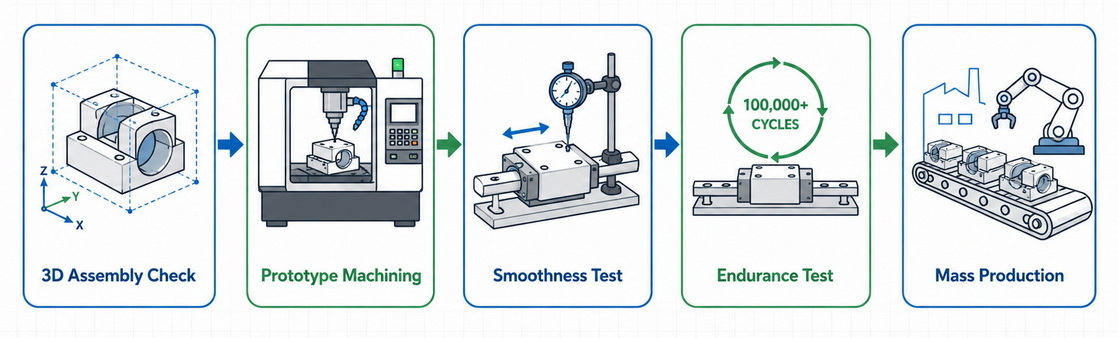

As an OEM/ODM supplier, we insist on real‑world validation, not just CAD checks. [athenaswc]
A robust 3D assembly model is essential to ensure that all moving parts align and clearances are correct. [athenaswc]
- Confirm that all components mesh correctly in CAD
- Check that no unintended surfaces rub or foul during the full motion range
This stage prevents expensive redesigns once tooling or pre‑production batches are underway. [hubs]
The best way to test any sliding mechanism is to operate it under realistic conditions. [athenaswc]
- First, confirm that the movement is smooth and free of "sticking" or binding
- Next, set up an automated lifetime or endurance test to simulate worst‑case environments (e.g., high temperature, dust) [athenaswc]
Short CNC lead times make it feasible to trial multiple materials and geometries in small batches, then standardize on the best‑performing combination. [seller.alibaba]
The coefficient of friction (COF) quantifies how much force is required to slide one surface over another relative to the normal load. [athenaswc]
A typical test uses:
- A standardized stainless‑steel plate as the reference surface
- A sample of the test material loaded with a known weight
- Measurement of the force required to drag the sample across the plate [athenaswc]
A COF below 0.1 is generally considered very good for low‑friction applications. For example, if a sledge and load weigh 100 kg, a coefficient of friction of 0.1 implies you can pull it with a 10 kg equivalent force. Materials like PTFE, diamond‑like coatings, and specially engineered ceramics sit at the lower end of the friction spectrum, though PTFE remains the most practical for CNC‑machined parts due to its machinability and cost. [jiga]
Several famous engineering achievements showcase the power of well‑designed sliding interfaces. [athenaswc]
- Millau Viaduct (France): Engineers used PTFE‑based sliding wedges to gradually move massive road deck sections across a 2,500 m span without overloading the slender pillars. [athenaswc]
- Antikythera Mechanism: This ancient Greek device (circa 100 BCE) used bronze gear wheels, likely chosen for its ability to slide and rotate smoothly while resisting corrosion, allowing the mechanism to survive underwater for centuries. [athenaswc]
- Harrison's Timekeepers: John Harrison's 18th‑century marine chronometers replaced unstable oil lubricants with low‑friction solids such as hardwoods and ruby "jewels", dramatically improving reliability at sea. [athenaswc]
These examples underline a lesson we see daily in CNC projects: controlling friction is often the hidden key to durability and precision. [athenaswc]
From the perspective of a Chinese CNC precision parts manufacturer serving overseas clients, a successful slide‑bearing project typically follows a structured collaboration.
1. Requirements clarification
We align on life cycle, loads, environmental conditions, target cost, and assembly constraints. [seller.alibaba]
2. Material and pairing proposal
Based on the requirements, we recommend combinations such as hard‑anodised aluminium + PTFE, carbon steel + phosphor bronze, or stainless steel + PEEK. [jiga]
3. DFM feedback on tolerances and geometry
Our engineers review your drawings to ensure clearances, tolerances, and surface finish specs are realistic for CNC and suitable for sliding contact. [hubs]
4. Prototype and pre‑production runs
We machine small batches for functional testing, verifying fit, smoothness, and wear across cycles. [athenaswc]
5. Process optimization for volume production
Once design is frozen, we standardize cutting parameters, inspection checkpoints, and packaging to ensure consistent performance across batches. [premiumparts]
This structured approach helps OEMs and brands shorten development cycles and reduce failure risk in the field.
Regardless of which manufacturer you work with, following fundamental CNC design guidelines significantly improves performance. [hubs]
- Avoid unnecessary tight tolerances. Over‑tight tolerances raise cost and may increase binding risk under thermal expansion or contamination. [hubs]
- Use the largest feasible tool diameters. Larger tools improve stiffness, reduce chatter, and help achieve consistent surface finishes on bearing faces. [hubs]
- Add generous fillets in internal corners. Aim for fillet radii of at least one third of the cavity depth to reduce stress concentrations and machining time. [hubs]
- Limit cavity depth to about four times the cavity width to maintain tool stability. [hubs]
- Align main features with principal axes when possible to simplify setups; consider 5‑axis machining for complex geometries. [hubs]
For slide bearings, also pay special attention to surface finishes, parallelism, and coaxiality, which directly influence friction and wear.
Catalog bearings are convenient, but in many projects our customers gain clear advantages by using custom CNC‑machined slide bearings instead. [alibaba]
You should consider custom CNC slide bearings when:
- Space is limited and standard parts do not fit your packaging
- Your design demands integrated features (e.g., mounting flanges, alignment bosses) to simplify assembly
- You need specific materials or coatings for corrosion resistance, regulatory compliance, or branding (e.g., custom colours, finishes)
- Your product requires unique motion profiles or non‑standard stroke lengths
By machining the bearing surfaces directly into structural components, you can often reduce part count, simplify assembly, and improve reliability. [hubs]
From an engineering point of view, material selection, machining quality, and realistic testing are the three pillars of reliable slide‑bearing performance. From a manufacturing point of view, partnering with a CNC shop that understands OEM/ODM requirements—quality systems, documentation, and communication—is equally important. [plantautomation-technology]
When you combine robust design practices with precise CNC machining, you can create sliding mechanisms that outlast the product itself and deliver the smooth, premium feel your customers expect. [athenaswc]
If you are designing a new product or updating an existing assembly that depends on low‑friction slide bearings, involve your CNC manufacturing partner early. [seller.alibaba]
At Shenzhen Feifan Hardware & Electronics Co., Ltd., our engineering team can:
- Review your CAD models and drawings for slide‑bearing DFM
- Recommend optimal material pairings and finishes
- Produce rapid prototypes and small test batches for endurance validation
- Scale to stable, repeatable mass production for global OEM and brand customers
Share your drawings and application requirements, and we will help you engineer a slide‑bearing solution that balances performance, cost, and manufacturability. [plantautomation-technology]
