Views: 222 Author: Feifan Hardware Publish Time: 2026-04-11 Origin: Site

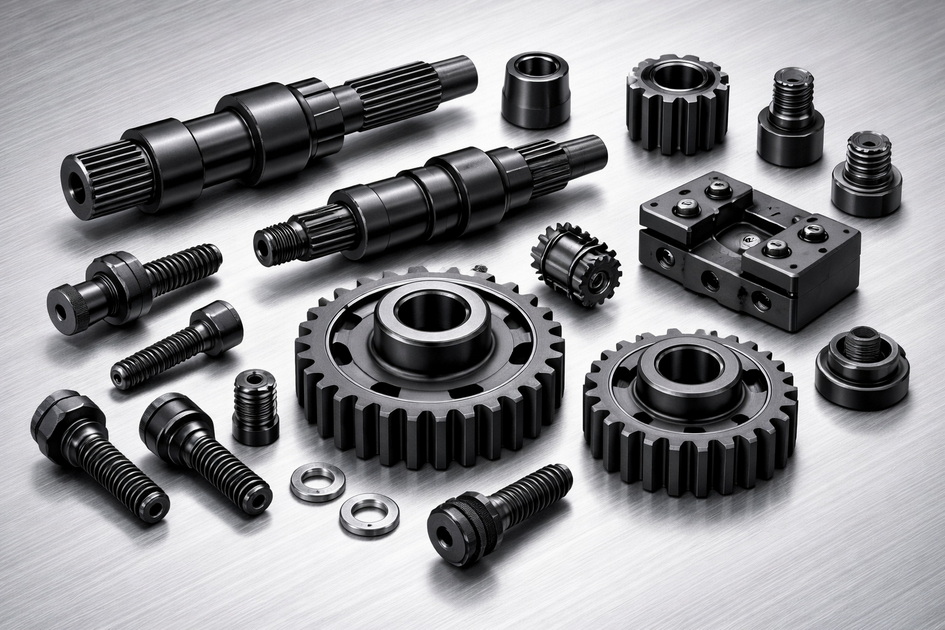

If you work with precision CNC‑machined steel components, you've probably heard that black oxide coating for CNC parts is "thin, cheap, and good enough." In my experience running production for overseas OEM and ODM customers, that's only half the story. A well‑engineered black oxide finish can dramatically improve corrosion resistance, fit, aesthetics, and usability—without compromising tight tolerances. [cncmachiningshops]
Black oxide is a chemical conversion coating that transforms the surface of ferrous metals into a thin layer of magnetite Fe3O4. Unlike plating, it does not build up significant thickness, which is why engineers like it on precision CNC parts, gears, and threaded components. [sendcutsend]
- Typical coating thickness: 0.5–1.5 µm
- Typical dimensional change: negligible for most CNC fits and threads [cncmachiningshops]
- Applicable materials: carbon steel, alloy steel, tool steel, some stainless steels with modified processes [sendcutsend]
For B2B buyers, this means you can improve appearance and corrosion resistance without re‑engineering your tolerances in most cases. [ptsmake]
From an engineering and sourcing standpoint, black oxide sits in a sweet spot between bare steel and more expensive coatings.
Key benefits for CNC parts:
- Dimensional stability: The ultra‑thin layer preserves tight tolerances, press fits, and threads. [cncmachiningshops]
- Corrosion resistance: When properly oiled or sealed, black oxide can reach 24–96 hours in salt spray tests (ASTM B117), depending on steel grade and sealer system. [swdinc]
- Improved lubricity: The porous magnetite layer holds oil or wax, acting as a dry‑film–like lubricant. [sendcutsend]
- Non‑reflective appearance: The matte black surface reduces glare and improves visual contrast in assembly and inspection. [cncmachiningshops]
- Cost‑effectiveness: Lower cost and shorter lead time compared with many plating or paint systems for small, high‑precision parts. [ptsmake]
From my work with automation, robotics, and tooling customers, black oxide is particularly effective for fasteners, shafts, jigs, fixtures, and cutting tools that need both precision and moderate corrosion protection rather than heavy‑duty marine performance. [ptsmake]

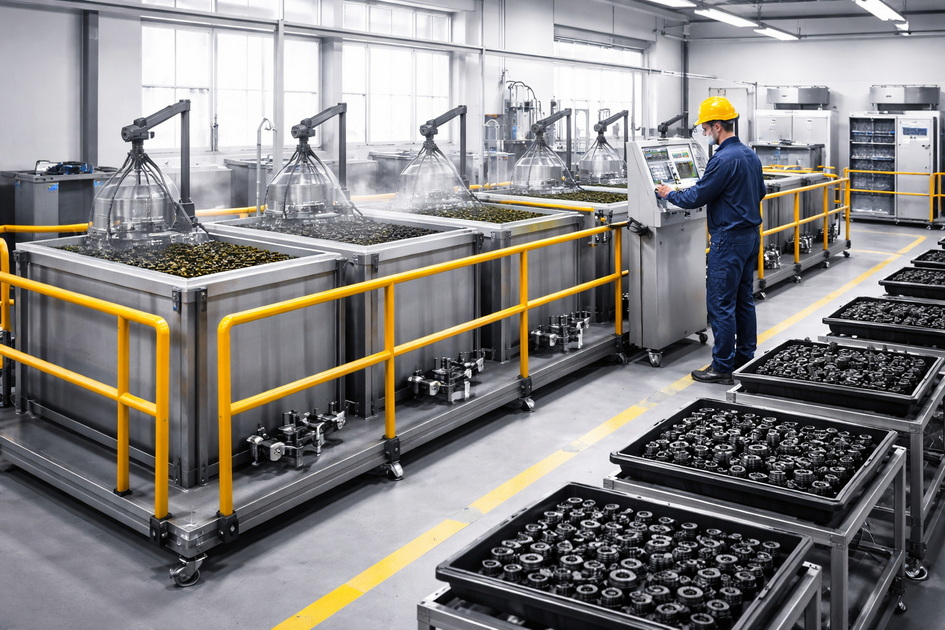

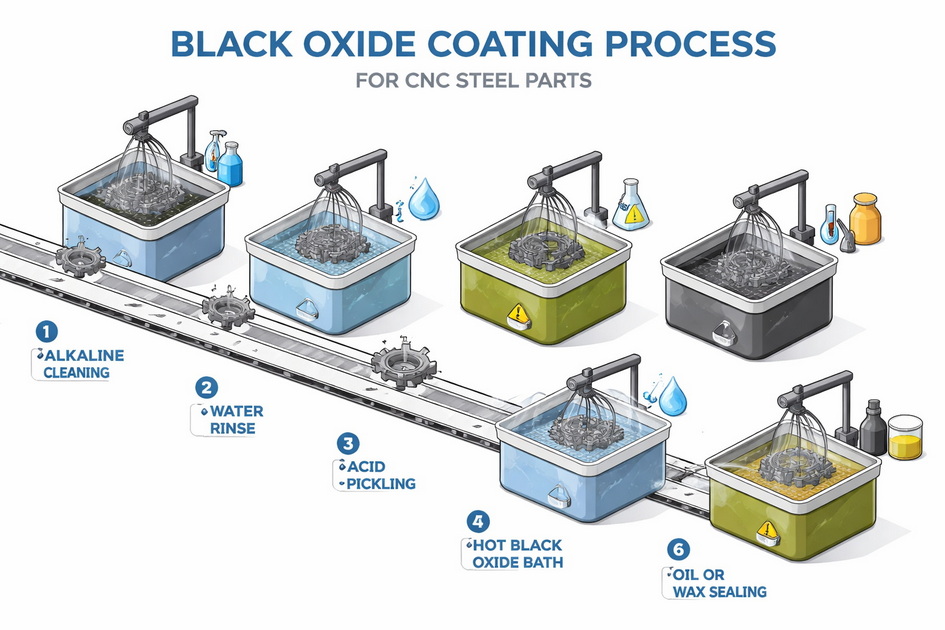

At a good black oxide line, the process is tightly controlled and repeatable. Below is the typical process flow we use for CNC steel parts.
1. Degreasing / Cleaning
Remove cutting oils, coolants, and fingerprints with alkaline cleaners or solvent degreasers. Any residue will cause uneven color and patchy corrosion performance. [swdinc]
2. Rinsing
Thorough water rinses to prevent chemical drag‑in between tanks. [swdinc]
3. Pickling / Descaling
Mild acid cleaning to remove light rust or scale, ensuring a clean, reactive metal surface. [swdinc]
4. Black Oxide Conversion
The parts are immersed in a heated alkaline salt bath (around 135–150 °C) that converts the steel surface to magnetite. Time and temperature are tightly controlled for consistent color and coverage. [cncmachiningshops]
5. Rinsing
Post‑oxidation rinses remove residual salts. [swdinc]
6. Sealing (After‑finish)
Parts are immersed in oil, wax, or a polymer sealer to fill pores and provide most of the actual corrosion resistance. [sendcutsend]
When we run precision CNC batches, we log bath temperature, immersion time, and chemistry for each lot. This traceability is something engineers and quality managers increasingly ask for in audits and PPAP documentation. [parashifttech]
Black oxide is not a universal solution. As a design or sourcing engineer, you should understand where it shines, and where you should look at alternatives.
- Carbon steel and alloy steel CNC parts
- Tooling and dies (for better release and reduced metal‑to‑metal adhesion) [cncmachiningshops]
- Gears, shafts, spindles, pins
- Threaded fasteners and precision screws
- Workholding fixtures, clamps, and jigs
- Extreme corrosion environments (offshore, chemical plants): consider zinc‑nickel, stainless, or powder coating. [sendcutsend]
- Thick decorative layers: powder coating or paint will provide more visual "body." [sendcutsend]
- Non‑ferrous metals: aluminum and copper require different finishing systems such as anodizing, chemical blackening, or plating. [sendcutsend]
In our experience, black oxide is most cost‑effective when parts already have reasonably good base‑metal corrosion resistance by design and are exposed to indoor or mildly aggressive environments with periodic maintenance. [ptsmake]

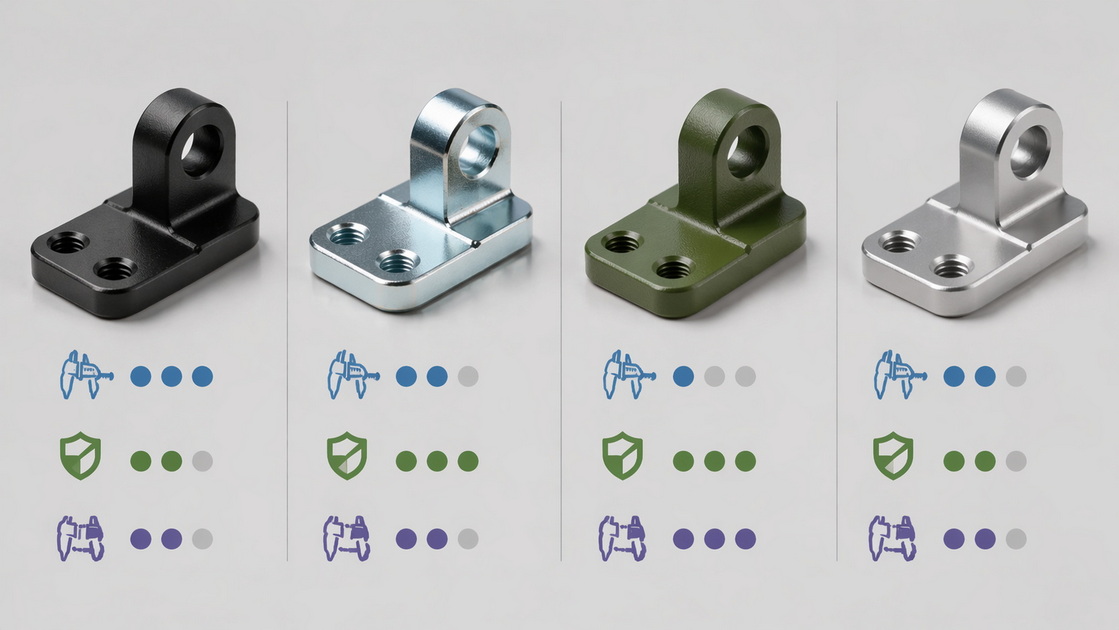

When we help overseas buyers choose finishes, we often compare black oxide with zinc plating, powder coating, and anodizing (for aluminum). The table below summarizes typical trade‑offs.
| Finish type | Typical thickness | Dimensional impact on precision parts | Corrosion resistance (general) | Aesthetics & use case |
|---|---|---|---|---|
| Black oxide (steel) | 0.5–1.5 µmcncmachiningshops | Negligible; ideal for tight fits and threadscncmachiningshops | Moderate with proper sealing; 24–96 h salt spray typicalcncmachiningshops | Matte black, low‑glare, technical look; good for tooling and mechanical assembliescncmachiningshops |
| Zinc or Zn‑Ni plating | 5–25 µm (varies) | Can affect fits; tolerances must be adjustedcncmachiningshops | Medium to high, especially with passivation and topcoatscncmachiningshops | Bright or colored; common for fasteners, brackets, general hardwarecncmachiningshops |
| Powder coating | 50–150 µm | Significant; not suitable for tight‑tolerance fitscncmachiningshops | High for many environmentscncmachiningshops | Thick, decorative, wide color options; good for enclosures and large partscncmachiningshops |
| Anodizing (aluminum) | 5–25 µm | Thin but can slightly affect fit on precision aluminum parts | Good corrosion resistance for many applications | Colored or clear; common for electronics, consumer parts, aerospace components |
For precision CNC steel parts, black oxide is often the least disruptive finishing choice when you must preserve machining accuracy while still improving appearance and corrosion resistance. [ptsmake]
One of the most common questions from engineers is: "Do I need to change my drawing tolerances for black oxide?"
Based on process data and industry guidance:
- Coating thickness: 0.5–1.5 µm typical for hot black oxide on steel. [cncmachiningshops]
- Dimensional change: Very small, usually within measurement noise for most CNC tolerances. [cncmachiningshops]
- Threads: Internal and external threads are generally safe without re‑dimensioning, but critical fasteners should be verified through gaging and torque testing. [cncmachiningshops]
Engineering tip: if you are designing shaft–bearing fits, slip fits, or precision alignment features, add a note such as:
- "Black oxide finish per [spec] allowed. No dimensional compensation required unless otherwise stated. Critical fits to be function‑checked after finishing."
In our own production, we also recommend a sample approval run for new projects that combine tight tolerances (≤H7) and black oxide, especially when parts will be reworked or recoated. [cncmachiningshops]
From working with European and North American buyers, we see the same black oxide quality issues repeating. Addressing these upfront will save you rework and customer complaints. [novamfg.en.made-in-china]
Top quality points to specify or audit:
- Color uniformity: Deep, consistent black rather than patchy gray or brown.
- No red rust on delivery: Inspect random samples after transport and short‑term storage.
- Clean threads and precision surfaces: Use masking on critical areas where required. [cncmachiningshops]
- Controlled surface roughness: Repeated stripping and recoating should not alter surface Ra beyond your drawing limits. [cncmachiningshops]
- Traceability and process records: Batch logs (bath temperature, time, chemicals) for critical components. [parashifttech]
Some of our customers add 6–10 simple black oxide checkpoints into their supplier audit checklist: bath control, chemical analysis frequency, salt‑spray test records, masking procedures, and handling practices. [ptsmake]
Black oxide is thin, but it still interacts with your assembly behavior.
Masking for critical surfaces
- Precision fits and sliding surfaces: Mask with PTFE plugs, PVC sleeves, or high‑temperature lacquer where bare metal contact is essential. [cncmachiningshops]
- Electrical contacts or grounding points: Keep these free of black oxide and sealer to maintain low contact resistance. [cncmachiningshops]
- Mating sealed surfaces (O‑rings, gaskets): Mask or validate sealing performance with blackened surfaces.
Assembly behavior
- Reduced friction due to the oiled, porous surface can slightly change torque‑tension relationships on fasteners and clamping components. [cncmachiningshops]
- For safety‑critical joints, run torque tests on black‑oxidized samples rather than assuming bare‑steel values. [cncmachiningshops]
In our shop, we share assembly notes with customers for recurring projects, including recommended torque ranges and lubrication conditions after black oxide.
Black oxide is not a "forever" coating. Its performance depends heavily on how parts are used and maintained.
Basic maintenance recommendations:
- Keep parts lightly oiled in storage, especially in humid environments.
- Avoid prolonged contact with aggressive alkaline cleaners or strong acids.
- For tools and fixtures, re‑oil after cleaning or extended use.
When coating failure or heavy wear occurs, recoating is possible but must be controlled:
- Standard practice is to strip and re‑black oxide, then reseal.
- Best to limit recoating cycles to 2–3 times, since repeated stripping can slightly change surface texture and dimensions (typically ≤1 µm cumulative). [cncmachiningshops]
- High‑precision parts should be re‑measured and re‑gauged after recoating. [cncmachiningshops]
For high‑value tooling (e.g., injection molds, forming dies), buyers often plan scheduled recoating as part of preventive maintenance instead of waiting for visible corrosion. [ptsmake]
To avoid ambiguity with your CNC suppliers, we recommend a clear, concise drawing note plus a short technical attachment when necessary.
Example drawing note:
"Finish: Black oxide on steel with oil seal, 0.5–1.5 µm. No red rust on delivery. Visual appearance: uniform matte black. Critical surfaces per view X to be masked."
Optional supplemental requirements:
- Reference to a company standard or industry spec if available. [swdinc]
- Salt‑spray performance target (e.g. minimum 48 h ASTM B117, no red rust) for critical components. [cncmachiningshops]
- Requirements for masking, cleanliness, and inspection method.
Our overseas customers often send STEP + PDF drawings plus a short finishing specification sheet, which greatly reduces back‑and‑forth and misinterpretation. [novamfg.en.made-in-china]
As a Chinese CNC manufacturer serving OEM and ODM customers, we've seen that black oxide is most successful when it is integrated early in the engineering and sourcing process, not treated as a last‑minute add‑on.
A capable supplier can support you by:
- Reviewing material selection, tolerances, and finish requirements during DFM.
- Proposing sample plans that validate color, corrosion, torque behavior, and dimensional stability before mass production. [ptsmake]
- Offering one‑stop machining + finishing + inspection, so you don't have to coordinate multiple vendors. [novamfg.en.made-in-china]
- Providing transparent process documentation, test reports, and PPAP packages for regulated industries. [wellows]
If you are still getting inconsistent color, unexpected rust, or dimensional drift after finishing from your current sources, it is often not a problem with black oxide itself—but with process control and communication. [ptsmake]
If you are sourcing precision CNC parts with black oxide coating for your brand or production line, you need more than a basic coating house. You need a partner who understands tolerances, assembly behavior, and long‑term performance.
As an experienced CNC OEM/ODM supplier in China, we can:
- Machine parts to tight tolerances,
- Apply controlled black oxide finishes with documented processes, and
- Ship globally with stable quality, competitive pricing, and responsive engineering support. [novamfg.en.made-in-china]
You can send us your drawings (PDF + 3D), annual usage, and performance requirements, and we'll provide DFM feedback, a detailed quotation, and a tailored finishing plan for your project.
No. The black oxide layer itself offers moderate corrosion protection, but most of the rust resistance comes from the oil, wax, or polymer sealer applied afterwards. With proper sealing and storage, you can achieve 24–96 hours of salt‑spray resistance in many applications. [swdinc]
In most cases, no significant adjustment is needed because the coating is very thin (0.5–1.5 µm) and behaves as a surface conversion rather than a heavy build‑up layer. For extremely tight fits or safety‑critical assemblies, we still recommend sample testing and gaging before full release. [cncmachiningshops]
Standard hot black oxide is optimized for carbon and alloy steels. There are special blackening processes for stainless steel and separate finishing systems such as anodizing or chemical blackening for aluminum, which your supplier should define clearly. [sendcutsend]
For small and medium‑sized precision parts, black oxide is typically more economical than plating or powder coating, especially when dimensional stability is crucial. Total cost depends on part geometry, volume, masking needs, and any testing or certification requirements. [ptsmake]
You should provide 2D drawings, 3D models, material specifications, annual quantities, application environment, and any corrosion or appearance requirements. If you already use a standard such as ASTM or ISO for finishing, list it directly on your drawings. [novamfg.en.made-in-china]
