CNC machining plays a central role in modern manufacturing, shaping metals, plastics, and composites into precise components used in industries such as aerospace, automotive, and electronics. Whether producing a single prototype or a high-volume batch, one of the most important aspects of process planning is estimating machining time. Accurate machining time calculation affects cost estimation, machine scheduling, tool life, and overall productivity.
Understanding how to calculate CNC machining time not only improves operational efficiency but also helps manufacturers make data-driven decisions, reduce waste, and maintain consistent production quality. This article presents a detailed guide to computing CNC machining time for different operations such as turning, milling, and drilling, including essential formulas, real-world examples, and optimization techniques.
CNC machining time represents the total duration required for a CNC machine to complete a full machining cycle. It typically includes both cutting time and non-cutting time, covering all motion and setup activities involved in shaping a workpiece to its final dimensions.
Machining time depends on several variables:
- Cutting parameters (feed rate, speed, and depth of cut)
- Workpiece geometry and size
- Machine acceleration and deceleration capability
- Tool type, coating, and sharpness
- Setup configuration and fixturing
- Material hardness and machinability
A correct calculation enables process engineers to forecast production lead times, prevent machine overload, and determine the cost of each part accurately.

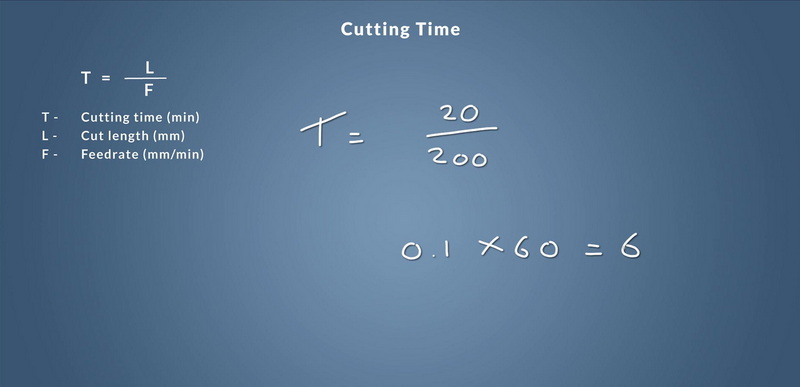

The base formula for CNC cutting time is as follows:
Tm = L / ( f* N )
Where:
- Tm = Machining time (minutes)
- L = Length of cut (mm)
- f = Feed rate per revolution (mm/rev)
- N = Spindle speed (rpm)
This equation helps determine the actual cutting time for basic machining motions. To apply it correctly, each parameter must be carefully chosen based on the material, tool, and operation type.
In CNC turning, the workpiece rotates while the cutting tool moves linearly along its surface. The spindle speed is determined first using:
N = (1000 * Vc) \ （pi * D）
Where:
- Vc = Cutting speed (m/min)
- D = Workpiece diameter (mm)
Then substitute N into the main time equation.
Example:
If a 50 mm diameter shaft requires a cutting length of 150 mm, using a cutting speed of 180 m/min and a feed of 0.3 mm/rev:
N = (1000 * 180) \ ( pi * 50 )= 1146 rpm
Tm = 150 / ( 0.3 * 1146 ) = 0.436 min = 26.2 seconds
In reality, a machinist would add extra seconds for tool approach, clearance, and spindle acceleration, leading to a slightly longer total cycle time.
Milling operations differ from turning because the tool rotates while the workpiece remains stationary (or moves slightly). A milling pass involves multiple tool teeth engaging material. The formula for milling time is:
Tm = L/(fz * z * N)
Where:
- fz = Feed per tooth (mm/tooth)
- z = Number of teeth
- N = Spindle speed (rpm)
Spindle speed is computed similarly:
N = (1000 * Vc)/(pi * D)
Example:
A 25 mm diameter cutter with 6 teeth machines a 200 mm path, using 120 m/min cutting speed and 0.05 mm/tooth feed:
N = (1000 * 120)/(pi * 25) = 1528 rpm
Tm = 200/(0.05 * 6 * 1528) = 0.436 min = 26.2 seconds
Despite seeming similar to turning, milling time varies greatly depending on how efficiently the toolpath is programmed and whether multiple passes are needed to remove excess stock.
For drilling, the tool advances along the axis of rotation to produce a round hole. The time calculation is similar but includes allowances for approach and overtravel.
Tm = L * ( f / N )
Where L = Lh + A + C:
- Lh = Hole depth (mm)
- A = Approach distance (≈ 0.5 × hole diameter)
- C = Overtravel or breakout allowance (1–3 mm)
Example:
To drill a 12 mm diameter, 20 mm deep hole at 90 m/min cutting speed, and 0.15 mm/rev feed:
N = (1000 * 90)/(pi * 12) = 2387 rpm
L = 20 + (0.5 * 12) + 1 = 27 mm
Tm = 27/(0.15 * 2387) = 0.075 min = 4.5 seconds
Drilling time becomes significant in operations involving multiple holes, especially in large production runs.
In real CNC machining, toolpaths rarely follow perfect linear movements. Cutting may include arcs, contours, and changes in direction. To accommodate complexity:
- For 3D surfaces, CAM software calculates toolpath length automatically.
- Time estimation considers acceleration and deceleration of axes.
- Helical or spiral paths in pocket milling require continuous variable feed analysis.
Therefore, manual formulas offer rough estimates, while advanced CAM systems generate more accurate machining time analysis through simulation.
Accurate time valuation requires including every stage beyond material removal. Non-cutting time includes:
- Tool approach and retract: Movements toward and away from the workpiece.
- Tool change: Swapping cutting tools based on operations.
- Workpiece setup: Alignment, clamping, and measurement.
- Idle travel: Rapid movements between cuts.
- Coolant activation: Delays due to coolant flow or chip removal.
Non-cutting activities can represent 25–40% of total machining time in complex parts. When optimizing workflow, balancing feed speed and cycle transitions becomes crucial.
Combining cutting and auxiliary times results in total cycle duration:
Ttotal = Tcutting + Tnoncutting
Each element can be further broken down as:
Tcutting = Tturning + Tmilling + Tdrilling
If a job includes multiple components on the same setup, multiply Ttotal by the number of parts and add machine setup duration for batch production.
Example:
If cutting time per part = 0.98 min, non-cutting time per operation = 0.25 min × 3,
then total cycle time = 1.73 min per part.
For 50 parts, total machining time = 1.73 * 50 = 86.5 minutes.
Every machining environment is unique. Some influential factors include:
- Material machinability: Titanium alloys or hardened steels require slower feeds.
- Tool wear: Dull edges cut slower and increase friction.
- Machine power: Limited horsepower restricts cutting depth.
- CAM path optimization: Shorter tool travel saves seconds per cycle.
- Chip removal efficiency: Poor evacuation delays automatic feeds.
Hence, engineers often use empirical data and time studies to complement theoretical formulas for more realistic forecasts.
Modern CAM software such as Fusion 360, Siemens NX, and Mastercam includes machining time predictions using virtual simulations. These tools consider real machine parameters, acceleration limits, and spindle ramp-up times, offering accuracy within ±5%.
Shops often build internal machining time databases that record cycle times for specific materials and cutters. Over time, these data sets aid in quoting new jobs more effectively.
Analytical models use kinematic and dynamic machine equations to predict motion durations more precisely, especially in 5-axis machining where simultaneous movements complicate timing.
Recent innovations use artificial intelligence to predict cycle times based on historical CNC data. These algorithms improve automatically by comparing planned and actual cycle durations, allowing adaptive optimization in smart factories.
Machining time directly affects part cost, as machine hourly rates multiply total processing time. An estimated cost model can be expressed as:
Cpart = (Ttotal * Rm) + Cmaterial + Csetup + Ctooling
Where Rm is machine hourly rate. Thus, accurate time calculation supports precise profit estimation, quotation preparation, and client billing.
Efficiency improvement is the essence of competitive manufacturing. Common strategies include:
- Optimize cutting parameters: Increase feed and depth only within tool limits.
- Use advanced cutting tools: Coated carbide or ceramic tools enable higher speeds.
- Improve toolpath strategies: Trochoidal, adaptive, and climb milling paths reduce engagement time.
- Minimize tool changes: Use multi-function or combination tools.
- Enhance workholding: Modular fixtures save setup time between operations.
- Leverage automation: Robotic loading/unloading minimizes operator intervention.
Manufacturers also rely on real-time machine monitoring systems that analyze tool performance and automatically adjust feeds to maintain consistent chip load.
Accurate machining time estimation achieves several goals:
1. Cost Control: Prevents underquoting or overcharging.
2. Production Planning: Ensures realistic scheduling and machine utilization.
3. Quality Maintenance: Helps avoid rushed machining that causes surface defects.
4. Efficiency Measurement: Serves as a benchmark for continuous improvement.
5. Customer Trust: Builds credibility through consistent delivery performance.
By combining theoretical calculations with real-machine data, manufacturers gain a well-rounded understanding of their process capabilities.
Calculating CNC machining time is both a science and an art. It requires technical understanding of manufacturing parameters, practical awareness of tool behavior, and attention to detail in estimating all time components. By mastering cutting time equations for turning, milling, and drilling—while accounting for non-cutting factors—engineers and machinists can achieve more accurate production planning and cost estimation. With the adoption of simulation software, artificial intelligence, and optimized tool strategies, machining time prediction continues to become faster, more precise, and highly adaptive to modern industrial requirements.
Cutting time refers only to the period when the tool removes material, while machining time includes both cutting and non-cutting activities like setup, tool changes, and part positioning.
Manual formulas provide close approximations but can differ by 10–20% from reality due to machine acceleration, toolpath strategies, and operator variability. CAM software improves this accuracy considerably.
Hard materials reduce allowable cutting speed and feed rate, leading to longer machining times. Softer materials can be processed faster but may require precise control to prevent deformation.
Use CAM simulations with actual machine postprocessors, as these consider acceleration, toolpath curvature, and tool entry/exit moves more precisely than manual calculation.
Implement standardized cutting parameters, maintain tool condition, use automated tool presetting systems, and analyze machine logs regularly to detect variations early.
