Views: 222 Author: Feifan Hardware Publish Time: 2026-05-05 Origin: Site
Choosing between CNC milling and laser cutting for thick plate components is not just a technical decision. It is a business decision that affects tolerances, lead time, cost, surface quality, and long-term part performance. For OEM and ODM buyers sourcing custom parts, the right process depends on plate thickness, geometry, and the functional demands of the final assembly. [harbinger]
Thick plate components are common in industrial machinery, enclosures, brackets, base plates, tooling plates, and structural assemblies. In these parts, cutting accuracy is only one requirement. Buyers also care about edge condition, flatness, internal corner geometry, and whether the part will later be welded, tapped, anodized, painted, or stress-loaded in service. [jiga]
From a manufacturing perspective, CNC milling and laser cutting solve different problems. CNC milling removes material mechanically and is better for depth, pockets, and more complex 3D features, while laser cutting is a thermal process that excels at fast 2D profiling and fine detail on flat parts. That difference becomes even more important as plate thickness increases. [hglaserglobal]

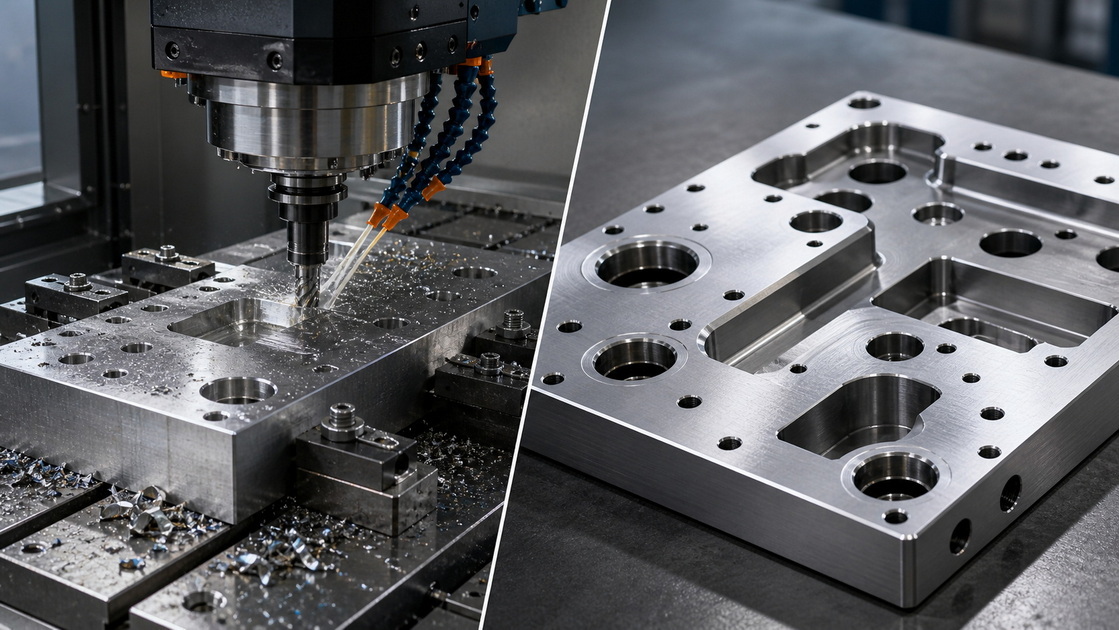

CNC milling is the stronger choice when the plate is not just a profile, but a functional component. It can machine pockets, steps, counterbores, slots, tapped holes, and precise reference faces in a single setup, which is valuable for parts that must locate accurately in an assembly. Because the tool physically removes material, the process avoids the heat-affected zone that can appear in thermal cutting. [brownmac]
For thick plate components, CNC milling also offers better control over the final functional dimensions. Well-fixtured CNC setups can hold tight tolerances and produce clean, burr-controlled edges with consistent repeatability. This is especially useful for structural parts, precision bases, machine frames, and parts that need post-machining on sealing or mounting surfaces. [jiga]

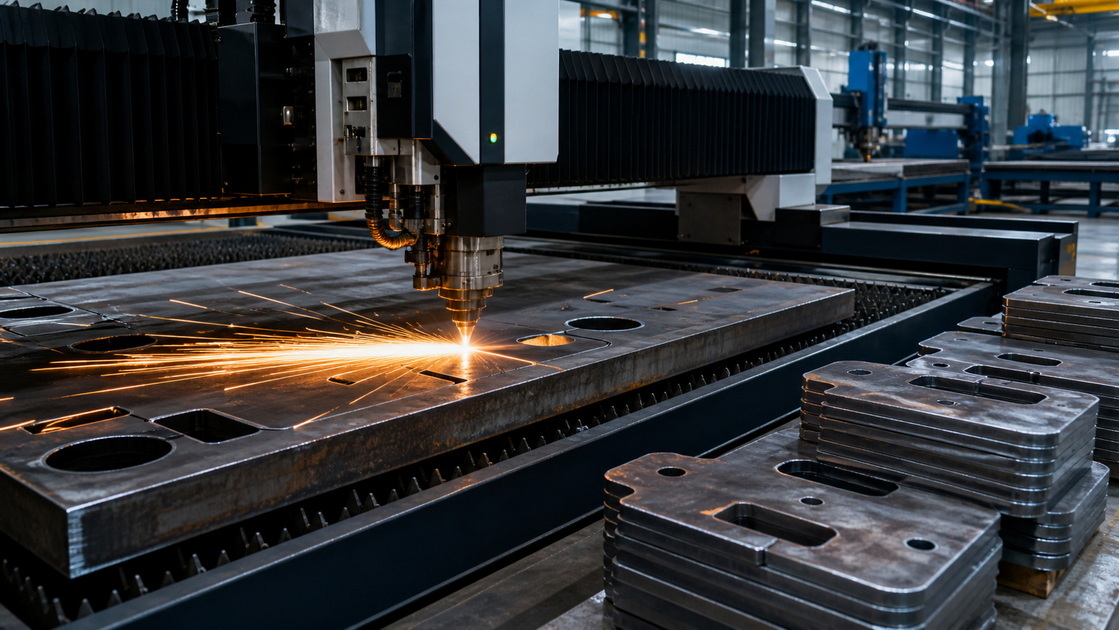

Laser cutting is often the better option when the part is essentially a flat contour. It is fast, highly repeatable, and efficient for 2D profiles, especially when the goal is to produce large quantities of identical plates with minimal setup time. For sheet-metal style parts, laser cutting can shorten lead time and reduce per-part cost at volume. [prima-press]
Modern high-power fiber lasers can cut much thicker material than older systems, but the process becomes more demanding as thickness rises. Published industrial guidance shows thickness capability varies strongly by machine power and material, with higher-power systems reaching significantly thicker steel, stainless steel, and aluminum than entry-level machines. Even so, thick plate laser cutting still faces practical limits from slower speed, greater dross risk, taper, and stronger heat input. [hglaserglobal]

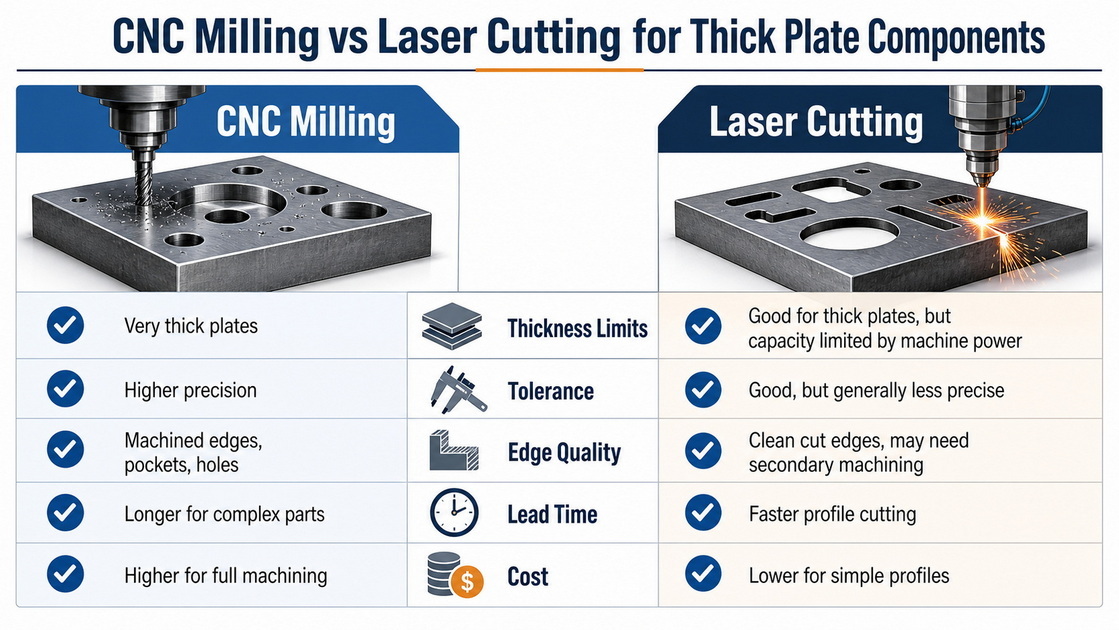

| Factor | CNC Milling | Laser Cutting |
|---|---|---|
| Best geometry | 3D features, pockets, holes, stepped faces jiga | Flat 2D profiles and fine outlines jiga |
| Thick plate performance | Strong choice for thick, functional components jiga | Possible, but speed and quality drop as thickness rises hglaserglobal |
| Edge condition | Mechanical cut, no HAZ jiga | Thermal edge, possible HAZ or dross jiga |
| Internal corners | Limited by tool radius jiga | Sharper internal corners possible jiga |
| Tolerance control | Usually stronger for functional dimensions jiga | Good for profiles, but more sensitive to material and thickness jiga |
| Lead time | Longer setup and programming jiga | Faster for flat parts and revisions prima-press |
| Cost model | Better when features and precision matter brownmac | Better for fast, high-volume profile cutting prima-press |
Thickness is the single biggest separator between the two processes. Laser cutting works best on thin to medium sheet, and many industry guides treat thicker plate as a point where quality and productivity start to decline sharply. As plate thickness rises, the cut front becomes deeper and harder to evacuate, which raises the risk of taper, incomplete cuts, and dross formation. [worthyhardware]

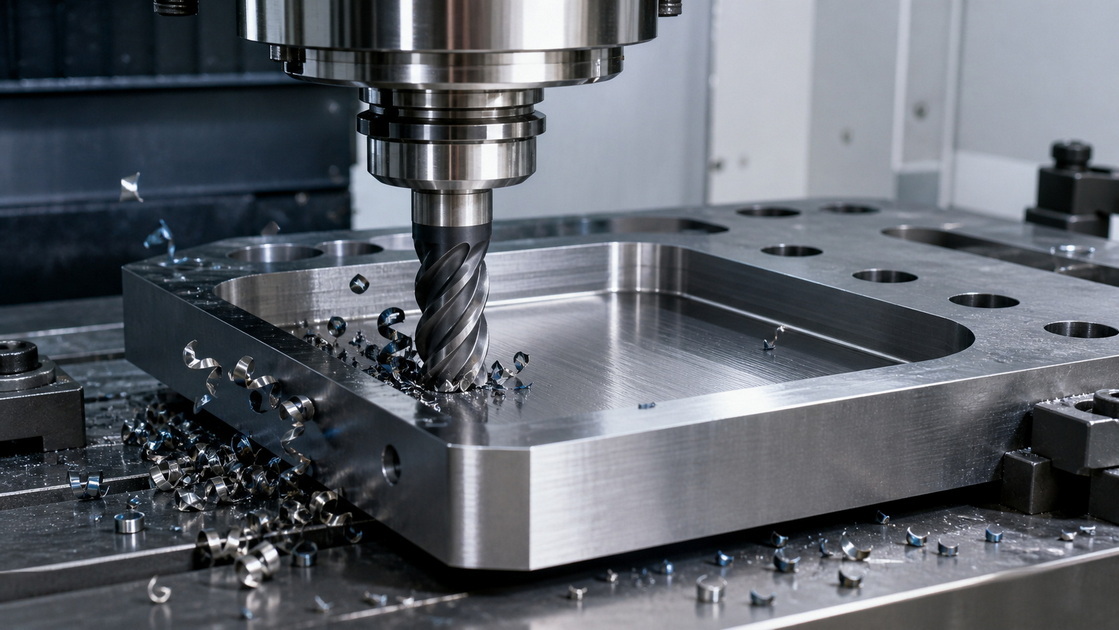

CNC milling handles thick plate more naturally because the tool removes material in controlled passes. That makes it more suitable for parts where thickness is not just a physical dimension, but part of the part's structural job. In practical sourcing terms, if the plate needs machined faces, accurate holes, or stepped geometry, CNC milling is usually the safer path. [brownmac]
For precision buyers, edge quality is often more important than raw cutting speed. CNC milling generally produces clean edges without thermal discoloration, which is helpful for welded assemblies, sealing surfaces, and components that will receive tight-fit hardware. Laser cutting can deliver excellent profile sharpness, but metals may show HAZ, oxide edge color, or bottom-side dross, especially as thickness increases. [longxinlaser]
Tolerances also deserve attention. CNC machining is typically preferred when a part must fit other machined parts with minimal adjustment. Laser cutting is accurate for profile work, but the outcome depends more heavily on material reflectivity, plate thickness, assist gas, and machine power. [hglaserglobal]
Laser cutting often wins on speed for simple flat shapes. Setup is lighter, programming is quick, and nesting multiple parts on one plate can improve material utilization. That makes it attractive for enclosures, panels, brackets, and other volume sheet-metal items. [senfenglaser]
CNC milling may cost more upfront because of tooling, fixturing, and programming, but it can reduce downstream problems when the part needs secondary machining anyway. In my experience as a manufacturing content strategist, the cheapest process on paper is not always the lowest-risk process in production. For thick plate components, the cost of rework, distortion, or secondary machining can quickly erase the initial savings of choosing the wrong method. [jiga]
Material type should always be considered together with thickness. Laser cutting performs well on many steels and sheet metals, but thicker or more reflective materials can be more difficult and less economical. CNC milling works across a broader range of materials and is especially useful when the part must maintain structure, precision, and clean functional geometry. [foxvalleystamping]
Typical application patterns are easy to see:
- Choose CNC milling for machine bases, precision brackets, tooling plates, alignment blocks, heavy-duty mounts, and parts that need holes or pockets. [brownmac]
- Choose laser cutting for flat plate outlines, gussets, decorative or functional openings, cabinet panels, and repeatable 2D parts. [accurl]

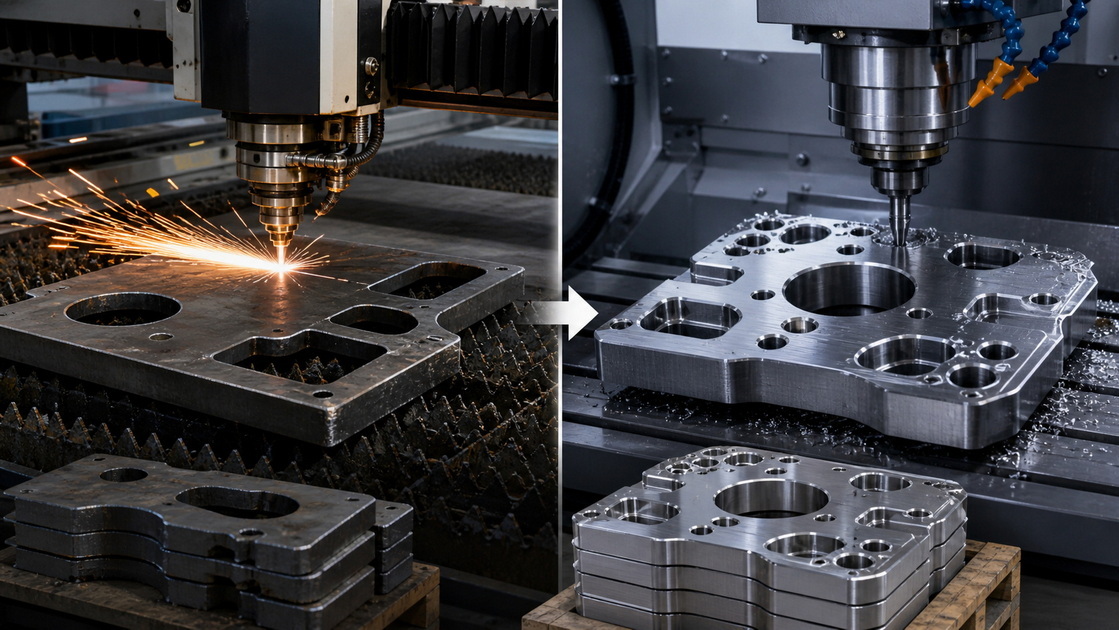

One of the most useful options is a hybrid workflow. A plate can be laser cut close to shape for speed, then CNC milled for critical surfaces, holes, and final dimensions. This approach can balance throughput and precision, especially for OEM production where geometry is mostly flat but certain interfaces must be highly accurate. [jiga]
For export buyers, this is often the most practical strategy because it reduces waste without sacrificing fit. It also gives manufacturers more flexibility when different customers want the same base design with slight variations. If your part family includes both structural and cosmetic requirements, hybrid processing is often the strongest production strategy.
Use this simple decision sequence:
1. Is the part mainly 2D? If yes, laser cutting may be the faster and cheaper route. [mfg-solution]
2. Does the part need pockets, steps, tapped holes, or machined faces? If yes, CNC milling is the better choice. [brownmac]
3. Is the plate thick enough that laser quality may drop? If yes, lean toward CNC milling. [longxinlaser]
4. Will the part be welded, sealed, or stress-loaded? If yes, avoid thermal edge issues where possible and favor CNC. [jiga]
5. Is volume high and geometry simple? If yes, laser cutting may provide the best throughput. [prima-press]
For OEM and ODM customers, the best supplier is not the one that only says "yes." It is the one that can explain why a process is right, where it is risky, and how to avoid rework. In real production, the right answer often depends on the combination of thickness, flatness, hole pattern, tolerance, and finishing method.
At Shenzhen Feifan Hardware & Electronics Co.,Ltd., that is exactly how we approach thick plate components for overseas brands, wholesalers, and manufacturers. We evaluate the part as a system, not as a drawing, so we can recommend CNC milling, laser cutting, or a hybrid process based on manufacturability and final use.
For thick plate components, CNC milling is usually the better choice when the part needs precision, depth, holes, pockets, or functional surfaces. Laser cutting is ideal when the job is mainly a flat profile and speed matters more than 3D functionality. The most efficient production plan is often the one that matches the process to the part, not the other way around. [longxinlaser]
If you are sourcing custom thick plate parts for export, the next step is to compare your drawing against a manufacturability review and choose the process that protects both performance and cost. A supplier that can offer CNC milling, laser cutting, and hybrid production will usually give you the most reliable result.
Yes, for thick steel plate that needs holes, pockets, machined faces, or tight tolerances, CNC milling is usually better. [brownmac]
Yes, but quality and speed decrease as thickness rises, and the process becomes more dependent on machine power, gas control, and material type. [hglaserglobal]
CNC milling usually gives cleaner functional edges with no heat-affected zone, while laser cutting can produce very sharp profiles but may leave HAZ or dross on metals. [longxinlaser]
Laser cutting is usually faster for flat 2D parts because setup is lighter and traversal speed is high. [mfg-solution]
A hybrid process is often best: laser cut the outline first, then CNC mill the critical holes, faces, or features. [jiga]
