When buyers ask whether CNC milling or broaching is better for keyways and splines, the real answer depends on part geometry, production volume, tolerance targets, and tooling strategy. From a CNC precision parts manufacturer's perspective, the best process is the one that delivers the required accuracy, repeatability, and cost control with the fewest risks. [cncbroachtools]

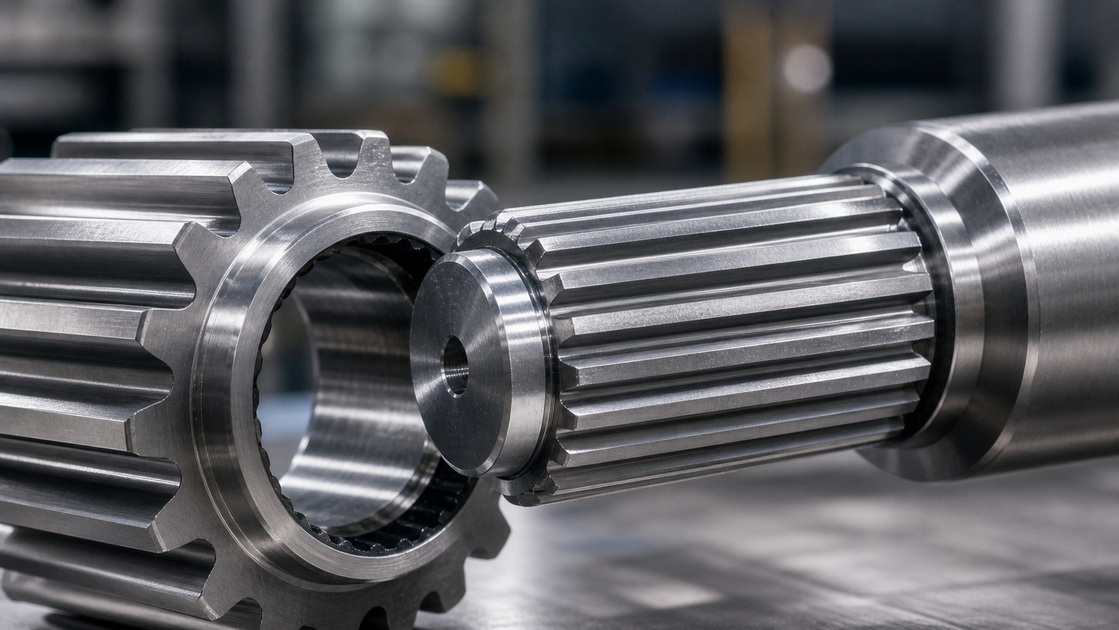

Keyways and splines are not just small internal features; they are functional interfaces that transfer torque between shafts, hubs, gears, and couplings. A keyway typically uses a key to lock two parts together, while splines use multiple teeth to distribute load more evenly and support higher torque transfer. [twaxisco]
In practical manufacturing terms, these features demand more than basic cutting ability. They must be cut with consistent width, depth, concentricity, and finish, especially when the final assembly must run smoothly under repeated load. [cncbroachtools]
- A poor keyway can cause backlash, wear, or assembly failure.
- A spline that is out of spec can create noise, vibration, or premature fatigue.
- For export-oriented OEM and ODM programs, the cost of rework can quickly exceed the cost difference between processes. [gushwork]
CNC milling is a flexible subtractive process that uses rotating cutting tools to machine a wide range of shapes. For keyways and some spline features, milling can be done with slot mills, end mills, or specialized toolpaths, especially when the shop needs flexibility or handles low to medium volume production. [cnccookbook]

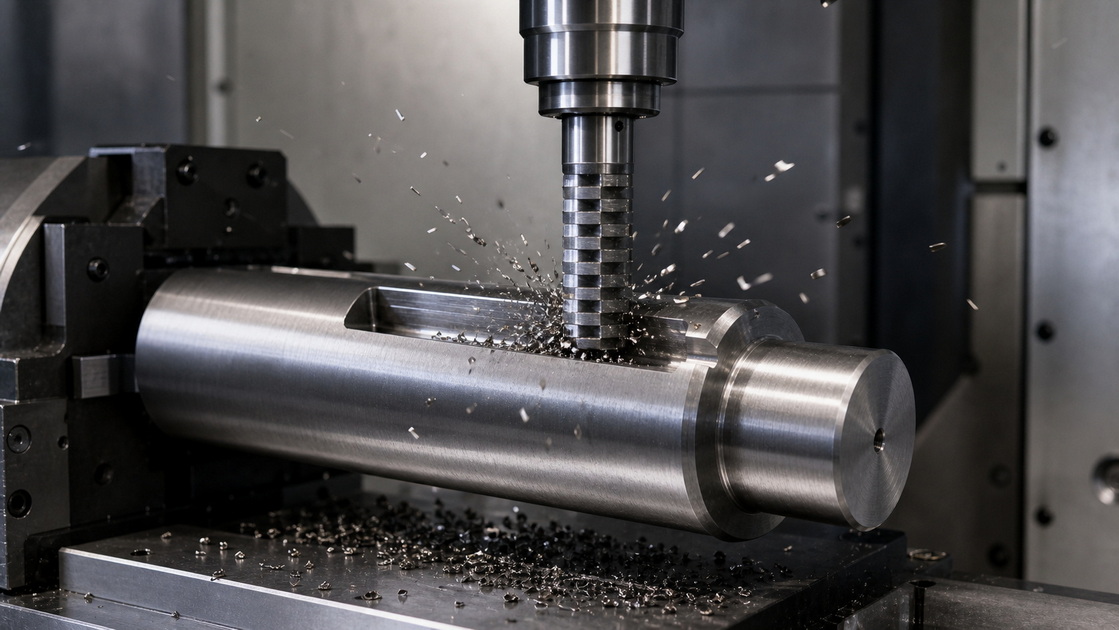

Broaching uses a toothed tool with progressively larger cutting teeth to remove material in a controlled pass or series of passes. It is widely used for keyways, internal profiles, and splines because it is fast, repeatable, and highly efficient when the geometry is stable and production demand is predictable. [keyway-spline-broaching]
In one sentence: milling wins on flexibility, while broaching wins on repeatability and throughput for the right part. [gisstec]

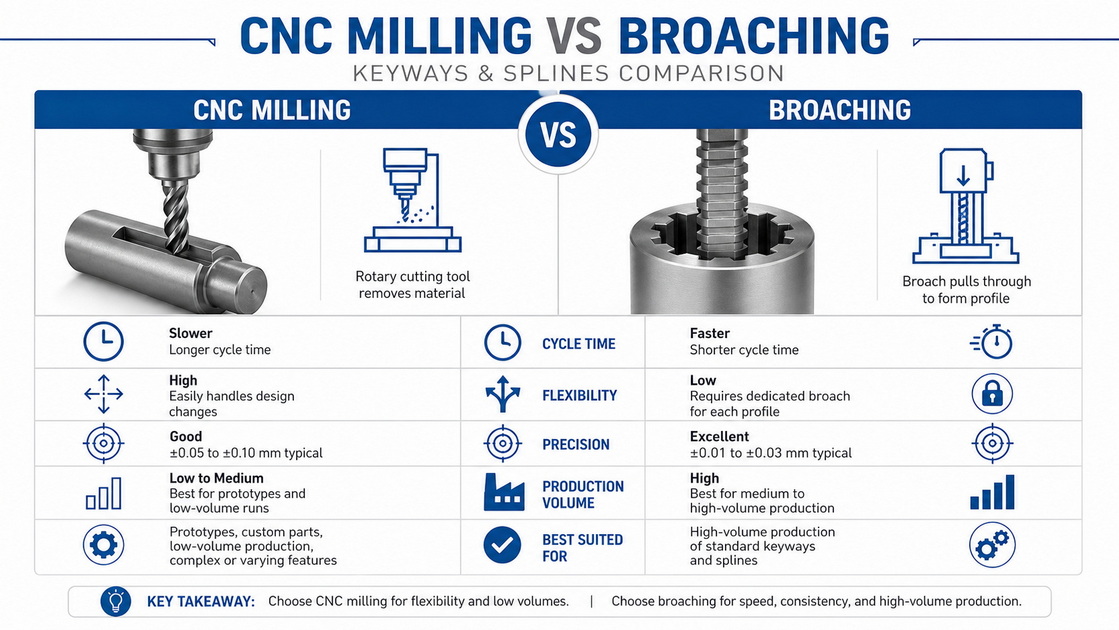

| Factor | CNC Milling | Broaching |
|---|---|---|
| Flexibility | Excellent for prototypes, custom profiles, and design changes. cnccookbook | Best for fixed geometries and repeat production. lewisengineeringco |
| Cycle Time | Usually slower for deep or repetitive keyway work. practicalmachinist | Usually faster once tooling is set up. lewisengineeringco |
| Tooling Cost | Lower setup barrier, fewer dedicated tools. cnccookbook | Higher initial tooling and process setup. pilotprecision |
| Precision Repeatability | Strong, but depends on fixturing, programming, and tool wear. resources.utec | Excellent for stable, repeatable profiles. lewisengineeringco |
| Best For | Prototypes, low-volume parts, changing designs. cnccookbook | High-volume production, standard keyways, standard splines. lewisengineeringco |
| Secondary Operations | Often easier to combine with other milling features. gushwork | Can reduce secondary handling if the part is already suited to broaching. cncbroachtools |

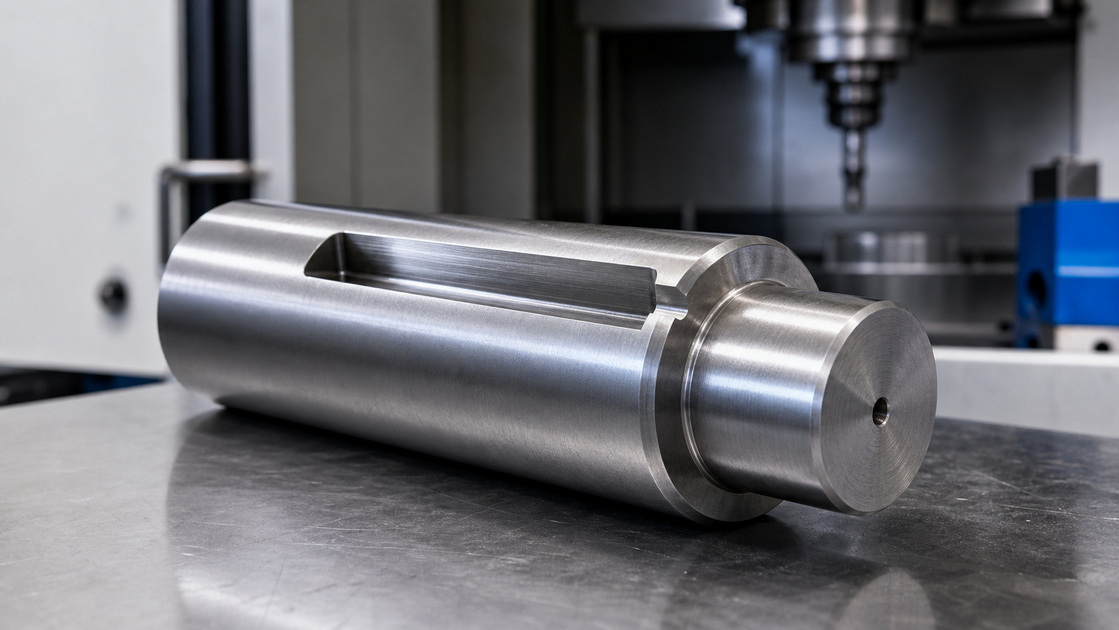

CNC milling is often the better option when the part is still in development or the design is not fully frozen. It is also a strong choice when the same part family includes different keyway sizes, special reliefs, or nonstandard spline geometry. [resources.utec]
For many OEM projects, milling is the smarter path when:
- The order quantity is small or medium.
- The part design may change after testing.
- The shop needs to machine other features in the same setup.
- Lead time is more important than maximum cycle efficiency. [gushwork]
From a quality-control standpoint, milling gives engineers more freedom to tune toolpaths, feeds, and finishing passes. That flexibility can help when the job requires careful balancing between tolerance, surface finish, and delivery time. [rapiddirect]
A custom coupling prototype with a unique internal slot is usually easier to mill first. Once the geometry is validated and demand grows, the process can later move to broaching if the profile becomes standardized. [lewisengineeringco]
Broaching is often the stronger solution for high-repeat production, especially when the keyway or spline profile is standard and the part will be ordered in volume. Because the tool cuts in a controlled progression, broaching can produce highly consistent results across long runs. [keyway-spline-broaching]
It is especially attractive when:
- The profile is fixed.
- The part volume justifies dedicated tooling.
- Tight repeatability matters more than design flexibility.
- The shop wants to reduce cycle time and secondary handling. [pilotprecision]
For some applications, broaching can also reduce the number of operations required to finish a part. That matters in OEM manufacturing, because fewer operations often mean fewer chances for dimensional drift, setup variation, and delay. [lewisengineeringco]
Accuracy is where many buyers over-simplify the discussion. Milling can achieve excellent results, but it depends heavily on machine rigidity, tool condition, clamping, and programming quality. Broaching is inherently more repeatable for fixed geometries because the tool is designed for that one profile. [resources.utec]
Surface finish also depends on the cutting strategy. General CNC machining surface finish is often around Ra 3.2 μm as a common baseline, while finishing parameters and process control can improve results further. [rapiddirect]
Tool life is another practical factor. Milling tools can be versatile, but they may wear faster if the keyway is deep, narrow, or repeated many times across a production run. Broaching tooling has a higher upfront cost, but it is often justified when a stable part family runs long enough to amortize tooling investment. [hayesbroach]
A good manufacturing decision is never based on machining time alone. Buyers should also account for tooling, programming, fixturing, inspection, setup repeatability, and the cost of potential rework. [gushwork]
1. You need one-off samples or small batches.
2. The geometry is still being revised.
3. You want to combine multiple features in one setup. [cnccookbook]
1. The order volume is stable.
2. The profile is repeated across many parts.
3. The tooling investment can be spread over long runs. [pilotprecision]
In short, milling often wins the first order, while broaching often wins the repeat order. [cnccookbook]
One of the biggest mistakes OEM buyers make is choosing the process before finalizing the part design. That can create expensive problems later, especially if the design is not aligned with the machine process from the start. [resources.utec]
- Bore size and access.
- Keyway depth and length.
- Whether the part is blind or through.
- Required tolerance and finish.
- Annual volume and expected repeat rate.
- Whether the part may need future design changes. [cncbroachtools]
If the part includes a blind hole or limited tool exit space, process planning becomes even more important. In those cases, the choice between milling and broaching may depend on tool access, machine setup, and whether additional relief features are needed. [gisstec]

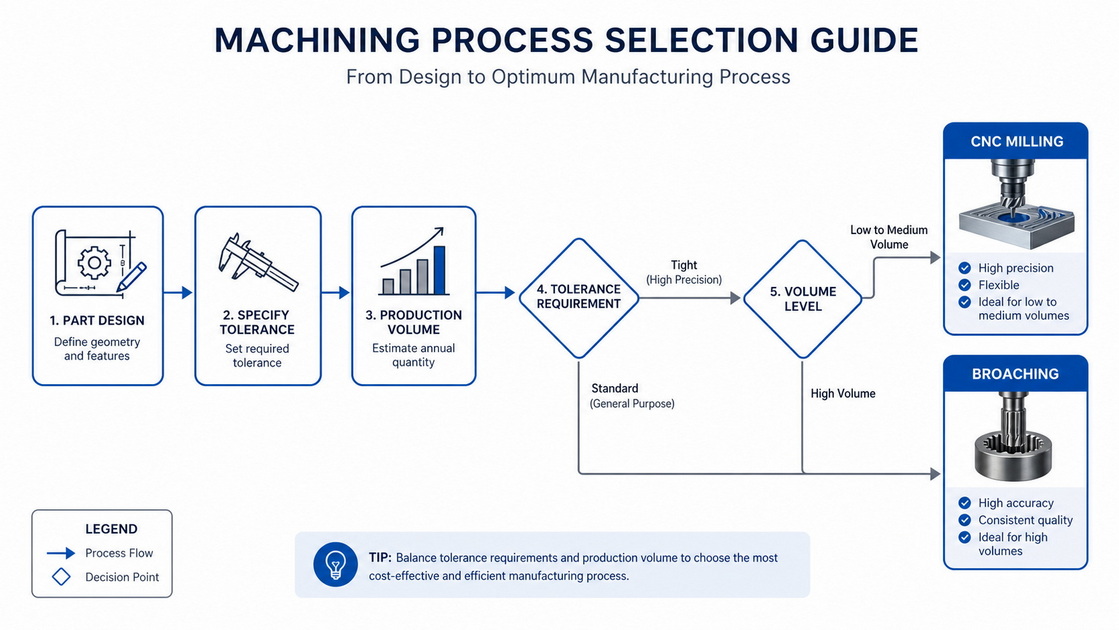

Use this decision sequence when quoting keyway or spline parts:
1. Confirm the application and torque requirements.
2. Check whether the profile is standard or custom.
3. Evaluate annual volume and repeat frequency.
4. Compare setup time, tooling cost, and cycle time.
5. Verify tolerance and surface finish requirements.
6. Select milling for flexibility or broaching for repeat efficiency. [lewisengineeringco]
This simple workflow helps engineers and buyers avoid over-engineering a part in the wrong direction. It also improves quotation quality because the supplier can match the process to the actual use case. [gushwork]
For prototype work, custom geometry, and flexible production, CNC milling is usually the better choice. For standardized, repeat production of keyways and splines, broaching is often faster, more repeatable, and more cost-effective over time. [cnccookbook]
CTA: If you are sourcing CNC precision parts for keyways, splines, or related power-transmission features, prepare your drawing, tolerance target, and annual quantity first. Then request a manufacturability review so the process can be matched to your real production need. [gushwork]
Yes, CNC milling can be accurate enough for many keyways, especially in prototypes and small batches, but its repeatability depends on fixturing, programming, and tool wear. [rapiddirect]
No. Broaching is usually better for standardized, repeat-volume parts, but milling is better when the geometry changes often or the part needs more flexibility. [lewisengineeringco]
It depends on volume. Milling is often cheaper for low-volume work, while broaching can become cheaper per part in stable high-volume production. [pilotprecision]
Yes. CNC milling can machine some spline geometries, especially when custom profiles or flexible design changes are required. [gisstec]
Send the drawing, material, tolerance requirements, surface finish needs, annual quantity, and any assembly or heat-treatment requirements. That information helps the supplier choose the right process and reduce quote risk. [feifanhardware]
