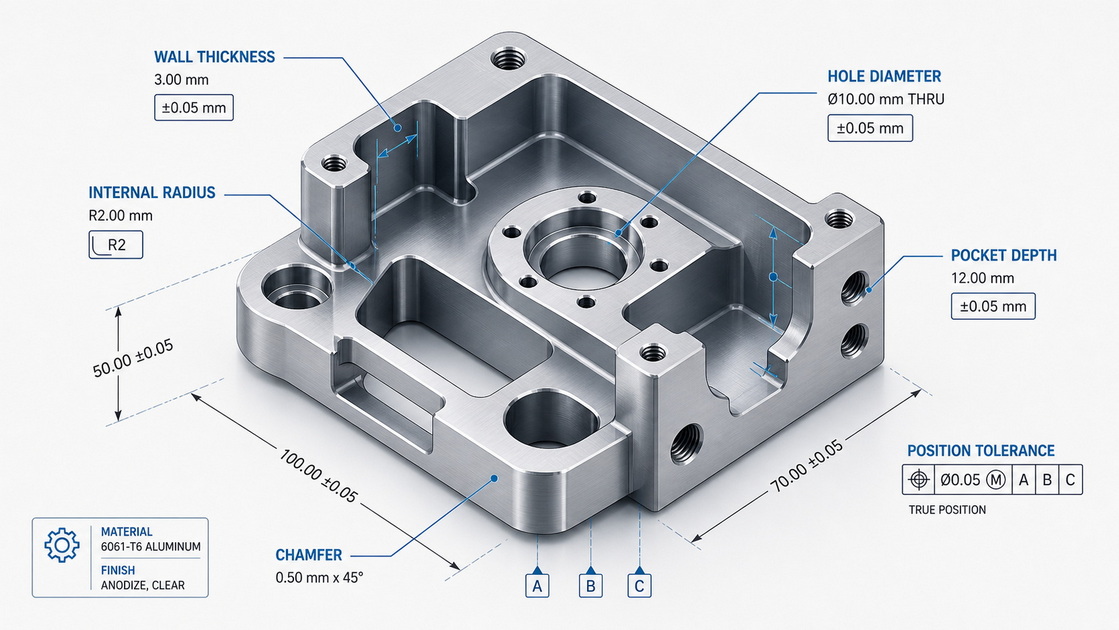

When you design CNC machined parts, small choices in wall thickness, radii, tolerances, and feature depth can dramatically affect machining cost, lead time, and final quality. For OEM and ODM buyers, the best CNC part design is not only "manufacturable" — it is also stable, repeatable, and aligned with real production constraints.
CNC machining is widely used for prototypes, small batches, and production parts because it delivers strong dimensional control and good surface quality. Protolabs notes that its standard prototype and production machining tolerance is typically ±0.005 in. (0.13 mm), with tighter options available for selected features, which shows how strongly design decisions influence achievable results. Protolabs also notes that CNC parts can achieve smooth surfaces and that surface roughness is part of the design/tolerance conversation, not an afterthought. [protolabs]
For Chinese manufacturers serving overseas brands, design-for-manufacturability is especially important because export projects often require fast quotes, repeatable quality, and clear drawing standards. A good design reduces rework, lowers fixture complexity, and helps the machining team keep consistency across multiple orders. In practice, better design usually means fewer setup changes, fewer tool interruptions, and fewer surprises during inspection.

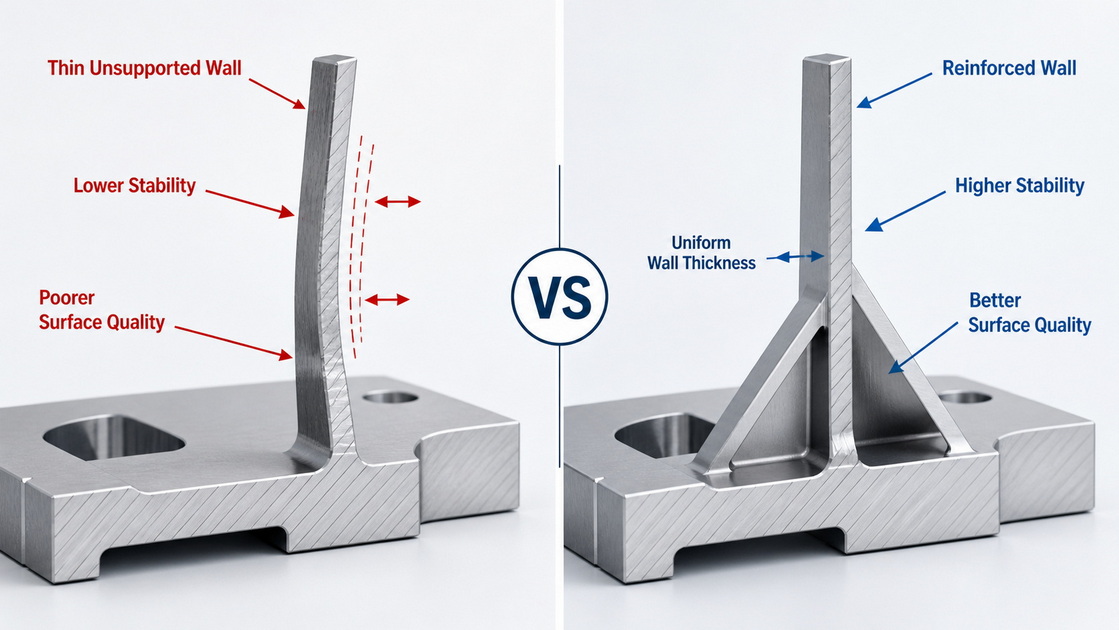

Thin walls are one of the most common causes of vibration, deflection, and poor surface finish. Protolabs' machining guidance notes that thin walls are possible, but material stiffness still matters and thicker is better, especially for plastics and ductile metals. As a practical design rule, avoid making walls thinner than needed for strength, sealing, or product function. [protolabs]
For structural parts, use consistent wall thickness wherever possible. If thin walls are necessary, support them with ribs, steps, or geometric reinforcement. This is especially useful in housings, brackets, covers, and enclosures where cosmetic quality and stiffness both matter.
Design tip:
- Keep walls uniform.
- Use ribs or buttresses to add stiffness.
- Avoid long unsupported spans.

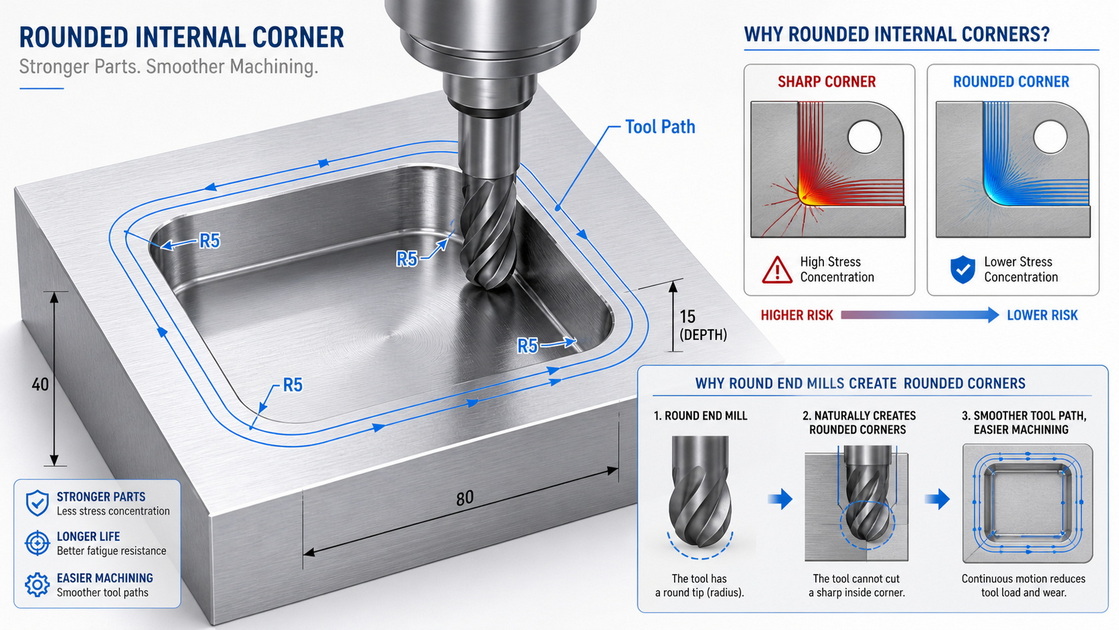

Sharp internal corners are difficult to machine efficiently because end mills are round. Protolabs explains that radii help distribute loads and reduce stress concentration, while sharp corners can act as stress raisers and create fatigue risk. From a machining standpoint, internal radii also reduce tool wear and allow faster, more stable toolpaths. [protolabs]
A simple rule is to specify the largest internal radius that your function allows. In many cases, standard radii that match common tool sizes are the most cost-effective choice. If the part must fit into a square mating component, consider relaxing the interface or redesigning the feature to avoid unnecessary machining difficulty.
Deep, narrow pockets create tool deflection, chatter, and chip evacuation problems. Protolabs warns that deep narrow pockets and tall adjacent walls can reduce accuracy and surface finish because cutter or workpiece vibration becomes more likely. This is not only a quality issue; it also increases cycle time and cost. [protolabs]
A better approach is to redesign pockets so that depth and width stay balanced. If deep geometry is unavoidable, split the part or consider a different machining strategy. For highly complex parts, 5-axis machining may reduce setups and improve access, which is increasingly used in modern high-mix, low-volume production. [benmachine]
Holes are easy to draw but not always easy to machine efficiently. Hole depth, diameter, and thread length should be selected based on standard tool availability and part function, not just nominal design intent. Many machine shops can handle tight-fit holes, but feature location and hole depth become more sensitive as precision increases. [protolabs]
Use standard drill sizes where possible, and avoid overly deep blind holes unless they are truly necessary. If thread engagement is required, make the threaded length only as long as needed for performance. This reduces machining time and also lowers the risk of broken taps, chip packing, and hole quality issues.

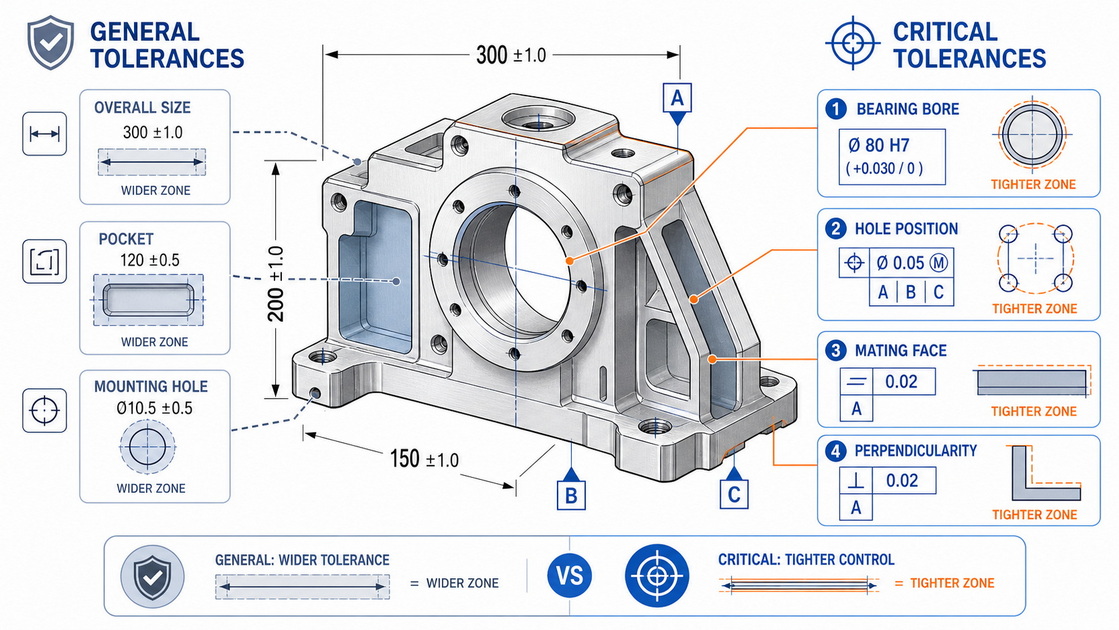

Over-tolerancing is one of the fastest ways to increase CNC cost. Protolabs states that standard machining tolerance is typically ±0.005 in. (0.13 mm), while tighter precision machining can reach ±0.002 in. (0.051 mm) for selected features, and even tighter tolerances may be possible on certain reamed holes and same-side feature locations. ISO 2768 is often used as the general tolerance framework when individual tolerances are not specified. [fictiv]
This means you should assign tight tolerances only to functional features such as bearing seats, sealing surfaces, locating holes, or press-fit interfaces. Non-critical dimensions can usually follow general tolerances. That approach improves quotation speed, inspection clarity, and total manufacturing efficiency.
Every extra setup adds time and risk. Modern CNC practice increasingly favors fewer operations, better part orientation, and simpler fixturing because they improve repeatability and reduce the chance of dimensional stack-up. If a part needs machining on all six sides, it may still be feasible, but the design should justify the added complexity. [teslamechanicaldesigns]
Try to create flat reference faces for clamping. Place major functional features on the same side when possible. If a part forces awkward fixturing or frequent reorientation, consider redesigning the geometry or splitting the component into two simpler parts.
Use this checklist before releasing a CNC drawing:
1. Confirm every feature is necessary.
2. Verify wall thickness is sufficient for the material.
3. Replace sharp internal corners with radii.
4. Keep pockets shallow when possible.
5. Use standard drill and thread sizes.
6. Apply tight tolerances only to critical dimensions.
7. Reduce the number of setups and tool changes.
8. Check whether the part can be split into simpler components.
This checklist works well for OEM buyers because it forces a manufacturing review before quotation. It also helps procurement teams compare suppliers on more than just price.

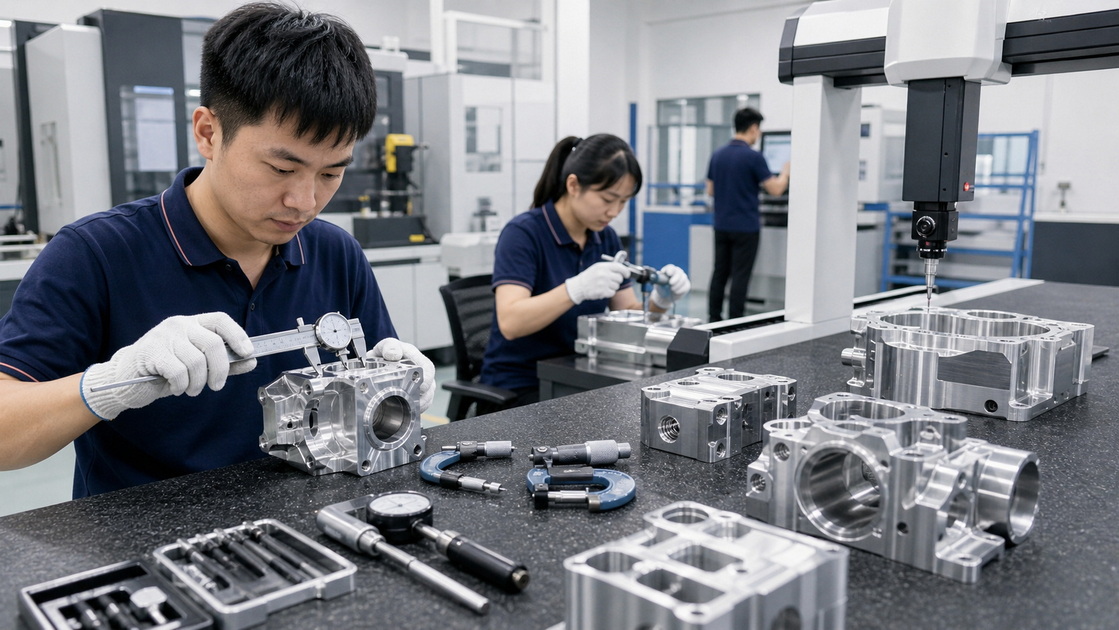

Today's buyers expect more than "parts that fit." They want repeatability, documentation, inspection support, and fast reaction to drawing changes. In high-mix, low-volume production, 5-axis machining, CAM automation, and digital DFM review are increasingly common ways to improve throughput and consistency. That shift means the best CNC part design is no longer just about geometry — it is about production intelligence. [benmachine]
For export-focused manufacturers, this matters because overseas customers often judge supplier quality by communication quality, tolerance discipline, and drawing clarity. If your design package includes clear tolerances, surface finish notes, and proper datums, your project is far easier to quote and manufacture. This is where a strong OEM/ODM supplier can differentiate itself.
- Specifying tight tolerances on every dimension.
- Designing thin walls without support.
- Using sharp internal corners everywhere.
- Creating deep pockets without machining justification.
- Requiring unnecessary threads or blind holes.
- Ignoring clamping surfaces and setup strategy.
These mistakes often look minor in CAD but become expensive in the shop. They can also slow down quality inspection and delay delivery.
As a CNC precision parts manufacturer in China, Shenzhen Feifan Hardware & Electronics Co.,Ltd. supports OEM and ODM customers with custom-machined components for overseas brands, wholesalers, and manufacturers. That makes design collaboration especially important, because the earlier a manufacturability issue is caught, the faster and more cost-effective the project becomes.
If your goal is to reduce cost, improve accuracy, and speed up sampling, a supplier-side DFM review is one of the highest-value steps you can take. It helps translate your drawing into a stable production plan rather than a one-off trial.
Good CNC part design is a balance between function, cost, and manufacturability. If you optimize wall thickness, radii, pockets, holes, tolerances, and setups early, you will usually get better quality and faster delivery with fewer revisions. For OEM and ODM projects, that is often the difference between an average supplier and a reliable long-term manufacturing partner.
CTA: Send us your drawing or 3D file for a CNC DFM review, and we will help you identify cost-saving improvements, tolerance risks, and machining opportunities before production starts.
1. What is the most important rule in CNC part design?
The most important rule is to design for manufacturability first, which means balancing function, tolerance, and machining access. [protolabs]
2. How tight should CNC tolerances be?
Use tight tolerances only on functional features; general CNC tolerances are often around ±0.005 in. (0.13 mm), with tighter options for critical features. [hubs]
3. Why are internal radii important in CNC machining?
Internal radii reduce stress concentration and allow cutting tools to machine more efficiently, which improves quality and lowers cost. [protolabs]
4. Are thin walls acceptable in CNC parts?
Yes, but only when the design truly needs them; thin walls increase deflection risk and may reduce surface quality, so reinforcement is often needed. [protolabs]
5. Can CNC parts be designed for both low cost and high precision?
Yes. The key is to reserve precision for critical features and keep the rest of the geometry simple, accessible, and standard. [fictiv]
