When machining deep cavities, plunge milling and side milling are not just two toolpaths—they are two very different answers to the same manufacturing problem: how to remove material accurately without losing stability, chip evacuation, or surface quality. For deep cavity work, plunge milling is often the safer problem-solver, while side milling is usually the faster and smoother finishing option when the setup is rigid enough. [sandvik.coromant]
Deep cavities create a difficult cutting environment because tool overhang increases vibration, deflection, and the risk of chip packing. Industry guidance notes that plunge milling becomes especially useful when side milling is limited by vibration, poor stability, long overhangs, or difficult materials such as titanium. [sandvik.coromant]
For OEM and ODM precision parts, the real decision is not "which method is better" in general. It is which method gives the best balance of stability, cycle time, finish, and risk control for the specific cavity. [harveyperformance]

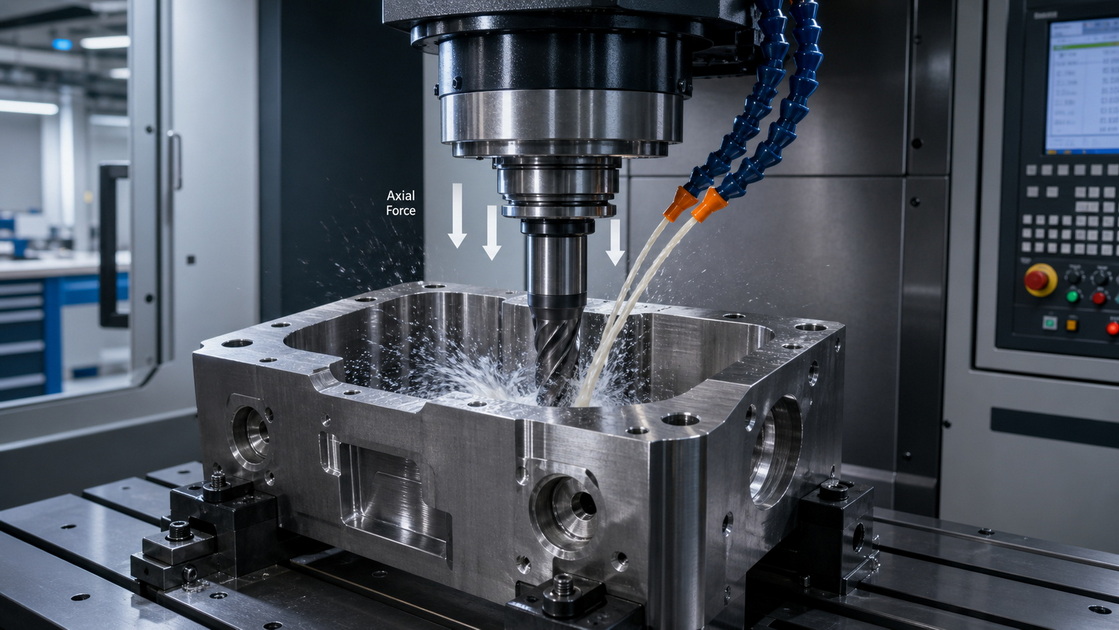

Plunge milling cuts with the end of the tool in the Z-axis rather than the tool periphery. That shifts cutting forces from mostly radial loading to mostly axial loading, which is why it often works better in long-reach or deep-cavity conditions. [ctemag]
In practical terms, plunge milling behaves more like interrupted boring than traditional side milling, and it generally produces lower power demand and lower noise. The tradeoff is that it usually has a lower metal removal rate than an ideal side-milling setup, so it is not always the first choice when the machine and tool are stable enough. [sandvik.coromant]

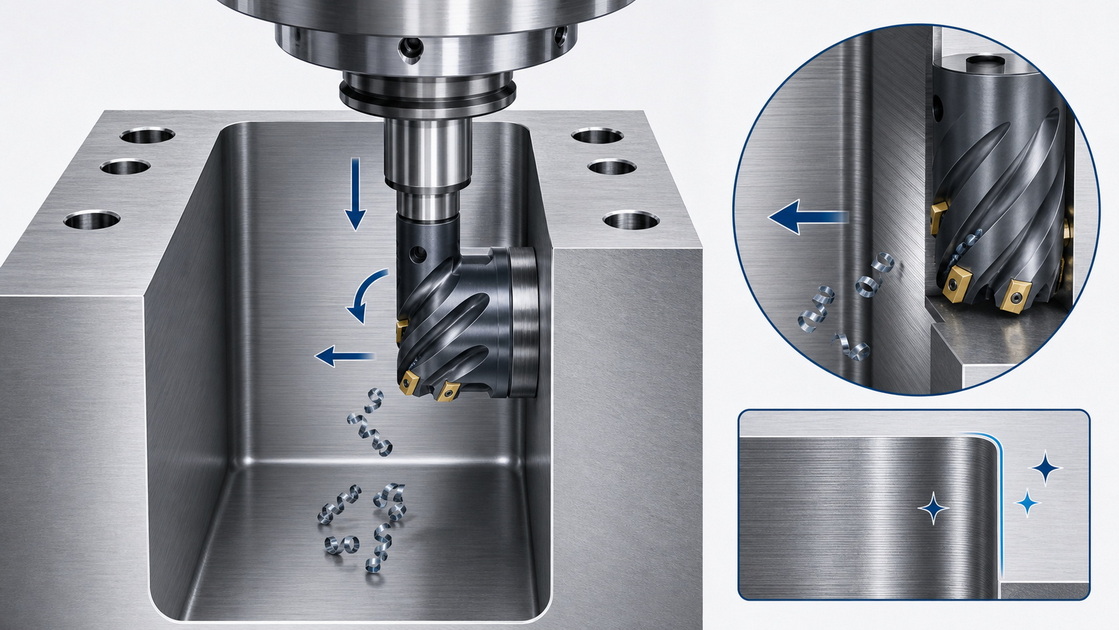

Side milling removes material with the cutter's periphery, which is efficient for walls, profiles, and finishing passes. It is often preferred when the machine is rigid, chip evacuation is manageable, and the goal is a smoother wall finish with higher productivity. [sandvik.coromant]
In deep cavities, however, side milling creates more lateral force, which increases tool deflection and chatter as tool stickout grows. That is why side milling can become unreliable in long-overhang applications or on less rigid machines. [mold-magazine]

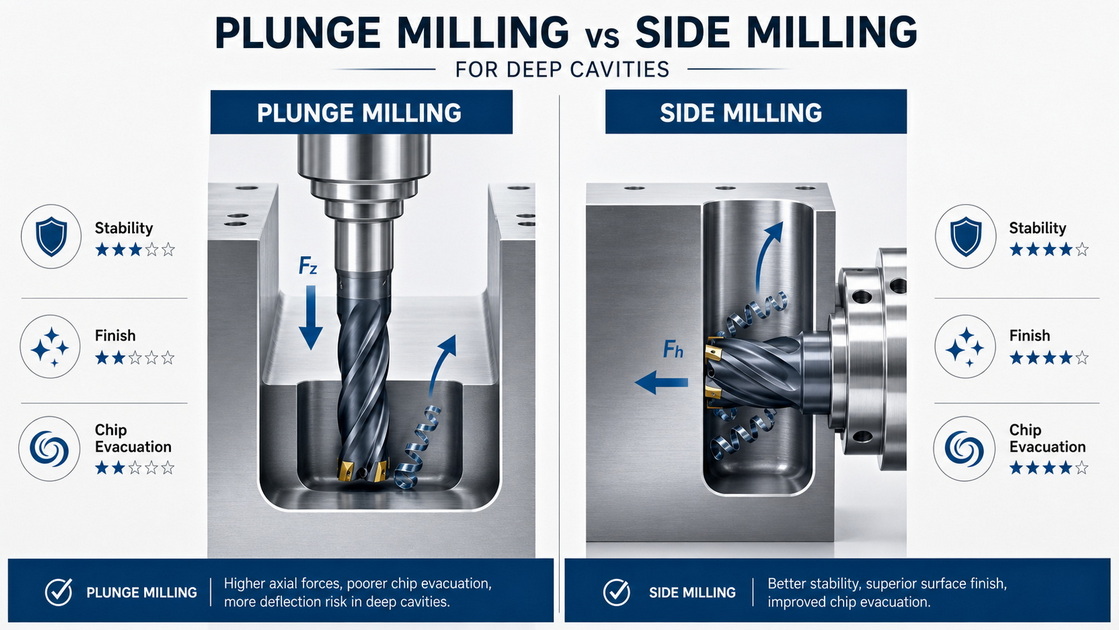

| Factor | Plunge Milling | Side Milling |
|---|---|---|
| Cutting force direction | Mostly axial sandvik.coromant | Mostly radial sandvik.coromant |
| Stability in deep cavities | Better when overhang is long sandvik.coromant | Better only when rigidity is high harveyperformance |
| Material removal rate | Usually lower sandvik.coromant | Usually higher when conditions are ideal sandvik.coromant |
| Surface finish on walls | Often needs a finishing pass harveyperformance | Usually better for wall finishing harveyperformance |
| Chip evacuation | Critical, especially in closed cavities sandvik.coromant | Also important, but usually easier in open conditions sandvik.coromant |
| Best use case | Deep pockets, long reach, vibration-prone setups sandvik.coromant | Stable machines, finishing, accessible walls harveyperformance |
A practical rule is simple: choose plunge milling when stability is the bottleneck; choose side milling when finish and speed matter and the setup can handle the side load. Sandvik notes plunge milling is useful when tool overhang exceeds 4x DC, when machine power or torque is limited, and when side milling is not possible due to vibration. [sandvik.coromant]
Side milling is still valuable in deep cavity work, but it usually becomes more effective later in the process, after roughing has opened the cavity and left a controlled stock allowance for finishing. In other words, plunge milling is often the roughing rescue strategy, while side milling is frequently the finishing strategy. [harveyperformance]
Deep cavities are difficult because the tool behaves like a long lever. As overhang increases, deflection grows and the tool can pull away from the wall or chatter against it, especially in thin-walled or vibration-sensitive parts. [dadesin]

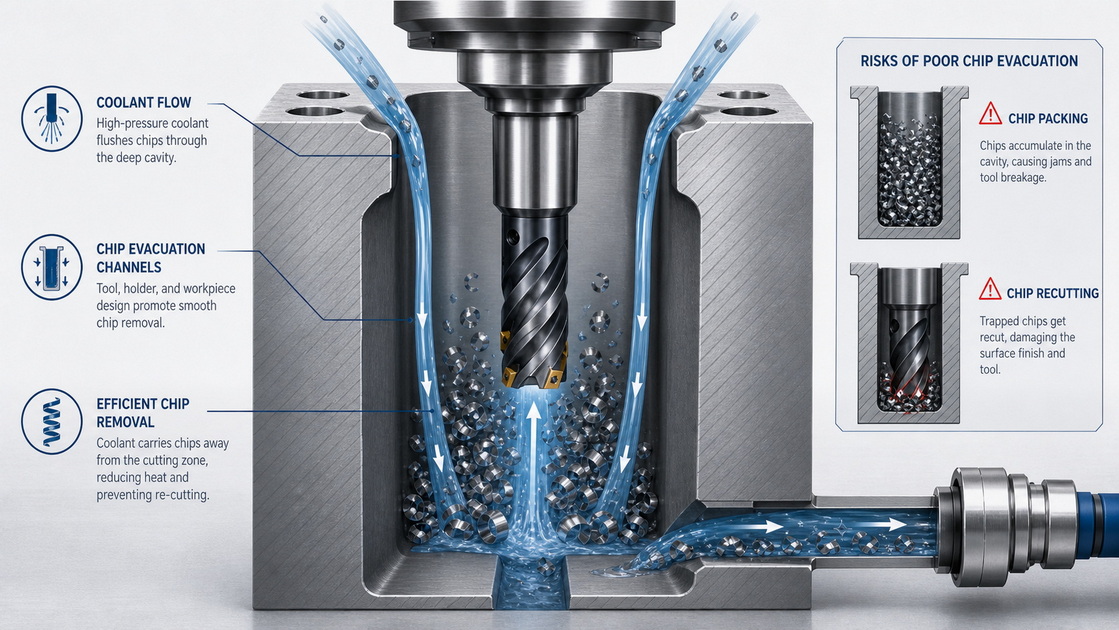

Chip evacuation becomes just as important as tool choice. In confined cavities, trapped chips can be recut, packed into corners, or mixed with coolant into a slurry that damages finish and shortens tool life. [hotean]
Plunge milling is especially strong in these situations:
- Long overhangs and deep pockets where side forces would cause chatter. [sandvik.coromant]
- Difficult-to-cut materials such as titanium. [sandvik.coromant]
- Semi-finishing corners and remaining stock after roughing. [sandvik.coromant]
- Machines with limited rigidity, torque, or less-than-ideal interpolation. [tormach]
For these jobs, plunge milling reduces the stress on the cutter and the spindle because the load is driven more into the machine structure than sideways across the tool. That makes it a practical choice for tough cavities where the priority is to keep cutting safely and consistently. [ctemag]
Side milling is usually better when the machine is stable enough to support the cut and the cavity geometry allows good chip flow. It is the preferred route for wall finishing, profile accuracy, and higher removal rates in more rigid setups. [harveyperformance]
It also gives the programmer more familiar control over wall quality and dimensional consistency. In production environments, that matters because the finishing pass often determines whether a part passes inspection with minimal rework.
From a process-engineering point of view, the biggest gains often come from the setup, not just the toolpath. For deep cavity work, the following practices matter most:
1. Use the shortest practical tool overhang.
2. Keep stock allowance consistent for finishing.
3. Reduce feed in the first plunge steps.
4. Use high-pressure coolant or compressed air to clear chips.
5. Avoid re-cutting on the return stroke with a proper hook-style program. [harveyperformance]
Sandvik also recommends a horizontal setup where possible, since it improves chip evacuation in plunging and closed-slot operations. That matters because even a strong cutting strategy can fail if chips cannot leave the cavity fast enough. [sandvik.coromant]

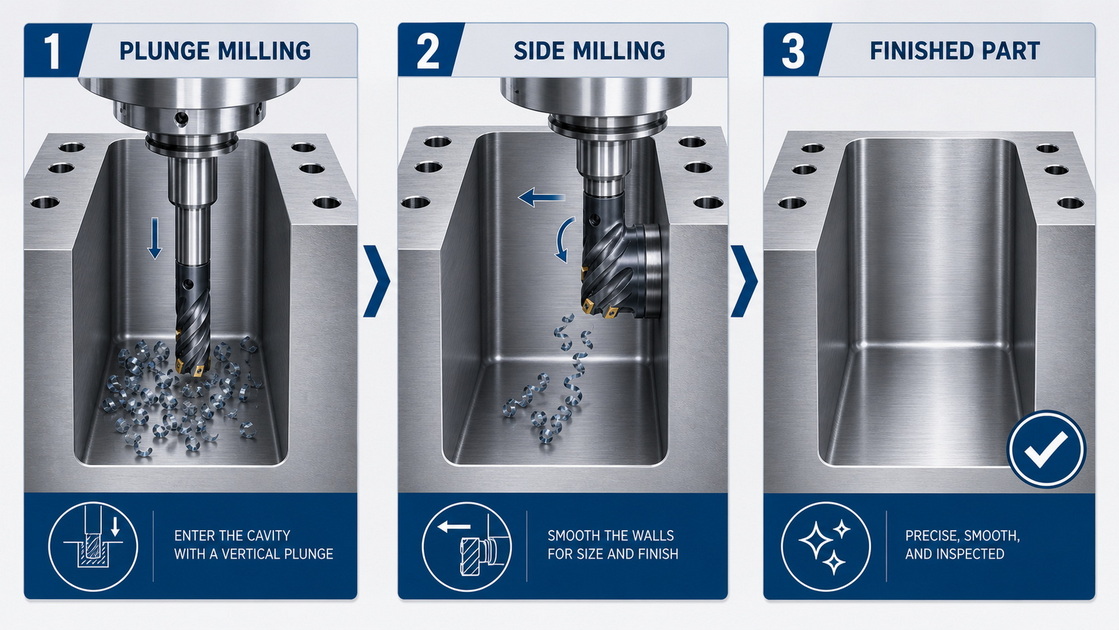

A reliable deep-cavity workflow often looks like this:
1. Rough the cavity with plunge milling when side loading is too high.
2. Open the geometry enough to restore chip flow.
3. Switch to side milling or internal shoulder milling for faster finishing. [sandvik.coromant]
4. Leave a controlled stock layer for final wall cleanup. [harveyperformance]
5. Inspect critical dimensions early, not only at the end.
This hybrid approach is common in precision CNC production because it reduces risk during roughing and preserves surface quality during finishing. For a manufacturer serving overseas OEM and ODM clients, this is often the most production-friendly strategy because it balances part quality, cycle time, and repeatability.
A deep mold cavity in aluminum or steel often begins with plunge milling because the tool cannot survive full side engagement at depth. Once the cavity is opened, the machinist may use side milling or long-reach finishing cutters to improve wall finish and hold tolerance. [harveyperformance]
This staged method is especially useful in export-focused precision manufacturing, where customers care about first-pass yield as much as final geometry. It is also easier to standardize across batches, which supports consistent OEM supply.
For deep cavities, plunge milling is usually the better roughing strategy because it handles vibration and long overhangs more safely. Side milling is usually the better finishing strategy because it delivers better wall quality and faster cutting when the setup is rigid enough. [sandvik.coromant]
For most precision OEM/ODM projects, the best answer is not choosing only one method. It is using plunge milling to open and stabilize the cavity, then side milling to finish the walls and hold tolerance.
1. Is plunge milling faster than side milling?
Not usually. Plunge milling is generally slower in ideal conditions because its metal removal rate is lower, but it can be faster in real deep-cavity work when side milling becomes unstable. [sandvik.coromant]
2. Why does plunge milling reduce chatter?
Because the cutting load is mostly axial instead of radial, so the tool is less likely to be pushed sideways out of position. [ctemag]
3. Can side milling be used in very deep cavities?
Yes, but only when rigidity, tool reach, and chip evacuation are controlled well enough. Otherwise, deflection and vibration become major risks. [mold-magazine]
4. What is the biggest mistake in deep cavity milling?
Ignoring chip evacuation. Poor chip removal can cause recutting, heat buildup, tool wear, and poor surface finish. [hotean]
5. When should a shop switch from plunge milling to side milling?
Usually after roughing has opened the cavity enough to improve tool access, reduce chip congestion, and leave stable stock for finishing. [sandvik.coromant]
