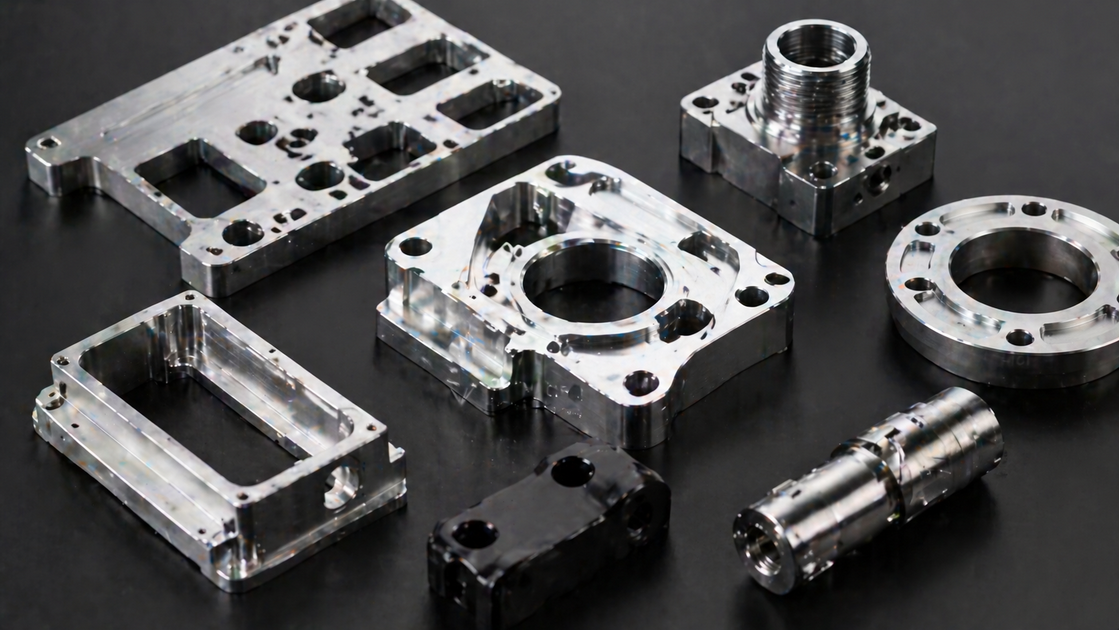

If you are designing CAD files for CNC machining, the best parts are not just accurate on screen—they are easy to machine, inspect, and assemble in the real world. This expert guide explains how to improve CAD design for CNC machining with practical DFM advice, tolerance strategy, and manufacturer-friendly drawing habits that reduce cost and risk. [hubs]
A CNC machine can only produce what the design allows. If the CAD model contains impossible features, unrealistic tolerances, or poor geometry, the result is often longer lead times, higher cost, and avoidable revisions. In practice, designing for manufacturability is just as important as designing for performance. [macfab]
For OEM and ODM projects, this is even more important because overseas buyers often need repeatable quality, stable lead time, and part consistency across batches. A good CAD model helps the factory quote faster, program with confidence, and inspect more efficiently. [gdandtbasics]

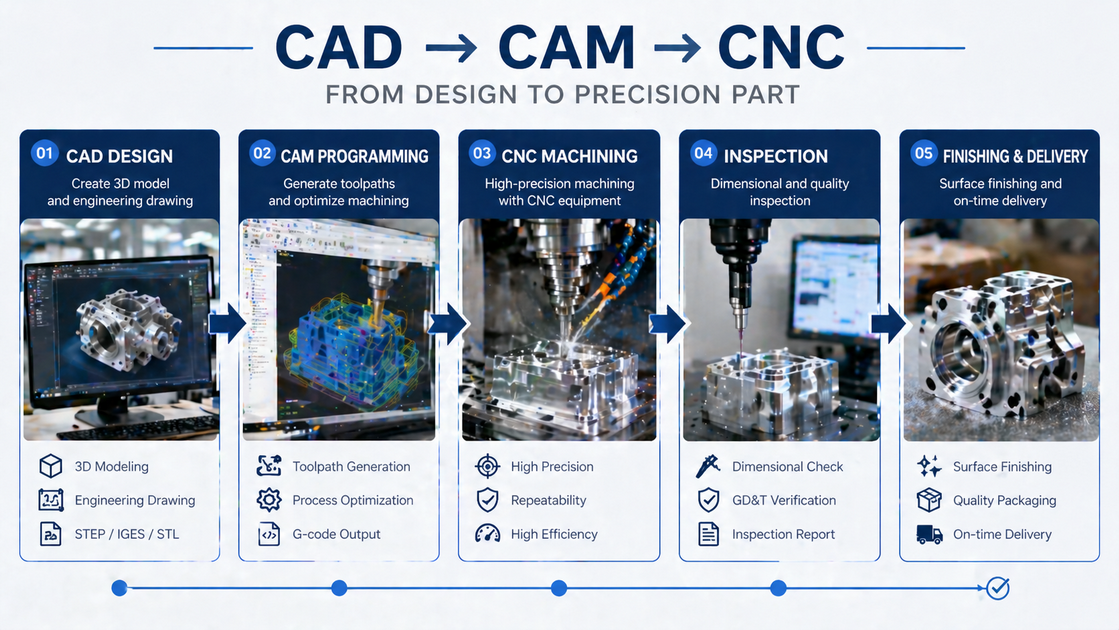

Use 3D CAD software that exports cleanly into downstream CAM and inspection processes. Modern platforms such as SolidWorks, Inventor, NX, and Solid Edge are commonly used because they support robust modeling and manufacturable feature control. [fictiv]
This matters because poor file translation can introduce errors in geometry, edge definitions, or feature interpretation. For CNC projects, the goal is not just to model a part, but to model it in a way that a machining team can read, program, and verify. [fictiv]
One of the easiest ways to reduce cost is to match your geometry to standard cutting tools. Standard drill sizes, common end mills, and common thread forms are faster to program and easier to machine than custom or awkward feature sizes. [protolabs]
For example, if an internal corner radius can match a standard tool radius, the machinist can use an efficient path instead of a special setup. The same logic applies to holes and threads: standardization improves tool availability, repeatability, and pricing. [americanmicroinc]
Material selection is not only about strength or corrosion resistance; it also affects machining efficiency. Designing within common bar, plate, or block sizes reduces waste and minimizes the amount of stock removal. [fictiv]
A part that is slightly adjusted to fit a standard stock dimension can often be produced more economically than a geometrically "perfect" design that forces extra machining. In real production, the cheapest part is often the one that starts with the right stock size. [macfab]
Every time a part must be re-fixtured, the risk of error increases. More setups mean more handling, more time, and more chances for positional variation. If possible, design features so they can be machined from fewer orientations. [americanmicroinc]
This is especially important on 3-axis machining jobs, where the tool cannot reach every angle in one operation. A design that supports fewer setups is usually faster to inspect and more stable in production. [americanmicroinc]

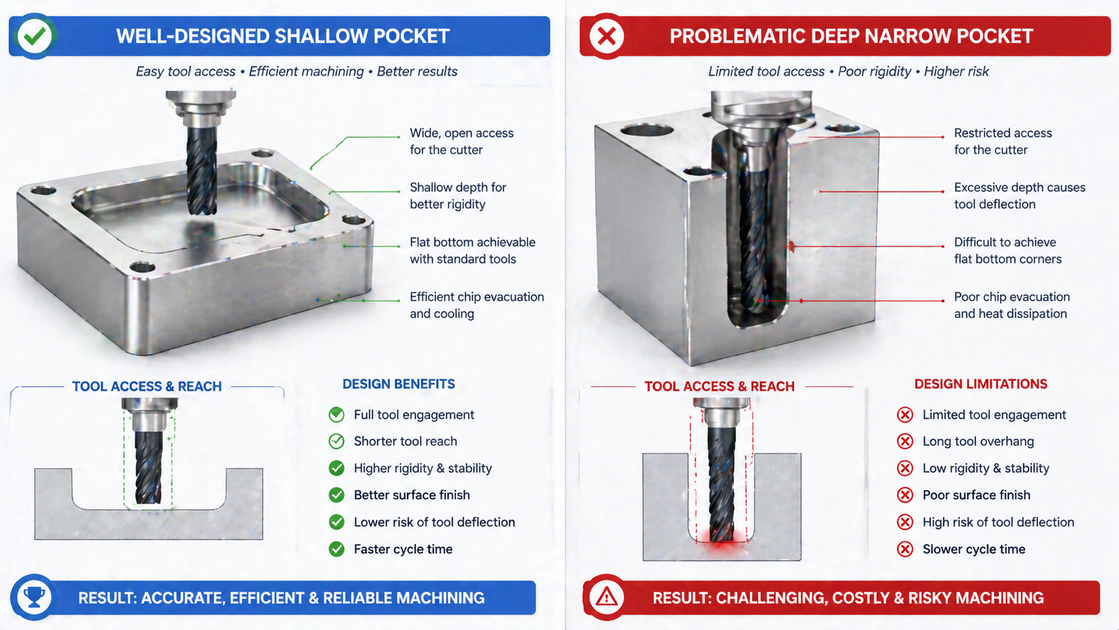

Deep pockets and long-reach features are difficult because tool deflection, chatter, and chip evacuation become major problems. As pocket depth increases, accuracy tends to decrease and cycle time tends to rise. [xrcengineering]
A practical rule is to keep depth as low as function allows and avoid extreme depth-to-width ratios unless the application truly requires them. If a deep cavity is unavoidable, communicate the requirement clearly and expect higher cost and tighter process control. [xrcengineering]
Thin walls can work in some designs, but they are harder to machine consistently, especially in metals and flexible plastics. General guidance in the market commonly places minimum wall thickness around 0.8 mm for metals and 1.5 mm for plastics, though the final recommendation depends on geometry, material, and machine setup. [xometry]
If you are designing parts that require lightweight structures, it is better to balance wall thickness with rigidity instead of chasing ultra-thin sections. A wall that looks acceptable in CAD may still vibrate, distort, or scrap during machining. [xometry]

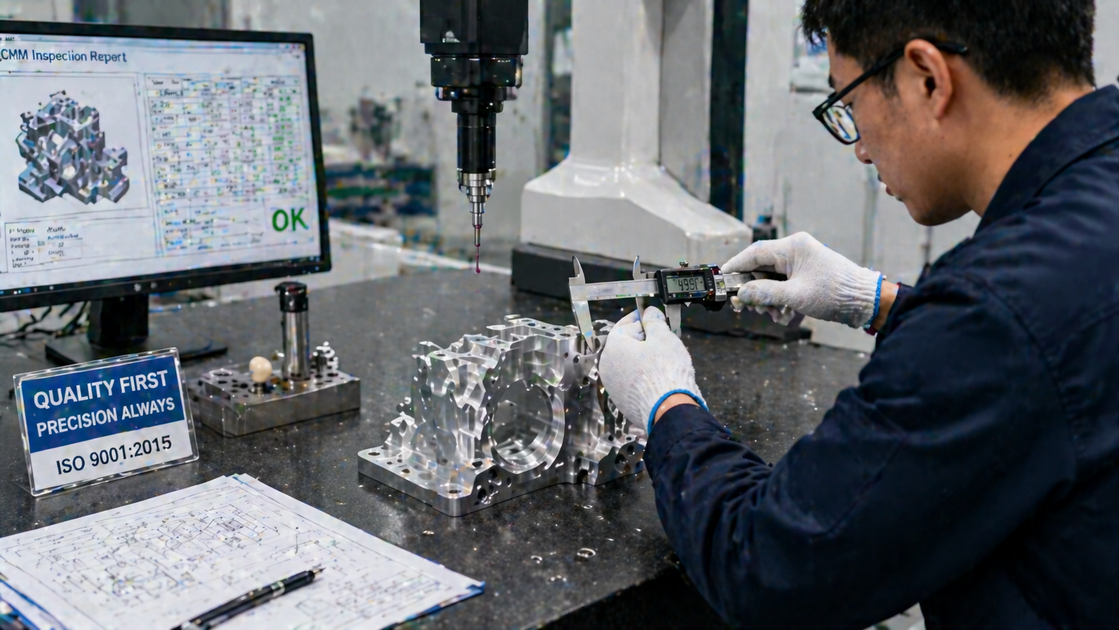

A major CNC cost driver is unnecessary tight tolerancing. General tolerances such as ISO 2768 are widely used for dimensions that do not need special control, while custom tolerances should be reserved for functional features like fits, sealing surfaces, and alignment interfaces. [jlccnc]
The rule is simple: tolerance the part based on function, not habit. If a dimension does not affect fit, seal, motion, or assembly, it usually should not be forced into an expensive precision range. [xometry]

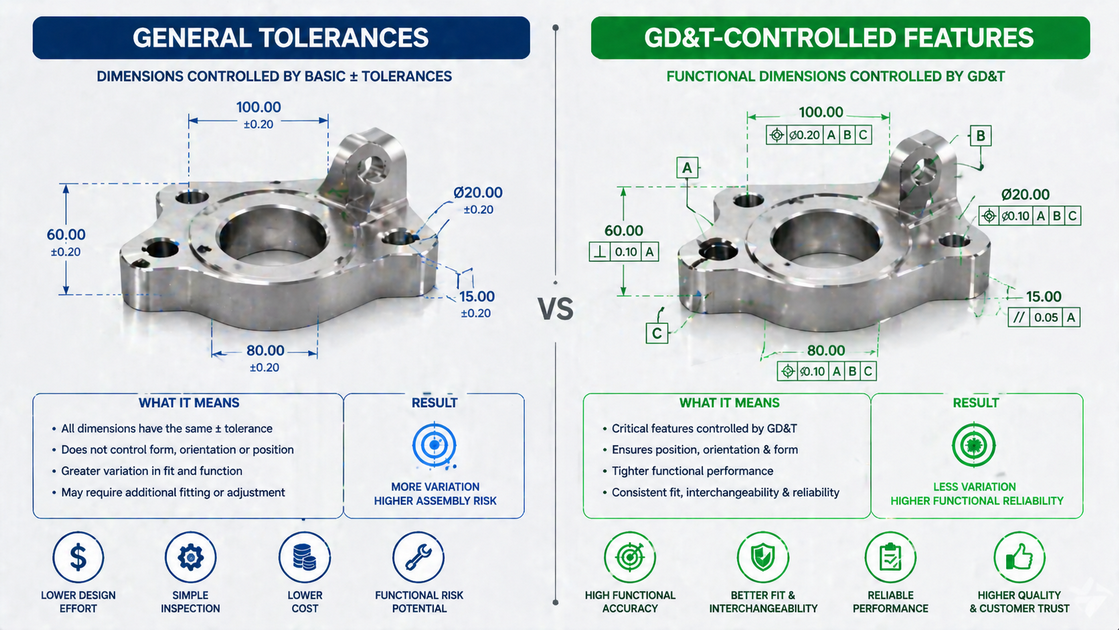

Sometimes size tolerance alone is not enough. When location, perpendicularity, flatness, concentricity, or runout matters, GD&T communicates the design intent better than over-tightening multiple dimensions. [industrialmonitordirect]
This approach improves both manufacturing and inspection because it tells the supplier what truly matters. It also reduces ambiguity, which is valuable when the part is being produced across international teams, multiple suppliers, or repeated production runs. [industrialmonitordirect]
CNC milling and CNC turning are not interchangeable. Milling is usually better for prismatic parts, pockets, and multi-face geometry, while turning is better for cylindrical parts, shafts, and concentric features. [hubs]
If a part is being designed as a turned component, symmetry around the axis of rotation can improve accuracy and reduce machining complexity. If it is a milled part, think about tool access, corner geometry, and orientation before finalizing the model. [hubs]
Text, tiny logos, and decorative micro-features often add cost without improving function. If marking is required, keep it simple, legible, and manufacturable; otherwise, consider post-processing methods such as laser marking or secondary labeling. [xometry]
The same logic applies to decorative curves, sharp internal corners, and other features that do not support the product function. In CNC machining, simplicity is not a compromise—it is often the fastest route to reliable quality. [jlccnc]
Before you send a CAD file for quotation, run the design through a simple manufacturing checklist. This reduces back-and-forth with the supplier and helps you catch problems before they become expensive revisions. [gdandtbasics]
Use this checklist:
1. Check tool access. Can the cutter physically reach every feature?
2. Review wall thickness. Are thin areas strong enough for machining and use?
3. Inspect pocket depth. Are deep cavities truly necessary?
4. Audit tolerances. Which dimensions actually affect fit or function?
5. Confirm material stock. Does the design suit common bar or plate dimensions?
6. Verify thread callouts. Are thread sizes, depth, and standards clearly defined?
7. Review finishing impact. Will anodizing, plating, or polishing change critical dimensions? [hubs]
For OEM and ODM work, this checklist is especially valuable because it helps standardize communication between design, procurement, and production teams. That standardization can save both time and engineering cost. [gdandtbasics]
Many teams focus on geometry but forget that finishing can change final dimensions. Coatings, anodizing, polishing, bead blasting, and other surface treatments can affect fit-critical features if they are not planned early. [fictiv]
A good drawing should state whether a dimension applies before or after finishing. This is especially important for bores, shafts, mating faces, and sealed interfaces, where even small variation can affect assembly performance. [hubs]
- "Dimension applies after anodizing."
- "General tolerances per ISO 2768-m."
- "Critical hole position per GD&T datum scheme."
- "Threads to ISO standard callout." [gdandtbasics]
A strong CAD review process saves more money than a late-stage redesign. In a professional sourcing workflow, the designer, purchaser, and machinist should review the same file with the same manufacturing assumptions. [americanmicroinc]
A practical review sequence looks like this:
1. Confirm the function of the part.
2. Identify the truly critical dimensions.
3. Apply appropriate tolerances only to those features.
4. Check material availability and stock size.
5. Review tool access and machining method.
6. Confirm finishing and inspection requirements.
7. Release the file only after the drawing and model agree. [gdandtbasics]
This process is especially useful for international OEM supply chains because it reduces misunderstandings across time zones, languages, and engineering standards. [hubs]
STEP files are widely used because they preserve 3D geometry reliably, and many machining workflows also accept native CAD formats depending on the supplier's system. [fictiv]
Because tighter tolerances usually increase programming time, inspection effort, and scrap risk. Use general tolerances for non-critical features and reserve tight tolerances for functional interfaces only. [gdandtbasics]
It depends on material and geometry, but many industry guides use about 0.8 mm for metals and 1.5 mm for plastics as general minimum references. [hppi]
Use GD&T when part function depends on position, orientation, flatness, runout, or other geometric relationships. Linear tolerances alone are often not enough for complex assemblies. [industrialmonitordirect]
Simplify geometry, reduce setups, standardize tooling, avoid unnecessary deep pockets, and apply tolerances only where function demands it. [macfab]
