Electrical discharge machining, or EDM, is one of the most valuable processes in precision manufacturing when conventional cutting tools are not enough. In this guide, we compare sinker EDM vs wire EDM from a practical engineering and sourcing perspective, so you can choose the right process for molds, dies, tight-tolerance parts, and complex conductive components. [rapiddirect]
EDM removes material by controlled electrical sparks rather than physical cutting force. Because the process is non-contact, it is especially useful for hard, conductive materials such as hardened steel, titanium, tungsten, and carbide, where tool wear and deformation can become major problems in conventional machining. [rapiddirect]
In EDM, the workpiece and electrode remain separated by a small spark gap and a dielectric fluid. The dielectric is not just a coolant; it helps control the discharge, flush away debris, and stabilize the machining zone. For wire EDM, deionized water is widely used; for sinker EDM, hydrocarbon oil is common. [mwi-inc]
Sinker EDM, also called ram EDM or cavity EDM, uses a shaped electrode to "sink" into the workpiece and create a matching cavity. That makes it ideal for blind cavities, deep ribs, internal corners, molds, dies, and other 3D features that cannot be cut easily with a wire. [mwi-inc]
A key advantage of sinker EDM is that it can reproduce complex internal geometry with high accuracy, even in very hard metals. Its limitation is that it usually requires custom electrode fabrication, which adds time and cost before machining begins. [methodsmachine]

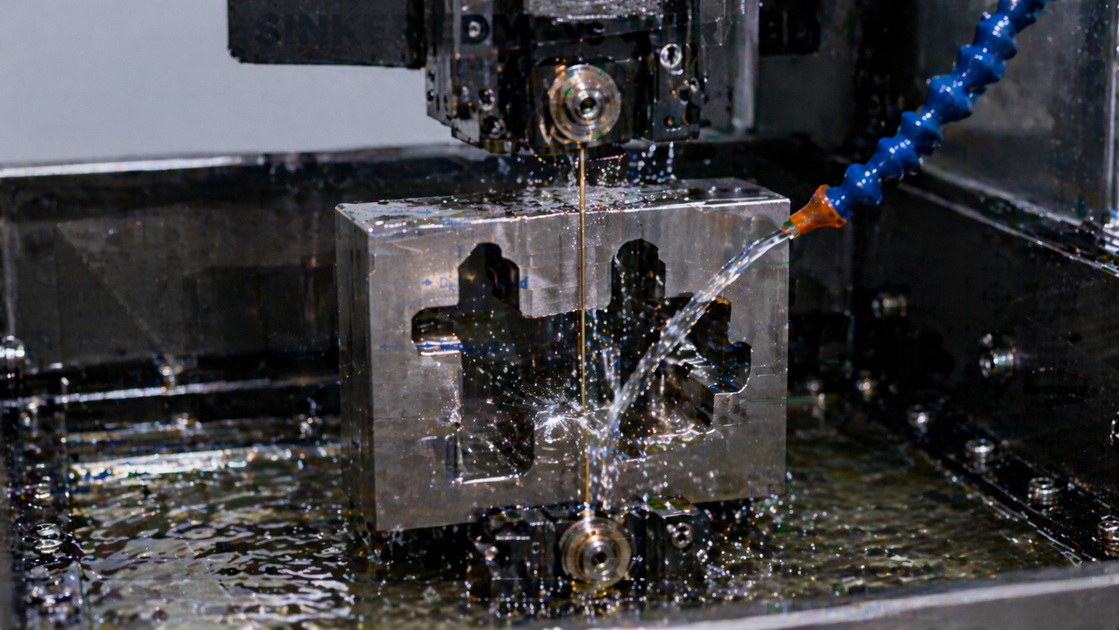

Wire EDM uses a continuously moving thin wire as the electrode to cut a conductive workpiece along a programmed path. It is best for 2D profiles, precision contours, tight tolerances, punch and die components, and parts that need a clean cut with minimal burrs. [mwi-inc]
Because the wire never touches the material mechanically, wire EDM is excellent for delicate parts and for cutting hard metals that would be difficult to machine conventionally. It is also widely preferred when accuracy and edge quality matter more than raw material removal speed. [rapiddirect]

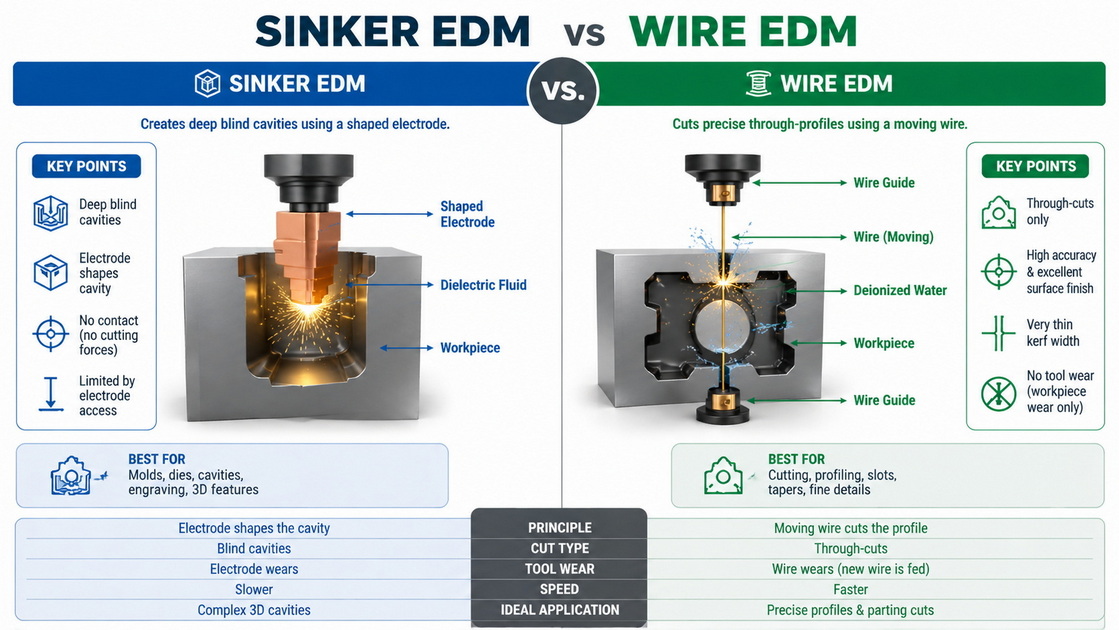

The easiest way to think about the two processes is this: sinker EDM creates shape inside the material, while wire EDM cuts shape through the material. That difference affects geometry, tooling, setup, cost, and even which parts can be manufactured efficiently. [methodsmachine]
| Factor | Sinker EDM | Wire EDM |
|---|---|---|
| Main function | Creates cavities and 3D internal forms | Cuts profiles through conductive material |
| Tooling | Custom electrode required | Thin wire electrode used continuously |
| Best for | Blind cavities, molds, dies, deep ribs | Precise profiles, punches, thin parts |
| Setup complexity | Higher because electrodes must be made | Often simpler once the part is programmed |
| Surface finish | Can be good, but often rougher than wire EDM | Usually smoother and more consistent |
| Typical dielectric | Hydrocarbon oil | Deionized water |

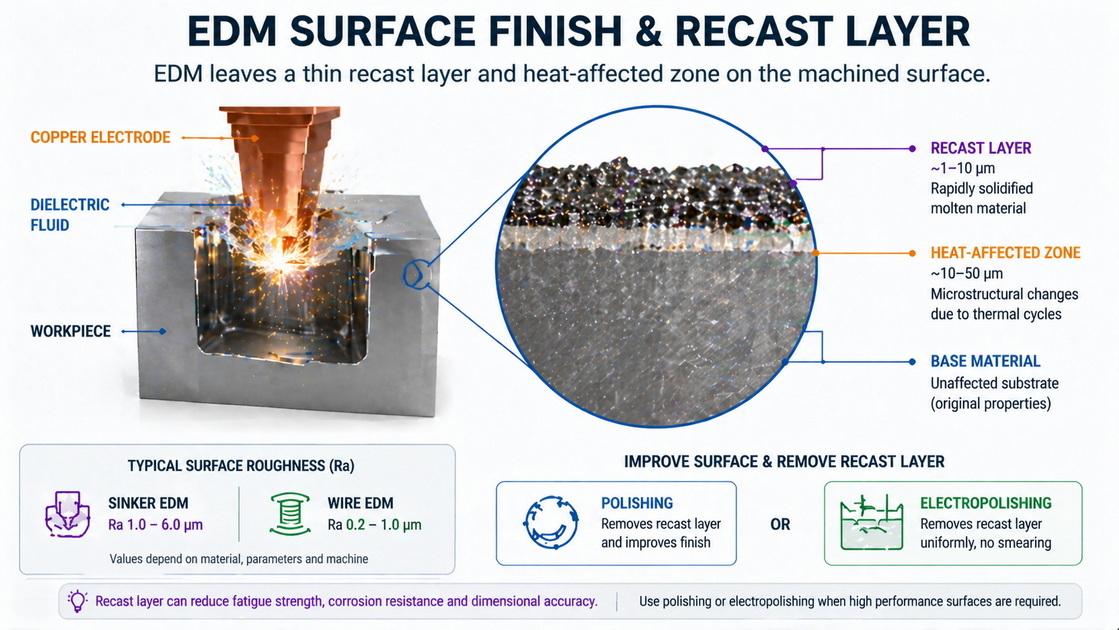

Surface finish is not just an aesthetic issue; it can affect fatigue life, sealing performance, wear resistance, and post-processing cost. EDM naturally creates a recast layer because the spark melts and resolidifies a thin surface layer, and this can also create a heat-affected zone depending on process settings. [sciencedirect]
That is why buyers should not only ask about tolerance. They should also ask whether the part needs secondary finishing, stress relief, polishing, or surface treatment after EDM. For demanding applications, trim passes, controlled current settings, and proper dielectric management can improve surface integrity significantly. [pmc.ncbi.nlm.nih]
Choose sinker EDM when the part has a complex cavity, a deep blind feature, or a mold/die geometry that cannot be cut through from the edge. It is also a strong choice for low- to medium-volume parts where electrode fabrication cost is justified by the complexity of the form. [mwi-inc]
Choose wire EDM when the part needs high precision, sharp profiles, clean corners, and excellent repeatability. It is often the better choice for punches, extrusion dies, medical and aerospace components, and any conductive part that can be cut from the outside edge. [rapiddirect]
A simple way to choose the right EDM process is to follow this order:
1. Confirm the material is electrically conductive.
2. Identify whether the part is a through-cut profile or a blind cavity.
3. Check tolerance and edge-finish requirements.
4. Estimate whether the part volume justifies custom electrode cost.
5. Decide whether post-processing will be needed. [ycmalliance]
This workflow is especially useful for OEM and ODM buyers because it turns a technical decision into a sourcing decision. In practice, the best choice is often the one that balances geometry, cost, lead time, and final surface quality, rather than the one that sounds "more advanced." [parashifttech]

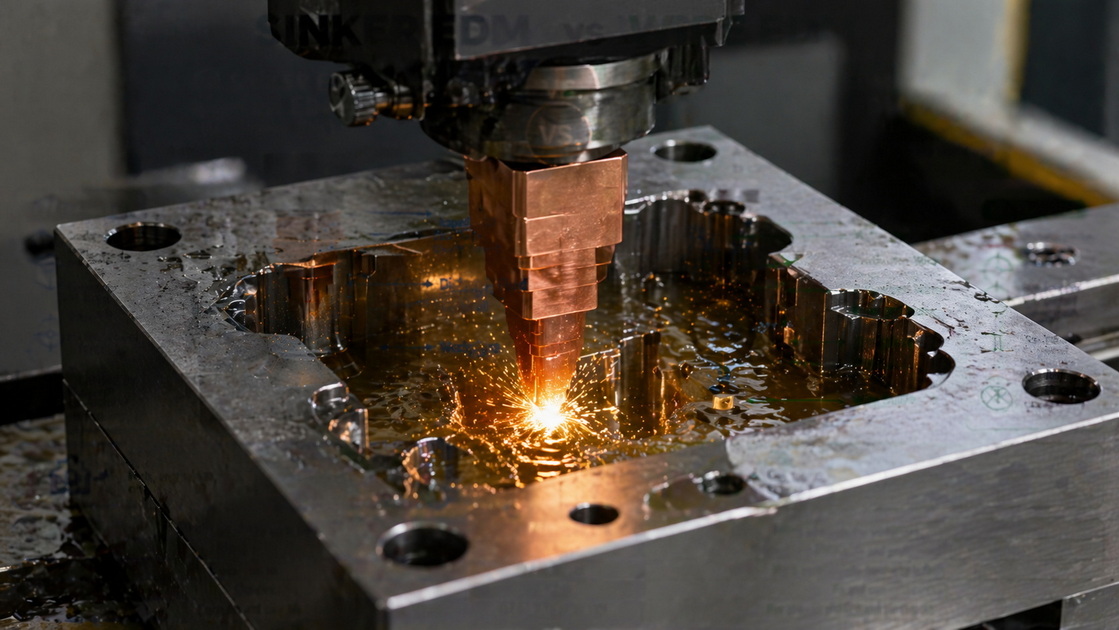

In mold and die work, sinker EDM is frequently used for deep cavities, fine ribs, and shapes that conventional cutters cannot reach cleanly. In precision component production, wire EDM is often preferred for profiles that require tight dimensional control and consistent edge quality. [mcmachinery]
For example, if a customer needs a hardened tool steel insert with a deep blind pocket, sinker EDM may be the right choice. If the same customer needs a perfectly cut punch blank with sharp contour geometry, wire EDM is usually the better option. [rapiddirect]
From a purchasing perspective, EDM cost is affected by setup time, machining time, consumables, electrode fabrication, and finishing requirements. Sinker EDM often carries more upfront work because the electrode must be designed and produced, while wire EDM can be more efficient for repeatable profile cutting. [methodsmachine]
To reduce cost without sacrificing quality:
- Simplify geometry where possible.
- Define tolerance clearly instead of over-specifying it.
- Ask for a surface finish target only when it matters functionally.
- Share CAD and application details early.
- Confirm whether one part can be optimized for wire EDM instead of sinker EDM. [parashifttech]
For international buyers, the real question is not only "Which EDM is better?" The better question is, "Which process gives the required geometry, quality, and lead time at the lowest total risk?" That is where an experienced machining partner adds value, because process selection can directly affect mold life, part consistency, and assembly performance. [ycmalliance]
At Shenzhen Feifan Hardware & Electronics Co., Ltd., this is exactly the kind of decision support OEM and ODM customers need when sourcing precision parts from China. A good supplier should not simply machine to drawing; they should also help optimize the process for manufacturability, cost, and reliability. [parashifttech]
Sinker EDM and wire EDM are both excellent precision processes, but they solve different problems. Sinker EDM is the stronger choice for complex internal cavities, while wire EDM is usually best for accurate profiles, tight tolerances, and clean cuts through conductive materials. [mwi-inc]
If you need OEM or ODM precision parts and want help choosing the most efficient EDM route, request a manufacturability review, share your CAD file, and ask for a process recommendation before production starts. That approach usually saves time, reduces cost, and improves final part quality. [parashifttech]
Sinker EDM forms internal cavities with a shaped electrode, while wire EDM cuts a profile with a thin wire electrode. [mwi-inc]
Wire EDM usually gives a smoother and more consistent surface finish than sinker EDM, though both may still require finishing depending on application requirements. [pmc.ncbi.nlm.nih]
No. EDM works only on electrically conductive materials. [rapiddirect]
Wire EDM is often faster for profile cutting, while sinker EDM may be more efficient for certain deep cavity applications once the electrode is prepared. [methodsmachine]
Deionized water acts as the dielectric fluid in wire EDM because it helps control sparking, flush debris, and maintain stable cutting conditions. [camtechedm]
Often yes, especially when surface integrity, fatigue resistance, or cosmetic quality matters. Recast layer and heat-affected zone considerations may require secondary finishing. [ctemag]
1. AT-Machining. "Sinker EDM vs Wire EDM: Exploring their Differences." https://at-machining.com/sinker-edm-vs-wire-edm/
2. RapidDirect. "Sinker EDM vs Wire EDM: Key Differences and Applications." https://www.rapiddirect.com/blog/sinker-edm-vs-wire-edm/
3. MWI Inc. "What's the Difference Between a Sinker EDM and Wire EDM." https://mwi-inc.com/blog-post/whats-the-difference-between-a-sinker-edm-and-a-wire-edm/
4. MWI Inc. "Exploring Dielectric Fluid in Wire EDM." https://mwi-inc.com/blog-post/exploring-dielectric-fluid-in-wire-edm-an-overview-of-its-purpose-and-functions/
5. ScienceDirect Topics. "Recast Layer." https://www.sciencedirect.com/topics/engineering/recast-layer
6. Materials (Basel) / PMC. "Tribological Characterization of Electrical Discharge Machined Surfaces for AISI 304L." https://pmc.ncbi.nlm.nih.gov/articles/PMC8839089/
7. Parashift Tech. "Stand Out in Manufacturing SEO with E-E-A-T." https://www.parashifttech.com/blog/stand-out-in-manufacturing-seo-using-e-e-a-t-to-build-real-online-trust-and-growth
8. YCM Alliance. "EDM Guide: How Electrical Discharge Machining Works." https://www.ycmalliance.com/edm-guide-how-electrical-discharge-machining-works/
9. Cutting Tool Engineering. "Understanding EDMed Surfaces." https://ctemag.com/articles/understanding-edmed-surfaces
