Views: 222 Author: Feifan Hardware Publish Time: 2026-04-16 Origin: Site
When you move from CAD to real CNC parts, the choice between a fillet and a chamfer is never just about looks—it directly affects fatigue life, machining cost, assembly reliability, and even operator safety. As a precision machining supplier working daily with overseas OEM/ODM customers, my team and I have seen edge details decide whether a part passes validation or fails in the field. [wevolver]
A fillet is a rounded transition between two surfaces, either on an internal corner (concave) or an external edge (convex). Instead of a sharp intersection, you get a smooth arc defined by a radius such as R1, R2, or R5. [protolabs]
In practice, we typically create fillets using ball‑nose end mills or corner‑rounding end mills, especially for internal pockets. This rounded geometry spreads stress over a larger area, which is why fillets are standard in load‑bearing brackets, gear hubs, shaft shoulders, and welded junctions. [jlccnc]
From a hands‑on shop perspective, fillets also remove dangerous razor‑sharp corners and reduce chipping on fragile edges, especially on aluminum, copper alloys, and thin‑wall sections. When a customer sends us a model full of perfectly sharp internal corners, we know those edges are not only hard to machine but also likely to fail under cyclic loads. [worthyhardware]
A chamfer is a flat, beveled cut that replaces a sharp 90‑degree corner with an angled plane, often at 45° or 60°. Instead of a curve, you get a straight edge at a defined angle and depth. [ecoreprap]
On the machine, we generate chamfers with chamfer mills, countersinks, or even spot drills by controlling depth and feed. Chamfers are a workhorse feature for: [protocase]
- Breaking sharp edges quickly after milling or drilling
- Creating lead‑ins for screws, dowels, and pins
- Providing visual alignment cues for assembly operators
- Recessing fastener heads below the surface at 45° countersinks [wevolver]
Chamfered edges give a crisp, technical look that many of our industrial and architectural customers prefer on visible parts, such as enclosures, front panels, and machine frames. They help with safe handling while remaining easier and faster to machine compared with large fillet radii. [firstmold]
Below is a practical comparison table we often use when reviewing drawings with new customers. [wevolver]
| Aspect | Fillet | Chamfer |
|---|---|---|
| Basic shape | Curved radius transition between two surfaceswevolver | Flat, beveled plane at a set anglewevolver |
| Edge feel | Smooth, ergonomic, comfortable to touchwevolver | Crisp, technical, but less sharp than 90°wevolver |
| Stress behavior | Significantly reduces stress concentration, ideal for fatigue‑critical regionswevolver | Removes the sharp point but keeps a line where stress can still concentratewevolver |
| Fluid/air flow | Promotes smooth flow, lowers turbulence and drag around cornerswevolver | Less effective at improving flow, sharper change in directionecoreprap |
| Aesthetic impact | Softer, organic, often preferred for consumer products and smooth housingswevolver | Precise, industrial, suited to mechanical or high‑tech visual stylewevolver |
| Safety | Excellent for eliminating cutting hazards on parts frequently handled by peoplewevolver | Good for removing burrs and sharp edges quicklywevolver |
| Machining time | Often slower, may require specific radius tools and more complex toolpathswevolver | Generally faster and cheaper, often achievable in a single tool pass |
In real projects, we rarely choose purely on one factor. Instead, we balance functional performance, assembly needs, and cost per part, especially when annual volumes reach tens of thousands. [xometry]

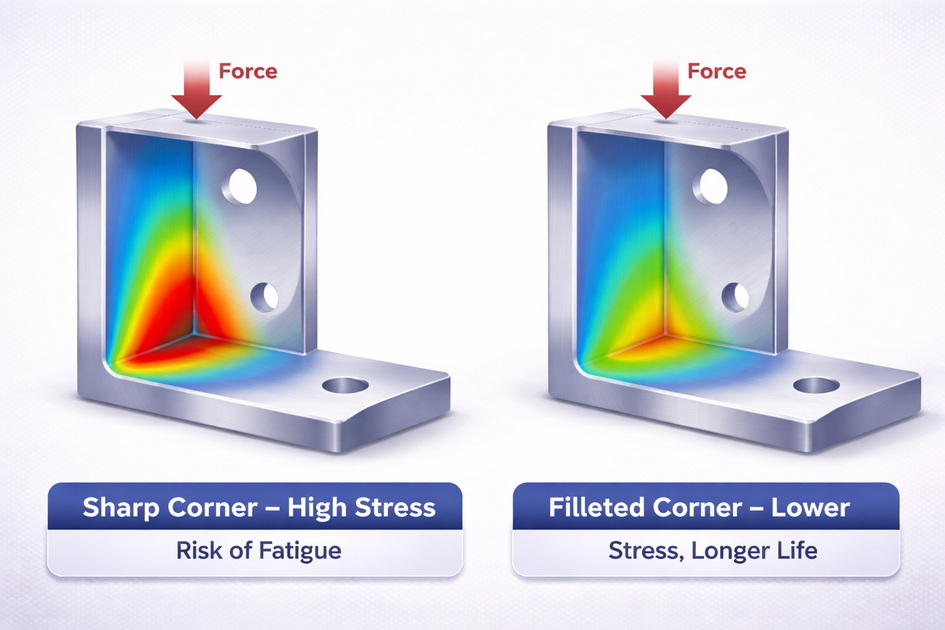

From my experience delivering precision parts for overseas OEMs, fillets are usually the better choice when:
1. Parts face repeated or high loads
- Load‑bearing brackets, gear teeth roots, and actuator housings benefit from fillets that reduce stress risers and extend fatigue life. [jiga]
- We often recommend adding small internal radii to sharp inside corners in aluminum or steel parts to prevent crack initiation. [jlccnc]
2. Components interact with fluid or airflow
- In flow channels, manifolds, or aerodynamic housings, fillets smooth transitions, reduce turbulence, and improve efficiency. [wevolver]
- Even a modest radius on a leading edge can stabilize flow and reduce noise, which matters in pumps and cooling systems. [jlccnc]
3. Ergonomics and safety dominate
- Consumer electronics housings, handheld tools, and medical casings often require rounded edges for comfort and safety. [firstmold]
- We have customers in the instrumentation sector who specify minimum radii on all user‑touching edges to meet internal safety standards.
4. You want to protect tools and improve manufacturability
- On CNC mills, fillets let us avoid impossible "knife‑edge" internal corners that would otherwise require tiny cutters and long cycle times. [wevolver]
- Properly chosen radii reduce tool wear and can make high‑speed machining more stable on hard materials. [precisioncncsolutions]
Design tip from our programming team: if your design has non‑functional sharp internal corners, add a standard radius that matches commonly stocked end mills (for example, R1, R2, R3). This simple change often cuts cost and lead time without sacrificing performance. [xometry]

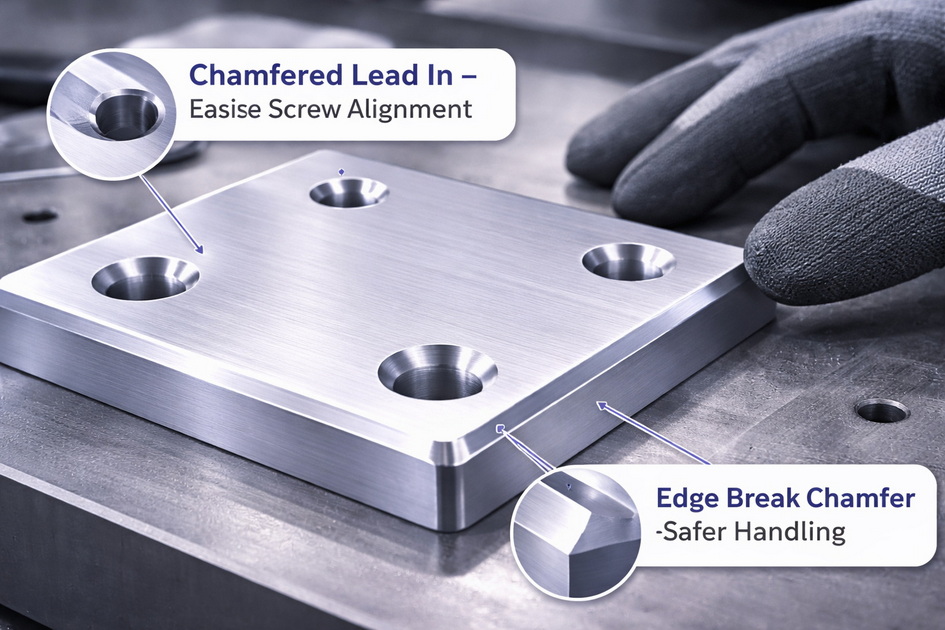

Chamfers come into their own where assembly speed, deburring, and visual precision matter more than stress relief. We recommend chamfers when: [wevolver]
1. You need easy assembly and alignment
- Bolt holes, dowel locations, and press‑fit bores often include a small chamfer (for example, 0.5–1.0 mm at 45°) to guide the component in. [jiga]
- On the shop floor, this reduces misalignment and cross‑threading, especially when assembly is manual or high volume.
2. Deburring and edge breaking must be fast
- Instead of manually filing or tumbling every sharp edge, we program a light chamfer pass and break all external edges in one or two operations. [protocase]
- This is common in sheet‑metal‑to‑machined assemblies where sharp edges are unacceptable for operators.
3. You want a sharp, technical look
- Customers in the automation and electronics industries often specify visible chamfers on front panels and CNC‑machined housings for a clean, "engineered" appearance. [firstmold]
- Chamfers can also visually separate mating surfaces and make tolerances easier to inspect.
4. You must control cost and cycle time tightly
- Because chamfers can often be cut using a single tool at varying depths, they scale well for mass production and high‑mix, low‑volume jobs. [worthyhardware]
- On some runs, moving from complex fillets to simple chamfers has been the main factor that made a part economically viable.
From a DFM standpoint, we often suggest "functional fillets + cosmetic chamfers" on the same part: fillets where stresses are high, chamfers where you just need an edge break and a tidy appearance. [jlccnc]
As an OEM/ODM partner, our job is not just to machine what's on your drawing but to help you land at the lowest total cost for the performance you need. Edge geometry plays a bigger role here than many designers expect. [parashifttech]
- Fillets
- Internal fillets may need ball‑nose cutters, small tools, or multiple passes, especially with large radii or deep pockets. [wevolver]
- Complex 3D fillets significantly increase CAM programming time and simulation requirements. [precisioncncsolutions]
- Chamfers
- Standard 45° chamfers are simple to program and cut; a single chamfer mill can handle multiple sizes by adjusting depth. [protocase]
- This efficiency makes chamfers attractive for prototype runs and cost‑sensitive projects.
Tight tolerances on fillet radii or chamfer dimensions can drive up inspection and scrap costs.
- Over‑specifying fillet accuracy (for example, radius tolerance tighter than necessary) may force slower feeds and extensive CMM measurement. [xometry]
- For non‑critical edges, we often recommend standard chamfers or "break sharp edges" notes to keep inspection proportional to function. [worthyhardware]
- Hard materials (tool steels, some stainless grades) amplify the time penalty of complex fillets. [xometry]
- In casting and molding, fillets help material flow and reduce hot spots, while chamfers help with ejection and part release. [jlccnc]
When our engineers review your CAD, we flag edge features that are likely to drive cost without adding value, then suggest fillet–chamfer optimizations aligned with your priorities (weight, strength, aesthetics, or unit price). [tiecas]

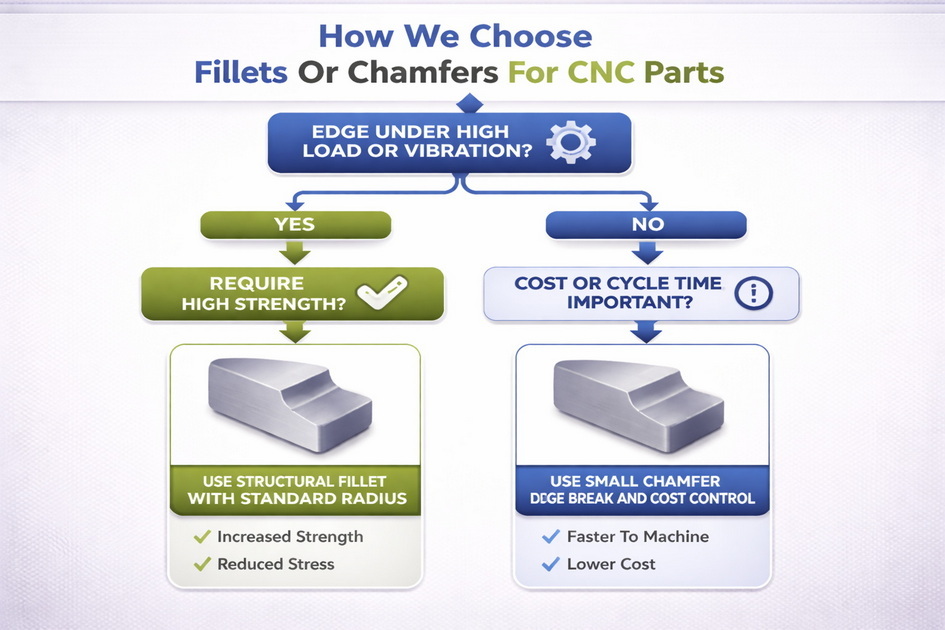

Over the years, we've developed a simple decision logic that we walk through with design teams before locking a drawing. [jiga]
Use fillets when:
- The region is under cyclic or high static load.
- You expect vibration, impact, or fatigue failure risk.
- The part is frequently handled or must feel comfortable.
- Fluid or air moves across the edge and efficiency matters.
Use chamfers when:
- You mainly need edge breaking and safer handling.
- Assembly, positioning, or alignment must be fast and error‑free.
- The edge is visible and you want a precise, industrial look.
- Cost and machining time are key constraints.
In real customer projects, we often take a hybrid approach: large structural fillets at critical stress locations, small chamfers at all non‑critical external edges, and generous fillets only where they significantly improve flow or ergonomics. This is usually the sweet spot between reliability, aesthetics, and budget. [jlccnc]

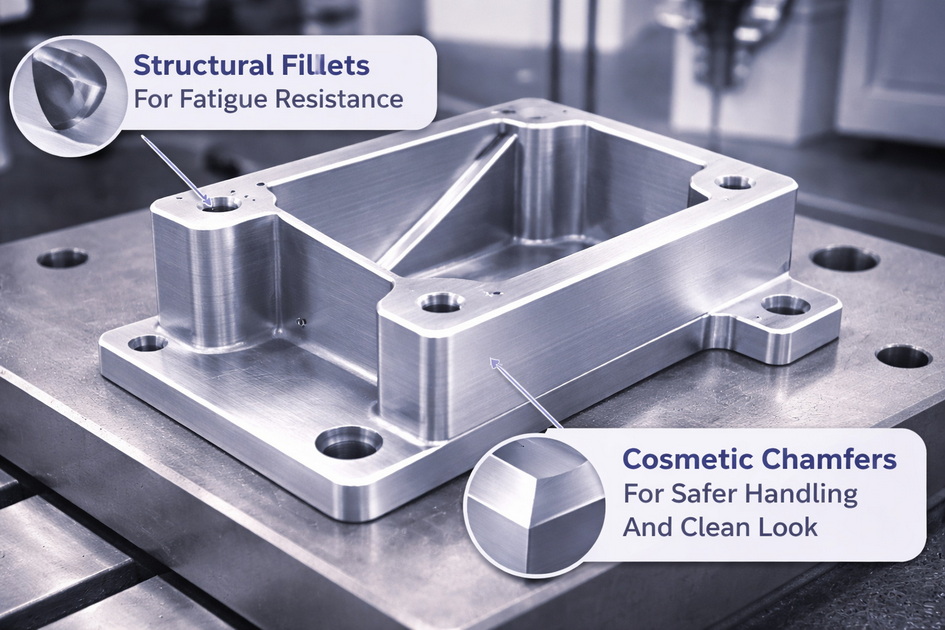

Imagine an overseas customer sends us a CNC aluminum bracket used to support a servo motor in a packaging line. The first CAD version has sharp internal corners and purely aesthetic external chamfers.
When we review the design, we:
1. Add small internal fillets at the base of the vertical ribs and around mounting bosses to reduce stress and prevent fatigue cracks under vibration. [protolabs]
2. Keep external chamfers on visible edges for a clean, high‑end look and easier handling during assembly. [ecoreprap]
3. Standardize all non‑critical edges to a simple "C0.5" chamfer or "break sharp edges" note instead of multiple custom callouts. [worthyhardware]
The result is a part that passes long‑term vibration testing, is faster to assemble on the customer's line, and costs less to produce at scale—a win for both engineering and procurement teams. [parashifttech]
As a CNC supplier, we see every type of drawing—from fully detailed models to vague "all edges smooth" notes. Clarity here is crucial for both user experience and quality control. [tiecas]
To make your intent easy to understand and inspect:
- Clearly label critical fillets with specific radii and tolerance ranges.
- Use a general note like "Break all sharp edges 0.2–0.5 mm" for non‑critical edges. [protocase]
- Indicate where chamfers are functional (for example, lead‑in for M6 screw) vs. purely cosmetic.
- Keep a consistent edge treatment strategy across your drawing set to avoid confusion on the shop floor. [tiecas]
Well‑structured edge specifications reduce back‑and‑forth questions, support better inspection planning, and help you get parts that match your design intent the first time.
As a China‑based CNC precision parts manufacturer serving international brands, wholesalers, and OEMs, we combine hands‑on machining experience with DFM‑driven engineering support. For every project, our team can: [parashifttech]
- Review your 2D and 3D files and highlight risky or expensive edge details before production.
- Recommend optimal fillet radii and chamfer sizes based on your industry, loads, and assembly process.
- Prototype and iterate quickly so you can validate feel, assembly, and performance on real parts.
- Provide stable, repeatable mass production with strict quality control and traceable inspection reports.
If you are unsure whether a critical edge should be filleted or chamfered, you can share your model and application context with us. We will provide a manufacturability and reliability review, together with a cost‑optimized quotation.
Call to action: If you are designing CNC precision parts and want expert guidance on fillets and chamfers, send us your drawings today to get a free DFM review and customized quote.
In most load‑bearing or fatigue‑sensitive applications, a fillet is stronger because it distributes stress smoothly and lowers stress concentration at corners. Chamfers reduce the sharp point but still leave a more abrupt change in geometry, so they are less effective in fatigue‑critical regions. [protolabs]
Not always, but fillets often require more complex toolpaths or specialized cutters, which can increase cycle time and CAM effort. However, standardizing radii and using common tools can minimize this difference, especially on modern CNC equipment. [xometry]
Yes, and we often recommend doing so strategically—for example, a fillet at the root of a rib for strength, with a small chamfer on the external corner for safe handling and visual definition. The key is to keep the functional intent clear in your drawings. [wevolver]
A common practice is to add a general note like "Break all sharp edges 0.2–0.5 mm" and then only call out specific fillet radii or chamfer sizes where function or fit requires precision. This keeps inspection proportional to real‑world requirements. [worthyhardware]
Share your 3D CAD model, 2D drawings with key dimensions and tolerances, material, surface finish requirements, and a brief description of how the part will be used. This context helps your supplier recommend appropriate edge treatments and avoid expensive over‑engineering. [parashifttech]
