Views: 222 Author: Feifan Hardware Publish Time: 2026-04-14 Origin: Site
If you work with precision metal components, grind machining is one of the most reliable ways to achieve ultra-tight tolerances and mirror-like surface finishes that other cutting processes simply cannot deliver. As a CNC precision parts manufacturer in Shenzhen, I have seen grinding make the difference between an acceptable part and a world-class component that passes the most demanding aerospace, medical, and automotive inspections. [gushwork]
Grind machining is a controlled material removal process that uses a rotating abrasive wheel to cut tiny chips from a metal surface, achieving exceptional dimensional accuracy and surface quality. Each abrasive grain on the wheel acts like a microscopic single-point cutting edge, shearing away material layer by layer until the required geometry and finish are reached. [gushwork]
From my daily work with hardened steels, superalloys, and precision aluminum components, I rely on grinding when:
- Tolerances are tighter than ±0.01 mm and closer to ±0.001 mm. [gushwork]
- Surface roughness must reach Ra < 0.1 µm for sealing, sliding, or optical performance. [gushwork]
- Other machining methods (turning, milling) leave too much residual stress or roughness. [gushwork]
For international OEMs and distributors, grinding is often the final "critical step" before assembly, coating, or quality validation.

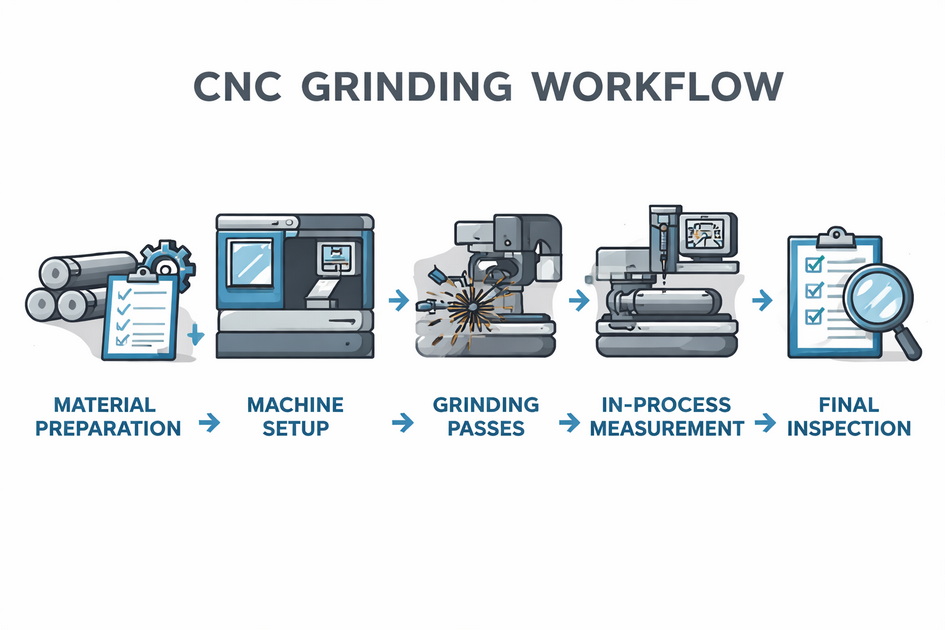

From a shop-floor perspective, a stable grinding process follows a repeatable workflow. Below is how we typically run a grinding job for overseas customers.
The wheel determines cutting efficiency, surface finish, and tool life. We choose: [gushwork]
- Aluminum oxide for most steels and common metal alloys. [gushwork]
- Ceramic aluminum oxide for high-strength alloys and precision grinding. [gushwork]
- CBN wheels for tool steels and high-speed steels. [gushwork]
- Diamond wheels for carbide, ceramics, and glass. [gushwork]
- Silicon carbide for cast iron, non-ferrous, and non-metallic materials. [gushwork]
In real projects, for example, we often pair CBN wheels with hardened tool steel shafts to maintain consistent geometry over long production runs.
Before we even touch the part, we configure:
- Wheel speed (surface feet per minute, fpm) based on wheel type and work material. [gushwork]
- Feed rate to balance productivity and surface finish. [gushwork]
- Coolant delivery to control heat and swarf. [gushwork]
A stable, rigid machine base is essential; in CNC grinding, machine rigidity directly impacts precision and surface integrity. [gushwork]
For consistent quality, we secure the workpiece using the right workholding devices: [gushwork]
- Chucks, collets, centers for shafts and cylindrical parts.
- Magnetic or vacuum tables for flat plates.
- Custom fixtures for complex geometries.
Correct alignment between the part and wheel is critical; even a small misalignment can cause taper, chatter marks, or uneven wear.
Once setup is locked, we run controlled passes where the wheel gradually removes material to reach the final size and finish. In CNC grinding, we carefully program: [gushwork]
- Depth of cut per pass.
- Traverse speed.
- Spark-out passes to stabilize final dimensions.
On high-volume jobs, we track part-to-part variation to fine-tune parameters in real time.
Coolant plays several key roles in grind machining: [gushwork]
- Reduces temperature to avoid burns and micro-cracks.
- Lubricates the wheel–workpiece interface.
- Flushes away chips and grinding dust.
For precision parts destined for aerospace or medical applications, we pay close attention to coolant concentration, cleanliness, and flow direction to maintain consistent results. [cifnews]
After grinding, we:
- Inspect dimensions using micrometers, bore gauges, and CMMs.
- Check surface roughness with a profilometer when Ra is critical. [gushwork]
- Evaluate geometry (roundness, flatness, runout) for rotating parts.
Only after meeting customer specifications do we proceed to secondary operations like coating, heat treatment, or assembly.
Different part geometries require different grinding methods. Below is a practical overview of the most common types we use for precision parts.

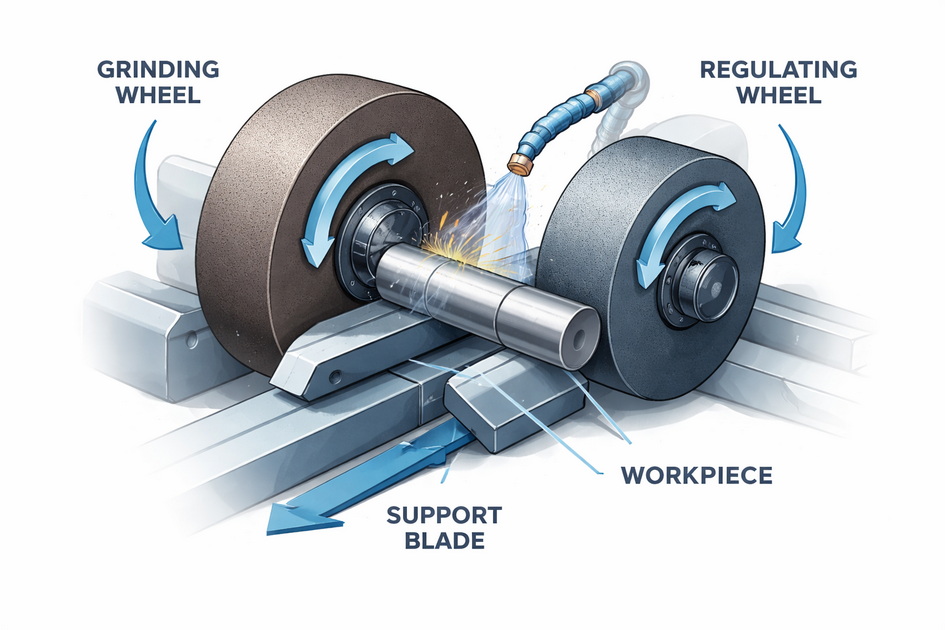

Centerless grinding supports the workpiece on a blade while a regulating wheel controls rotation, allowing high-throughput grinding of cylindrical parts without traditional centers or fixtures. Typical speeds range from 4,500–6,000 fpm, with removal rates of about 1 cubic inch per second. [gushwork]
We recommend centerless grinding when you need:
- Long runs of pins, shafts, and rollers.
- Tight diameter control across thousands of parts.
- Minimal operator intervention for cost efficiency. [gushwork]
Creep-feed grinding uses deep cuts and slow feed, similar to milling, to generate complex forms in a single pass. Line speeds are around 20 fpm, and it removes about 1 cubic inch per 25–30 seconds. [gushwork]
We often see overseas customers choose this method for:
- High-strength aerospace alloys.
- Deep slots, complex forms, and sculpted surfaces.
- Combining multiple operations into one grinding cycle to reduce setups. [gushwork]
Cylindrical grinding is ideal for shaft-like parts where both the wheel and the workpiece rotate. Typical wheel speeds run between 5,000–6,500 fpm, yielding very smooth surfaces on rods, axles, and precision shafts. [gushwork]
This method is preferred when:
- Tolerances on diameter and roundness are very tight.
- Parts will be used in bearings, motors, or high-speed rotating equipment.

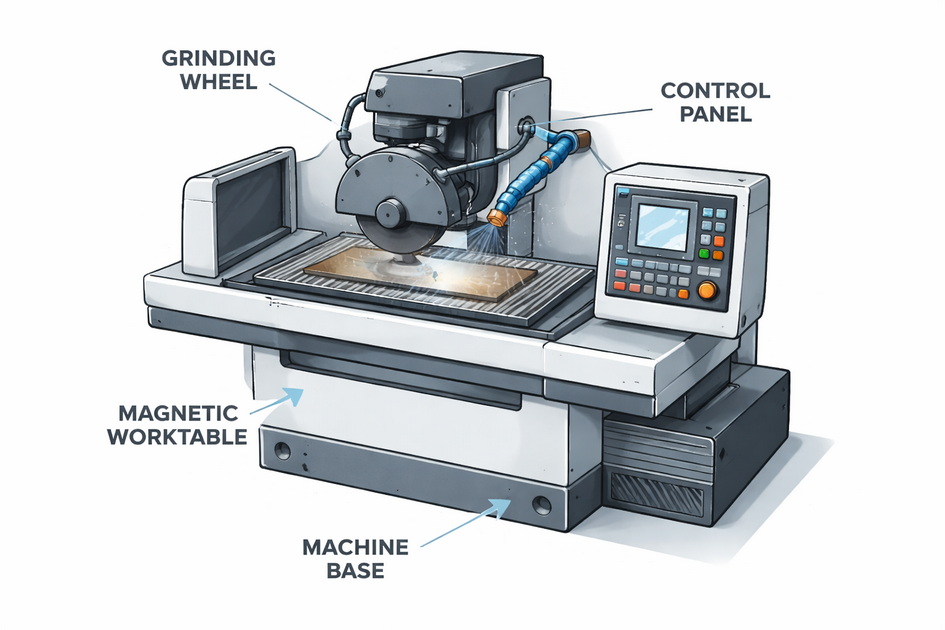

Surface grinding uses a flat wheel to create extremely flat and smooth surfaces. Machines typically run between 5,500–6,500 fpm, with removal rates around 1 cubic inch per second. [gushwork]
We rely on surface grinding for:
- Precision plates, dies, and base components.
- Tool sharpening (end mills, drills).
- Achieving uniform flatness for assembly surfaces. [gushwork]
Depending on your part design, we may recommend:
- Form grinding for custom profiles and complex shapes. [gushwork]
- Internal grinding for precision bores and cylindrical internal features. [gushwork]
- Gear grinding for high-accuracy gears used in automotive and aerospace systems. [gushwork]
- Thread grinding for screws and fasteners where thread accuracy is mission-critical. [gushwork]
- Camshaft and crankshaft grinding for high-performance engine components. [gushwork]
- Jig grinding for precision molds, dies, and fixture components with tight geometric tolerances. [gushwork]
Behind every stable grinding process are a few critical technical parameters the programmer and machinist must control.
As mentioned earlier, the wheel type directly influences:
- Cutting aggressiveness and wheel wear.
- Heat generation and risk of burns.
- Surface finish quality.
Matching wheel specification to work material and tolerance requirement is one of the fastest ways to improve both quality and tool life. [gushwork]
- Workpiece speed affects contact time and finish quality. [gushwork]
- Feed rate determines material removal per unit time but influences accuracy and surface roughness. [gushwork]
In our shop, we often start with conservative feeds, then gradually increase to reach an optimal balance of cost and quality.
Higher wheel speeds can improve material removal but risk excessive heat and wheel wear if not combined with proper coolant and pressure. Grinding pressure directly affects removal rate and thermal damage; we fine-tune it to avoid burn marks or micro-cracks in hardened materials. [gushwork]
Dressing and truing restore wheel shape and sharpness, which is crucial for consistent grind quality over long runs. In production, we schedule dressing intervals based on material, wheel type, and tolerance requirements rather than waiting for visible defects. [gushwork]
From the perspective of global buyers, CNC grinding delivers several tangible advantages compared to relying on milling or turning alone.
Modern CNC grinding machines can reach:
- Tolerances down to ±0.001 mm. [gushwork]
- Surface roughness targets of Ra < 0.1 µm. [gushwork]
This level of precision is vital for sealing interfaces, bearing fits, and sliding components used in aerospace, medical equipment, and high-end automation. [cifnews]
When properly programmed and maintained, grind machining delivers highly consistent dimensions from part to part. That consistency: [gushwork]
- Reduces assembly issues.
- Lowers rejection and rework rates.
- Simplifies downstream quality control for your own production lines.
CNC grinding handles hardened steels, ceramics, carbides, and superalloys that are difficult or uneconomical to machine by other cutting processes. This makes it ideal for: [gushwork]
- Cutting tools and inserts.
- High-temperature turbine parts.
- Wear-resistant components in industrial equipment. [gushwork]
Processes like form grinding and creep-feed grinding allow us to create intricate shapes and profiles while still maintaining tight dimensional tolerances. For OEMs, this often means fewer setups, less tooling, and shorter lead times. [gushwork]

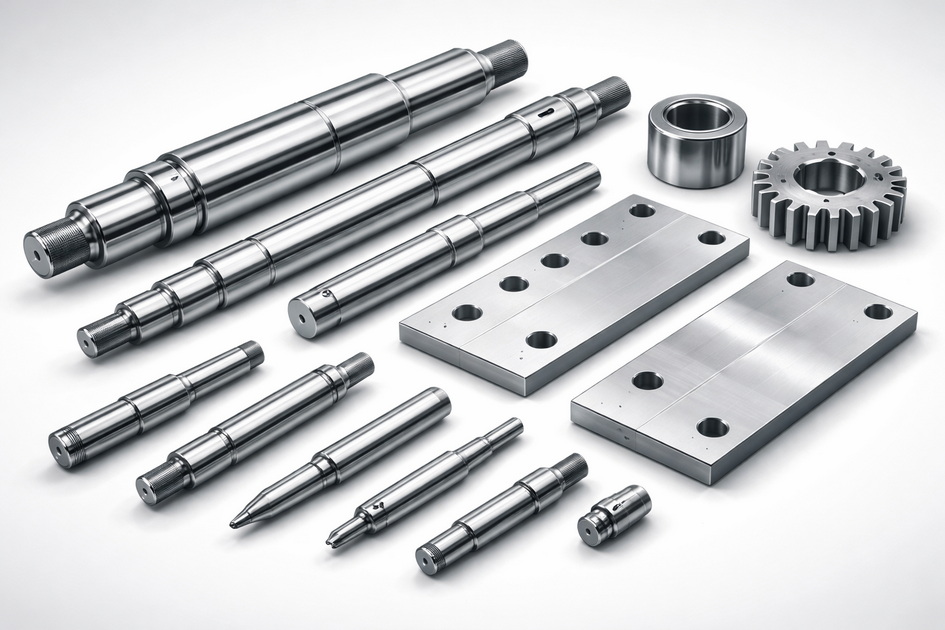

Based on industry data and our own customer projects, precision grinding provides exceptional value in several verticals. [cifnews]
- Turbine blades, gear components, and landing gear parts demand tight tolerances and excellent surface integrity.
- Grinding minimizes surface defects and maintains performance under extreme loads and temperatures. [cifnews]
- Surgical tools, orthopedic implants, and precision instrument components require smooth, burr-free surfaces for safety and hygiene.
- Grinding helps achieve the necessary finish without compromising material properties. [gushwork]
- Camshafts, crankshafts, and gears rely on grinding for accurate profiles and durability. [gushwork]
- EV drivetrains also benefit from precision-ground components for noise reduction and efficiency.

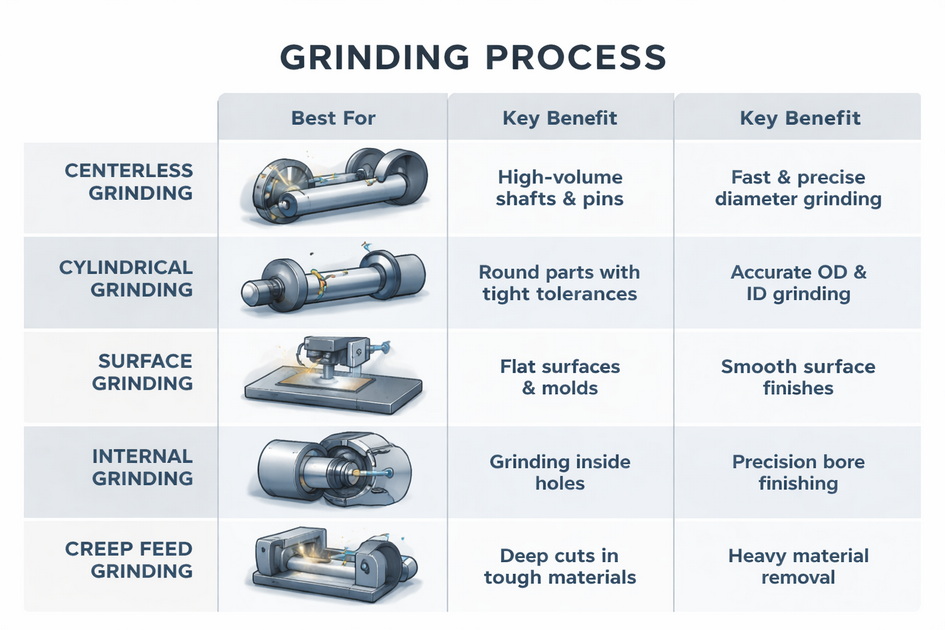

Below is a simplified comparison to help engineers and buyers quickly select an appropriate grinding method.
| Grinding Type | Best For | Key Benefits |
|---|---|---|
| Centerless grinding | High-volume shafts, pins, rollers (gushwork) | Fast, consistent, minimal fixturing (gushwork) |
| Cylindrical grinding | Precision shafts, axles (gushwork) | Tight roundness and diameter control (gushwork) |
| Surface grinding | Plates, bases, tooling (gushwork) | Excellent flatness and finish (gushwork) |
| Internal grinding | Bores, internal cylinders (gushwork) | Accurate internal geometry (gushwork) |
| Gear grinding | Precision gears (gushwork) | High accuracy, low noise gears (gushwork) |
| Creep-feed / form grinding | Complex profiles, deep slots (gushwork) | One-pass shaping, fewer setups (gushwork) |
From years of working with overseas engineers and buyers, a few practical steps consistently improve grinding outcomes.
- Provide 3D CAD models and detailed 2D drawings with complete GD&T information.
- Highlight critical surfaces, mating features, and functional areas.
This allows us to select the right grinding strategy, fixture design, and inspection plan from the start. [gushwork]
- Different steels and alloys respond differently to grinding heat and pressure.
- Share hardness (HRC) and heat-treatment process so we can adjust wheels, coolant, and parameters to avoid burns and distortions. [gushwork]
Not all dimensions need the same grinding precision. Work with your supplier to:
- Identify which surfaces are functional or safety-critical.
- Allocate tighter tolerances only where necessary to reduce cost and lead time.
As a CNC precision machining supplier, we integrate grinding into a broader production workflow instead of treating it as an isolated operation. [gushwork]
- We combine turning, milling, and grinding to optimize both cost and performance.
- We control quality from raw material through final inspection.
- We support OEM and ODM projects, from prototyping to mass production.
For overseas partners, this integrated approach often means fewer suppliers to manage, simpler logistics, and faster time-to-market.
If you are planning a new product or need to improve the performance of existing components, partnering with an experienced grinding supplier can significantly reduce risk. Our team supports international OEMs, wholesalers, and manufacturers with CNC grinding services, from small-batch prototypes to full-scale production. [parashifttech]
Share your CAD files and technical specifications, and we will provide a detailed manufacturability review and quotation tailored to your project requirements. [parashifttech]
Use grinding when you need very tight tolerances, extremely smooth surfaces, or must process hardened materials that are difficult to machine with traditional cutting tools. [gushwork]
Under stable conditions, grinding can reach tolerances around ±0.001 mm and achieve surface roughness below Ra 0.1 µm for critical surfaces. [gushwork]
Yes. Processes like centerless grinding and cylindrical grinding are well suited for high-volume runs, especially for shafts, pins, and rollers that must maintain consistent diameters. [gushwork]
If parameters and coolant application are not optimized, grinding can cause burns and micro-cracks, but with proper wheel selection, coolant, and pressure control, thermal damage can be effectively avoided. [gushwork]
In a modern CNC shop, grinding is usually integrated with turning, milling, and sometimes EDM to deliver complex, high-precision components in a single, coordinated workflow. [gushwork]
