Views: 222 Author: Feifan Hardware Publish Time: 2026-04-13 Origin: Site
As an engineer who has spent years working with CNC machining suppliers across China and Europe, I can say alumina ceramic machining is one of those topics that separates "general job shops" from true precision partners. When you are sourcing OEM or ODM precision parts, the way your supplier handles alumina ceramics often predicts whether your final assemblies will pass validation on the first try or get stuck in rework. [athenaswc]
In this guide, I will walk through alumina ceramic properties, manufacturing and machining routes, quality risks, and supplier evaluation criteria—combining industry standards with real shop‑floor experience from Chinese precision machining teams like Shenzhen Feifan Hardware & Electronics Co.,Ltd. and leading alumina specialists. [parashifttech]
Alumina ceramics, also known as aluminum oxide or Al₂O₃, are technical ceramics widely used in industries that demand hardness, chemical resistance, and stability at elevated temperatures. These materials combine high wear resistance, chemical inertia, decent thermal conductivity, relatively low density, good fracture toughness, excellent electrical insulation, and stable surface roughness. [super-ingenuity]
Because of this property set, alumina ceramics perform reliably in harsh environments involving high temperature, corrosive media, and mechanical wear, from thermocouple protection tubes to high‑voltage insulators. However, alumina's relatively large coefficient of thermal expansion reduces thermal shock resistance, so designs must avoid extreme, rapid temperature swings. [athenaswc]
Industrial alumina originates from bauxite ore via the Bayer extraction process, which separates aluminum oxide from impurities and yields a fine white powder. In nature, the same Al₂O₃ chemistry appears in precious gems like sapphire and ruby. [athenaswc]

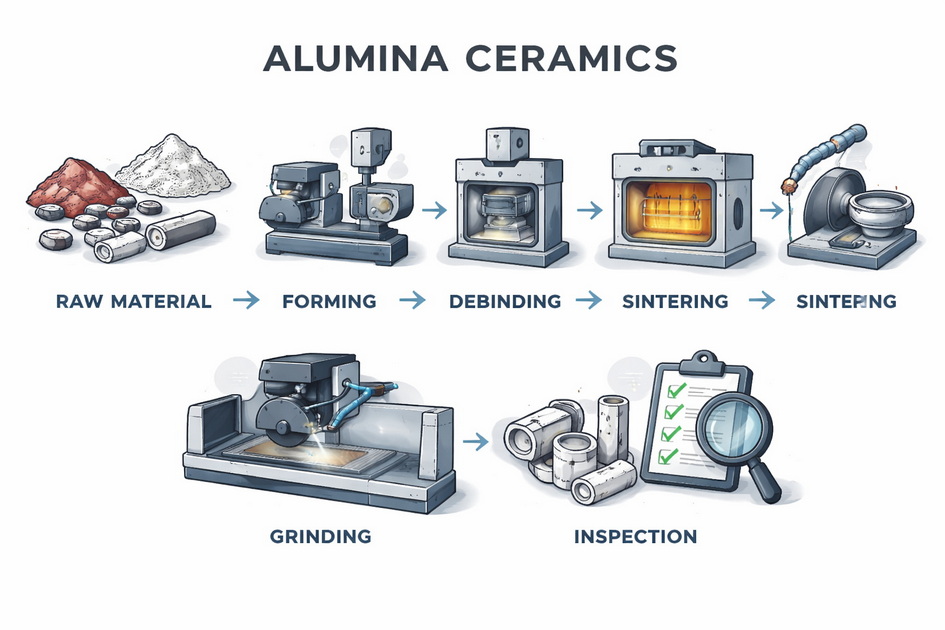

To turn this powder into engineering ceramics, manufacturers use processes such as isostatic pressing, extrusion, and injection molding, followed by sintering at high temperature to achieve full density. For tight‑tolerance or complex parts, shops rely on a combination of near‑net shaping and post‑sinter machining (typically diamond grinding and laser machining). [athenaswc]

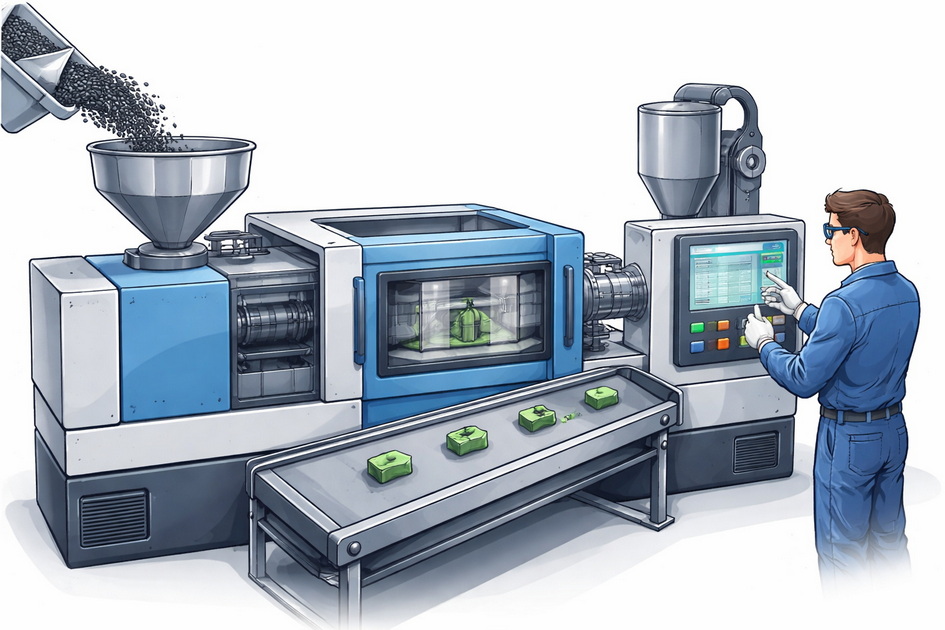

Among the various forming methods, alumina ceramic injection molding (CIM) stands out for its ability to produce complex, repeatable geometries at scale. [athenaswc]
Key steps in alumina CIM: [athenaswc]
1. Tool design and production – Engineers design and manufacture precision mold tools in hardened steel or tool‑grade aluminum, balancing durability and cost while meeting customer tolerances. [athenaswc]
2. Injection molding – A homogenous mixture of fine alumina powder and thermoplastic binder (feedstock) is heated and injected into the mold cavity under high pressure, then cooled and ejected. [athenaswc]
3. Debinding and sintering – The binder is removed, and the "brown" part is sintered to near‑theoretical density; this step causes about 20% linear shrinkage, which must be factored into tool design. [athenaswc]
4. Post‑sintering operations – Grinding, drilling, finishing, and inspection are performed to bring parts into final tolerance and surface finish specifications. [athenaswc]
In my experience, OEMs who underestimate sintering shrinkage often struggle with first‑article approval; choosing a supplier that models shrinkage and validates tools with metrology reports significantly reduces iteration cycles. [bakerindustriesinc]
Choosing the right alumina grade is as critical as choosing the right machining strategy. [athenaswc]
| Alumina Grade | Purity (Al₂O₃) | Typical Strength & Properties | Common Applications |
|---|---|---|---|
| CeramAlox Ultra‑Pure | 99.95% | Very high hardness, excellent dielectric strength, strong corrosion resistance, high‑temperature stability (athenaswc) | Laser and optical components, high‑speed sliding bearings, implants, high wear machine parts (athenaswc) |
| CeramAlox 96 | 96% | Workhorse grade, good mechanical and electrical properties, strong cost‑to‑performance ratio (athenaswc) | General industrial components, electrical insulators, mechanical wear parts (athenaswc) |
| CeramAlox 99.7 | 99.7% | High‑performance grade with superior mechanical and electrical performance, handles harsh environments (athenaswc) | Semiconductor equipment, vacuum components, high‑temperature assemblies (athenaswc) |
When working as a technical buyer, I usually treat 96% alumina as the default for cost‑sensitive parts, then step up to 99.7% or ultra‑pure grades for semiconductor, laser, or medical applications where contamination or dielectric losses cannot be tolerated. [athenaswc]

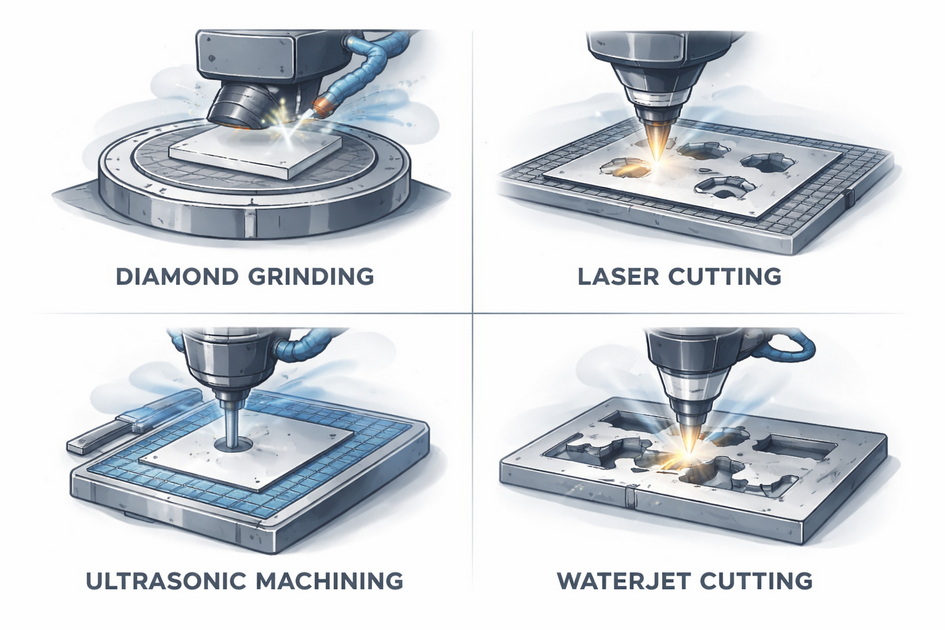

Alumina's hardness makes it difficult to machine with conventional tools, so specialized methods are required. [athenaswc]
Diamond grinding is the primary method for fully sintered alumina. It uses diamond‑abrasive tools to remove material gradually, enabling tight tolerances and fine surface finishes on complex profiles. For precision shafts, valve seats, and sealing faces, this is usually the final operation that defines functional performance. [athenaswc]
Laser machining employs high‑energy laser beams to ablate material, creating thin sections, micro‑holes, slots, and intricate patterns without physical tool contact. Because the process is non‑contact, it minimizes mechanical stress and allows delicate features in substrates, electronic parts, and microfluidic components. [athenaswc]
For conductive alumina or alumina coated with a conductive layer, EDM erodes material in a dielectric fluid using electrical discharges. It excels at generating sharp internal corners, deep narrow cavities, and very fine features, often for specialized high‑voltage or sensor components. [athenaswc]
USM relies on ultrasonic vibrations combined with an abrasive slurry to erode material. This method imposes low thermal and mechanical stresses, making it suitable when you must avoid microcracking or thermal damage in fragile geometries. [athenaswc]
In the green (unfired) state, alumina is relatively soft and can be pre‑shaped using conventional milling and turning. Green machining offers higher material removal rates at lower cost, but sintering shrinkage (around 20%) limits achievable final tolerance without additional post‑sinter grinding. [athenaswc]
Abrasive waterjet cutting uses a high‑pressure water stream with abrasive particles to cut alumina into intricate shapes without introducing a heat‑affected zone. It is particularly helpful for thick plates, tiles, and prototypes where edge quality and structural integrity are more important than micron‑level tolerances. [athenaswc]
Thanks to their wear resistance and electrical insulation, alumina ceramics appear across multiple industries in both standard and highly customized forms. [super-ingenuity]
Typical alumina components include: [athenaswc]
- Wear‑resistant liners and inserts
- Wire guides and capstans
- Semiconductor components and wafer handling parts
- Ballistic armor tiles
- Mechanical seals, precision shafts, and sleeves
- Roller and ball bearings for high‑wear environments
- High‑temperature and high‑voltage insulators
- Electronic substrates and circuit carriers
- Valve seats, tap plates, and shot blast nozzles
- Laser tubes and precision sealing elements in pumps and pistons
In my work with OEMs, alumina is often chosen when polymer or metal solutions have already failed during endurance testing, typically due to erosion, chemical attack, or dielectric breakdown. [parashifttech]
Alumina's very high hardness and low thermal conductivity make it prone to cracking and chipping if mishandled. Localized heat buildup can also distort dimensions, especially on thin walls and sharp corners. [athenaswc]
For grinding and cutting, polycrystalline diamond (PCD) or diamond‑coated tools are essential to manage alumina's abrasiveness. Tools with small radii and sharp cutting edges help reduce cutting forces and improve edge integrity in precision features. [athenaswc]
A concentrated, continuous coolant flow to the cutting zone is critical for controlling temperature and extending tool life. High‑pressure coolant systems using suitable water‑based or emulsion coolants are especially effective in stabilizing the cutting process and protecting surface integrity. [athenaswc]
Rigid setups, balanced tool holders, and stable fixturing are mandatory to prevent chatter, which can quickly translate into surface defects or microcracks. Many high‑end shops invest in vibration‑damping systems specifically for ceramic machining work cells. [athenaswc]
Ceramic experts generally recommend low feed rates and shallow depths of cut to reduce mechanical and thermal stress, combined with sufficiently high cutting speeds to limit contact time and improve surface finish. Process development often includes structured trials where speed, feed, and depth are tuned for each geometry and grade of alumina. [lsrpf]
Even though diamond tools are highly wear‑resistant, they degrade over time and must be replaced before surface quality and dimensional accuracy drift out of spec. Signs like dull finishes, rising cutting forces, and increased cycle time are practical indicators for tool change in a production line. [bakerindustriesinc]
From an OEM perspective, most cost and risk is locked in during the design phase. Working closely with an experienced CNC and ceramics partner early in the project can prevent common design pitfalls. [markets.chroniclejournal]
Practical design guidelines for alumina parts:
- Avoid sharp internal corners; use fillets to reduce stress concentrations. [athenaswc]
- Keep wall thickness as uniform as possible to limit warpage during sintering. [athenaswc]
- Minimize extremely thin sections or long, unsupported ribs unless machining strategies have been validated. [athenaswc]
- Specify tolerances realistically; reserve sub‑10 µm tolerances for truly critical surfaces to keep costs under control. [athenaswc]
- Define clear functional surfaces and inspection datums so your supplier can align metrology to what matters for assembly. [bakerindustriesinc]
In my experience with Chinese OEM projects, the most successful programs are those where engineers share 3D models, operating conditions, and target lifetime early, then allow the machining partner to propose material grade, process sequencing, and minor geometry optimizations. [markets.chroniclejournal]
Alumina parts often sit in critical positions—insulating high voltages, sealing aggressive media, or supporting precise motion—so quality control cannot be an afterthought. [bakerindustriesinc]
Best‑in‑class shops implement:
- Incoming inspection of powder and feedstock to stabilize shrinkage and mechanical properties. [athenaswc]
- In‑process dimensional checks during green and post‑sinter stages using CMMs, optical systems, and custom gauges. [bakerindustriesinc]
- Surface roughness measurement on sealing faces and sliding surfaces according to customer specs (for example, Ra ≤ 0.2 µm). [athenaswc]
- 100% visual inspection to catch chips, cracks, and glaze defects before final packing. [athenaswc]
Training operators to understand both the material and the inspection tools significantly improves consistency and reduces rework. For OEMs, requesting sample inspection reports and control plans is one of the fastest ways to understand a supplier's maturity. [lsrpf]
Selecting the right CNC precision machining partner is the single most important decision for OEMs and importers planning to scale alumina ceramic components. [lsrpf]
Look for suppliers who can demonstrate:
- A documented knowledge base of machining parameters for different alumina grades, including toolpaths, feeds, speeds, and tool life data. [lsrpf]
- Proven capability in multiple forming and machining processes (injection molding, isostatic pressing, diamond grinding, laser machining, ultrasonic machining). [athenaswc]
- Experience with your target industries—such as aerospace, semiconductor, medical, or electronics—supported by case studies and customer references. [parashifttech]
- Robust quality systems and inspection equipment (CMMs, profile projectors, surface testers) aligned with international standards. [bakerindustriesinc]
- Transparent communication on DFM (Design for Manufacturability), lead times, and risk points for complex parts. [parashifttech]
Chinese manufacturers like Shenzhen Feifan Hardware & Electronics Co.,Ltd. specialize in OEM and ODM CNC precision components and can integrate alumina ceramics machining into broader assemblies that also include metals or other advanced materials. Partnering with such a supplier allows you to consolidate multiple part types, simplify your supply chain, and improve consistency across your product lines. [cazbah]
When we speak with overseas engineers and purchasing teams, similar questions come up again and again. Below are some of the most frequent ones and high‑level answers. [parashifttech]
For most components, ±0.02–0.05 mm is achievable with the right combination of forming and post‑sinter grinding, while critical sealing or locating surfaces can reach tighter tolerances when necessary at higher cost. [lsrpf]
Green‑machined prototypes can often be delivered in a few weeks, while projects requiring new injection molds and validation runs usually take several weeks for tooling plus additional time for production scale‑up. [markets.chroniclejournal]
Yes, alumina can be combined with metals and other ceramics through metalizing and brazing techniques, allowing hybrid components such as ceramic‑metal feedthroughs and housings. [athenaswc]
At minimum, share 2D and 3D drawings, target tolerances, operating environment (temperature, media, loads), annual volumes, and any specific material grade or certification requirements. [cazbah]
Not always; depending on your application, zirconia, silicon nitride, or other advanced ceramics may offer better toughness, thermal shock resistance, or cost. A good machining partner will help compare options based on your priorities. [super-ingenuity]
If you are evaluating alumina ceramics for a new product or struggling with quality drift from an existing supplier, now is the time to involve a precision OEM / ODM machining partner that understands both alumina and CNC manufacturing. By combining design feedback, process expertise, and rigorous quality control, a skilled Chinese manufacturer can help you reduce total cost, shorten development cycles, and stabilize performance in mass production. [cazbah]
Reach out to a dedicated CNC precision parts producer—such as Shenzhen Feifan Hardware & Electronics Co.,Ltd.—with your drawings and requirements to review material options, DFM improvements, and a realistic production plan for your alumina ceramic components. [markets.chroniclejournal]
A1: Electronics, semiconductor, aerospace, medical, automotive, and industrial machinery benefit strongly due to alumina's wear resistance, electrical insulation, and temperature stability. [super-ingenuity]
A2: Alumina ceramics maintain strength and dimensional stability at temperatures where many metals soften or oxidize, while also resisting most chemicals; however, they are more brittle and must be carefully designed. [athenaswc]
A3: Yes. Using brazing and metalizing methods, suppliers can join alumina to metals such as stainless steel or Kovar to create hermetic seals or hybrid structural components. [athenaswc]
A4: Tooling and post‑sinter machining dominate costs; complex geometries, ultra‑tight tolerances, and high‑purity grades all increase cycle time and scrap risk. [athenaswc]
A5: Ask for process windows, case studies, and sample inspection reports; mature suppliers can share documented parameters, quality plans, and examples of similar parts they have successfully produced. [parashifttech]
