Climb milling and conventional milling are both essential CNC machining strategies, but they do not perform the same way when tool life, surface finish, and process stability matter. For a precision parts manufacturer like Shenzhen Feifan Hardware & Electronics Co., Ltd., choosing the right milling direction is not just a technical decision; it directly affects cost, consistency, and OEM/ODM delivery reliability. [xometry]
In milling, the cutter can move with the feed direction or against it. That one difference changes chip formation, heat generation, cutting load, and tool wear. Modern CNC operations increasingly favor climb milling because it often reduces rubbing and heat, both of which can shorten tool life in conventional milling. [harveyperformance]
From a production point of view, this is important for brands and distributors that need repeatable quality across thousands of parts. In precision manufacturing, better tool life usually means fewer tool changes, lower scrap risk, and more stable cycle times. [quadrantprecision]

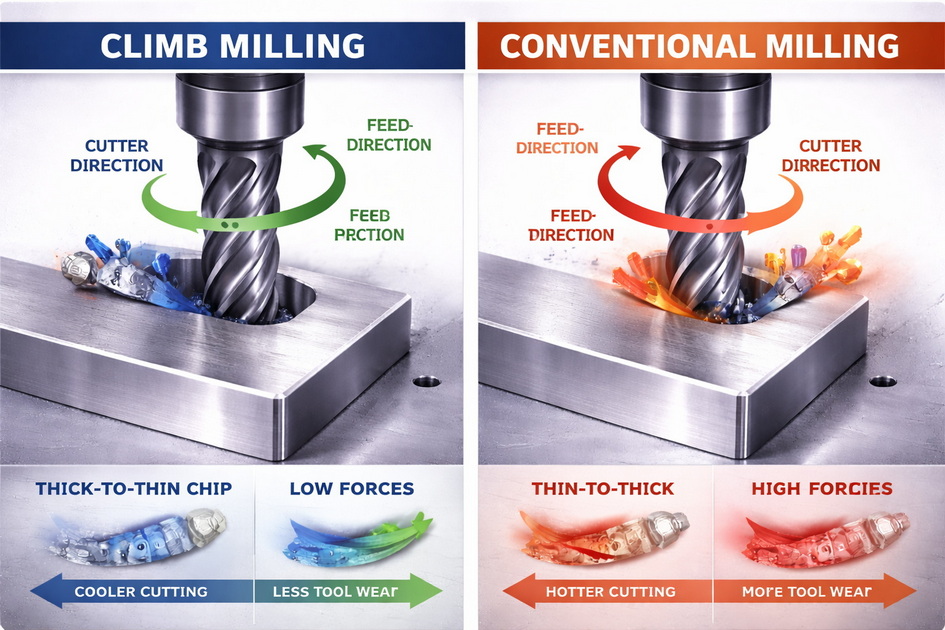

Climb milling, also called down milling, means the cutter rotates in the same direction as the feed. The tooth enters the material at the thickest chip section and exits at the thinnest section, which helps the cut start more cleanly. This typically reduces friction and heat at the cutting edge. [xometry]
Because chip thickness starts high and decreases, the tool tends to cut rather than rub. That is one of the main reasons climb milling is widely associated with longer tool life and improved surface quality on modern CNC machines. [machiningminghe]
Conventional milling, also called up milling, means the cutter rotates against the feed direction. The cutting edge starts with a thin chip load and gradually increases as the tooth moves through the material. This can create more rubbing at the beginning of the cut and more heat near the tool edge. [machiningminghe]
Conventional milling still has a place in machining, especially on older machines, unstable setups, or certain roughing scenarios. However, in terms of pure tool-life efficiency, it is usually less favorable than climb milling in modern CNC environments. [machiningminghe]

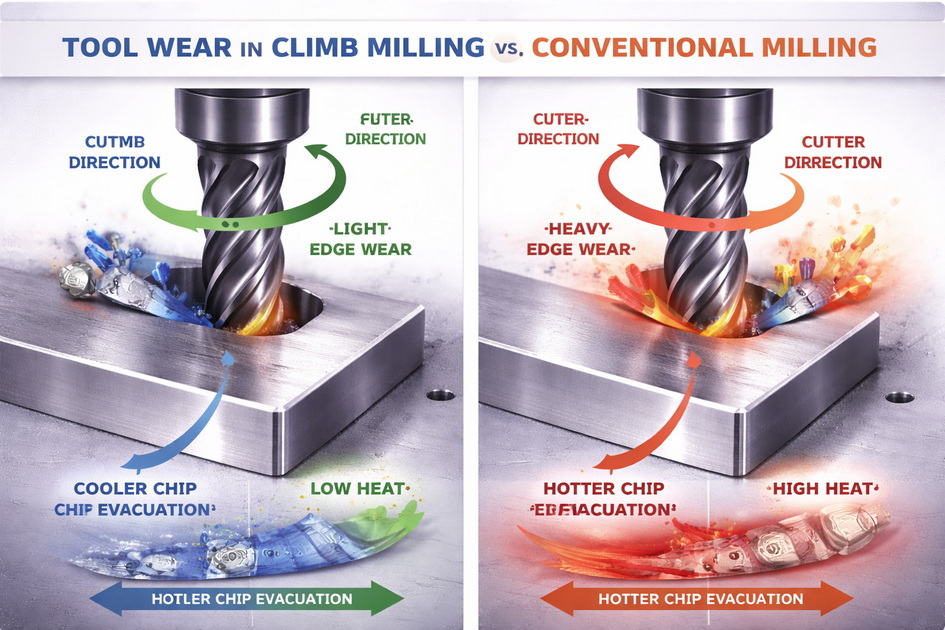

Tool life is where the difference becomes most obvious. Climb milling usually produces less heat, less friction, and less edge wear because the chip is removed more efficiently. That generally extends cutter life and reduces the frequency of tool replacement. [harveyperformance]
Conventional milling often causes more wear because the tool initially rubs before it fully shears the material. That extra friction can accelerate wear, increase cutting temperature, and reduce consistency over long production runs. [xometry]
| Factor | Climb Milling | Conventional Milling |
|---|---|---|
| Chip formation | Thick to thin | Thin to thick |
| Heat at cutting edge | Usually lower | Usually higher |
| Friction | Lower | Higher |
| Tool wear | Usually reduced | Usually increased |
| Surface finish | Often smoother | Often rougher |
| Best fit | Modern CNC, precision production | Older machines, special cases |
The biggest reason is cutting efficiency. Climb milling lets the edge engage the workpiece more cleanly, so less energy is wasted on rubbing. That means less heat stays in the tool, and more is carried away by the chip. [harveyperformance]
It also reduces chip recutting, which matters in precision parts manufacturing. When chips are cleared effectively, the cutting edge experiences fewer secondary impacts, so wear progresses more slowly. [xometry]
Conventional milling is not obsolete. It can still be useful when the machine has backlash issues, when workholding is weak, or when the setup requires a more controlled entry into the material. In some older manual or semi-automatic machines, conventional milling can be safer because it reduces the risk of the cutter "pulling" the workpiece. [machiningminghe]
It may also be chosen for specific material conditions or rough surfaces where the first contact needs to be less aggressive. In other words, the process choice should be made based on machine condition, material behavior, and part geometry—not on habit alone. [quadrantprecision]

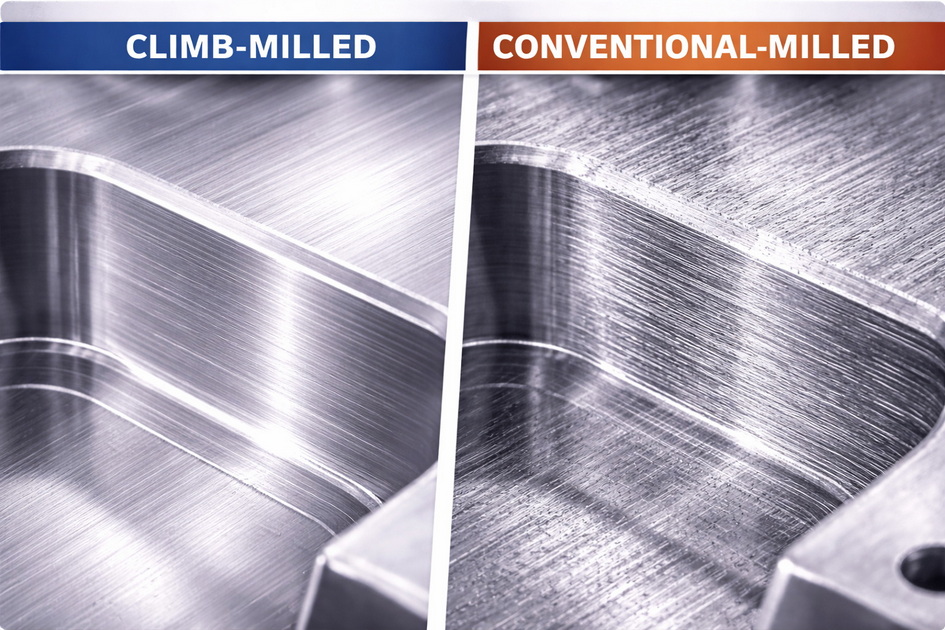

Tool life is only one part of the story. Climb milling often improves surface finish because the cutter shears the material more efficiently and leaves less tearing behind. That matters for visible components, mating surfaces, and tight-tolerance OEM parts. [harveyperformance]
Conventional milling can leave a rougher finish because the initial rubbing action may distort the cut before the tool reaches a stable chip load. If the customer expects cosmetic quality or tight assembly fit, this can become a costly issue downstream. [quadrantprecision]
In real production, the "best" milling method is usually the one that balances tool life, setup stability, and part requirements. In a precision OEM/ODM environment, I would generally recommend climb milling on modern CNC equipment with rigid fixturing and backlash compensation. That is especially true for aluminum, stainless steel, and other materials where cycle efficiency and finish matter. [quadrantprecision]
But process engineers should not make this decision in isolation. Feed rate, spindle speed, depth of cut, tool geometry, coolant strategy, and fixturing all influence wear and finish. A strong milling strategy works as a system, not as a single setting. [shamrockprecision]
Use this simple framework when choosing between the two methods:
1. Choose climb milling when your CNC machine is modern, rigid, and accurately calibrated.
2. Choose climb milling when surface finish and tool life are top priorities.
3. Choose climb milling when machining precision parts in high-volume production.
4. Choose conventional milling when backlash, vibration, or unstable fixturing is a concern.
5. Choose conventional milling when your setup or material requires a gentler or more controlled engagement. [machiningminghe]
For manufacturers serving overseas brands, tool life is not only a technical metric. It affects lead time, unit cost, and quality consistency. Better milling strategy can reduce tooling consumption, lower machine downtime, and improve batch-to-batch repeatability. [alco]
A practical OEM workflow usually includes:
- Verifying machine rigidity and backlash compensation.
- Matching cutter geometry to material type.
- Optimizing feeds and speeds before scaling production.
- Monitoring chip evacuation to prevent recutting.
- Reviewing wear after the first pilot run before mass production. [shamrockprecision]
Modern machining is moving toward automation, real-time monitoring, and predictive maintenance. Industry reporting shows increasing adoption of smart manufacturing systems, including IoT-enabled machines and data-driven process control, which help reduce downtime and improve productivity. [linkedin]
That trend makes milling strategy even more important. When a factory can monitor tool condition and machine performance more closely, it can standardize climb milling where appropriate and reserve conventional milling for specific exceptions. [linkedin]
If your priority is longer tool life, better surface finish, and more stable production, climb milling is usually the stronger choice on modern CNC equipment. Conventional milling remains useful in specific setups, but it is more of a situational method than the default strategy in precision manufacturing. [harveyperformance]
For OEM and ODM buyers, the real advantage comes from choosing a supplier that understands not only machining, but also process engineering, tool optimization, and batch consistency. That is where milling strategy becomes a business advantage, not just a shop-floor decision. [alco]
If you are sourcing CNC precision parts and want better tool life, tighter tolerances, and stable mass-production quality, request a process review from your machining partner before moving into volume production. A good supplier should explain why a specific milling strategy was chosen and how it supports your part quality targets. [shamrockprecision]
1. Is climb milling always better than conventional milling?
No. Climb milling is usually better for tool life and surface finish on modern CNC machines, but conventional milling can be safer on older machines or unstable setups. [machiningminghe]
2. Why does climb milling extend tool life?
Because it reduces rubbing, lowers cutting heat, and helps chips leave the cutting zone more efficiently. [xometry]
3. When should I use conventional milling?
Use it when backlash, weak fixturing, or special process conditions make climb milling risky. [harveyperformance]
4. Does milling direction affect surface finish?
Yes. Climb milling often produces a smoother finish because the cutter enters more cleanly and removes material more efficiently. [xometry]
5. What matters more than milling direction?
Milling direction matters a lot, but machine rigidity, tool geometry, feeds and speeds, and chip evacuation also strongly affect tool life and part quality. [shamrockprecision]
6. Is climb milling suitable for OEM mass production?
Yes, especially on modern CNC equipment with stable fixturing and proper parameter control. [quadrantprecision]
