When engineers compare spotface vs. counterbore holes, the real question is not just how they look, but how each feature affects assembly quality, fastener seating, and part performance in CNC machining. For OEM and ODM buyers, choosing the right hole feature can prevent misalignment, surface damage, and costly rework in production. [kdmfab]

A spotface hole is a shallow, flat-bottomed circular recess machined around a drilled hole to create a clean bearing surface for a fastener head, washer, or nut. Its main job is to level an uneven or rough surface so the fastener clamps evenly and does not tilt during tightening. In precision manufacturing, spotfacing is often used when the surface needs correction, but deep recessing is unnecessary. [bangid]
A counterbore hole is a cylindrical recess with a flat bottom designed to bury the head of a fastener below or flush with the surface of a part. It is commonly used with socket head cap screws and other fasteners that require a concealed head for clearance, safety, or aesthetics. Compared with a spotface, a counterbore is usually deeper and more dimensionally controlled. [premiumparts]

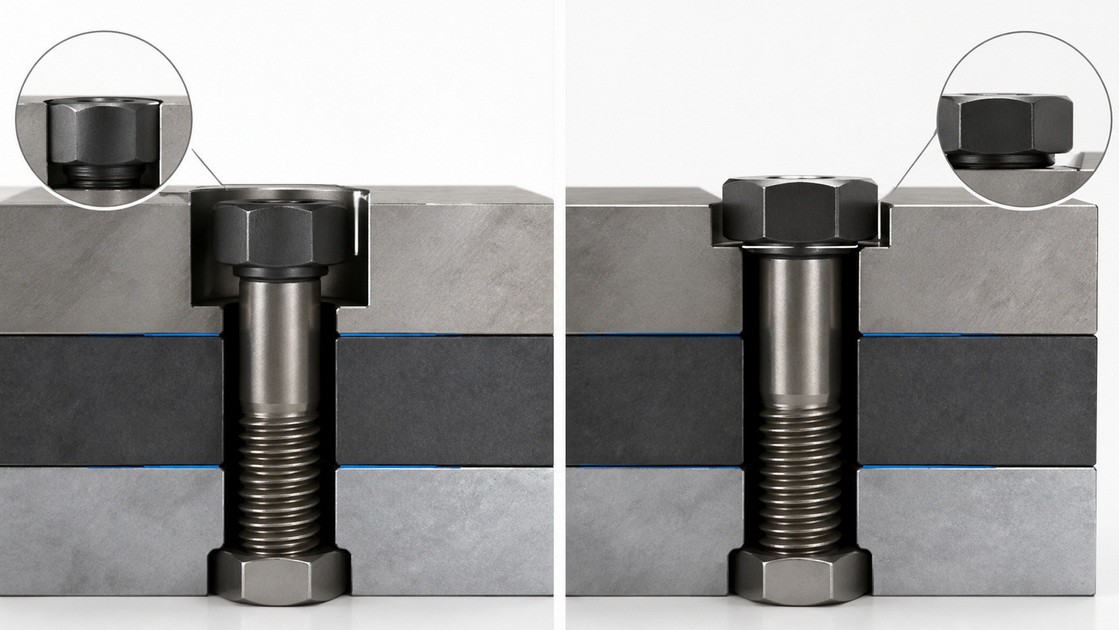

The two features may look similar in a drawing, but they solve different engineering problems. A spotface creates a level seating area, while a counterbore creates a recessed pocket for the fastener head. In practical CNC work, that difference affects tool selection, depth control, inspection, and final assembly behavior. [gushwork]

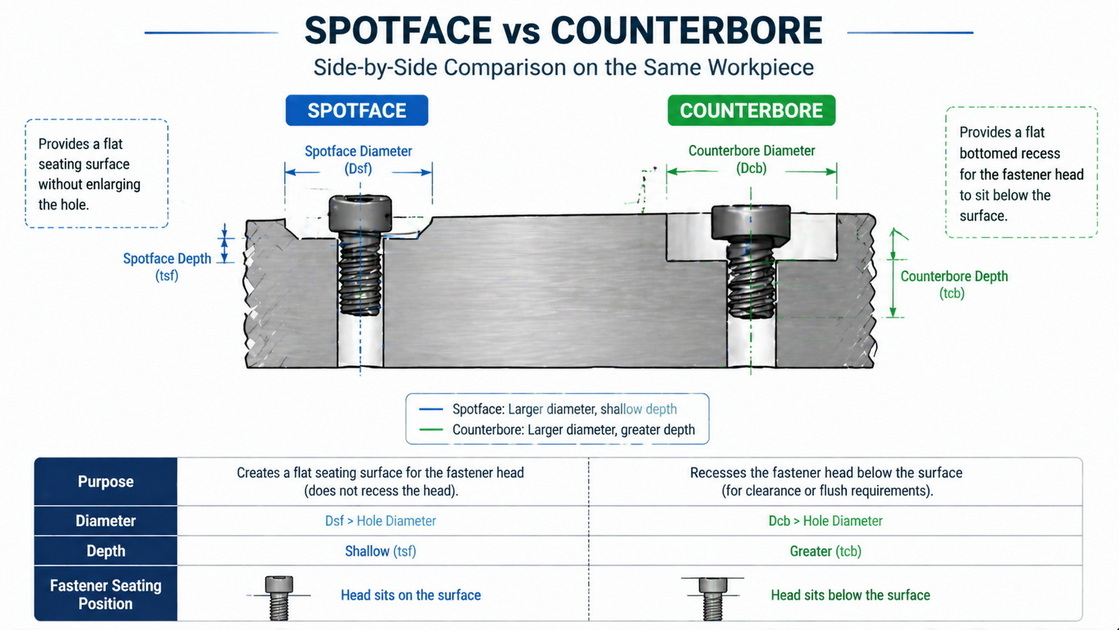

| Feature | Spotface | Counterbore |
|---|---|---|
| Main purpose | Create a flat bearing surface on uneven material gushwork | Recess the fastener head below or flush with the surface gushwork |
| Depth | Shallow, only as deep as needed gushwork | Deeper and more precisely controlled premiumparts |
| Surface condition | Often used to correct rough or curved surfaces gushwork | Used when clearance or concealment is required gushwork |
| Fastener position | Sits on a level surface gushwork | Sits inside the recess gushwork |
| Typical use | Uneven castings, brackets, housings kdmfab | Assemblies needing flush heads, safety, or clearance kdmfab |

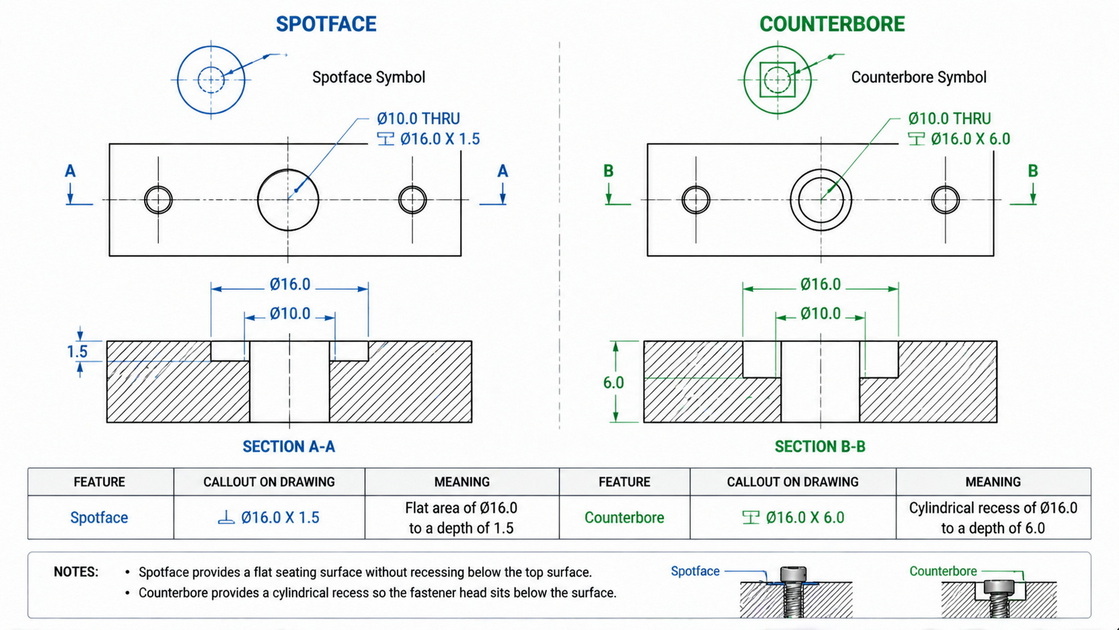

Engineering drawings use different callouts to communicate these features clearly. A counterbore is usually shown with the standard counterbore symbol "⌴", along with diameter and depth information. A spotface is typically represented by the counterbore symbol with "SF" inside it, which follows common ASME-style practice. [cnccookbook]
For manufacturing teams, this matters because a vague callout can lead to the wrong machining operation. In OEM and ODM projects, the drawing should specify diameter, depth, material condition, and any tolerance expectations so production and inspection teams can execute consistently. [beaver-online]

The best choice depends on whether the goal is surface correction or head concealment. Use a spotface when the surface is uneven, cast, rough, or curved and the fastener needs a flat seating zone. Use a counterbore when the fastener head must sit below the surface for clearance, safety, or appearance. [xometry]
Common decision rules include:
- Choose a spotface when the part surface is not flat enough for reliable clamping. [bangid]
- Choose a counterbore when the screw or bolt head must not protrude. [beaver-online]
- Choose a simple drilled hole when the surface is already flat and no recess is needed. [gushwork]
- Choose a countersink instead of either one when you need a conical recess for flat-head screws. [xometry]

In precision CNC machining, tolerance is one of the biggest differences between the two features. Counterbores usually require tighter control of both diameter and depth because the fastener head must fit reliably inside the recess. Spotfaces are often less dimensionally demanding because the primary objective is a clean, even contact surface rather than full concealment. [premiumparts]
From a quality-control perspective, machinists should verify:
1. The hole position relative to the mating feature.
2. The upper recess diameter.
3. The recess depth.
4. Surface flatness of the contact area.
5. Fastener fit during assembly trial. [premiumparts]
This is especially important in high-mix, low-volume CNC production, where small drawing misunderstandings can create repeated nonconformance and delay shipment. [gushwork]
Both features can be made by manual machining, but CNC milling is usually preferred for repeatability, consistency, and dimensional accuracy. CNC equipment allows the shop to control depth, location, and finish more reliably than manual operations, especially when parts require multiple identical holes. For OEM and ODM customers, this directly supports stable batch production and reduced rework risk. [gushwork]
A typical production workflow is:
1. Interpret the drawing and identify the callout.
2. Drill the pilot or through hole first.
3. Machine the spotface or counterbore recess.
4. Inspect diameter, depth, and surface quality.
5. Confirm fastener seating during assembly check. [gushwork]

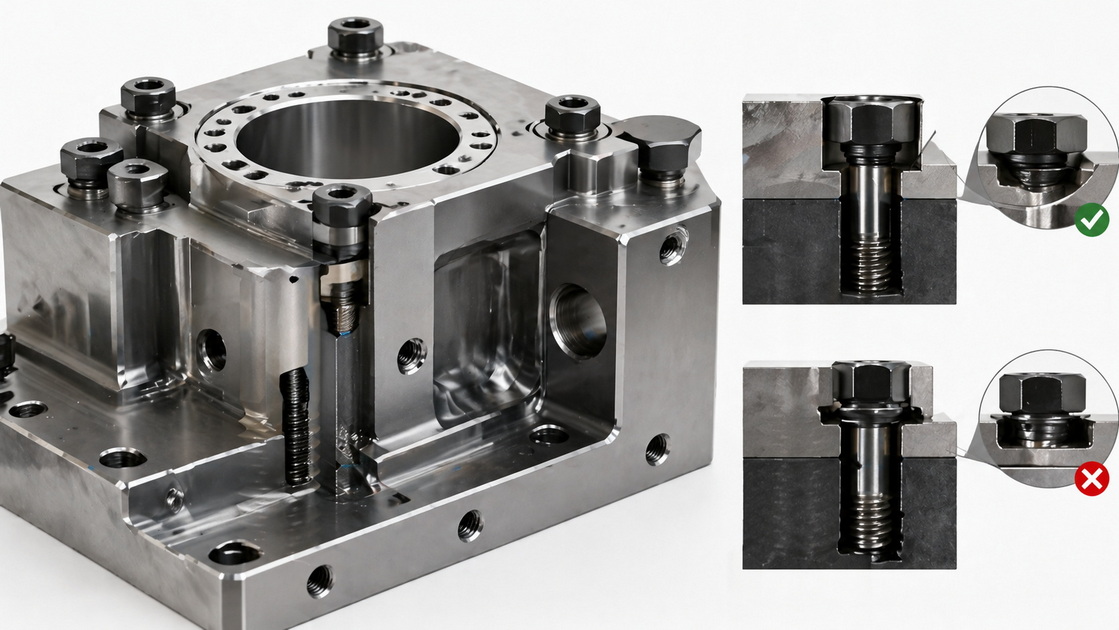

Spotface and counterbore features appear in many industrial parts, especially where flat fastening and controlled assembly matter. In automotive components, spotfaces help create a clean seating area on cast or irregular housings, while counterbores help hide fastener heads in assemblies with moving parts or tight clearances. In electronics enclosures, counterbores can prevent protruding heads from interfering with internal components, while spotfaces improve clamp stability on uneven surfaces. [kdmfab]
In aerospace, both features are common because assembly quality, load distribution, and flush interfaces are critical. The same logic applies to industrial automation, medical devices, and precision equipment housings where a poor fastener seat can reduce reliability. [sansmachining]
To avoid ambiguity, a good drawing should define more than just the feature name. The best callout includes diameter, depth, tolerance, and the relationship to the parent hole. If the part will be produced by a CNC supplier, the material, surface condition, and assembly purpose should also be stated so process planning is accurate. [cnccookbook]
Recommended specification checklist:
- Hole size and type.
- Spotface or counterbore depth.
- Recess diameter.
- Tolerance limits.
- Surface finish or flatness requirement.
- Fastener type and head style. [beaver-online]
One frequent mistake is using a counterbore when a spotface is enough, which increases machining time and may remove more material than necessary. Another mistake is under-specifying the drawing, leaving the machinist to guess recess depth or fit requirements. A third issue is assuming all flat seating features are interchangeable, even though their functional intent is different. [xometry]
If the part will be assembled repeatedly or exported to global customers, even small callout errors can become expensive because the defect repeats across the whole batch. This is why experienced CNC suppliers treat hole-feature interpretation as part of the engineering review, not just the machining step. [parashifttech]
If your project needs precise spotface, counterbore, drilled, tapped, or custom CNC-machined holes, Shenzhen Feifan Hardware & Electronics Co., Ltd. can review your drawing and support OEM or ODM production with engineering-focused machining feedback. A drawing review before production is often the fastest way to reduce risk and improve part consistency. [parashifttech]

A spotface creates a flat seating surface, while a counterbore creates a recessed pocket for the fastener head. [xometry]
Use a spotface when the surface is uneven or rough and the fastener needs a clean, level bearing area. [bangid]
Use a counterbore when the fastener head must sit below or flush with the part surface for clearance, safety, or appearance. [beaver-online]
Counterbores usually use the "⌴" symbol, while spotfaces often use the counterbore symbol with "SF" inside it. [cnccookbook]
Yes, both can be made with CNC milling or manual machining, but CNC is preferred for precision, consistency, and repeatability. [gushwork]
Usually not as tight as counterbores, because spotfaces mainly create a usable flat surface rather than a deep precision recess. [premiumparts]
