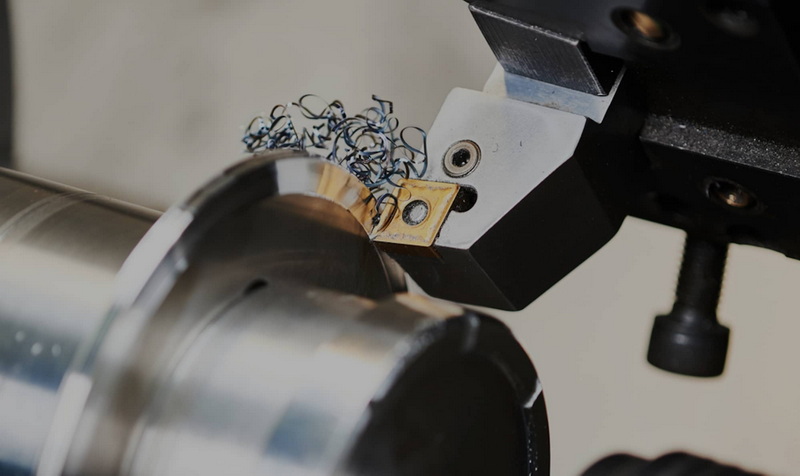

In CNC turning, cutting depth (often noted as \(a_p\ is the radial engagement of the tool with the workpiece, measured from the original diameter to the machined diameter, divided by two.[3]
It directly affects tool load, surface finish, chip formation, and spindle power demand in any turning operation.[4][1]
- In typical CNC turning, roughing cuts may use deeper cutting depths to maximize material removal rate, while finishing cuts use shallower depths to protect the insert and improve surface quality.[1][3]
- Many industrial references report common turning depths of about 0.5–3 mm for general work, with significant variation by material, insert, and machine stiffness.[3]

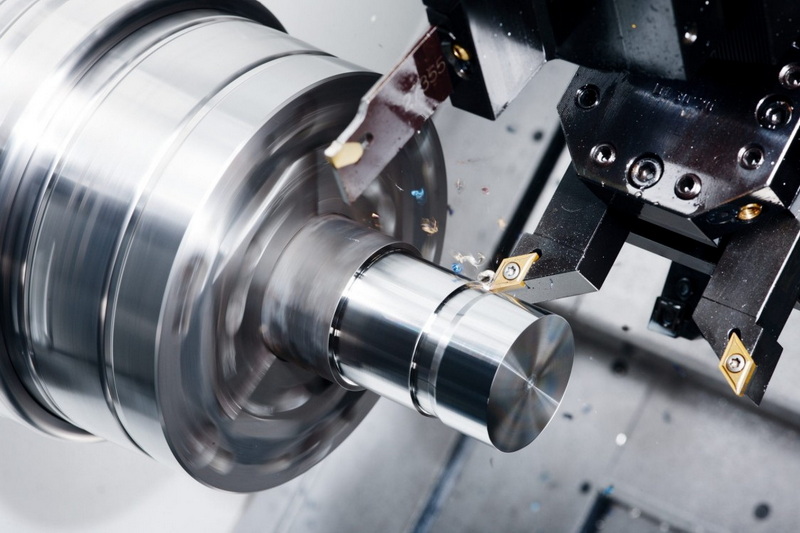

Knowing where to look is the first step to choosing the right value in a stable and repeatable way.[2][1]
- Tool manufacturer catalogs and online databases
- Insert packaging and laser/ink markings
- CAM software built-in databases
- CNC machine manuals and power charts
- Industry handbooks and academic studies
Each of these sources provides cutting depth as ranges, usually split between roughing and finishing conditions.[4][1]
Toolmaker catalogs are the most authoritative place to find recommended cutting depths for turning.[1][4]
- Brands like Sandvik Coromant, Kennametal, and others publish turning catalogs that list recommended cutting depth ranges for each insert geometry, size, and grade.[4][1]
- These tables are usually organized by ISO material group (P, M, K, N, S, H and by operation type such as roughing, medium, and finishing.[1][4]
For example, a CNMG insert used for steel might show roughing depths around 1.5–5.0 mm and finishing depths around 0.2–1.5 mm depending on geometry and coating.[1]
Catalogs often pair these ranges with suggested cutting speed and feed rate, plus notes on chip breaking and tool wear behavior.[4][1]
To find and apply catalog cutting depths effectively you can follow these steps.[4][1]
- Identify the exact insert code (shape, size, thickness, nose radius, chipbreaker, grade.[4]
- Look up the insert family in the turning catalog and locate the table row that matches your material and operation (for example, ISO P, roughing.[1][4]
- Use the recommended cutting depth range as the starting point, and then adjust within that range based on part rigidity, clamping, and spindle power.[2][1]
In many shops the insert box or label is the fastest place to find a recommended cutting depth range.[1]
- Some manufacturers print simplified recommendations on the insert packaging, including typical cutting depth, feed, and speed windows for each chipbreaker.[1]
- Packaging often uses icons or short codes to indicate whether the insert is meant for light finishing, medium cutting, or heavy roughing, which indirectly tells you the safe depth-of-cut range.[4][1]
The insert designation itself contains hints, because the shape, nose angle, and nose radius define the potential maximum depth of cut.[5][4]
For example, larger insert sizes and stronger shapes (like CNMG or SNMG with bigger IC and radius support a higher maximum cutting depth than small, sharp finishing inserts.[5][4]
Modern tool manufacturers host online databases where you can search for recommended cutting depth by insert code and material.[4][1]
- These tools typically ask you to select the workpiece material, operation type, and machine condition, and then show detailed ranges for cutting depth, feed, and speed.[1]
- Many online selectors also provide “good,” “better,” and “best” windows, indicating where tool life, chip control, and productivity are balanced.[4][1]
Some systems even export recommended parameters directly into CAM software or CNC programs, reducing manual transcription errors.[1]
This method is especially useful when new chipbreaker designs or grades are released more often than printed catalogs.[4][1]
CAM systems often include built-in libraries with default cutting depths for various materials and tool types.[1]
- These databases may be derived from manufacturer data, internal testing, or generalized industry guidelines.[6][1]
- CAM templates typically differentiate between roughing and finishing, with deeper axial engagement for rough cuts and shallower engagement for finishing.[6]
Users frequently customize these databases for particular machines and materials once they validate stable parameters on the shop floor.[1]
In advanced workflows, CAM databases can be synchronized with a company tool management system to keep cutting depth data consistent and traceable.[1]
CNC lathe manuals and spindle power charts help determine whether a recommended cutting depth is realistic on a given machine.[2][1]
- Machine documents sometimes include example cutting parameter tables that state maximum depth of cut for typical materials at given spindle speeds.[2][1]
- Power and torque curves show how much load the spindle can handle at different RPM values, which constrains safe maximum cutting depth at selected feeds.[2][1]
For instance, a low-power lathe with a 7.5 kW spindle may be limited to shallow cutting depths in hard materials, while a high-power 22 kW lathe can support significantly deeper cuts.[1]
Even if a catalog suggests a high roughing depth, you must verify that your actual machine power and rigidity can sustain it.[2][1]
Handbooks like Machinery's Handbook and various CNC machining guides compile generic cutting depth ranges for many material and tool combinations.[3][1]
- These resources provide baseline values for roughing and finishing, often specifying cutting depth together with recommended speed and feed ranges.[3][1]
- Typical tables distinguish between mild steel, stainless steel, cast iron, aluminum, and hard alloys, with deeper roughing cuts on free-cutting materials and shallow cuts on hard or heat-resistant alloys.[3][1]
For example, mild steel roughing may allow 1.0–4.0 mm cutting depth, while finishing may stay around 0.2–1.0 mm with carbide tools.[1]
Handbook values are generic, so they still need adjustment based on actual insert geometry and machine capability.[3][1]
Research papers and technical articles often optimize depth of cut for specific materials, tools, and performance goals.[1]
- Some studies focus on maximizing material removal rate at an acceptable tool life, while others target surface roughness or cutting temperature.[1]
- For example, tests on alloy steels or Inconel may show optimal finishing depths in the 0.3–0.8 mm range to balance tool wear and surface roughness, with slightly deeper roughing recommendations when cooling and coatings are optimized.[1]
Such results supplement manufacturer guidance when you are machining difficult materials or pushing productivity in a controlled environment.[1]
However, shop conditions, machine rigidity, and coolant strategies still influence whether those laboratory-optimized depths are feasible in practice.[1]

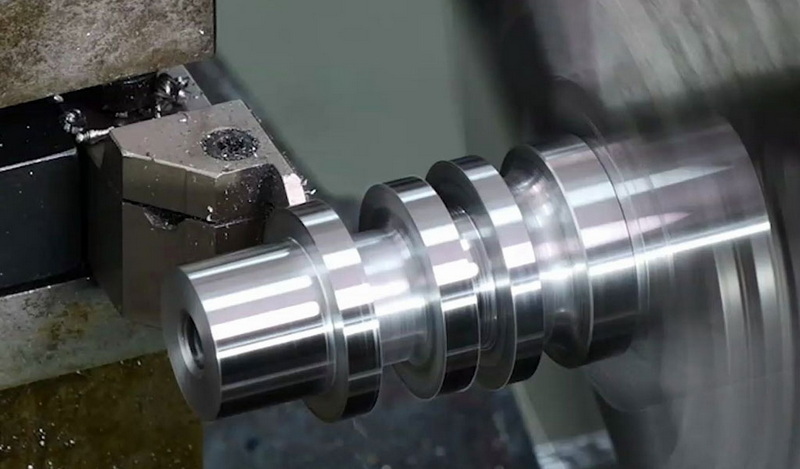

Once you know where to find recommended cutting depths, you still need a practical strategy to select a safe starting value.[4][1]
- Begin within the manufacturer's recommended range for your insert, material, and operation, preferably near the middle of the window.[4][1]
- Check the spindle power charts to confirm that the combination of cutting depth, feed, and speed does not exceed the machine's continuous power capability.[2][1]
Then you can iteratively tune the cutting depth during trial cuts.[4][1]
- If chip breaking is poor or vibration appears, reduce cutting depth or nose radius until the cut stabilizes.[4]
- If the machine is stable and power reserve remains high, you may safely increase cutting depth within the catalog limits to reduce cycle time.[5][1]
The following generalized ranges illustrate how different materials often require different cutting depths in turning.[3][1]
- Carbon steel (ISO P: Roughing around 1.0–5.0 mm, finishing around 0.2–1.5 mm depending on hardness.[1]
- Stainless steel (ISO M: Roughing about 0.5–3.0 mm to limit work hardening, with shallow finishing cuts to control heat and deformation.[1]
Other materials show their own typical behavior.[3][1]
- Cast iron (ISO K: Roughing depths about 1.5–6.0 mm, leveraging its brittle nature and low tendency to work harden.[1]
- Aluminum (ISO N: Often 2.0–8.0 mm for roughing due to low cutting forces, with finishing depths adjusted mainly for dimensional accuracy and surface finish.[3][1]
These ranges are starting points only and must be cross-checked against the insert catalog and machine capability.[2][1]
Insert shape, size, and chipbreaker design strongly influence the safe cutting depth.[5][4]
- Larger inserts with stronger nose angles and larger nose radii tolerate deeper cuts, especially in roughing operations.[5][4]
- General guidelines recommend choosing an insert size based on the largest expected cutting depth and required cutting length, considering the entering angle of the tool holder.[4]
There is also a relationship between nose radius and cutting depth.[4]
- A typical rule is to select a nose radius equal to or smaller than the cutting depth to avoid excessive radial forces and chatter.[4]
- If vibration occurs at a given depth, swapping to a smaller nose radius or reducing cutting depth can reduce radial load and improve surface finish.[4]
Even with correct catalog values, final cutting depth decisions must be validated on the shop floor.[2][1]
- Controlled test cuts help confirm that tool life, surface roughness, chip control, and dimensional accuracy are acceptable at the selected cutting depth.[1]
- When stable parameters are established, documenting them in a shop standard or CAM database ensures consistent future setups.[2][1]
Shops that regularly record proven cutting depths for each tool, material, and machine can ramp up production faster and reduce troubleshooting time.[1]
Over time, this internal reference may become as valuable as external catalogs, especially for special alloys or unique customer tolerances.[1]
The recommended cutting depth in CNC turning is not guessed but looked up from structured, reliable sources that connect insert design, material group, and machine capability.[4][1]
By checking tool catalogs, packaging, online databases, CAM libraries, machine manuals, and reference guides, you can choose cutting depths that maximize productivity while preserving tool life and surface quality.[2][1]
Well-documented shop tests then refine those recommendations into proven parameters that match your actual machines and workholding conditions.[2][1]
This disciplined approach to finding and validating cutting depth will reduce trial-and-error, shorten cycle times, and improve process stability in CNC turning operations.[2][1]
You can find recommended cutting depth in the manufacturer's turning catalog or online tool database by searching the exact insert code and material group.[4][1]
In many cases, the insert packaging and chipbreaker leaflet also show simplified depth ranges for roughing and finishing operations.[1]
Compare the catalog depth with your machine's spindle power chart and torque curve to ensure the expected load is within continuous limits.[2][1]
If the machine is low power or not very rigid, start at the lower end of the recommended range and increase gradually only if the cut remains stable.[2][1]
Roughing aims for maximum material removal rate, so it uses deeper cuts that fully engage the insert and spindle power.[3][1]
Finishing focuses on surface quality and dimensional accuracy, so it uses shallow depths to minimize cutting forces, heat, and deflection.[3][1]
Generic handbooks provide safe starting points but cannot account for specific insert geometries, chipbreakers, and coatings.[3][1]
For optimal performance, you should combine handbook values with insert-specific catalog data and then validate on your machine.[4][1]
Poor chip breaking often means the combination of cutting depth, feed, and chipbreaker is not in its effective working window.[4][1]
Try increasing or decreasing depth within the recommended range, adjusting feed, or choosing a chipbreaker designed for your specific material and operation.[4][1]
