Views: 222 Author: Tomorrow Publish Time: 2026-04-19 Origin: Site
When you outsource CNC machining, precision and accuracy directly determine whether your parts fit, function, and last in real-world applications. Many sourcing teams mix these two concepts, but as someone working daily with overseas OEM/ODM projects, I can tell you they affect cost, risk, and lead time in very different ways. [machiningconceptserie]
In this guide, I will explain precision vs accuracy from a practical, engineer-friendly angle, share real manufacturing scenarios, and show how a capable CNC supplier can balance both to support your product roadmap. [rapiddirect]
In machining, precision describes how closely repeated measurements or parts match each other, not necessarily the nominal CAD value. If ten parts from the same batch are almost identical, the process is precise—even if all of them are slightly off the drawing. [dsrhardware]
In production terms, precision means:
- Tight variation between parts from the same batch or over many batches. [dsrhardware]
- Predictable, repeatable results once the process is set and stabilized. [rapiddirect]
- Stable tooling, fixturing, and cutting conditions that behave the same over time. [blog.epectec]
Example from the shop floor:
A shaft is specified at 10.00 mm. Your supplier delivers 500 pieces measuring between 9.97 mm and 9.98 mm. The process is highly precise (all parts are close together), but the mean is slightly low, so it may or may not be acceptable depending on the tolerance. [dsrhardware]
Accuracy shows how close a measurement or part is to the true or target value defined on the drawing or CAD model. You can think of it as "how close are we to what the designer actually wanted?" [machiningconceptserie]
Key aspects of accuracy:
- Compares each measured value to the nominal dimension and tolerance. [dsrhardware]
- Strongly affected by systematic errors (machine calibration, offsets, temperature, setup).^ [rapiddirect]
- Often judged part-by-part during first article inspection or sampling. [americanmicroinc]

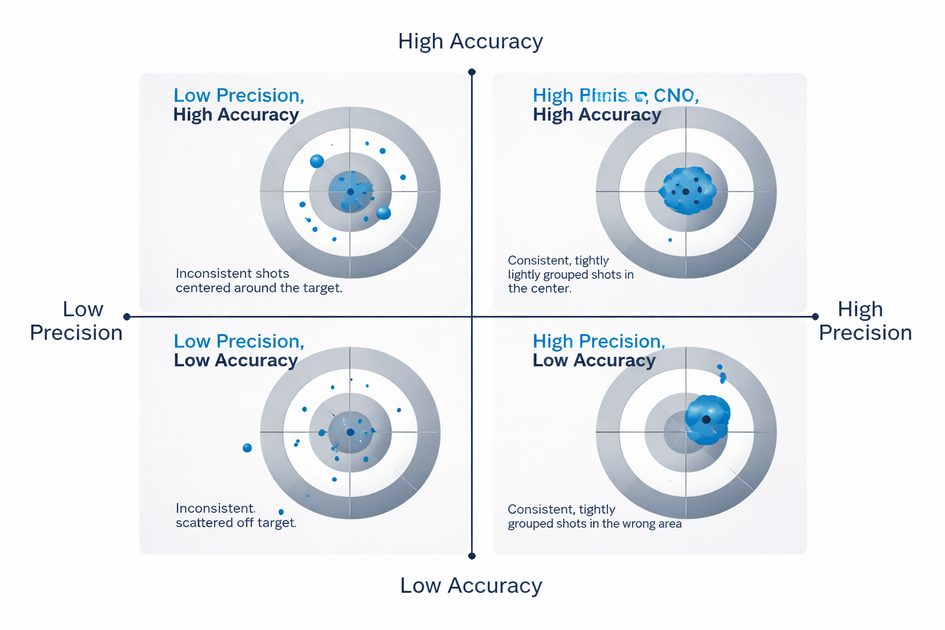

Bullseye analogy:
- High accuracy: shots are clustered around the center of the target.
- Low accuracy: shots are grouped but shifted away from the center.
In machining, high accuracy means slot locations, hole diameters, flatness and other features stay within specified tolerances and geometric controls. [americanmicroinc]
In real CNC production, precision and accuracy combine in four common ways. [dsrhardware]
- Parts are very close to each other and close to the design target.
- Ideal state for safety‑critical and high-value components (aerospace, medical, EV, robotics).^ [zintilon]
Example:
Drilling a row of holes 60 mm from the edge with a tolerance of ±1 mm. If all parts measure between 59 mm and 61 mm, and the average is near 60 mm, the process is both precise and accurate.
- Average dimension is correct, but there is a wide spread between parts.
- Some parts meet tolerance; others drift out of spec, creating rework risk. [dsrhardware]
Example:
Pistons designed at 1.400 in ±0.005 in. Some parts are 1.395–1.405 in (acceptable), but others fall outside this range. Overall, the process hits the target on average but is too unstable to be considered precise.
- Parts are tightly clustered but consistently off the nominal dimension. [dsrhardware]
- Indicates stable process with a systematic bias (e.g., tool offset error, wrong compensation).^ [rapiddirect]
Example:
Heights of 1.410, 1.415, 1.412 in for a 1.400 in ±0.005 in piston. All parts are similar, but out of tolerance; the process is precise but inaccurate.
- Parts vary widely and are far from the design intent. [dsrhardware]
- Usually linked to worn machines, poor fixturing, or unstable cutting parameters. [blog.epectec]
Example:
A plastic piece targeted at 30 mm ±0.6 mm, but actual parts measure 27, 28, 29, 31, 32 mm. The process is neither accurate nor precise.
Across industries—medical, aerospace, automotive, marine, oil & gas—CNC machining is chosen because it can consistently hit demanding tolerance and surface requirements. For OEM/ODM buyers, precision and accuracy translate into hard business results: [zintilon]
- Functional fit: Components assemble smoothly without forcing, shimming, or hand-filing. [americanmicroinc]
- Safety: Critical parts (implants, braking components, structural elements) perform reliably in the field. [zintilon]
- Brand reputation: Stable quality across batches builds trust with distributors and end customers. [zintilon]
- Cost control: Less scrap, less rework, and fewer urgent air shipments to fix quality escapes. [protolabs]
When a supplier controls both precision and accuracy, new product introductions run smoother and series production becomes predictable instead of firefighting.

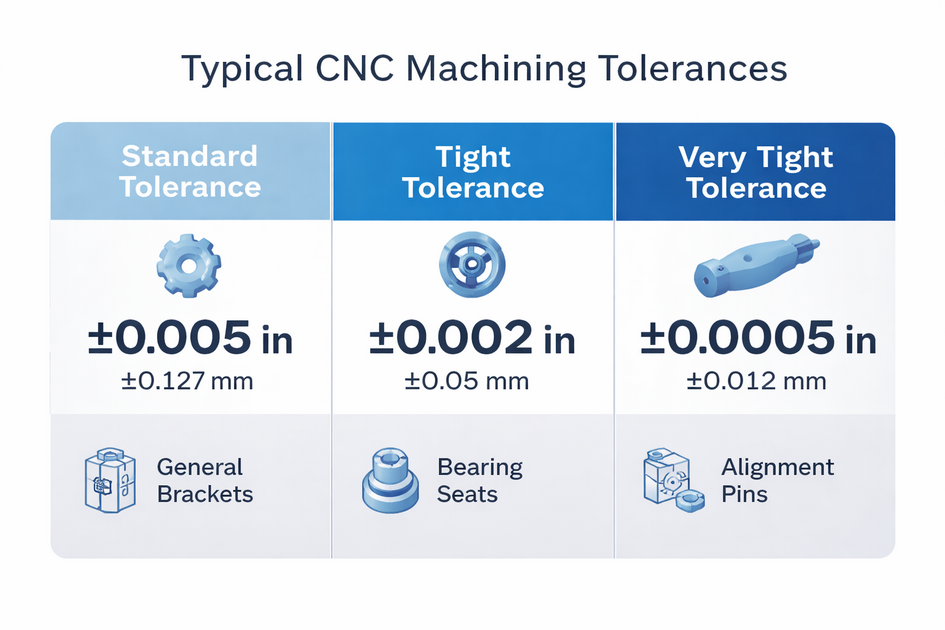

| Tolerance type | Typical value | Notes |
|---|---|---|
| Standard CNC tolerance | ±0.005 in (±0.13 mm) | Common for general metal parts. (protolabs) |
| Tight production tolerance | ±0.002 in (±0.051 mm) | For critical fits and performance features. (protolabs) |
| Very tight/reamed holes | ±0.0005 in (±0.0127 mm) | Often for bearing seats, alignment pins. (protolabs) |
Designers also rely on standards such as ISO 2768 for general tolerances to avoid over‑specifying dimensions that are not functionally critical. Overly tight tolerances increase machining time, inspection workload, and cost—so a good CNC partner will challenge those dimensions and help you decide where precision truly matters. [protolabs]
To evaluate precision, you compare multiple measurements taken under the same conditions over time. [dsrhardware]
Typical approach:
1. Machine a batch of parts using the same setup and parameters.
2. Measure key dimensions using calipers, micrometers, or CMMs.
3. Analyze the spread (standard deviation, Cp/Cpk) to see how tightly the data clusters. [rapiddirect]

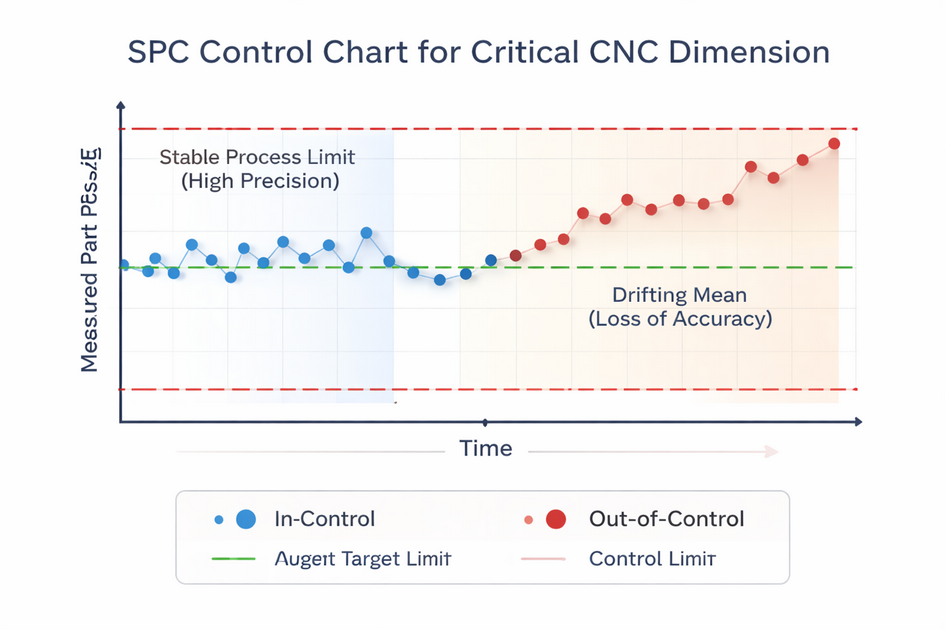

High precision shows as a narrow band of values on control charts, even across different shifts or days. [rapiddirect]
Accuracy is judged by how close each measurement is to the target dimension. [dsrhardware]
In a production environment:
- First Article Inspection (FAI) compares multiple features of a sample part to the CAD/drawing. [americanmicroinc]
- Machine calibration checks machine axes against certified reference standards. [rapiddirect]
- Gauge R&R studies confirm that measurement tools and operators are not introducing bias. [rapiddirect]
An effective quality system separates process spread (precision) from offset/bias (accuracy), then corrects each with appropriate actions. [rapiddirect]
Manufacturers combine several strategies to stabilize and optimize their machining results. Some of the most impactful levers include: [blog.epectec]
- Adjust cutting speed, feed rate, and depth of cut to balance tool life, chip evacuation, and thermal load. [blog.epectec]
- Avoid aggressive settings that cause chatter, deflection, or excessive heat, all of which harm accuracy and surface finish. [dsrhardware]
- Modern CNC machines provide finer control over motion and compensation, enabling tighter tolerances. [zintilon]
- High-speed steel and carbide tools with suitable coatings help maintain edge integrity over long runs, improving both precision and accuracy. [blog.epectec]
- Precision CNC fixtures and clamping systems minimize vibration and movement during cutting. [blog.epectec]
- Consistent fixturing also improves repeatability between setups and batches.
- Regularly calibrating machine axes, checking backlash, and verifying probing systems keeps systematic errors under control. [rapiddirect]
- Preventive maintenance (way lubrication, spindle inspection, ball screw checks) prevents gradual drift that erodes accuracy. [blog.epectec]
- Using calibrated calipers, micrometers, and CMMs to inspect critical features and tolerances. [americanmicroinc]
- Implementing in‑process checks and final inspection to catch issues before shipping. [americanmicroinc]
From an engineering and sourcing perspective, not every dimension needs ultra‑tight control. Over‑tolerancing is one of the fastest ways to inflate CNC costs. [blog.epectec]
Here are practical guidelines often used by experienced designers and machinists:
- Reserve ±0.001 in (±0.025 mm) and tighter for critical fits (bearing seats, alignment interfaces, sealing surfaces).^ [americanmicroinc]
- Use standard tolerances such as ±0.005 in for non‑critical dimensions (overall length, cosmetic edges, non‑mating surfaces).^ [protolabs]
- Consider tolerance stack‑up across assemblies; sometimes relaxing an upstream dimension can still preserve functional fit when you model the stack. [blog.epectec]
- Communicate functional requirements, not just numbers; a good CNC partner can propose cost‑effective tolerances that still achieve your design intent. [highlandmachine]
For OEM and ODM buyers, precision and accuracy are not abstract technical ideals; they deeply influence your total cost of ownership across the product life cycle. [hoggeprecision]
- Development phase: Accurate first articles shorten design validation cycles and reduce the number of iterations. [highlandmachine]
- Ramp‑up: A precise process ensures that once parameters are set, every batch behaves similarly, reducing surprises when scaling volumes. [zintilon]
- Mass production: Fewer defects, less rework, and stable yields drive down long‑term unit costs. [protolabs]
- Field performance: Accurate and precise components reduce warranty claims and service costs. [zintilon]
Working with a machining partner who treats precision and accuracy as strategic capabilities—not just inspection results—can be a competitive advantage in your supply chain.
When you evaluate CNC suppliers, you are effectively evaluating their ability to deliver the right combination of precision and accuracy for your parts. Consider the following points: [hoggeprecision]
- Technical capabilities: Multi‑axis CNC milling and turning, micro‑machining, complex features, and material expertise (aluminum, stainless steel, titanium, engineering plastics).^ [hoggeprecision]
- Quality system: Documented inspection procedures, traceable measurement equipment, and compliance with relevant standards (e.g., ISO).^ [protolabs]
- Process control: Evidence of tooling management, setup sheets, and standardized parameters for recurring jobs. [blog.epectec]
- Engineering support: Willingness to review your drawings, suggest tolerance optimizations, and flag manufacturability risks before production. [highlandmachine]
- Scalability: Ability to handle both prototypes and mass production with consistent quality and lead times. [highlandmachine]
For international brands, wholesalers, and manufacturers, partnering with a dedicated Chinese CNC precision shop can combine cost efficiency with strong technical performance—if the supplier has the right systems in place. A mature partner will: [hoggeprecision]
- Align tolerances and inspection plans with your application requirements instead of simply quoting everything "as‑drawn." [highlandmachine]
- Use stable fixtures, robust process parameters, and preventive maintenance to protect repeatability over long production runs. [blog.epectec]
- Offer DFM advice early (for example, adjusting non‑critical tolerances or simplifying features) to balance performance and cost. [highlandmachine]
- Provide transparent measurement reports and communication so you can justify quality to your own customers.

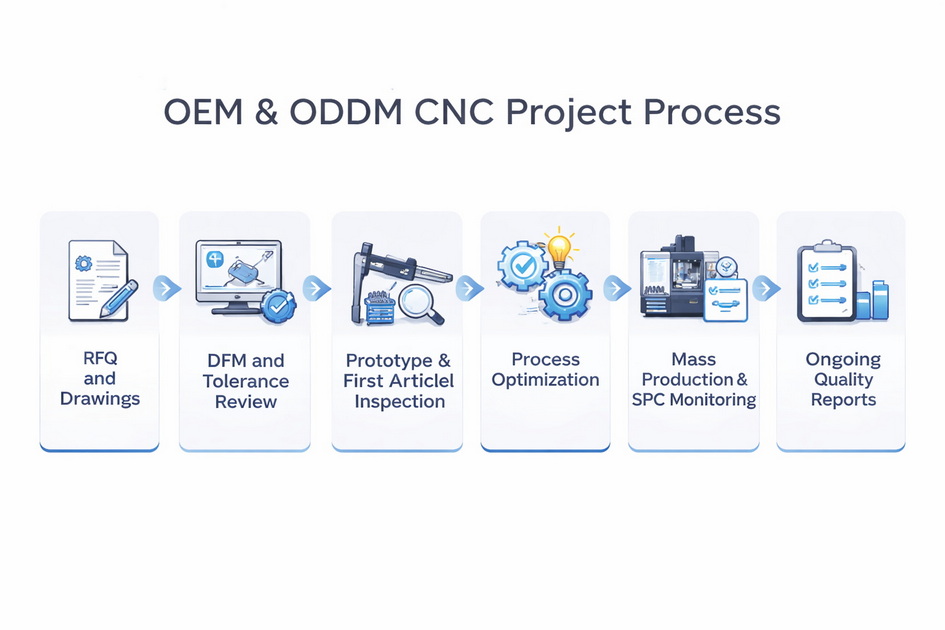

To make the concepts above actionable, here is a simple workflow you can follow on your next machining project:
1. Classify your dimensions. Separate features into critical, important, and non‑critical, then assign tolerances accordingly. [americanmicroinc]
2. Share context with your supplier. Explain where the part sits in the assembly and what failure looks like in the field. [hoggeprecision]
3. Agree on measurement methods. Confirm which tools (CMM, go/no‑go gauges, micrometers) will be used for which features. [americanmicroinc]
4. Request a pilot batch with reports. Use early data to verify both precision (spread) and accuracy (bias) before ramping volume. [rapiddirect]
5. Monitor stability over time. For recurring orders, compare current data with initial runs to detect drift early. [rapiddirect]
1. Can I have high precision without high accuracy?
Yes. A process can produce highly consistent parts that are all shifted away from the target dimension due to systematic error such as incorrect offsets or calibration. [dsrhardware]
2. Which is more important: precision or accuracy?
For critical assemblies and safety‑related components, both matter. In early development, accuracy is often prioritized to validate the design, while in mass production precision becomes crucial for yield and cost control. [zintilon]
3. How tight can CNC machining tolerances realistically go?
Many shops hold ±0.005 in as a standard, with ±0.002 in or better for tighter features, and around ±0.0005 in on reamed holes when the process is well controlled. [protolabs]
4. Does tightening tolerances always improve product quality?
Not necessarily. Overly tight tolerances can increase cost, lead time, and scrap without improving functional performance if the dimension is not critical to fit, sealing, or performance. [americanmicroinc]
5. What information should I share with a CNC supplier about precision and accuracy?
Provide clear drawings, tolerance classifications, expected volumes, application environment, and any special requirements for safety or regulatory compliance so your supplier can propose the right process and controls. [hoggeprecision]
