As a Chinese CNC precision parts manufacturer serving overseas brands, wholesalers, and OEM/ODM buyers, Shenzhen Feifan Hardware & Electronics Co.,Ltd. sees this decision every day: should a metal prototype be milled or printed? The honest answer is that both processes are valuable, but they solve different problems. [jabil]
From an engineering perspective, CNC milling is subtractive manufacturing, while metal 3D printing is additive manufacturing. That single difference affects everything that matters in prototyping: accuracy, cost, lead time, finish, strength, and design freedom. [datron]

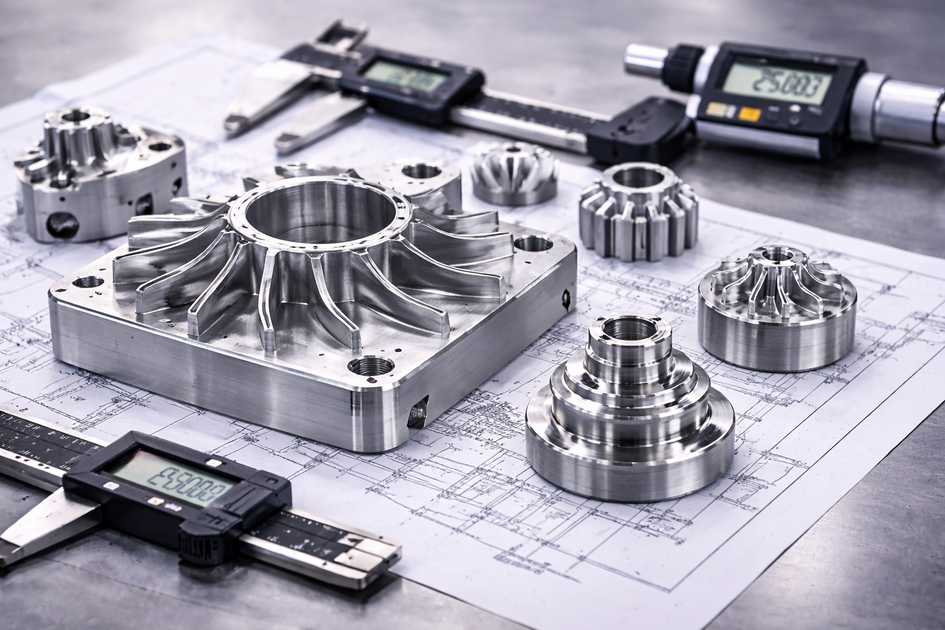

CNC milling starts with a solid metal block and removes material until the part matches the CAD model. For prototypes in aluminum, stainless steel, steel, brass, copper, and titanium, this process is especially strong because it preserves the base material's properties and delivers stable, repeatable results. [fictiv]
For functional prototypes, CNC milling is often the closest simulation of a final production part. It is a strong fit for housings, brackets, connectors, heat sinks, precision assemblies, and parts that must fit with other components on the first try. [protolabs]
Metal 3D printing builds the part layer by layer, usually with powder-bed fusion or similar additive methods. Its biggest advantage is geometric freedom, which makes it excellent for internal channels, lattice structures, lightweight topology-optimized parts, and shapes that would be very hard or expensive to machine. [eureka.patsnap]
For early-stage prototypes, 3D printing often shortens the cycle from CAD file to physical sample because it can reduce setup work and eliminate the need for cutting tools or complex fixturing. Jabil's 2023 survey found that prototyping remained the leading use of additive manufacturing, and 96% of respondents said prototyping was the area that benefited most from AM. [plasticsengineering]

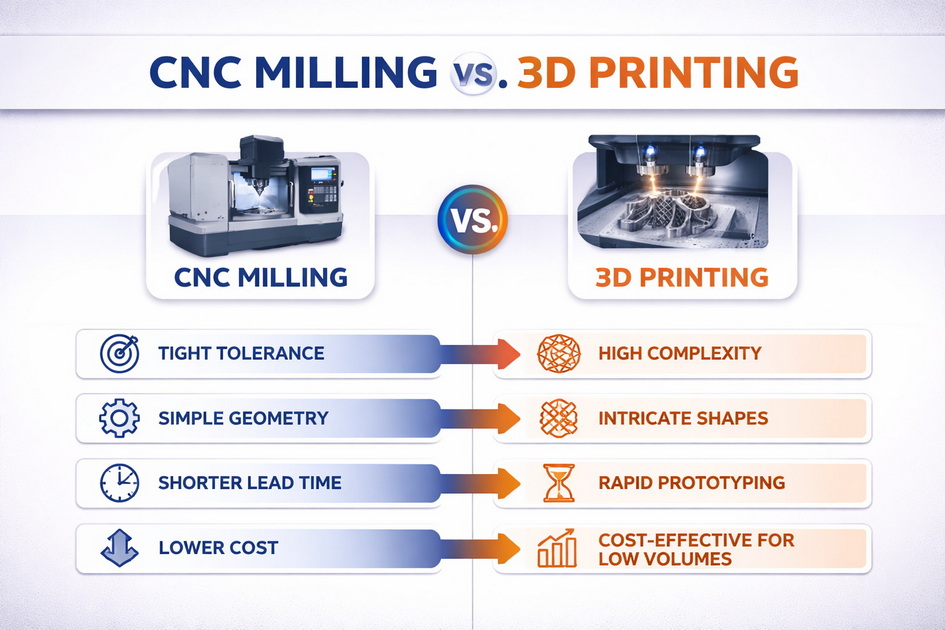

| Factor | CNC Milling | 3D Printing |
|---|---|---|
| Best use case | Functional metal prototypes, tight-tolerance parts, production-like testing fictiv | Complex geometry, rapid design validation, lightweight structures fictiv |
| Tolerance | Typically tighter and more predictable protolabs | Usually looser and more process-dependent fictiv |
| Surface finish | Smoother, with machining marks that can be further refined fictiv | Layer lines and support marks are common fictiv |
| Mechanical strength | Excellent, because the part is machined from solid stock fictiv | Depends on process, orientation, and post-processing fictiv |
| Lead time | Longer setup, but efficient for repeat jobs and batch orders fictiv | Fast for first-off geometry and design changes plasticsengineering |
| Material efficiency | More waste because material is removed craftacks | Better material efficiency in many cases thevirtualfoundry |
| Complexity | Limited by tool access and cutter geometry fictiv | Very high design freedom fictiv |
If the prototype must behave like a final metal part, CNC milling usually has the edge. It is better for threaded holes, sealing surfaces, press-fit features, precision bores, and parts that must survive real loads during testing. [protolabs]
3D printing is attractive when the design contains internal passages, organic shapes, or part consolidation opportunities. It can also be useful when engineering teams want to test form and assembly before freezing the final geometry. [eureka.patsnap]
Cost depends on part geometry, volume, tolerances, and post-processing. For a simple metal prototype, CNC milling can be very cost-effective; for a highly complex part, machining time may rise quickly because of extra tool paths, setups, and fixturing. [craftacks]
Metal 3D printing often reduces early-stage iteration cost because it avoids tooling, but the economics change when a part needs heavy finishing, support removal, or expensive powders. Recent analysis also suggests additive manufacturing can cut prototype lead times significantly in time-sensitive programs, especially when tooling is the bottleneck. [thevirtualfoundry]
CNC milling supports a broader range of common engineering metals with well-known behavior, which makes it easier to predict results in prototype testing. That predictability matters when buyers need a prototype to validate fit, finish, and function before moving into production. [fictiv]
Metal 3D printing is improving fast, but the process still faces more variability in surface roughness, porosity risk, anisotropy, and post-processing requirements. In practical terms, that means the part may look finished in CAD, yet still need extra work before it is ready for serious mechanical validation. [eureka.patsnap]
Choose CNC milling when your metal prototype must be:
- Tight-tolerance and dimensionally stable. [protolabs]
- Strong enough for real mechanical testing. [fictiv]
- Finished with better surface quality and cleaner edges. [fictiv]
- Machined from common metals like aluminum, stainless steel, or titanium. [fictiv]
This is why many OEM and ODM projects still begin with CNC. Buyers want a prototype that behaves like the final part, not just one that looks similar. [fictiv]
Choose metal 3D printing when your prototype must be:
- Extremely complex or internally hollow. [eureka.patsnap]
- Rapidly iterated during concept development. [plasticsengineering]
- Lightweight with material only where it is structurally needed. [thevirtualfoundry]
- Built without the setup effort of machining fixturing and multiple toolpaths. [eureka.patsnap]
This is especially useful for innovation-heavy projects, such as aerospace brackets, conformal-cooling components, and experimental design validation. [eureka.patsnap]
One of the most useful modern workflows is a hybrid strategy: print the rough geometry first, then machine the critical surfaces afterward. This approach combines additive freedom with subtractive precision and is gaining momentum across advanced manufacturing. [dashnode]
For many buyers, hybrid manufacturing offers the best balance. Use 3D printing to test shape and packaging, then apply CNC milling to tighten fit, improve finish, and prepare the part for real-world performance. [in-xmachineinc]
From a factory-side perspective, the smartest choice starts with three questions:
1. Does the part need tight tolerances or structural reliability?
2. Is geometry complexity the main challenge?
3. Is the goal fastest concept validation or production-like testing?
If the answer to the first question is yes, CNC milling should usually come first. If the answer to the second and third questions is yes, 3D printing may be the faster route. [protolabs]
For most metal prototype projects, start with CNC if the part must fit, seal, or load-test correctly. Start with 3D printing if the design is still evolving, the geometry is unusually complex, or your team needs a quick proof of concept. [plasticsengineering]
For international buyers working with an OEM/ODM supplier, the most efficient approach is often to request both manufacturability feedback and a process recommendation before locking the prototype method. That reduces cost, prevents redesign loops, and shortens the path to production. [craftacks]
If you are developing a metal prototype and need a supplier that can evaluate CNC milling vs. 3D printing from both an engineering and sourcing perspective, request a DFM review first. At Shenzhen Feifan Hardware & Electronics Co.,Ltd., we help overseas brands, wholesalers, and manufacturers choose the right process for accuracy, strength, cost, and speed.
1. Is CNC milling better than 3D printing for metal prototypes?
Usually yes, when the prototype needs high strength, tight tolerances, and a finish close to the final part. [protolabs]
2. Is metal 3D printing cheaper than CNC?
It can be cheaper for very complex one-off parts, but finishing, support removal, and powder costs can change the economics quickly. [thevirtualfoundry]
3. Which process is faster for the first prototype?
3D printing is often faster for first-off concepts because it avoids much of the setup required for CNC machining. [plasticsengineering]
4. Can CNC milling make complex parts?
Yes, but tool access, cutter geometry, and setup constraints make some internal or organic shapes difficult or expensive to machine. [fictiv]
5. Can both methods be used together?
Yes. A hybrid workflow is increasingly common: print the complex form, then machine the critical surfaces to tolerance. [dashnode]
6. Which method is better for OEM product development?
For OEM validation, CNC is usually better for fit-and-function testing, while 3D printing is better for early concept and geometry exploration. [plasticsengineering]
