Maintaining and servicing a 3D printer is crucial for ensuring reliable performance, dimensional accuracy, and long-term durability. Unlike regular desktop printers, 3D printers consist of mechanical, thermal, and electronic systems that constantly endure stress from repeated motions and high temperatures. Without proper care, these components wear out, leading to failed prints, noise, or even permanent damage. This comprehensive guide explains how to service your 3D printer step-by-step, ensuring it continues producing high-quality prints for years.

Regular maintenance is essential for optimal printer health. Every 3D printer, whether an FDM desktop model or an industrial-grade machine, relies on precision in movement, heating, and extrusion. Over time, even minor misalignments or clogged nozzles can degrade print accuracy.
Servicing isn't just about repairing faults — it's about preventive action. By developing a regular servicing routine, you can detect wear before it becomes a problem. Proper servicing also helps maintain consistent layer adhesion, reduce common printing issues like stringing or warping, and maintain calibration accuracy. Ultimately, proactive maintenance saves time, money, and frustration.
Before servicing, ensure you have the right tools and cleaning materials. Having everything nearby saves time and prevents reassembly mistakes.
- Metric Allen key set and small screwdrivers.
- Needle-nose pliers and tweezers for tiny parts.
- PTFE-based lubricant or light machine oil.
- Replacement nozzles, belts, and bearings.
- Lint-free cloths, IPA (isopropyl alcohol), and soft brushes.
- Calipers for dimensional measurement.
- Compressed air for removing fine dust.
- Heat-resistant gloves when cleaning hot components.
Organize your tools on a clean workspace and unplug the printer before beginning to ensure safety.
Safety comes first. Always disconnect the printer from power and let components cool down before inspecting. Begin with a thorough visual check to understand the printer's condition.
- Look for signs of dust buildup, filament fragments, or melted plastic residue near the extruder or bed.
- Examine rods and couplings for rust or scoring marks.
- Inspect wiring for loose connections, burns, or wear on insulation.
- Check that belts and screws are still tight and properly aligned.
This inspection reveals potential weak points before disassembly. Take photos if necessary to document original positions for easier reassembly.

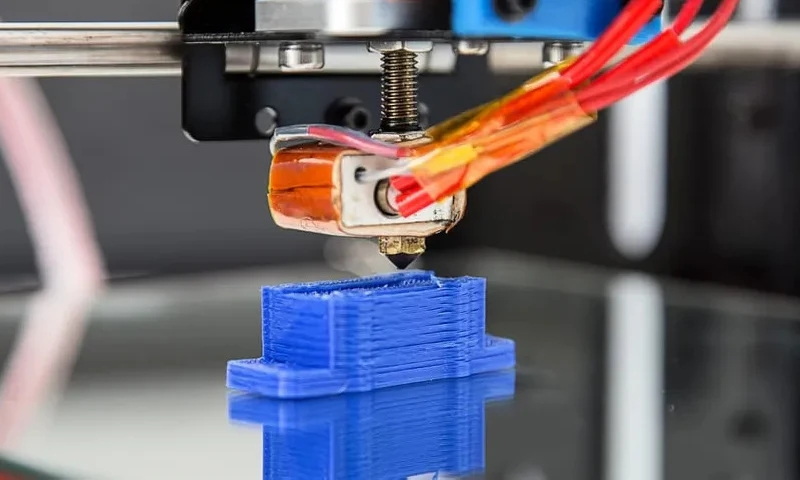

The nozzle and extruder endure the highest temperatures and are prone to blockage due to filament residue. Clogs in this area cause under-extrusion, poor surface finish, or uneven layers.
1. Warm up the nozzle to the printing temperature of the last used filament (e.g., 210°C for PLA).
2. Unload the filament using the printer's menu. Wait for the nozzle to clear.
3. Perform a cold pull: Insert a strand of cleaning filament or nylon, heat it slightly, and pull it out gently while warm. This removes internal residue and burnt particles.
4. Remove tough clogs: If still blocked, unscrew the nozzle using a wrench. Soak it in acetone (for ABS) or use a brass wire to push out debris carefully.
5. Clean the extruder gears: Use a brush or compressed air to remove trapped filament dust from the gear teeth.
Ensure the nozzle is fastened securely afterward but avoid over-tightening, as this can damage the hotend threads.
Smooth motion is vital for consistent layer formation. Dust or hardened lubricant can increase friction, generating unwanted noise and inaccurate printing.
- Linear rods and bearings: Wipe thoroughly with IPA, then apply a small drop of lubricant along the rod's surface. Move the carriage manually to distribute it evenly.
- Lead screws: Clean thread grooves and add a very thin layer of grease for smooth Z-axis motion.
- Fans and cooling ducts: Remove accumulated dust using compressed air or a soft brush to restore optimal airflow.
Avoid using excess oil; only a minimal film is necessary. Too much lubricant can attract more dust than it prevents.
Belts transmit motor movements to axes, directly influencing dimensional accuracy and print precision. Over time, they stretch or loosen, leading to layer shifting and vibration artifacts known as “ghosting.”
- Test belt tension by pressing midway between pulleys—it should flex slightly without feeling floppy.
- Adjust tension using built-in belt tighteners or motor mounts.
- Ensure pulleys are aligned perfectly with their respective axes and that their set screws (grub screws) are firmly secured to the motor shafts.
- Replace any belt showing cracks, fraying, or lost elasticity.
Properly tuned belts help ensure synchronized, stable movement.

The print bed's surface condition directly impacts adhesion and print success rates. Even minor residue can lead to lifting or curling during printing.
- Remove and wash the build plate with warm water and mild detergent to remove adhesives and filament residues.
- Disinfect with IPA to clear remaining oils or finger marks.
- Check for warping: Ensure the surface is flat using a straight edge or calibration tool.
- Reinstall and level: Use manual knobs or automatic leveling sensors. Place a calibration card under the nozzle and ensure equal friction across the bed.
A clean, level bed is critical for the first layer's uniformity and print adherence.
Sometimes, print issues originate not from the hotend but from filament feeding mechanisms. Regularly cleaning the filament path prevents inconsistent extrusion.
- Inspect feeders: Clean teeth grooves on drive gears.
- Check filament tube: If using a Bowden setup, remove and clean the PTFE tube. Replace if it shows discoloration or deformation.
- Ensure smooth feeding: Insert filament manually to verify there's no resistance or grinding.
Proper feeding ensures stable extrusion and consistent line thickness.
Keeping your printer's firmware and printing software updated prevents compatibility issues and unlocks performance improvements released by manufacturers.
- Connect the printer via USB or SD card and use official firmware tools to check for updates.
- Verify slicer settings after updates; some may reset to defaults.
- Backup configuration files before making system updates.
- Monitor parameters such as steps/mm, PID tuning, and temperature calibration.
Firmware updates often fix bugs, improve thermal stability, and sometimes introduce new features like better bed leveling support.
Calibration ensures that motion, extrusion, and temperature align precisely. After maintenance, recalibration optimizes the printer for perfect performance.
- Axis calibration: Use calipers to measure test prints and adjust steps/mm accordingly.
- Extruder calibration: Measure and correct filament extrusion to ensure accurate flow.
- Temperature calibration: Print a temperature tower to determine the best nozzle temperature for new filaments.
- Z-offset calibration: Fine-tune your nozzle distance for ideal first-layer adhesion.
Consistent calibration reduces failed prints and improves part accuracy.
Once all steps are completed, conduct a final test print. Choose a benchmark model like a calibration cube or Benchy boat to evaluate quality.
Look for these signs:
- Even extrusion with smooth outer walls.
- Proper bed adhesion without warping.
- No gaps, blobs, or banding between layers.
- Accurate fit of dimensions when measured.
A successful test confirms the printer functions optimally. If not, revisit previous steps to identify overlooked issues.
Just like a car, a 3D printer benefits from consistent checkups. Implementing a fixed schedule helps prevent long-term wear.
Suggested timetable:
- Daily: Wipe the build surface, check for visible filament debris, confirm bed adhesion.
- Weekly: Inspect belts, fans, and the filament path for obstructions.
- Monthly: Deep clean rods, lubricate bearings, check for loose screws.
- Quarterly: Replace nozzles and re-calibrate all axes.
- Annually: Perform full teardown inspection and software refresh.
Keeping a maintenance log helps track replacements and maintenance cycles for each component.
- Use quality filaments: Cheap or recycled filaments contain impurities that increase nozzle wear.
- Control environment: Humidity and dust affect print quality. Store filament in sealed, dry containers.
- Avoid excessive manual force: Overtightening screws or belts can cause damage.
- Monitor temperature behavior: Frequent heating errors might indicate failing thermistors or loose connections.
- Back up firmware configurations: Always keep a saved copy in case of accidental resets.
Attention to these details will enhance your printer's reliability and minimize disruptions during projects.
Servicing a 3D printer is more than simple cleaning — it's about maintaining precision, stability, and safety. Consistent maintenance helps prevent mechanical failure, preserves print quality, and extends your machine's operational life. By following a structured schedule—covering cleaning, lubrication, belt inspection, firmware updates, and calibration—you can ensure your printer produces reliable, professional-grade outputs every time. Investing time in proper servicing is investing in the continued success of your 3D printing experience.

The ideal schedule depends on usage. Heavy users should service monthly, while casual users can do it every three months. Always clean the bed and nozzle after each major print project.
PTFE-based grease or light machine oil is recommended. Avoid petroleum-based greases—these can degrade plastic components and attract dust.
Yes, using a cold-pull technique removes partial clogs without removing the nozzle. However, for complete blockages, it's best to remove and soak it.
Squeaks often signal dry bearings or rods. Wipe clean and reapply minimal lubricant along moving parts. If the noise continues, check belt alignment.
Replace belts if they slip, fray, or lose elasticity. Misaligned or damaged belts cause print layer shifts and surface ghosting effects.
