How To Gather Machining Data From CNC?

Views: 222     Author: Tomorrow     Publish Time: 2026-02-02      Origin: Site

Inquire

Content Menu

Introduction to CNC Machining Data Collection

Why Machining Data Matters

Data Types Collected From CNC Machines

>> Machine Status Data

>> Production and Process Data

>> Performance and Condition Data

Methods of Gathering CNC Machining Data

>> Manual Data Collection

>> Data Extraction via CNC Controller Interface

>> Machine Monitoring Software

>> IoT and Sensor-Based Data Gathering

>> Integration with MES or ERP Systems

Key Steps in Setting Up CNC Data Collection

>> Step 1: Define Data and Business Goals

>> Step 2: Audit CNC Machine Connectivity

>> Step 3: Choose Data Acquisition Tools

>> Step 4: Design Data Architecture and Storage

>> Step 5: Implement Visualization and Analytics

>> Step 6: Standardize, Validate, and Refine

Using Machining Data for Continuous Improvement

Challenges in Gathering CNC Machining Data

Best Practices for Successful Data Implementation

Practical Example of a CNC Machining Data Project

Conclusion

FAQ

>> 1. What is CNC machining data collection?

>> 2. What tools are used to gather machining data?

>> 3. Can older CNC machines send digital data?

>> 4. How does machining data improve maintenance?

>> 5. Is CNC data collection secure?

Reference

In the world of modern manufacturing, CNC machining has become the heartbeat of precision and productivity. Capturing and understanding data from CNC machining equipment is no longer optional; it is essential for improving efficiency, quality, and operational intelligence across the shop floor.

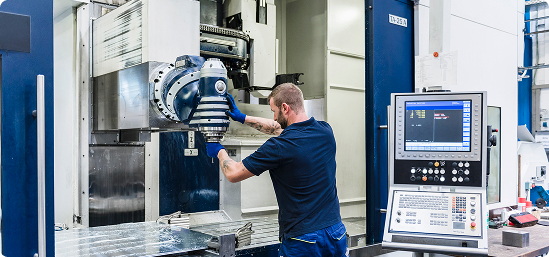

How To Gather Machining Data From CNC

Introduction to CNC Machining Data Collection

CNC machining (Computer Numerical Control machining) relies on computer-controlled tools to produce parts with exceptional accuracy. Every cut, feed, rotation, and dwell generates valuable data that, when properly collected, can provide deep insights into performance, maintenance needs, and productivity. Traditional manufacturing often relied on manual observation or operator inputs, but with today's smart CNC machining systems, automatic data collection has become the norm.

The data produced by CNC machining can include runtime, spindle speed, feed rate, axis load, temperature, tool wear, part rejection rates, and job completion time. When this CNC machining data is centralized and analyzed, manufacturers gain a clear view of machine utilization, process stability, and quality trends. The ability to gather and analyze CNC machining data allows companies to reach higher levels of efficiency, reduce downtime, and adopt preventive maintenance strategies.

Why Machining Data Matters

Before exploring specific methods, it is important to understand why CNC machining data is so valuable in a competitive manufacturing environment.

- Improved productivity: CNC machining data helps identify bottlenecks in operations by highlighting idle time, long setups, and unbalanced workloads.

- Predictive maintenance: By monitoring temperature, vibration, spindle load, and alarms, CNC machining data reveals patterns that indicate upcoming failures.

- Quality control: Consistent CNC machining data tracking ensures each part meets tolerance and quality requirements through trend analysis and process capability monitoring.

- Cost optimization: Data on cycle times, scrap ratios, tool life, and rework helps reduce waste and optimize tool and material usage.

- Real-time decision making: With live CNC machining data, managers and engineers can adjust schedules, parameters, and staffing in real time to protect delivery dates and margins.

In short, CNC machining data turns raw production into measurable performance metrics, supporting both daily decisions and long-term strategy.

Data Types Collected From CNC Machines

There are several main categories of data you can gather from CNC machining systems. Understanding these categories helps you design a focused data collection strategy.

Machine Status Data

Machine status data describes the operating condition of the CNC machining equipment at any moment. Typical values include:

- Running, idle, stopped, in setup, in alarm, or powered off

- Reason codes for downtime or alarms

- Mode information such as automatic, manual, or MDI

This data allows you to calculate utilization and OEE for CNC machining cells and lines.

Production and Process Data

Production data captures what each CNC machining cycle is doing:

- Cycle time and setup time

- Parts count, good pieces, and scrap

- Program number, revision, and active work offset

- Feed rate, spindle speed, axis position and rapid moves

This CNC machining data is critical for understanding throughput and stabilizing process times.

Performance and Condition Data

Performance data describes how well the CNC machining process and machine are performing over time:

- Spindle load and torque

- Axis load and servo following error

- Vibration levels and temperature

- Coolant status and pressure

- Tool life, tool changes, and offset adjustments

This layer of CNC machining data supports predictive maintenance and process optimization.

Methods of Gathering CNC Machining Data

Data collection from CNC machining can be manual, semi-automatic, or fully automatic. The method you choose will depend on budget, production scale, machine age, and digital maturity.

Manual Data Collection

Manual collection is the simplest approach and is still common in smaller shops. Operators write down key CNC machining data such as:

- Start and end times for each job

- Parts produced and scrap count

- Downtime reasons

- Alarms or tool breakages

Although this method has almost no technology cost, it is time-consuming, prone to human error, and cannot provide real-time CNC machining insights. It is often suitable only as a temporary approach or for low-volume production.

Data Extraction via CNC Controller Interface

Most modern CNC machining centers have built-in communication ports, such as Ethernet, RS-232, or USB connections. These allow you to directly extract machining parameters from the machine controller. Common controller brands like Fanuc, Siemens, Heidenhain, and Mitsubishi support data output protocols that connect to external computers or servers.

Typical ways to gather CNC machining data through the controller include:

- Using proprietary APIs such as Fanuc FOCAS to read spindle speed, feed rate, part count, alarms, and program information.

- Using standardized connectivity such as MTConnect or OPC UA to expose structured CNC machining data for external systems.

- Connecting a PC or industrial gateway via Ethernet to poll data from the controller at defined intervals.

This method is the foundation of most automated CNC machining data collection systems because it taps directly into the controller's internal variables.

Machine Monitoring Software

Dedicated CNC machine monitoring software automates the process of collecting, processing, and visualizing machining data from multiple CNC machining units at once. These systems typically support:

- Real-time dashboards showing machine status, OEE, and cycle times

- Historical reporting to analyze trends in CNC machining utilization

- Alerts and notifications when machines go down or CNC machining parameters exceed limits

Machine monitoring platforms connect to controllers using MTConnect, OPC UA, or brand-specific protocols. Once configured, they provide a continuous stream of CNC machining data that supports both supervisors and engineers.

IoT and Sensor-Based Data Gathering

In more advanced smart factories, IoT technology is added on top of native controller data to capture CNC machining information that the control may not natively provide. Additional sensors can include:

- Vibration sensors mounted near spindle or bearings

- Temperature sensors on key components

- Current transformers for motor power

- Acoustic sensors for cutting sound

These sensors send CNC machining data to an IoT gateway or edge device, which may preprocess and filter before sending to a central platform. This approach is powerful for condition monitoring, tool wear prediction, and advanced analytics that rely on high-frequency CNC machining data.

Integration with MES or ERP Systems

For large operations, connecting CNC machining data to Manufacturing Execution Systems (MES) or Enterprise Resource Planning (ERP) systems provides end-to-end visibility. The typical workflow is:

- CNC machining machines send status and production data to a data collection layer or machine monitoring system.

- The MES receives order-level and schedule information, associates it with live CNC machining data, and tracks WIP, routing, and genealogy.

- The ERP system uses summarized CNC machining data to compute costing, capacity planning, and delivery performance.

By integrating CNC machining data from the shop floor with higher-level systems, manufacturers achieve full traceability and more accurate business decisions.

Top Swiss-type CNC Machining Manufacturers and Suppliers in Hungary

Key Steps in Setting Up CNC Data Collection

Establishing a reliable CNC machining data collection system involves structured planning and phased implementation. The following steps can serve as a blueprint.

Step 1: Define Data and Business Goals

Start by identifying what you want to achieve with CNC machining data:

- Reduce unplanned downtime

- Increase OEE or utilization

- Shorten cycle times

- Improve first-pass yield or reduce scrap

Once goals are clear, list the specific CNC machining data points required, such as spindle load, cycle time, or alarm codes.

Step 2: Audit CNC Machine Connectivity

Assess the connectivity options for all CNC machining equipment:

- Check which machines support Ethernet, MTConnect, OPC UA, or proprietary APIs.

- Identify older CNC machining machines that only offer RS-232 or require retrofitted sensors.

- Document controller models and software versions, since they affect data access.

This audit helps you design a realistic CNC machining connectivity roadmap.

Step 3: Choose Data Acquisition Tools

Select the tools that will gather and translate raw CNC machining signals into usable data:

- Controller-level connectivity (e.g., MTConnect adapters, FOCAS libraries, OPC UA servers)

- Data collection gateways or edge devices

- Machine monitoring platforms or custom applications

For many companies, starting with a proven CNC machining monitoring solution is faster than building a solution from scratch.

Step 4: Design Data Architecture and Storage

Decide how CNC machining data will flow and be stored:

- On-premises server, local historian, or cloud database

- Streaming data pipeline for real-time dashboards

- Data retention policies for detailed and summarized CNC machining data

A well-planned architecture avoids future bottlenecks and supports scaling from a few CNC machining centers to an entire plant network.

Step 5: Implement Visualization and Analytics

Visualization transforms raw CNC machining data into actionable information. Typical components include:

- Real-time status boards for operators and supervisors

- Trend charts of spindle load, cycle times, and scrap rates

- KPI dashboards for management showing utilization, OEE, and lead times

More advanced setups may include machine learning or AI models to predict failures based on CNC machining patterns.

Step 6: Standardize, Validate, and Refine

After initial deployment, focus on standardization and data quality:

- Apply consistent naming conventions for CNC machining machines, tags, and events.

- Validate CNC machining data against reality by comparing with manual counts or logs.

- Refine filters and thresholds to focus on the most impactful CNC machining metrics.

This continuous improvement cycle makes CNC machining data more reliable and more valuable over time.

Top Swiss-type CNC Machining Manufacturers and Suppliers in Denmark

Using Machining Data for Continuous Improvement

Once CNC machining data begins flowing reliably, it becomes a powerful engine for continuous improvement programs.

- Process optimization: Analyze CNC machining data to refine tool paths, feeds, and speeds, reducing cycle time while protecting tool life.

- Maintenance planning: Use historical trends in vibration, temperature, and alarms to schedule maintenance during planned downtime instead of reacting to breakdowns.

- Operator development: Compare shifts or operators using CNC machining data to identify best practices and training opportunities.

- Energy management: Review CNC machining energy consumption patterns to identify machines running inefficiently or unnecessarily.

- Quality enhancement: Correlate CNC machining parameters with measurement results to identify optimal operating windows.

By closing the loop from data to action, CNC machining operations become more stable, predictable, and cost-effective.

Challenges in Gathering CNC Machining Data

Despite the benefits, implementing CNC machining data collection is not without challenges.

- Compatibility issues: Older CNC machining machines may lack Ethernet or modern protocols and require retrofitting or workaround solutions.

- Data overload: Unfiltered CNC machining data streams can overwhelm teams; careful selection of parameters and aggregation is needed.

- Cybersecurity risks: Connected CNC machining machines become part of the network and must be protected with secure configurations and policies.

- Implementation cost: Hardware, software, and integration work require investment and planning.

- Cultural resistance: Operators and maintenance personnel may initially see CNC machining data collection as extra oversight rather than support.

Addressing these obstacles requires both technical solutions and change management, aligning the workforce around the value of CNC machining data.

Best Practices for Successful Data Implementation

To maximize the usefulness of CNC machining data and protect your investment, consider the following best practices:

- Use standardized protocols: Favor open standards like MTConnect or OPC UA when possible to avoid vendor lock-in and simplify integration across CNC machining brands.

- Start with pilot projects: Connect a small group of CNC machining machines, prove value with clear KPIs, then roll out to the whole plant.

- Define clear roles: Assign responsibility for maintaining the CNC machining data system, handling alerts, and reviewing dashboards.

- Secure the network: Segment CNC machining equipment networks, use firewalls and VPNs, and keep systems patched.

- Integrate with existing systems: Link CNC machining data with MES, ERP, and quality systems instead of creating isolated data islands.

- Continuously review metrics: Regularly revisit which CNC machining KPIs you track and adjust them as the business evolves.

When executed thoughtfully, CNC machining data collection not only improves visibility but also drives a culture of data-driven manufacturing.

Practical Example of a CNC Machining Data Project

Consider a mid-sized factory with ten CNC machining centers producing precision components. Initially, the company relies on manual logs and rough estimates of machine utilization. After a three-month CNC machining data initiative:

- Each CNC machining center is connected via Ethernet using MTConnect adapters.

- A machine monitoring platform aggregates live CNC machining data and displays status on large screens.

- Downtime reasons are categorized, revealing that setup and waiting for material are major contributors.

- Maintenance uses spinning load and alarm history from CNC machining data to schedule spindle inspections.

Within six months, the factory increases CNC machining utilization, reduces emergency breakdowns, and improves on-time delivery. This practical example illustrates how structured CNC machining data collection translates into measurable business gains.

Conclusion

Gathering machining data from CNC machines is a transformative step toward digital manufacturing excellence. Whether you use direct controller connections, IoT sensors, machine monitoring software, or full integration with MES and ERP, the key is to collect accurate, real-time CNC machining data and convert it into meaningful actions. With the right strategy and tools, CNC machining plants can enhance productivity, reduce maintenance costs, stabilize quality, and deliver higher-value components with predictable efficiency. Data-driven CNC machining is no longer a future trend; it is the present reality for manufacturers who want to stay competitive in a demanding global market.

Contact us to get more information!

Top Swiss-type CNC Machining Manufacturers And Suppliers in Finland

FAQ

1. What is CNC machining data collection?

CNC machining data collection is the process of capturing, storing, and analyzing information such as cycle time, spindle speed, load, axis position, alarms, and downtime from CNC machines. The goal is to gain deeper insight into the CNC machining process, improve utilization, and support better decisions across production and maintenance.

2. What tools are used to gather machining data?

Common tools to gather CNC machining data include controller-level APIs and protocols, MTConnect or OPC UA adapters, dedicated machine monitoring software, IoT gateways, and additional sensors for vibration or temperature. These tools connect directly to CNC machining controls and equipment to extract and stream data to databases and dashboards.

3. Can older CNC machines send digital data?

Yes, many older CNC machining machines can still provide useful digital data, although the method may differ from modern equipment. Some legacy machines use RS-232 serial communication to transmit limited status and production information, while others require retrofit hardware or add-on sensors that convert signals into digital formats compatible with modern data collection systems.

4. How does machining data improve maintenance?

Machining data improves maintenance by turning CNC machining behavior into measurable trends. By tracking vibration, spindle load, temperature, and alarm histories, maintenance teams can identify early warning signs of wear or misalignment. This enables predictive or condition-based maintenance strategies, which reduce unexpected breakdowns and extend the life of CNC machining assets.

5. Is CNC data collection secure?

CNC data collection can be secure when designed with proper network architecture and policies. Best practices include placing CNC machining machines on segmented networks, using firewalls and VPNs for remote access, enforcing user authentication and access control, and regularly updating software. With these measures in place, CNC machining data can flow safely from the shop floor to analysis systems without exposing critical equipment to unnecessary risk.

Reference

1. https://freedomiot.ai/article/metrics/what-is-machine-data-collection/

2. https://promanagecloud.com/cnc-data-collection/

3. https://www.machinemetrics.com/blog/machine-data-collection

4. https://www.innorobix.com/best-practices-for-collecting-cnc-machine-data-with-ignition/

5. https://www.cncdata.co.uk/post/connecting-a-machine-tool-cnc-for-data-acquisition

6. https://blogs.solidworks.com/delmiaworks/enhancing-cnc-machine-automation-with-mtconnect-connectivity/

7. https://www.predator-software.com/predator_mdc_software.htm

8. https://www.machinemetrics.com/connectivity/protocols/focas

9. https://scytec.com/dataxchange-overview/

10. https://www.mtconnect.org/

  +86-13554857217
  +86-13554857217
  No.7 Lougang Avenue, Lougang Community, Songgang Street, Bao'an District, Shenzhen City

CAPABILITIES

RESOURCES

CONTACT US
Copyright © Shenzhen Feifan Hardware & Electronics Co., Ltd. All rights reserved
We use cookies to enable all functionalities for best performance during your visit and to improve our services by giving us some insight into how the website is being used. Continued use of our website without having changed your browser settings confirms your acceptance of these cookies. For details please see our privacy policy.
×
