Converting a manual milling machine into a CNC (Computer Numerical Control) system is a cost-effective way to gain automation, repeatability, and higher productivity without buying a brand-new CNC mill. This process, called a CNC retrofit or CNC conversion, combines mechanical upgrades, motion control components, and software configuration into a single integrated project.
Understanding what is involved, from ball screws and motor mounts to controllers and safety circuits, helps shops plan a realistic project that fits their budget and technical capabilities. With careful execution, a conventional mill can be transformed into a powerful CNC platform suitable for prototyping, short-run production, and even continuous manufacturing.

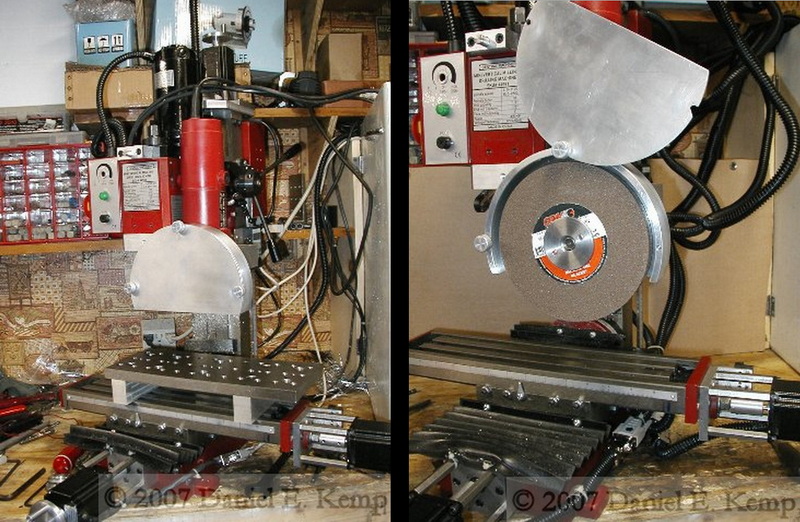

A CNC conversion transforms a manual or semi-manual mill into a machine that follows programmed toolpaths instead of manual handwheel inputs. In practice, it means replacing or augmenting the original leadscrews, dials, and controls with ball screws, stepper or servo motors, drives, and a CNC controller.
CNC retrofits are common on benchtop mills, knee mills, and older machining centers that still have solid cast iron frames but outdated or worn control systems. By keeping the existing “iron” and upgrading the motion and control system, manufacturers can restore and even improve the machine's performance at a fraction of the cost of a new CNC.
A successful CNC conversion delivers several important benefits for workshops and small manufacturers.
- Higher accuracy and repeatability, because programmed moves eliminate human variation and backlash can be minimized with ball screws and proper adjustment.
- Increased productivity, since the machine can run complex toolpaths, repeat jobs, and perform unattended or lightly attended machining once the program is proven.
- Expanded capabilities, including 2D contouring, 3D surfacing, canned cycles, and parametric programming that are impossible or extremely slow with purely manual milling.
- Better integration with CAD/CAM software, allowing you to go directly from digital models to machine code and reduce programming time.
For shops with good mechanical machines but obsolete controls, a CNC retrofit can also reduce maintenance costs and downtime by replacing hard-to-repair legacy electronics with modern, supported components.
Before starting, it is essential to plan the CNC conversion carefully around your machine, budget, and skill level. Conversions range from basic “CNC-ready” kits that bolt on stepper motor mounts to complex full retrofits with servo drives, new control cabinets, and professional software.
Important planning points include:
- Machine condition: The ways, spindle, and bearings must be in good shape, or you will simply automate an inaccurate machine.
- Intended use: Light prototyping, hobby work, and production machining have very different demands on rigidity, speed, and control features.
- Budget and time: A DIY kit can be cheaper but requires more hands-on work; turnkey retrofit systems cost more but arrive pre-engineered and tested.
- Skills and tools: Disassembly, drilling and tapping, wiring, and basic control configuration are typical tasks in a conversion.
Mechanical changes lay the foundation for accurate CNC motion. A typical conversion focuses on the X, Y, and Z axes. Good mechanical work ensures that the subsequent electronics and software can reach the required accuracy and reliability.
Most manual mills use leadscrews that have relatively high friction and backlash, which is the lost motion when reversing direction. CNC machines usually use ball screws instead, because they provide lower friction, higher efficiency, and minimal backlash, which is critical for accurate interpolation and contouring.
Installing ball screws generally involves removing the original screws, fitting new ball screw assemblies, and aligning them with the axis ways. Careful mounting of end bearings, thrust bearings, and couplings is necessary to avoid binding or misalignment that could increase wear or degrade positioning accuracy.
Well-installed ball screws not only improve contouring but also allow higher feed rates with less heat generation and reduced wear, making the converted machine more suitable for demanding materials and longer production runs.
Each axis requires a rigid mount to hold the stepper or servo motor in alignment with the ball screw. Many CNC-ready upgrade kits include pre-machined brackets, drill guides, and hardware to make this process easier and more consistent.
Typical mechanical steps include:
- Removing handwheels or manual cranks and installing motor mounts on the X, Y, and Z axes.
- Fitting flexible couplings or pulley systems between motor shafts and ball screw ends to transmit torque while compensating for minor misalignment.
- Verifying that axis travel remains smooth, with no binding throughout the full stroke after the hardware is installed.
On some machines, it may also be necessary to reinforce or modify bearing blocks and supports to handle the increased loads and speeds associated with CNC operation. Good rigidity at these points helps maintain accuracy during aggressive cuts.
The Z-axis is often the most challenging part of a conversion, particularly on column mills where the head is heavy. To avoid missed steps or slipping when the spindle head moves up and down, appropriately sized motors, counterbalance mechanisms, or gas springs may be used to offset the weight.
After conversion, the Z-axis should be trammed to ensure the spindle is perpendicular to the table in both directions. Proper tramming improves surface finish and dimensional accuracy across the work envelope.
For tall or heavy heads, some builders add linear rails or additional support structures to reduce flex when the head is extended. This can significantly improve performance in harder materials and during deep slotting or drilling operations.
Although not strictly required for CNC motion, spindle drive and lubrication upgrades can greatly enhance the converted machine. Direct belt-driven spindles can offer higher speeds, smoother operation, and easier future upgrades such as rigid tapping.
An automatic or one-shot oiler simplifies lubrication of dovetail ways and ball screws and reduces the risk of premature wear due to neglect. Adding an enclosure, flood coolant, and a chip management system (such as trays and conveyors for larger machines) helps keep the work area clean, improves tool life, and makes continuous operation more practical.
Once the mechanical side is ready, the next step is to build the electrical and control system that drives the motors and interprets CNC code. This system must be robust, well-protected, and logically organized to simplify troubleshooting and future upgrades.
Choosing between stepper motors and servo motors is a key decision. Stepper motors are generally simpler and more affordable, making them popular for small mills and hobby users. Servo motors offer feedback, higher speed, and better torque characteristics, which are desirable for heavier industrial machines and demanding production work.
A typical system includes:
- Motors sized appropriately for axis load and desired rapid speeds.
- Matched motor drivers or amplifiers to control current and step pulses or encoder feedback.
- A regulated power supply sized to handle the combined load of all axes and accessories.
These components are usually mounted in an electrical enclosure with fuses or breakers, emergency stop circuits, and terminal blocks for clean wiring and safe operation. Neat cable routing, labeling, and shielding help reduce electrical noise and simplify maintenance.

The CNC controller is the brain of the converted milling machine. Options range from PC-based controllers running general-purpose CNC software to dedicated industrial controls packaged as retrofit kits. The right choice depends on budget, user interface preferences, and required features such as probing cycles or advanced macros.
- A preconfigured CNC PC with software installed and tested.
- I/O modules and logic for limit switches, coolant, spindle control, and safety interlocks.
- An operator pendant or panel with display, emergency stop, cycle start, and feed hold buttons.
PC-based systems allow easy integration with CAD/CAM workflows and can be upgraded with new software features over time, while dedicated industrial controls tend to offer higher reliability, better environmental protection, and vendor support.
After installing the mechanical and electrical components, the system must be configured and tuned so the machine moves accurately in response to CNC commands. Proper integration ensures the axes accelerate and decelerate smoothly and reach the commanded positions within acceptable tolerances.
Calibration involves setting the correct steps per unit or motion scaling so that when the program commands a certain distance, the axis moves exactly that amount. Using dial indicators or measuring devices, each axis is moved a known distance and the control parameters are adjusted until the commanded and actual positions match.
Backlash compensation features within the control software can help correct the small amount of play that remains in the system. However, mechanical minimization of backlash through proper ball screw installation and bearing adjustment remains essential for stability and repeatable accuracy.
Advanced users sometimes perform circular interpolation tests and laser or ball-bar measurements to diagnose errors in squareness, scaling, and servo tuning. These procedures can further refine motion accuracy and are especially useful on machines used for tight-tolerance work.
Each axis should have limit switches at both ends of travel to prevent overtravel and mechanical damage. These switches are wired into the control's safety circuits so that if the axis reaches its limit, the controller can stop motion immediately.
A home or reference switch for each axis allows the machine to establish a consistent machine coordinate system during startup. Proper homing ensures that work offsets and toolpaths are repeatable from job to job, which is vital for production work and multi-setup machining.
In addition to basic switches, many retrofits integrate door interlocks, spindle guards, and safety relays so that motion stops if a guard is opened or a fault is detected. These features improve operator safety and help bring older machines closer to modern safety standards.
CNC machines involve high-speed spindles, moving axes, and sharp cutting tools, so safety must be built into both the retrofit process and daily operation. A well-designed conversion treats safety hardware and procedures as core elements, not afterthoughts.
During conversion, the machine should be locked out and tagged out so it cannot be powered accidentally while wiring and mechanical work are underway. All enclosures must be properly grounded, wires secured, and covers installed before testing motion under power.
In operation, standard CNC safety practices apply:
- Conduct pre-operation checks for loose components, abnormal sounds, and proper lubrication and coolant levels.
- Use appropriate personal protective equipment such as safety glasses, hearing protection, and fitted clothing to avoid entanglement.
- Ensure emergency stop buttons are accessible, and train operators on shutdown procedures and response to crashes or malfunctions.
Where possible, adding interlocked guards, chip shields, and mist extraction improves both safety and working comfort. Clear signage and documented procedures further support safe, consistent machine use.
Once everything is installed and wired, the converted milling machine must be tested and gradually brought into production. This stage validates the design choices and reveals any issues that must be corrected before full-speed operation.
Initial testing usually starts with low-speed dry runs using simple programs to move each axis through its full range and verify that limit switches, homing routines, and emergency stops behave correctly. After confirming reliable motion and safety circuits, test cuts can be made in soft materials using conservative feeds and speeds to evaluate accuracy and surface finish.
Incrementally increasing cutting loads and complexity allows you to tune acceleration, velocity, and control parameters while monitoring for lost steps, chatter, or thermal issues. Over time, the converted CNC mill can be qualified for tighter tolerances and more demanding materials as confidence in its performance grows.
There are two main paths to convert a milling machine into CNC: do-it-yourself kit-based solutions and turnkey retrofit packages. The right choice depends on your budget, downtime tolerance, and comfort with mechanical and electrical work.
DIY kits typically provide motor mounts, ball screw assemblies, stepper motors, and sometimes electronics, leaving sizing, wiring, and software configuration to the user. These options are attractive for experienced builders and cost-sensitive shops willing to invest time in learning and customization.
Turnkey retrofit systems arrive as integrated controls designed for specific machine types, often with prewired enclosures, preprogrammed logic, and recommended motors. They significantly shorten installation time and reduce the risk of configuration errors, making them a strong choice for production environments where downtime is expensive.
Shops that are unsure which route to take may benefit from consulting retrofit specialists. An expert can review machine condition, production demands, and budget, then recommend whether a kit, a full control replacement, or even a newer machine is the most economical path.
Converting a manual milling machine into a CNC system is an effective strategy to unlock modern automation and precision while preserving a solid machine base. By methodically upgrading mechanical components with ball screws and motor mounts, installing appropriate motors and control electronics, and carefully calibrating and testing the system, a conventional mill can be transformed into a capable CNC platform.
Attention to safety, axis tuning, and software configuration is essential to ensure reliable operation and protect both operators and equipment. Whether using a DIY kit or a turnkey retrofit, a well-executed CNC conversion can deliver long-term gains in productivity, accuracy, and flexibility for workshops and manufacturing businesses.
Contact us to get more information!

Yes, converting a manual mill to CNC is often worthwhile if the machine's mechanical structure is in good condition and you need improved productivity and repeatability. A retrofit can preserve a robust cast iron frame while adding modern controls, usually at a lower cost than purchasing a comparable new CNC machine.
Stepper motors are simpler and more cost-effective, making them suitable for smaller mills and light to medium-duty work. Servo motors provide closed-loop feedback, higher speeds, and better torque at speed, which can be advantageous for heavier machines and demanding production applications.
The timeline depends on machine complexity, kit type, and experience level, but many users spend several weekends or a few weeks of part-time work on a DIY conversion. Professional retrofit systems designed for specific mills can sometimes be installed and commissioned in a matter of days to a few weeks of downtime.
Essential safety upgrades include adding or verifying emergency stop circuits, installing limit switches, and ensuring proper guarding and electrical grounding. Operators should be trained on new safety procedures, and pre-operation inspections should be standard practice to detect issues before running programs.
While simple parts can be programmed manually with G-code, CAD/CAM software greatly simplifies creating complex toolpaths and 3D shapes. Integrating CAD/CAM into the workflow allows direct use of digital models, reduces programming time, and improves consistency between design and machined parts.
