Knowing how to calculate RPM for CNC milling is essential for tool life, surface finish, and machining efficiency. Correct spindle speed depends on cutting speed (SFM or m/min), tool diameter, work material, and tool material. This guide explains the formulas, shows practical examples, and gives reference values so programmers and operators can set reliable RPM for almost any milling job.[1][2][3][4]

Correct RPM for CNC milling is always calculated from cutting speed and tool diameter. Cutting speed is usually given as SFM in imperial units or m/min in metric units.[2][4][1]

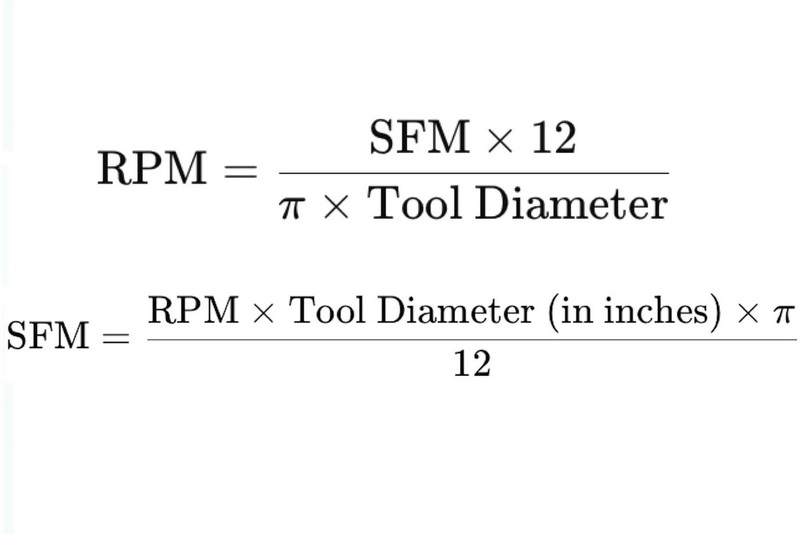

- Imperial RPM formula (SFM and inches):
RPM= (12×SFM)/(π×D)
where SFM is surface feet per minute and D is cutter diameter in inches.[5][2]
- Simplified imperial form (using 3.82):
RPM= (3.82×SFM)/D
because 12 / pi approx 3.82[6][2]
- Metric RPM formula (m/min and mm):
RPM= (1000×V )/(π×D)
where Vc is cutting speed in m/min and D is cutter diameter in mm.[2][5]
Use these equations every time you need to calculate RPM for CNC milling instead of guessing or copying old programs.[4][2]
Cutting speed describes how fast the cutting edge moves along the workpiece surface and is independent of tool diameter. For milling, cutting speed is defined at the circumference of the rotating tool, and SFM is the most common imperial unit.[7][1][4]
- Relationship between SFM and RPM:
SFM= (π×D×RPM)/12
for diameter D in inches and RPM as spindle speed.[8][1]
- Tool catalogs normally list recommended SFM ranges for each material and tool grade. These values are the starting point for calculating RPM for CNC milling with carbide or HSS tools.[3][9]
Cutting speed increases with more machinable materials like aluminum and decreases for hard or heat-resistant alloys such as tool steel or Inconel.[3][7]
When calculating RPM for CNC milling, you must first choose an appropriate SFM for your material and tool type. Exact values depend on tool material, coating, rigidity, and coolant, but the following ranges are typical for carbide tools.[9][3]
Typical SFM ranges (carbide end mills)[9][3]
| Material | Typical SFM range |
|---|---|
| Aluminum alloys | 600–1000 SFM |
| Brass / Bronze | 300–600 SFM |
| Mild / low‑carbon steel | 100–300 SFM |
| Stainless steel | 60–150 SFM |
| Cast iron | 50–150 SFM |
| Titanium alloys | 50–100 SFM |
| Tool steel | 30–50 SFM |
| Plastics | 300–600 SFM |
These values are starting points for calculating RPM for CNC milling and are usually reduced for HSS tools or unstable setups. Always check the toolmaker's datasheet because modern coatings and geometries can safely run faster than generic ranges.[3][9]
The practical process to calculate RPM for CNC milling is straightforward once you standardize your steps. The same logic works for face mills, end mills, and specialty tools as long as you know the diameter and recommended cutting speed.[10][5][2]
- Confirm the workpiece material grade (for example, 6061 aluminum, mild steel, stainless steel).[9][3]
- Check tool material (carbide vs HSS) and coating, because this strongly affects allowable cutting speed.[3][9]
- Use material-specific SFM ranges from charts or tooling catalogs and choose a conservative mid-range value for your first pass.[9][3]
- Higher SFM increases material removal but also heat; new setups should start on the lower side to avoid tool failure.[7][3]
- Use the nominal cutter diameter from the program or tool card and ensure units match (inches for SFM, mm for m/min).[4][2]
- For worn or reground tools, use actual measured diameter for more accurate RPM for CNC milling.[1][10]
- In imperial mode with SFM and inches, use RPM=3.82×SFM/D..[6][2]
- In metric mode with m/min and mm, use RPM=1000×Vc/(π×D).[5][2]
- Round to the nearest spindle speed that your CNC controller supports, usually in steps of 10 or 50 RPM.[11][10]
- Program the value into your G-code or CAM system, then calculate feed rate based on chip load and flute count.
This standardized process will give repeatable, safe RPM values for CNC milling operations on a wide range of machines.[11][2]

Example-based learning makes it much easier to remember how to calculate RPM for CNC milling. The following scenarios use typical SFM values and show each step explicitly.[5][11]
Example 1: 1/2" carbide end mill in aluminum
Assume you are roughing 6061 aluminum with a 0.5 inch carbide end mill at 800 SFM. This lies near the middle of common aluminum ranges and is suitable for a rigid CNC mill with flood coolant.[7][3][9]
- Given:
- Material: 6061 aluminum
- Tool: 0.5 in carbide end mill
- Cutting speed: 800 SFM
- Use imperial formula:
RPM = RPM=3.82×800/0.5
- Calculation:
-3.82×800=30563.82×800=3056
- 3056/0.5=6112 RPM
In practice, you would program about 6100 RPM for this CNC milling operation and then choose feed per tooth based on flute count and chip load charts.[6][11]
Example 2: 10 mm carbide end mill in mild steel
Now calculate RPM for CNC milling mild steel using a 10 mm carbide end mill at 180 m/min cutting speed. This is realistic for coated carbide tools on stable machines.[3][9]
- Given:
- Material: mild steel
- Tool: 10 mm carbide end mill
- Cutting speed: 180 m/min
- Use metric formula:
RPM= (1000×180)/(π×10)
- Calculation:
- Numerator: 1000×180=180000
- Denominator: π×10≈31.416
- 180000/31.416≈5729 RPM
You would typically program 5700–5750 RPM for this CNC milling job and adjust feed rate to reach the recommended chip load.[10][2]
Example 3: High‑speed machining with a 1/4" tool in plastic
For engineering plastic using a 0.25 inch carbide end mill, assume 500 SFM as a conservative starting point. Plastics can run faster, but heat and chip evacuation must be monitored closely.[7][9][3]
- Given:
- Material: plastic
- Tool: 0.25 in carbide end mill
- Cutting speed: 500 SFM
- Use imperial formula:
RPM=0.253.82×500/0.25
- Calculation:
3.82×500=19103.82×500=1910
1910/0.25=7640 RPM
This example shows how smaller tools require higher RPM for CNC milling when cutting speed is constant. Many spindles will reach their maximum speed before the ideal RPM is achieved, which is acceptable as long as other parameters are tuned conservatively.[4][11][10][6]
Calculating RPM for CNC milling is only the first half of a proper speeds and feeds setup. Once RPM is set, feed rate must be calculated from chip load and flute count to ensure each tooth removes the correct amount of material.[1][2][11]
The basic feed rate formula in milling is:
Vf=RPM×fz×Z
where Vf is feed rate (mm/min or IPM), fz is feed per tooth, and Z is number of flutes.[2][11]
- Higher RPM at the same chip load results in higher feed rate, which increases productivity but also raises cutting forces and heat.[11][1]
- When you reduce RPM for CNC milling to protect tool life, you should reduce feed proportionally to keep chip load constant.[2][11]
Balancing RPM, chip load, and radial and axial depth of cut allows you to fully utilize CNC milling machine capability without overloading the spindle or breaking tools.[10][1]
Real-world shops often fine-tune RPM for CNC milling using experience and test cuts rather than relying only on theoretical formulas. However, the formulas give a safe starting point that can be adjusted based on chip color, spindle load, and surface finish.[1][11][7][3]
Key practical tips:
- Run slightly below catalog SFM values when machine rigidity, fixturing, or tool length are not ideal.[7][3]
- Increase RPM in small steps if chips look too thick or surface finish is rough and spindle load is low.[11][1]
- Decrease RPM if chips are glowing, edges are burnt, or the tool shows rapid wear near the cutting edges.[3][7]
- Use coated carbide tools to run higher RPM for CNC milling in hard steels and stainless while maintaining tool life.[9][3]
For complex operations like high-feed machining, trochoidal milling, or tiny micro tools, it is best to follow the exact cutting data tables and software provided by the tool manufacturer.[10][9]
To calculate RPM for CNC milling correctly, always start from cutting speed and tool diameter instead of guessing spindle speed. Using standard formulas in imperial and metric units, combined with material-specific SFM ranges and tool catalogs, gives safe and efficient RPM for almost any milling operation. By coupling these RPM values with correct chip load, feed rate, and depths of cut, CNC programmers and operators can greatly improve tool life, surface finish, and overall productivity in CNC milling.[4][1][2][11][3]

RPM for CNC milling in imperial units is calculated from cutting speed in SFM and tool diameter in inches using RPM = 3.82×SFM/D. This formula gives spindle speed in revolutions per minute and is valid for end mills, face mills, and other rotating tools on a milling spindle.[6][2][4]
For aluminum alloys, typical cutting speeds for carbide tools are around 600–1000 SFM depending on rigidity, coolant, and surface finish requirements. When calculating RPM for CNC milling aluminum with HSS tools or lightweight hobby machines, starting at the lower half of that range is safer and can be increased after test cuts.[9][7][3]
As tool diameter increases, the RPM required to achieve a given cutting speed decreases, because surface speed at the tool edge depends on circumference. Small-diameter tools therefore require very high RPM for CNC milling, and many machines will hit spindle speed limits before reaching the theoretical ideal.[2][6][4][10]
After calculating RPM for CNC milling, feed rate is set using the formula Vf = RPM×fz×Z, where fz is chip load per tooth and Z is flute count. Chip load values come from toolmaker charts, and you then adjust feed rate up or down based on spindle load, vibration, and surface finish during trial cuts.[1][11][2]
Many reputable tooling companies and machining sites provide online calculators that convert SFM and tool diameter into RPM for CNC milling automatically. These tools are convenient, but understanding the underlying formulas helps you check results, make quick estimates at the machine, and troubleshoot problems when conditions change.[6][4][10][1]
