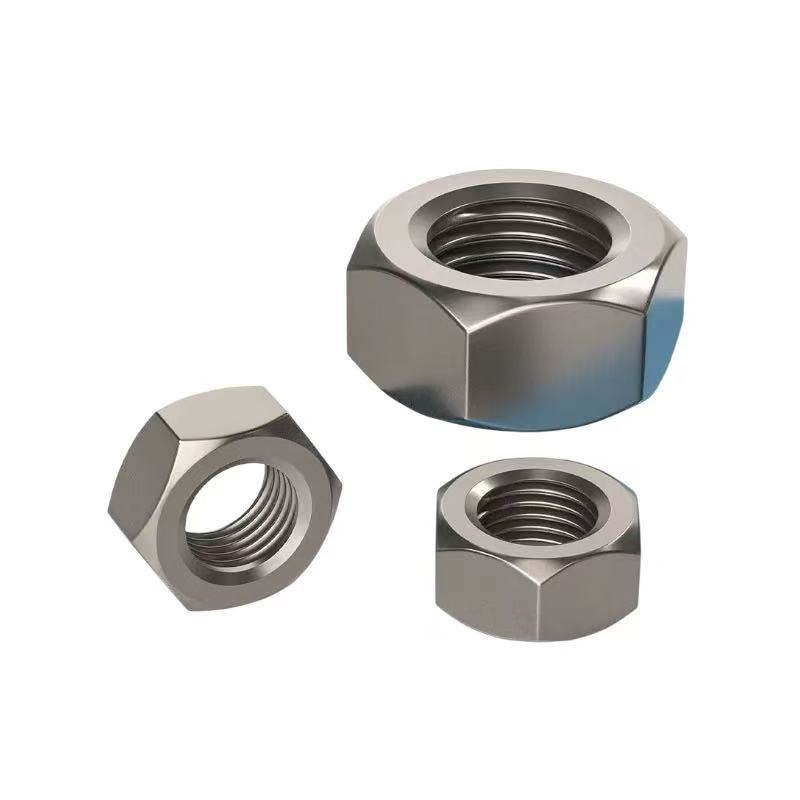

Titanium Grade 5（Ti-6Al-4V）

Material Type：Metal
Material Name：Titanium Grade 5（Ti-6Al-4V）
Alternative Names：UNS R56400 | ASTM B348 | EN 3.7165
Process Compatibility：CNC Milling, CNC Turning, Forging, Welding, Heat Treatment
Titanium CNC Machining Service的副本
Titanium Grade 5（Ti-6Al-4V）
Description
Titanium Grade 5, also known as Ti-6Al-4V, is the most widely used titanium alloy. It contains 6% aluminum and 4% vanadium, giving it excellent strength, toughness, and corrosion resistance. It is about twice as strong as pure titanium grades while still relatively lightweight. Grade 5 dominates aerospace, medical, and high-performance engineering applications.
Lead Time: < 10 days
Wall Thickness: 0.75 mm
Tolerances: ±0.005″ (±0.125mm)
Max Part Size: 200 cm x 80 cm x 100 cm

Classification of Metal Performance Parameters
Mechanical Properties Ultimate Tensile Strength 895
Yield Strength 828
Young’s Modulus / Elasticity 113
Elongation at Break 14
Hardness HRC 36
Fatigue Strength 510
Physical Properties Density 4.43
Corrosion Resistance Excellent
Magnetism Non-magnetic
Weldability Good
Impact Toughness High
Thermal Properties Maximum Service Temperature 400
Thermal Expansion Coefficient 9
Thermal Conductivity 7.2
Creep Resistance High
Electrical Properties Electrical Resistivity 170
Electrical Conductivity 3
Dielectric Strength N/A
Processing & Surface Treatment Machinability Poor
Surface Finish Compatibility Good
Formability Fair
Special Properties Biocompatibility Yes
Flame Retardancy Yes
UV Resistance High
Recyclability Yes

Introduction to Titanium Grade 5（Ti-6Al-4V）

What
Titanium Grade 5 (UNS R56400) is an α-β titanium alloy containing aluminum (alpha stabilizer) and vanadium (beta stabilizer). This microstructure provides high tensile strength, excellent fatigue resistance, and good corrosion resistance. It can be heat-treated for improved strength, and it is weldable with proper techniques. Because of its unique combination of properties, it is the most commonly used titanium alloy in aerospace and medical implants.
Advantages
Very high strength-to-weight ratio
Excellent fatigue resistance
Good corrosion resistance in most environments
Biocompatibility for medical implants





Applications
Aircraft structures and engine components
Medical implants such as hip and knee replacements
Marine and offshore equipment
High-performance sports and automotive parts
