Titanium Grade 1

Material Type：Metal
Material Name：Titanium Grade 1
Alternative Names：UNS R50250 | ASTM B265 | EN 3.7025
Process Compatibility：CNC Milling, CNC Turning, Forging, Welding

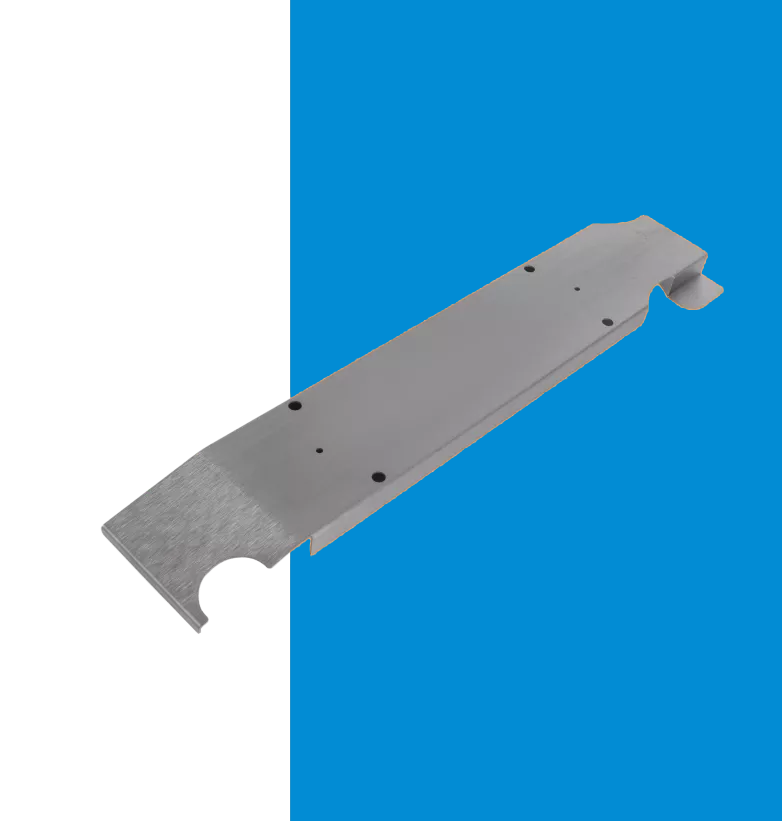

Titanium CNC Machining Service的副本
Titanium Grade 1
Description
Titanium Grade 1 is the softest and most ductile of all commercially pure titanium grades. It offers excellent corrosion resistance, high impact toughness, and good formability. Though it has the lowest strength among titanium grades, its superior corrosion resistance makes it valuable in chemical processing and marine environments.
Lead Time: < 10 days
Wall Thickness: 0.75 mm
Tolerances: ±0.005″ (±0.125mm)
Max Part Size: 200 cm x 80 cm x 100 cm

Classification of Metal Performance Parameters
Mechanical Properties Ultimate Tensile Strength 240
Yield Strength 170
Young’s Modulus / Elasticity 105
Elongation at Break 24
Hardness HB 70
Fatigue Strength 200
Physical Properties Density 4.51
Corrosion Resistance Excellent
Magnetism Non-magnetic
Weldability Excellent
Impact Toughness High
Thermal Properties Maximum Service Temperature 400
Thermal Expansion Coefficient 8.6
Thermal Conductivity 16
Creep Resistance Moderate
Electrical Properties Electrical Resistivity 42
Electrical Conductivity 3
Dielectric Strength N/A
Processing & Surface Treatment Machinability Fair
Surface Finish Compatibility Good
Formability Excellent
Special Properties Biocompatibility Yes
Flame Retardancy Yes
UV Resistance High
Recyclability Yes

Introduction to Titanium Grade 1

What
Titanium Grade 1 is a commercially pure titanium containing at least 99.5% titanium. It is known for its excellent corrosion resistance, especially against oxidizing and mildly reducing environments. Its combination of ductility, weldability, and toughness makes it suitable for applications where formability and corrosion resistance are more important than strength.
Advantages
Best corrosion resistance among commercially pure titanium grades
Excellent ductility and toughness
Outstanding biocompatibility
Easy to weld and fabricate


Applications
Chemical processing equipment
Heat exchangers and condensers
Marine hardware
Medical implants
