Steel 1215（Free Machining Steel）

Material Type：Metal
Material Name：Steel 1215
Alternative Names：AISI 1045 | UNS G10450 | EN C45 | JIS S45C
Process Compatibility：CNC Milling, CNC Turning, Forging, Heat Treatment

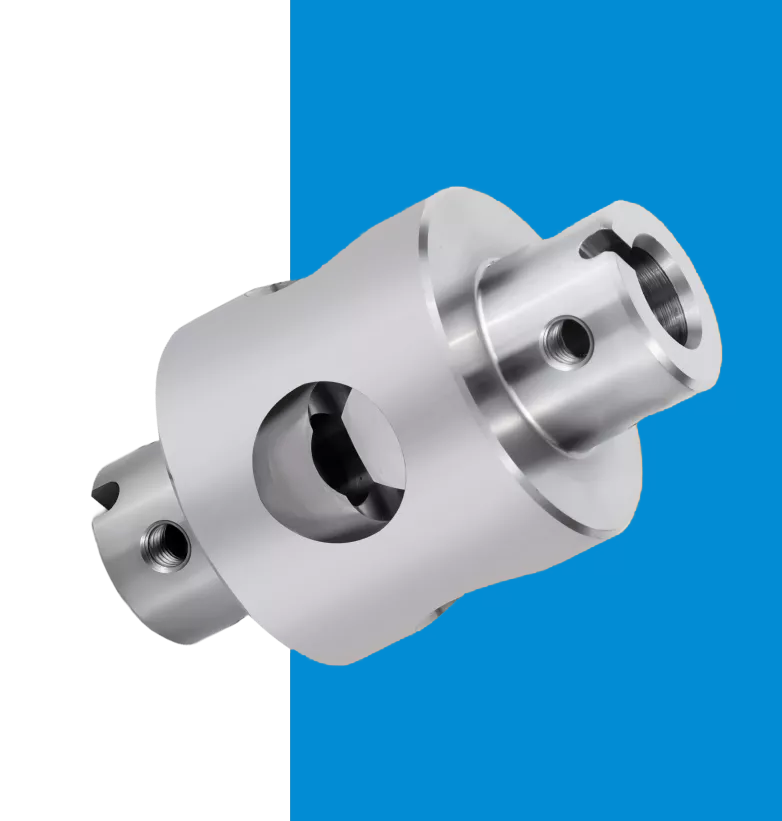

Steel CNC Machining Service的副本
Copper C110
Description
Steel 1045 is a medium-carbon steel with higher strength and hardness than 1018. With around 0.45% carbon, it is widely used in engineering applications where strength and wear resistance are more important than extreme ductility. It can be heat-treated to improve hardness and fatigue resistance.
Lead Time: < 10 days
Wall Thickness: 0.75 mm
Tolerances: ±0.005″ (±0.125mm)
Max Part Size: 200 cm x 80 cm x 100 cm

Classification of Metal Performance Parameters
Mechanical Properties Ultimate Tensile Strength 390
Yield Strength 360
Young’s Modulus / Elasticity 205
Elongation at Break 10
Hardness HB 120
Fatigue Strength 200
Physical Properties Density 7.87
Corrosion Resistance Poor
Magnetism Magnetic
Weldability Good
Impact Toughness Low
Thermal Properties Maximum Service Temperature 400
Thermal Expansion Coefficient 11.6
Thermal Conductivity 51.9
Creep Resistance Low
Electrical Properties Electrical Resistivity 16
Electrical Conductivity 9
Dielectric Strength N/A
Processing & Surface Treatment Machinability Excellent
Surface Finish Compatibility Good
Formability Fair
Special Properties Biocompatibility No
Flame Retardancy Yes
UV Resistance Low
Recyclability Yes

Introduction to Steel 1215

What
Steel 1215 (AISI 1215) is a resulfurized and rephosphorized steel with outstanding machinability—rated close to 100% on the machinability scale. It allows high-speed CNC turning and milling with minimal tool wear. Its sulfur and phosphorus additions, however, reduce ductility and weldability. It is not intended for heat treatment and is best used in applications requiring precision machining rather than high strength.
Advantages
Exceptional machinability, ideal for CNC production
Produces smooth surface finish and accurate tolerances
Cost-effective for high-volume precision parts
Reduces tool wear and machining costs



Applications
Fittings and connectors
Bushings and pins
Shafts for light-duty applications
High-volume machined components
