Nylon / PA

Flycncpart provides nylon machining services, ensuring toughness, wear resistance, and reliability for gears, bushings, and structural parts.

 ISO 9001 Certified Quality
 Competitive & Transparent Pricing
 No Minimum Order Quantity
 Quick Delivery, as fast as 1 week
Nylon-PA（尼龙--聚酰胺）

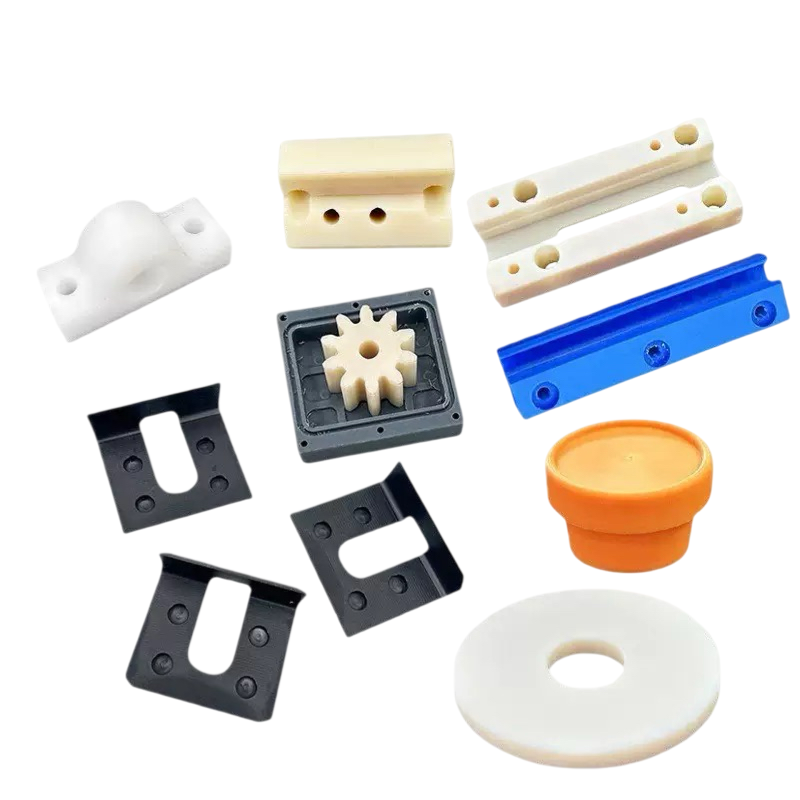

Nylon 6 30% GF
Nylon / PA in CNC Machining
Nylon is known for its excellent thermal, mechanical, and abrasion resistance. At flycncpart, we process Nylon 6, Nylon 66, glass-filled nylon, and flame-retardant nylon with advanced CNC milling and turning.

With rich experience in nylon machining, flycncpart provides high-precision gears, bushings, and structural parts for automotive, aerospace, and consumer industries. Our nylon solutions guarantee durability, reliability, and consistent quality.
Classification of Plastic Performance Parameters
Property Nylon 6 Nylon 6 30% GF Nylon 66 30% GF Nylon 6 Flame Retardant
Mechanical Properties Ultimate Tensile Strength 70-80 MPa 150-200 MPa  180-230 MPa 65-75 MPa
Yield Strength 45-50 MPa 90-120 MPa 100-150 MPa 40-50 MPa
Hardness 80-85 Rockwell R 110-120 Rockwell R 115-120 Rockwell R 80-85 Rockwell R
Elongation at Break 40-60% 2-3% 2-3% 20-30%
Flexural Strength 100-120 MPa 220-250 MPa 230-280 MPa 90-100 MPa
Modulus of Elasticity 2.5-3.0 GPa 6.0-7.0 GPa 7.0-8.0 GPa 2.5-3.0 GPa
Wear Resistance Good Excellent Excellent Good
Machinability Good Good Good Good
Physical Properties Density 1.13-1.15 g/cm³ 1.35-1.40 g/cm³ 1.37-1.42 g/cm³ 1.20-1.25 g/cm³
Impact Strength High High High Moderate
Moisture Absorption 2.5-3.0% 1.0-1.2% 1.0-1.2% 2.0-2.5%
Friction Coefficient 0.3-0.4 0.25-0.3 0.25-0.3 0.35-0.4
Thermal Properties Maximum Service Temperature 120°C 150°C 150°C 100-110°C
Thermal Expansion Coefficient 80-90 x10⁻⁶/°C 30-40 x10⁻⁶/°C 30-40 x10⁻⁶/°C 80-100 x10⁻⁶/°C
Thermal Conductivity 0.25 W/(m·°C) 0.35 W/(m·°C) 0.30 W/(m·°C) 0.25 W/(m·°C)
Electrical Properties Dielectric Strength Good Good Good Good
Electrical Resistivity 10¹² Ω·cm 10¹² Ω·cm 10¹² Ω·cm 10¹² Ω·cm
Special Properties UV Resistance Moderate Moderate Moderate Good
Creep Resistance Moderate High High Moderate
Recyclability Yes Yes Yes Yes
Model

Why Nylon / PA is Ideal for CNC Machining

What
Nylon (polyamide) is a widely used engineering plastic with excellent toughness and versatility, available in Nylon 6, Nylon 66, and other grades.


Advantages
High strength and toughness
Excellent wear and abrasion resistance
Good chemical resistance
Lightweight and machinable
Cost-effective engineering plastic
Applications
Gears, pulleys, and bushings
Automotive under-the-hood parts
Industrial machinery components
Electrical insulators
