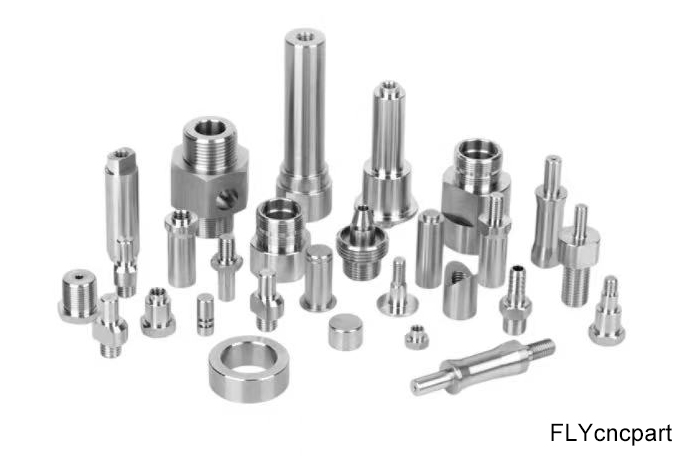

The manufacturing process for custom Swiss turning parts begins with a collaborative design phase, where CAD files are reviewed to ensure compatibility with the machine's capabilities, such as aspect ratios up to 20:1. Bar stock—typically 0.010 to 1.25 inches in diameter—is loaded into an automated feeder and clamped in the collet. The headstock slides the material through the guide bushing, exposing minimal unsupported length to a gang of tools (up to 10-12 stations) that perform simultaneous operations: turning for diameters, live tooling for milling slots or polygons, drilling for bores, and threading for fine pitches. High-pressure coolant manages heat and chips, while a sub-spindle often handles back-side features without rechucking. Once complete, a cut-off tool separates the part, which is then inspected using CMMs or laser micrometers for GD&T compliance. This single-setup approach drastically shortens lead times, often delivering prototypes in days.
Applications of custom Swiss turning parts span industries demanding unwavering reliability and customization. In medical devices, they form biocompatible implants, catheter guides, and surgical tools with tolerances ensuring precise functionality; aerospace utilizes them for lightweight fittings and sensor housings enduring extreme pressures; automotive sectors craft fuel system valves and transmission pins for vibration resistance; and electronics produce RF connectors for high-speed connectivity. For example, titanium orthopedic screws or nylon bushings exemplify how customization enhances performance in harsh environments.
Tolerances as tight as ±0.0004 mm (or 0.0002-0.0005 inches) are routinely achieved, far surpassing conventional lathes, thanks to vibration-free support. Benefits include superior surface finishes (Ra 0.4 µm), reduced scrap via efficient material use, and cost savings of up to 30% in secondary operations through multitasking. Versatility across materials—titanium for biocompatibility, brass for conductivity, aluminum for lightness, and engineering plastics like PEEK for low friction—further amplifies its appeal.
Challenges persist, including high setup costs for machines ($200,000+) and the expertise required for programming complex paths, alongside issues like chip management in deep features or tool wear on exotics. Bar stock quality inconsistencies can also affect outcomes, necessitating rigorous supplier vetting.
As of October 2025, future trends lean toward hybrid systems blending Swiss turning with additive manufacturing for even more intricate customs, alongside AI-optimized tool paths for sustainability. Custom Swiss turning parts thus embody innovation's forefront, transforming bespoke designs into reliable realities across global engineering landscapes.
