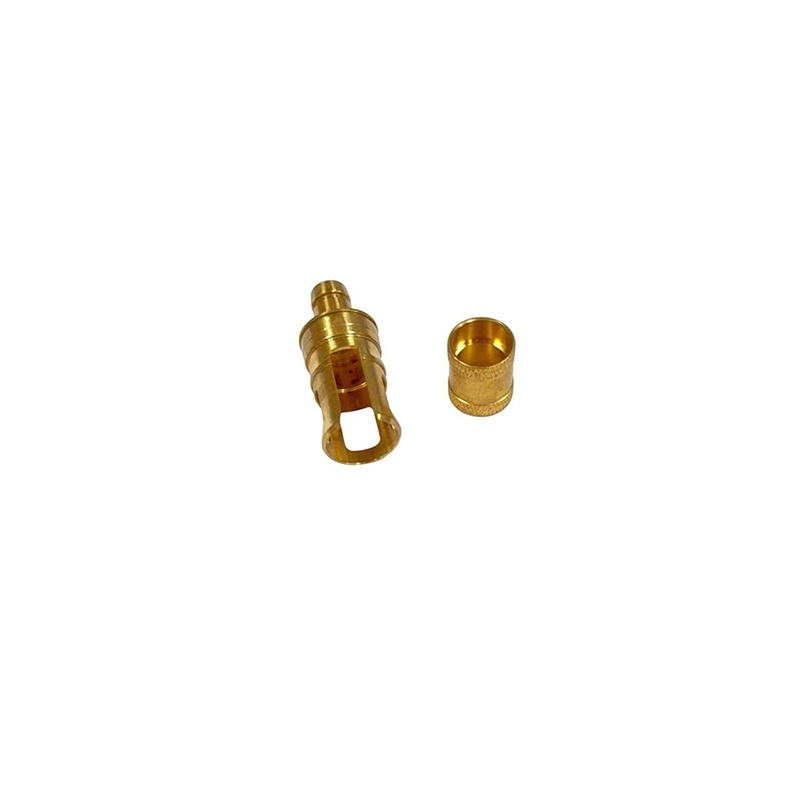

Brass C360

Material Type：Metal
Material Name：Brass C360

Alternative Names：C36000 | Free-Cutting Brass | EN CW603N | JIS C3604 | HPb59-1/HPb59-3 (GB)
Process Compatibility：CNC Turning, CNC Milling (Excellent machinability), Forging

Get Instant CNC Quote

Description

Brass C360 is the most widely used free-machining brass, with about 60% copper, 36% zinc, and ~3% lead. It offers excellent machinability, good strength, and moderate corrosion resistance, making it the standard material for precision machined components.

Lead Time:	< 5 days
Wall Thickness:	0.5 mm
Tolerances:	±0.005″ (±0.125mm)
Max Part Size:	200 cm x 80 cm x 100 cm

Classification of Metal Performance Parameters

Mechanical Properties	Ultimate Tensile Strength	350
	Yield Strength	210
	Young’s Modulus / Elasticity	100
	Elongation at Break	25
	Hardness	100
	Fatigue Strength	95
Physical Properties	Density	8.49
	Corrosion Resistance	Good
	Magnetism	Non-magnetic
	Weldability	Poor
	Impact Toughness	Moderate
Thermal Properties	Maximum Service Temperature	200
	Thermal Expansion Coefficient	20.4
	Thermal Conductivity	120
	Creep Resistance	Low
Electrical Properties	Electrical Resistivity	6.5
	Electrical Conductivity	28
	Dielectric Strength	N/A
Processing & Surface Treatment	Machinability	Excellent
	Surface Finish Compatibility	Good
	Formability	Good
Special Properties	Biocompatibility	Yes
	Flame Retardancy	Yes
	UV Resistance	Moderate
	Recyclability	Yes

Introduction to Brass C360

What

Brass C360 (C36000) is often called Free-Cutting Brass because of its outstanding machinability, rated nearly 100%. Lead is added to improve chip breaking and reduce tool wear. It combines good strength and corrosion resistance with the ability to be machined into complex shapes efficiently, making it ideal for high-volume CNC production.

Advantages

Exceptional machinability, ideal for CNC lathes
Good strength and dimensional accuracy
Moderate corrosion resistance
Cost-effective for precision machined parts

Applications

Nuts, bolts, and fasteners
Valve and plumbing fittings
Electrical connectors
Precision machined automotive parts

FAQ

Q Where is C360 most often used?

A
In high-volume machined parts such as fittings, valves, and connectors.
Q Can C360 be welded?

A
Welding is difficult due to lead content; brazing and soldering are preferred.
Q Why is C360 called Free-Cutting Brass?

A
Because its lead content improves m achinability, making it easy to cut on CNC m achines.
