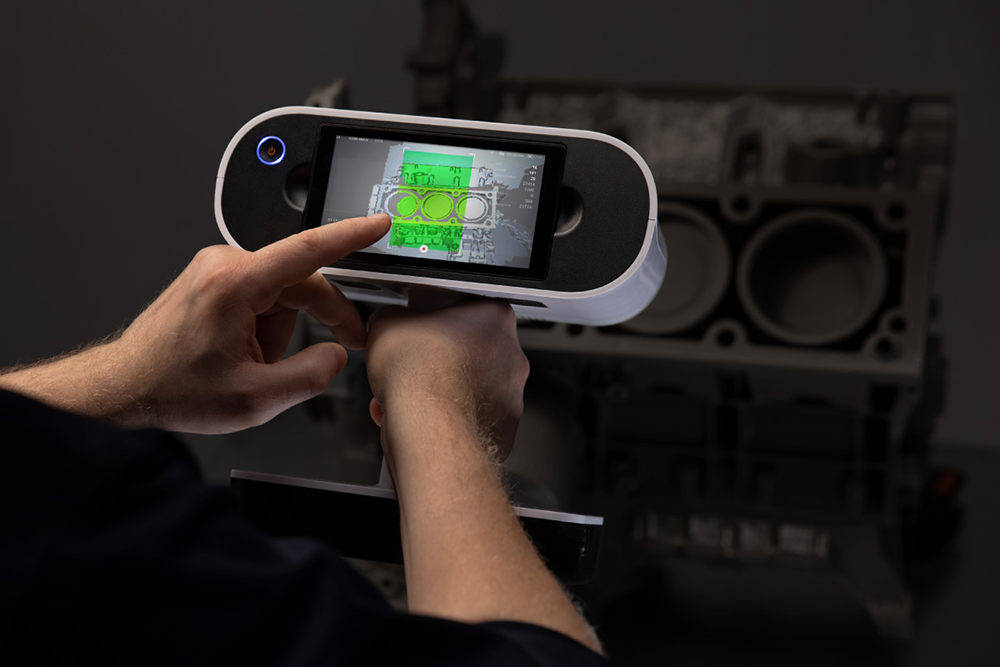

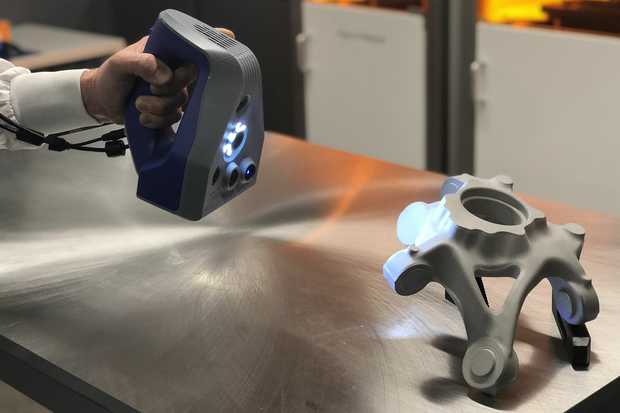

The 3D scanning process typically uses structured light, laser scanning, or photogrammetry.
Structured light scanners project patterns onto the object and measure distortions to calculate surface geometry with high resolution.
Laser scanners emit a laser beam and measure the time it takes to reflect back, achieving extremely high precision.
Photogrammetry uses photographs taken from multiple angles and advanced software to reconstruct the 3D shape.
The digital output is usually a point cloud or mesh model, which can then be processed into CAD files for further design, modification, or production. This makes 3D scanning a perfect complement to CNC machining and additive manufacturing. Engineers can scan an existing component, modify its design digitally, and reproduce it accurately using machining or 3D printing.
One major advantage of 3D scanning is speed and accuracy. High-end scanners can capture details with tolerances within microns, making it ideal for quality inspection and dimensional verification. It also supports reverse engineering — allowing manufacturers to recreate parts for which original CAD drawings no longer exist. This is especially valuable for spare parts, legacy equipment, or complex hand-crafted components.
3D scanning is also widely used in medical applications such as prosthetics, implants, and dental models, as it enables personalized designs based on the patient's anatomy. In industrial settings, it reduces design cycles, improves quality control, and supports digital twins and smart manufacturing.
As scanning technology becomes more portable and affordable, it is increasingly adopted by small and medium enterprises, not just large corporations. Combined with CAD/CAM software and 3D printing, 3D scanning is shaping a more agile, data-driven, and efficient manufacturing ecosystem.
