Computer Numerical Control (CNC) machining technology has redefined the landscape of modern manufacturing. With the rise of automation and digital precision, CNC machining has become the cornerstone of industries that demand consistency and exactness—from aerospace and automotive engineering to medical device manufacturing and electronics. This advanced method of shaping materials relies on computer-guided instructions that transform raw stock into finished components with microscopic precision.
CNC technology merges computing, mechanics, and industrial design into one process. It allows manufacturers to mass-produce parts that meet exact specifications while reducing waste, improving quality, and shortening production timelines. Beyond traditional machining, CNC technology also integrates with digital fabrication ecosystems, making it a critical tool for innovation in Industry 4.0.
At its core, CNC machining involves using computerized systems to control tools such as mills, lathes, grinders, routers, or lasers. These systems follow pre-set digital instructions—encoded in G-code—to cut, drill, and shape materials into the desired form. The G-code specifies every movement, speed, and rotation, allowing the machine to perform complex operations without manual intervention.
CNC machining can produce parts with multi-axis motion—ranging from 3-axis to 5-axis or even hybrid-axis systems. Multi-axis machines enable intricate geometries, smoother surfaces, and faster cycle times. Each motion direction corresponds to a degree of freedom, allowing the tool and workpiece to interact at different angles and depths.
Unlike manual machining, where human control can introduce variability, CNC machining ensures reproducibility down to fractions of a millimeter, enabling the production of exact replicas in large quantities.
The journey of CNC technology began in the late 1940s when engineers experimented with punched tape as a means of automating milling machines. This early form of Numerical Control (NC) marked the first step away from purely manual machining. In the 1970s, with the advent of computer technology, NC evolved into CNC—ushering in a new era of digital precision.
Over the decades, advancements in computing power, servo motors, and sensors transformed CNC systems from rigid mechanical platforms into intelligent, adaptable machines. Early G-code programming was labor-intensive and prone to errors, but modern software interfaces now provide visual simulation, automatic optimization, and error detection before production even begins.
Today's CNC machines are networked, data-driven systems capable of real-time feedback, enabling adaptive machining and self-diagnostics. These “smart machines” are integral to Industry 4.0, where cloud connectivity, artificial intelligence, and the Internet of Things enhance efficiency and predictive maintenance.

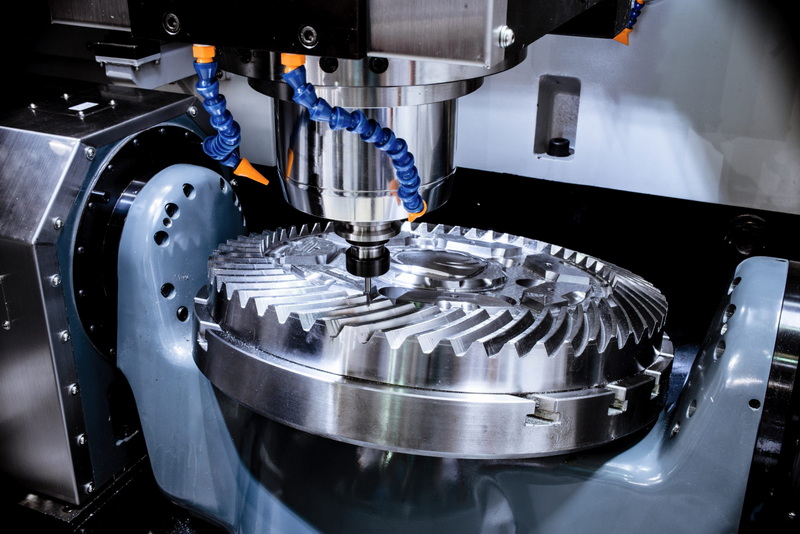

CNC machining follows a logical sequence of interdependent stages:
1. Concept and Design Phase: Engineers design the part in CAD (Computer-Aided Design) software. This digital blueprint includes precise measurements, dimensions, and tolerances.
2. Toolpath Programming (CAM): The CAD model is imported into CAM (Computer-Aided Manufacturing) software, where toolpaths are generated—defining how the machine moves to produce the part.
3. G-Code Generation: The CAM output is converted into G-code, a standardized programming language that tells the CNC machine how fast to move, where to cut, and at what depth.
4. Machine Setup: The operator mounts raw material, selects the right tools (milling cutters, drills, or inserts), and sets reference points for the coordinate system.
5. Machining Execution: The CNC controller interprets the G-code and coordinates movement across multiple axes to shape the part precisely.
6. Inspection and Post-Processing: Once machining completes, parts undergo quality inspections using tools such as coordinate measuring machines (CMMs), ensuring dimensional accuracy before surface finishing.
This sequence forms an efficient closed loop of design, execution, and verification that minimizes errors and enhances repeatability.
CNC machines come in many forms, each serving unique applications:
- CNC Milling Machines: Utilize rotary cutters to remove material from a stationary workpiece, offering up to five-axis movement for complex shapes.
- CNC Lathes (Turning Centers): Rotate the workpiece while a stationary tool cuts it, ideal for cylindrical parts such as shafts and bushings.
- CNC Routers: Operate at high speeds on softer materials such as wood, foam, and plastics—widely used in furniture, signage, and prototyping.
- CNC Laser Cutters: Employ a focused beam of light for precise cutting and engraving, producing minimal waste and fine edge finishes.
- CNC Plasma Cutters: Use ionized gas to slice through electrically conductive metals such as steel or aluminum.
- CNC EDM (Electrical Discharge Machining): Removes material using electrical sparks, allowing for ultra-hard metals to be shaped with minimal mechanical stress.
- CNC Waterjet Cutters: Utilize high-pressure water streams mixed with abrasives to cut materials without heat distortion.
Each machine type offers specific strengths depending on the geometry, material hardness, and production requirements.
A CNC machining system comprises several core components working together seamlessly:
- CNC Controller: The computer system that interprets G-code and manages tool motion in real time.
- Machine Tool: The mechanical unit that performs cutting, drilling, or shaping operations.
- Drive Motors and Spindles: Responsible for translating commands into mechanical movement and tool rotation.
- Worktable and Fixtures: Secure raw materials in place, ensuring stability during machining.
- Feedback System: Uses encoders and sensors to provide real-time position data, maintaining accuracy.
- Coolant System: Minimizes tool wear and dissipates heat generated by friction.
Together, these elements form an integrated ecosystem that ensures precision, reliability, and automated control.
CNC machining provides numerous practical benefits:
- Unmatched Precision: Machines deliver tolerances as tight as ±0.002 mm, vital for aerospace and medical devices.
- Operational Efficiency: Automated processes reduce idle time, increasing productivity compared to manual operations.
- Repeatability: Parts produced across hundreds of runs remain consistently identical in size and function.
- Reduced Waste: Optimized toolpaths minimize material removal and energy consumption.
- Faster Prototyping: Rapidly turn digital concepts into physical prototypes for testing and refinement.
- Labor Optimization: Fewer operators can oversee multiple CNC machines simultaneously.
These attributes make CNC machining indispensable in high-performance manufacturing environments.
Despite its advantages, CNC machining has practical limitations:
- High Initial Investment: Machines, cutting tools, and programming software represent substantial upfront costs.
- Programming Complexity: Skilled professionals are needed to generate error-free G-code, especially for intricate parts.
- Maintenance Demands: Precision machinery requires frequent calibration and preventive maintenance.
- Tool Wear and Replacement: Intensive production runs increase wear-and-tear costs.
- Material Constraints: Difficult-to-machine materials like hardened steels demand specialized tooling or slower feeds.
However, continuous innovation—particularly in adaptive control and smart diagnostics—keeps improving efficiency, reducing downtime, and minimizing these drawbacks.
CNC machining is the backbone of multiple high-tech industries:
- Aerospace and Defense: Creating components like turbine blades, landing gears, and precision housings that can withstand extreme stresses.
- Automotive Engineering: Producing engine blocks, gearboxes, and interior trim molds with high durability.
- Medical and Dental Devices: Manufacturing implants, surgical tools, and prosthetics with biocompatible materials.
- Electronics Manufacturing: Fabricating small, intricate enclosures, connectors, and circuit housings.
- Energy and Oil Industries: Producing valves, rotors, and precision casings for turbines and pumps.
- Robotics and Automation: CNC processes craft mechanical linkages and housings used in autonomous systems.
Each sector relies on CNC's accuracy, surface finish consistency, and cost-effectiveness.
Software innovation has propelled CNC machining into the digital age. Three interlinked systems govern modern workflows:
1. CAD (Computer-Aided Design): Creates 3D models of parts, allowing designers to test tolerances and geometries.
2. CAM (Computer-Aided Manufacturing): Generates toolpaths, optimizing machining time and avoiding tool collisions.
3. Simulation and Validation Tools: Verify process parameters before execution, saving material and time.
Recent developments integrate AI algorithms that automatically optimize cutting conditions based on part geometry, material properties, and prior machining data.
Looking ahead, CNC machining is moving toward smarter, more autonomous systems. Key innovations include:
- AI-Driven Machining: Real-time optimization of toolpaths using machine learning.
- Hybrid Manufacturing: Combining additive (3D printing) and subtractive (CNC) processes for flexible part creation.
- IoT Connectivity: Machines transmitting operational data to the cloud for predictive maintenance.
- Augmented Reality Interfaces: Assisting operators with setup, troubleshooting, and training.
- Sustainability Initiatives: Incorporating recyclable materials and energy-efficient cutting technologies.
The future of CNC machining revolves around efficiency, autonomy, and digital integration—shaping a manufacturing era where machines think, learn, and self-improve.
CNC machining technology stands as one of the most impactful innovations in industrial manufacturing. It bridges the precision of digital modeling with the robustness of mechanical craftsmanship, producing high-quality components at scale. While initial costs, maintenance, and programming requirements are notable challenges, the benefits of speed, accuracy, and automation far outweigh them. As artificial intelligence, robotics, and digital control continue to evolve, CNC machining will not just remain relevant but expand its capabilities—driving the next generation of industrial production.
CNC machines can process metals like aluminum, steel, and titanium, as well as plastics, composites, and ceramics. The choice depends on the desired combination of strength, weight, and thermal properties.
CNC machining achieves tolerances up to ±0.002 mm, far surpassing manual machining. This precision ensures repeatability across high production volumes and critical parts.
Key users include aerospace, automotive, medical, and electronics industries, where exact tolerances and consistency define product performance and safety.
3D printing excels at rapid prototyping, while CNC machining provides fine surface finishes and high mechanical strength. Combined, they enable hybrid production strategies that minimize waste and maximize design flexibility.
Operators and programmers must understand CAD/CAM software, material behaviors, and mathematical precision. A combination of technical knowledge and practical machining experience is essential.
