Getting feed rate and cutting speed right is one of those "quiet" decisions that decide whether a CNC job makes money or loses it. As someone who has spent years debugging tool wear, chatter, and tolerance issues on real production lines, I've learned that understanding the difference between feed rate and cutting speed is the starting point for consistent quality and predictable costs. [cnccookbook]
Feed rate is the speed at which the cutting tool advances relative to the workpiece, usually expressed in mm/min or inches/min (ipm). In milling, it describes how fast the cutter "feeds" across the part; in turning or boring, it is often given per revolution (mm/rev or in/rev). [rapiddirect]
In practice, feed rate:
- Controls chip thickness and material removal rate. [cnccookbook]
- Strongly affects surface finish and scallop marks on the machined surface. [jlccnc]
- Directly influences cutting forces, vibration, and machine load. [jlccnc]
From a machinist's perspective, I treat feed rate as my main knob to balance cycle time vs surface quality. When I see chatter, premature insert failure, or poor finish, feed is one of the first parameters I adjust. [penntoolco]
Several parameters must be considered before you decide on a safe and productive feed:
- Cut width (radial depth of cut, RDOC): When cut width is less than half the tool diameter, chip thinning occurs and the effective chip load drops. To avoid rubbing and extend tool life, you often need to increase the programmed feed when using small radial engagement. [cnccookbook]
- Surface finish requirements: Lower feeds for finishing (e.g., 0.01–0.05 mm/rev) and higher feeds for roughing (e.g., 0.1–0.3 mm/rev) are typical practice. [rapiddirect]
- Cutting tool geometry and flute count: Tools with more cutting edges remove less material per tooth and can safely run higher feed rates for the same chip load. [jlccnc]
- Machine tool capability: Every CNC machine has limits on rigidity, power, and axis acceleration; aggressive feed rates can exceed those limits and cause chatter or positional errors. [americanmicroinc]
- Material and tool combination: Tough alloys, small-diameter tools, and micro-features usually require more conservative feed settings. [violintec]
In titanium implants, for example, running overly aggressive feeds quickly leads to heat, burrs, and microcracks; conservative settings make the difference between scrap and stable production. [premiumparts]
Cutting speed is the relative surface velocity between the tool edge and the workpiece, typically measured in m/min or ft/min. It reflects how fast the cutting edge moves around (in milling and turning) or along the workpiece surface. [rapiddirect]
Cutting speed:
- Strongly affects tool wear and cutting temperature. [datron]
- Influences power consumption and energy efficiency. [pmc.ncbi.nlm.nih]
- Is usually the starting point when you choose spindle speed for a given material and tool. [premiumparts]
For aluminum, recommended cutting speeds are often several hundred m/min, while tough alloys like titanium require much lower surface speeds to control heat and extend tool life. [premiumparts]
When I set up a new job, I always look at:
- Tool material: Carbide, HSS, ceramics, and cermets each have different safe cutting speed ranges; harder tool materials tolerate higher speeds before wear accelerates. [datron]
- Workpiece hardness: Softer materials can be cut at higher speeds, while hard or heat-resistant alloys demand lower surface speeds to avoid edge breakdown. [cnccookbook]
- Expected tool life and cost: It is often acceptable to run at higher cutting speed if the cost per part remains favorable, even with shorter tool life. [rapiddirect]
- Coolant and chip evacuation: Effective coolant and chip control allow higher speeds by reducing heat and preventing chip re-cutting. [penntoolco]
Modern studies on milling optimization show that combining a moderate depth of cut with higher cutting speed and optimized feed per tooth can simultaneously improve surface quality and reduce residual stresses. [frontiersin]
Although feed rate and cutting speed work together, they describe different motions and have distinct roles in machining. [jlccnc]
In geometry terms, the feed motion is often associated with the directrix, while the cutting speed generates the generatrix of the machined surface. The feed defines how the tool advances along the defined path, and cutting speed defines how fast the cutting edge travels along the contact profile. [cnccookbook]
Scallops or feed marks are the small ridges left on a machined surface. [jlccnc]
- Feed rate has a direct impact on scallop size and surface roughness; higher feed creates more pronounced marks. [cnccookbook]
- Cutting speed has little direct effect on scallop geometry; its influence is more related to heat, tool wear, and chip formation. [datron]
Cutting temperature is a key difference between the two parameters:
- Increasing cutting speed significantly raises temperature at the tool–chip interface and can drastically shorten tool life. [americanmicroinc]
- Increasing feed rate also increases cutting force and some heat, but its impact on temperature and tool life is generally lower than that of cutting speed. [penntoolco]
In sensitive materials like Inconel or titanium, even small deviations in speed can cause rapid tool failure, so speed selection is critical. [premiumparts]
In daily production, most machinists rely on CAM software or built-in calculators in CNC controls, but understanding the basic formulas helps you sanity‑check recommendations. [penntoolco]
Typical relationships include:
- Spindle speed \(n\) (rpm) is derived from cutting speed and tool diameter. [datron]
- Table feed (mm/min or ipm) equals feed per tooth times number of teeth times spindle speed. [penntoolco]
These formulas provide a starting point, but machine limits, tool runout, and workholding must be checked before you accept any calculated value. [americanmicroinc]
In practice, feed rate and cutting speed are tuned together to find the "sweet spot" where material removal, tool life, and surface quality are all acceptable. [violintec]
Some useful patterns from shop experience:
- A high cutting speed with a low to moderate feed can minimize tool wear and improve finish, particularly on finishing passes. [violintec]
- A higher feed with moderate cutting speed is often chosen for roughing, maximizing material removal without overheating the tool. [penntoolco]
- Too low a feed can cause rubbing rather than cutting, which paradoxically reduces tool life and degrades the surface. [cnccookbook]
When optimizing a new program, I start conservatively, then step the feed and speed up while monitoring sound, vibration, temperature, and chip formation. If I see discolored chips, heavy burrs, or chatter, I back off speed first, then fine‑tune feed. [americanmicroinc]
High‑value medical components illustrate how subtle changes in speed and feed impact quality and cost. [frontiersin]
For titanium implant housings:
- Running conservative cutting speeds in the range commonly recommended for titanium helps maintain stable cutting temperature and avoids microcracks around edges. [premiumparts]
- In one implant project, reducing cutting speed by a modest margin significantly decreased burr formation and edge discoloration, improving downstream polishing efficiency. [frontiersin]
At the same time, fine-tuning feed rate within a narrower window kept material removal efficient while preventing micro‑fractures in small tools. [penntoolco]
In catheter and stent connectors, where feature sizes are small and tolerances are tight, standard aluminum feeds are often too aggressive. [jiga]
Experienced process engineers typically:
- Reduce feed well below standard recommendations to prevent micro‑fractures in small-diameter tools. [cnccookbook]
- Use carefully controlled cutting speed, stable fixturing, and verified tool paths to avoid tool deflection and chatter. [pmc.ncbi.nlm.nih]
- Accept slightly longer cycle times in exchange for lower scrap rates and higher dimensional stability. [jiga]
This kind of optimization is especially important for precision components in aerospace, medical devices, and fluid systems. [jiga]

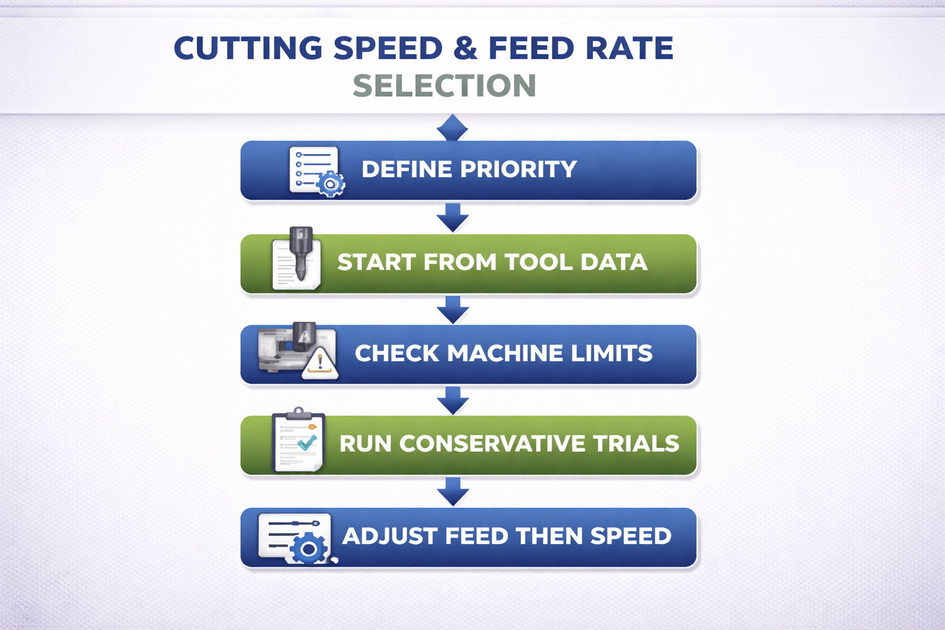

When working with overseas OEM/ODM customers who demand both quality and cost control, we typically follow a structured approach:
1. Define the priority
Decide whether the job's main driver is surface finish, tight tolerances, maximum throughput, or tool life. [gushwork]
2. Start from recommended data
Use toolmaker charts or CAM databases to get initial cutting speed and feed per tooth for the specific material and tool. [jlccnc]
3. Check machine limits
Verify that required spindle speed and feed do not exceed machine power, axis acceleration, or maximum feed rate. [americanmicroinc]
4. Run conservative trials
Start slightly below the recommended cutting speed and feed, inspect chips, listen for chatter, and check part dimensions and finish. [americanmicroinc]
5. Adjust in small increments
- Increase feed rate first to improve productivity while monitoring tool load.
- Raise cutting speed cautiously to avoid overheating. [violintec]
6. Document and standardize
Once a stable window is found, store the parameters with the NC program, including material batch, tool reference, and coolant setup, to ensure repeatability. [pmc.ncbi.nlm.nih]
This methodical tuning is particularly valuable for repeat export orders where customers demand stable quality across batches.
From production feedback and customer parts we've reworked, the same patterns appear repeatedly:
- Feed rate too low: Rubbing instead of cutting, shortened tool life, poor finish, and potential work hardening in some alloys. [penntoolco]
- Feed rate too high: Excessive cutting force, chatter, dimensional inaccuracy, and tool breakage. [jlccnc]
- Cutting speed too low: Unproductive cycle times, sometimes poor chip formation and higher overall cost per part. [rapiddirect]
- Cutting speed too high: Rapid tool wear, thermal cracks, crater wear, and burned surfaces. [datron]
Identifying which parameter is the culprit is easier if you change one variable at a time and log the results. [americanmicroinc]
In day-to-day CNC work, it helps to know which lever to move first. [cnccookbook]
- Prioritize feed rate when:
- You need to adjust surface finish and scallop height. [jlccnc]
- You want to reduce cycle time without significantly increasing temperature. [penntoolco]
- Prioritize cutting speed when:
- Tool life is short due to edge wear or thermal cracking. [datron]
- You see discoloration, burns, or excessive heat at the cutting zone. [premiumparts]
Balancing both correctly is the key to finding that stable "sweet spot" that keeps procurement, production, and quality all satisfied. [violintec]
For many overseas brand owners and manufacturers, the challenge is not just understanding feed rate vs cutting speed—it is applying that knowledge across different materials, part geometries, and volumes. [gushwork]
A seasoned CNC supplier can help by:
- Providing DFM (Design for Manufacturability) input to avoid impossible or cost‑prohibitive features. [gushwork]
- Recommending material–tool–parameter combinations based on proven production data rather than theory. [frontiersin]
- Maintaining stable quality across batches, backed by documented process parameters and inspection reports. [pmc.ncbi.nlm.nih]
If you are developing new precision components and want to reduce trial‑and‑error on feed and speed settings, working with an experienced OEM/ODM machining partner is often the fastest way to reach stable mass production. [gushwork]
If you are planning a new CNC project or struggling with tool life, surface finish, or cycle time on existing parts, now is the right moment to rethink your feed rate and cutting speed strategy. [rapiddirect]
Share your drawings, target tolerances, and material requirements with a trusted CNC machining specialist so they can propose optimized parameters and manufacturability improvements tailored to your application. With the right setup, you can reduce cost per part, stabilize quality, and accelerate time‑to‑market—all without having to solve every speed‑and‑feed problem in‑house. [frontiersin]
Because titanium has much lower allowable cutting speed and a narrower margin for error in both speed and feed, using aluminum parameters leads to overheating and rapid tool wear. [premiumparts]
If chips are powdery, the tool rubs and squeals, or tool life is unexpectedly short even at low load, your feed is likely too low and the tool is sliding instead of cutting. [americanmicroinc]
Very low speeds may protect tools but often make cycle times uncompetitive and can worsen chip formation; you still need to stay within a recommended speed window. [rapiddirect]
It's usually better to reduce cutting speed slightly and then fine‑tune feed, while also checking tool overhang and fixturing rigidity. [jlccnc]
No; different machines vary in rigidity, spindle power, and control dynamics, so parameters that work on one CNC may cause chatter or overload on another. [pmc.ncbi.nlm.nih]
