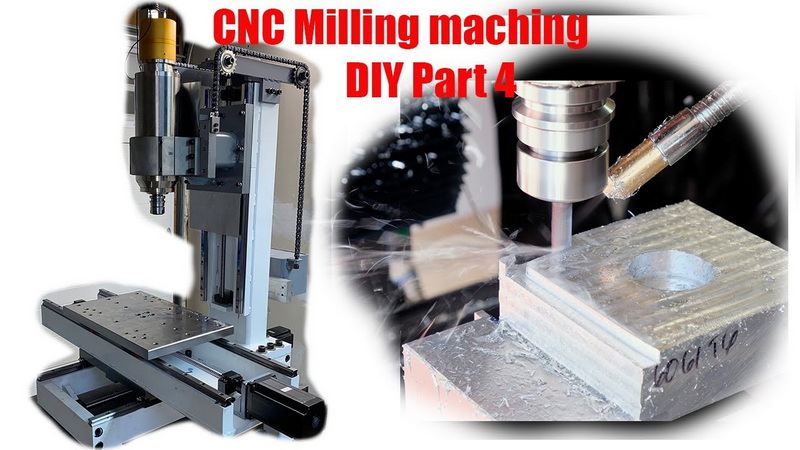

Building a CNC milling machine at home is a compelling project for makers, engineers, and hobbyists. A DIY CNC milling machine can open doors to rapid prototyping, custom parts production, and a deeper understanding of mechanical systems and computer-controlled processes. This article outlines practical approaches to designing, sourcing components for, assembling, and validating a DIY CNC milling machine. It focuses on cost-conscious choices, reliability, safety considerations, and the steps needed to achieve usable milling performance for common materials such as aluminum and plastic.
Before selecting components, decide what you want to mill and with what tolerance. A compact machine aimed at light aluminum work or prototyping might target 0.01–0.02 inches (0.25–0.5 mm) precision, while a heavier setup could push toward tighter tolerances at the cost of more robust hardware and a larger frame.

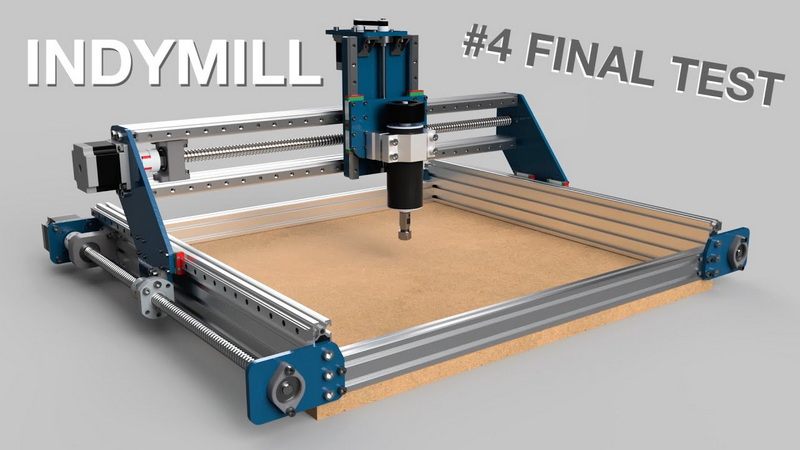

- Cartesian (X-Y-Z) gantry systems are common for desktop CNC mills and are easier to service.
- Core-XY and H-pattern drives can improve rigidity and speed on some designs.
- A hybrid approach may blend screw-driven axes with linear rails for better precision.
The frame determines the machine's stiffness and vibration damping. Common DIY options include:
- Aluminum extrusion frames with gussets for strength and modularity.
- Welded steel frames for higher rigidity and longer life.
- Wooden or phenolic frames for ultra-low-cost experiments, though they limit rigidity and accuracy.
- Linear rails and carriages offer smooth motion and repeatable accuracy but add cost.
- Precision ball screws or leadscrews with anti-backlash nuts help maintain position accuracy.
- For budget builds, misaligned but serviceable linear guide alternatives can work, but expect more maintenance.
- A compact spindle with a power rating of 500–1000 W suits lightweight aluminum work, plastics, and soft metals; larger spindles are needed for harder metals.
- End mills: start with a basic set of carbide end mills in common sizes (1/8", 1/4", 1/2" for hogging) and smaller ball-nose bits for pockets and contours.
- Cooling and chip evacuation improve tool life and finish quality; consider mist coolants or air blast if machining plastics or aluminum.
- Open-source control boards and firmware such as GRBL, TinyG, or LinuxCNC provide solid foundations.
- A control computer or microcontroller drives stepper or servo motors, interprets G-code, and sends commands to the drive electronics.
- Microstepping drivers and proper motor sizing reduce vibration and improve smoothness.
- Power supply sizing should match motor and spindle current requirements with headroom.
- Emergency stop, proper wiring, and enclosure for moving parts reduce risk.
- Noise reduction and dust management improve the working environment.
- Frame modules: aluminum extrusion kits, T-slot profiles, or custom-cut metal plates.
- Linear components: carriages, rails, and ball screws; consider refurbished or second-hand components to cut costs.
- Spindle and router options: dedicated CNC spindles, router spindles, or used hobbyist spindles.
Create a simple CAD model or hand-drawn layout showing axis travel limits, work envelope, and spindle mounting points. Ensure the gantry clears all axes during full travel and that the Z-axis can reach the top surface with enough clearance for the intended bit length.

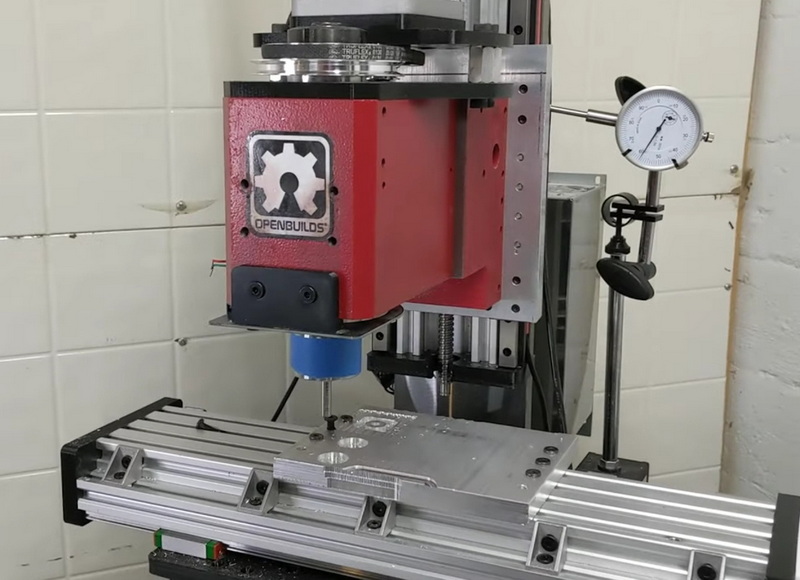

Establish a flat, level work surface and align the spindle to a known datum. Use dial indicators or precision shims during setup to guarantee consistent location references for tool offsets.
If using belts, ensure pulleys are aligned to prevent wear and slippage. For lead/screw drives, pre-load the nut and verify straightness along the axis travel.
Label wires, route cables away from moving parts, and secure them with cable carriers or ties. Separate power and signal cables to reduce interference. Implement proper grounding and fusing.
- Design parts in a CAD program.
- Generate toolpaths in CAM software, selecting appropriate cutting strategies for material and tool geometry (pocketing, contour milling, finishing passes).
- Simulate toolpaths if the software supports it to preview potential collisions and material removal.
- Export G-code suitable for the controller (GRBL, LinuxCNC, etc.).
- Inspect the code for unusual commands or zeroing patterns before running the machine.
- Home all axes to establish a known reference point.
- Set work offsets (G54, G55, etc.) as needed for multiple parts or fixtures.
- Verify tool length offsets to ensure safe Z-axis travel and accurate cutting depths.
- Start with light passes to verify stiffness and accuracy. Gradually increase depth of cut as confidence grows.
- Use appropriate feeds and speeds for the material and tool to minimize chatter and wear.
Tips for success
- Start small: construct a modest-size machine with a known set of capabilities and iterate.
- Document changes and test results to track progress and guide future upgrades.
- Regularly check alignment and calibration, especially after disassembly or transport.
- Invest in a good set of measurement tools (calipers, dial indicators, squares) to verify geometry and alignments.
- Deflection and chatter: increase gantry stiffness, reduce feed rate, or switch to heavier frame components and stiffer guides.
- Backlash and positioning errors: select anti-backlash nuts or use preloaded ball screws, and re-tighten mounts as needed.
- Thermal expansion affecting accuracy: employ consistent ambient conditions and consider drift compensation in calibration.
- Material compatibility: lightweight aluminum or plastics are practical for many DIY projects; machining steel requires a more robust build and advanced tooling.
- Surface finish: achieving mirror-like finishes requires rigidity, careful tool selection, and stable feeds and speeds.
- Repeatability: with proper calibration and backlash control, repeatability can be sufficient for hobbyist projects and small-batch prototyping.
- Always wear safety glasses and follow local regulations when operating any CNC equipment.
- Keep guards in place and ensure emergency stop functionality is tested regularly.
- Maintain clean chip management and check for coolant or lubricant leaks.
- Inspect belts, screws, and bearings for wear and replace as needed.
- Enclosures and dust management: a dedicated enclosure not only improves safety but also reduces thermal drift by shielding the machine from drafts.
- Vibration analysis: for larger builds, consider a finite element approach to identify the most rigid configurations before fabrication.
- Upgradability path: design the machine with modular components so axis assemblies, spindles, or control electronics can be swapped without reworking the entire frame.
- Cold-start calibration: establish a baseline set of measurements when new components are installed to minimize troubleshooting time later.
- For serious production, a DIY approach should be treated as a learning platform rather than a drop-in replacement for commercial equipment. Lessons learned from a home-built machine can translate into more robust industrial designs, improvements in tolerances, and better process controls.
- Documentation and version control become crucial as complexity grows. Keep a design log, photograph major milestones, and maintain a bill of materials with precise part numbers and tolerances.
- Material choice matters: powder-coated or anodized aluminum components resist wear and corrosion better than bare aluminum in many environments.
- Maintenance scheduling: set a routine for lubrication, inspection, and replacement of wear-prone parts like guides and ball screws.
- Software updates: keep firmware and CAM tools up to date, but maintain a stable baseline configuration to avoid unexpected machine behavior.
A do-it-yourself CNC milling machine can be a rewarding project that yields practical capabilities for light machining, prototyping, and educational exploration. By focusing on rigidity, appropriate drive mechanisms, and reliable control software, a hobbyist can build a functional machine with careful planning and methodical assembly. Start with a clear scope, iterate based on real-world tests, and gradually upgrade components to improve performance and reliability. This process blends hands-on problem-solving with a structured engineering mindset, turning a simple curiosity into a capable tool for making real parts.
- A compact work envelope (roughly 12" x 12" x 6" to 18" x 18" x 6") is a practical starting point for learning and light aluminum work, with room to scale up later.
- Screws with anti-backlash nuts provide good precision at a reasonable cost, paired with rigid frame construction. Linear rails offer higher performance but at higher cost.
- A dedicated controller board (GRBL, TinyG, or LinuxCNC-compatible hardware) provides robust real-time control. A Raspberry Pi can act as a host but should pair with a real-time controller to handle motion.
- For light aluminum and plastics, a 500–1000 W spindle is usually sufficient. For heavier aluminum or soft metals, consider 1–1.5 kW and stronger drive components.
- Use protective eyewear, enclose moving parts, ensure an emergency stop is functional, keep the area clear of loose clothing and jewelry, and follow proper electrical precautions and grounding.
