● Understanding CNC Lathe Parts From an OEM Engineer's View
● 5 Critical CNC Lathe Parts and Their Real-World Functions
>> 1. Spindle: The Power Center of Dimensional Accuracy
>> 2. Chuck and Workholding: Where Most Runout Problems Start
>> 3. Turret and Tooling System: Flexibility vs Cycle Time
>> 4. Guideways and Linear Axes: The Hidden Source of Surface Quality
>> 5. Control System and Automation Interfaces: Beyond G-code
● How Industry Experts Actually Select CNC Lathe Configurations
● Practical CNC Lathe Selection Checklist for OEM Buyers
● Case Insight – From Prototype to Mass Production With the Same Lathe Platform
● FAQs About CNC Lathe Parts and Supplier Selection
CNC lathe parts are the heart of precision manufacturing, and choosing the right configuration can make or break your project's cost, lead time, and reliability. Writing from the perspective of a team that has spent years supplying OEM and ODM CNC precision parts to global brands, I want to walk you through the critical lathe components that actually matter in real-world production, and how we evaluate them daily for our customers' success. [hubs]
When you look at a CNC lathe purely from a catalog, you see specifications: spindle speed, turret stations, chuck size, bar capacity, and so on. When you look at the same machine as an OEM/ODM supplier responsible for your customer's product launch, you see something very different: risk, capability, and lifetime cost. [community.xometry]
From my daily work helping overseas brands source CNC precision parts in China, I've learned that most quality or delivery problems trace back to a mismatch between:
- The part design
- The chosen lathe configuration
- The production workflow and QC plan

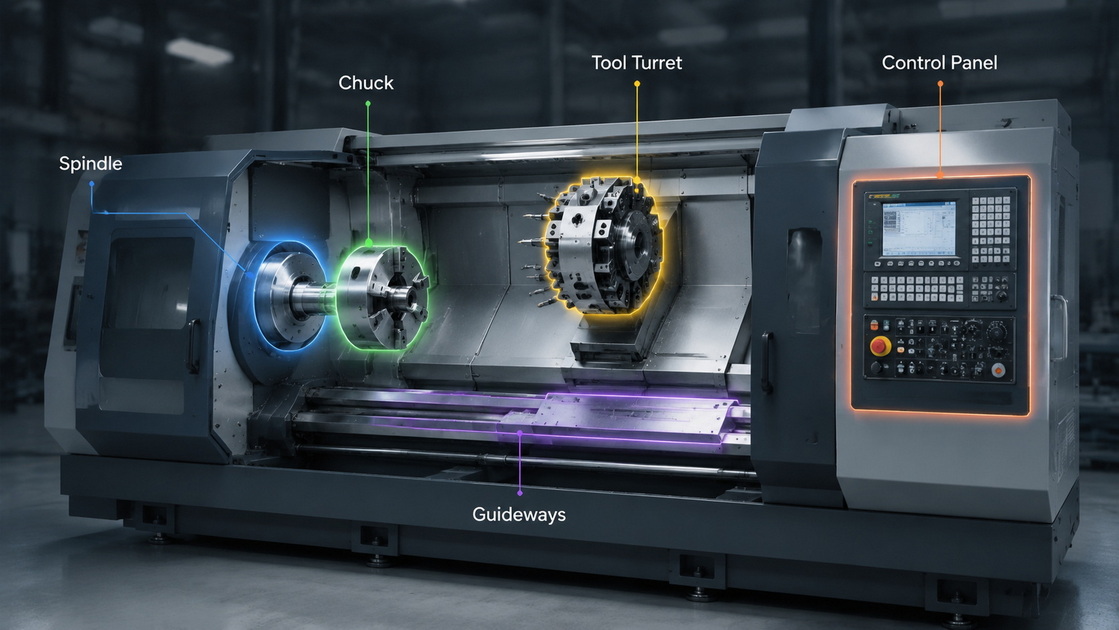

That is why understanding five core CNC lathe parts – the spindle, chuck, turret/tooling system, guideways/linear axes, and control system – is not a theoretical exercise, but a practical way to derisk your projects before you place the first PO. [protolabs]
The spindle is the rotating axis that holds and drives the workpiece, and it directly controls your achievable tolerances, surface finish, and cycle time. In high-volume OEM work, the spindle specification is usually the first thing we audit, because it defines whether a machine can repeatedly meet your drawing requirements over thousands of cycles. [hubs]
Key spindle parameters we focus on:
- Speed range (rpm) – Determines suitability for different materials and diameters
- Power and torque – Impacts heavy roughing, interrupted cuts, and hard materials
- Runout – Affects concentricity and fine tolerance features
- Spindle bore / bar capacity – Limits maximum bar size and affects material utilization
From an engineer's perspective, it is rarely about "highest rpm wins". For example, for automotive steel shafts, we prioritize a balanced combination of torque, stability, and cooling over extreme speed, because excessive heat and vibration will hurt both tool life and dimensional stability in long runs. [protolabs]

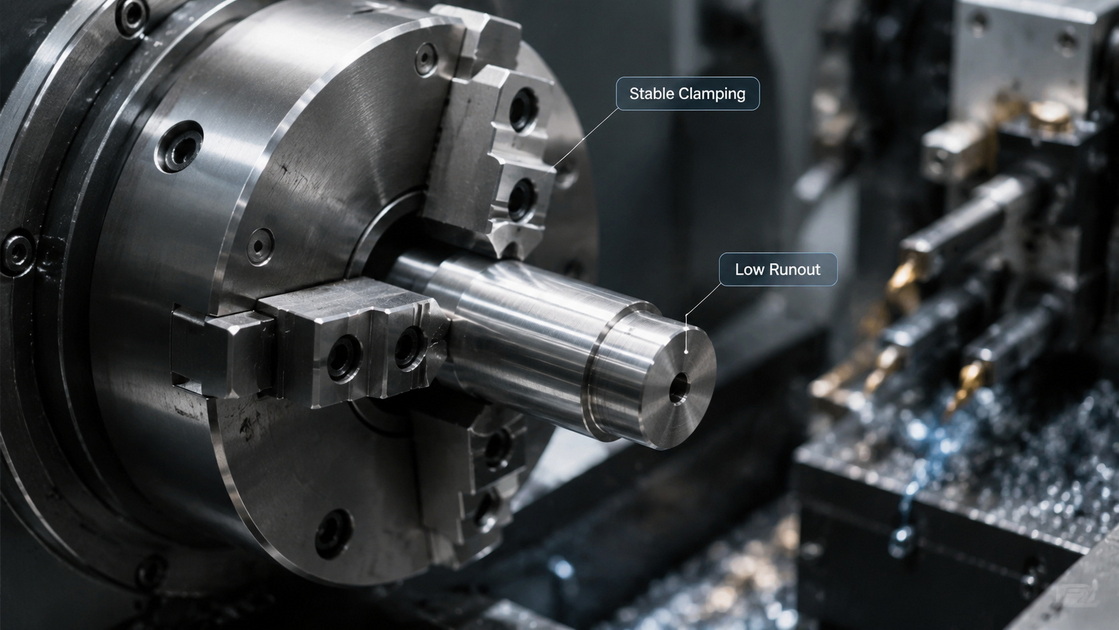

Even the best spindle cannot save a poor workholding setup. The chuck, jaws, collets, and fixtures define how reliably the workpiece is clamped during machining. In our OEM projects, more than half of initial accuracy and surface defects are traced back to incorrect workholding selection or setup.
We usually evaluate workholding by:
- Part geometry – Simple shafts, thin-walled tubes, complex castings, forgings, etc.
- Tolerance stack-up – Features that require tight concentricity or parallelism
- Production volume – Prototype, small batch, or mass production
- Changeover frequency – Single-product vs multi-part family in the same cell
For thin-wall aerospace rings, for example, we may prefer a custom soft jaw or diaphragm chuck to avoid deformation during clamping, while for high-volume automotive bushings, a collet system offers faster cycle times and better repeatability. [community.xometry]

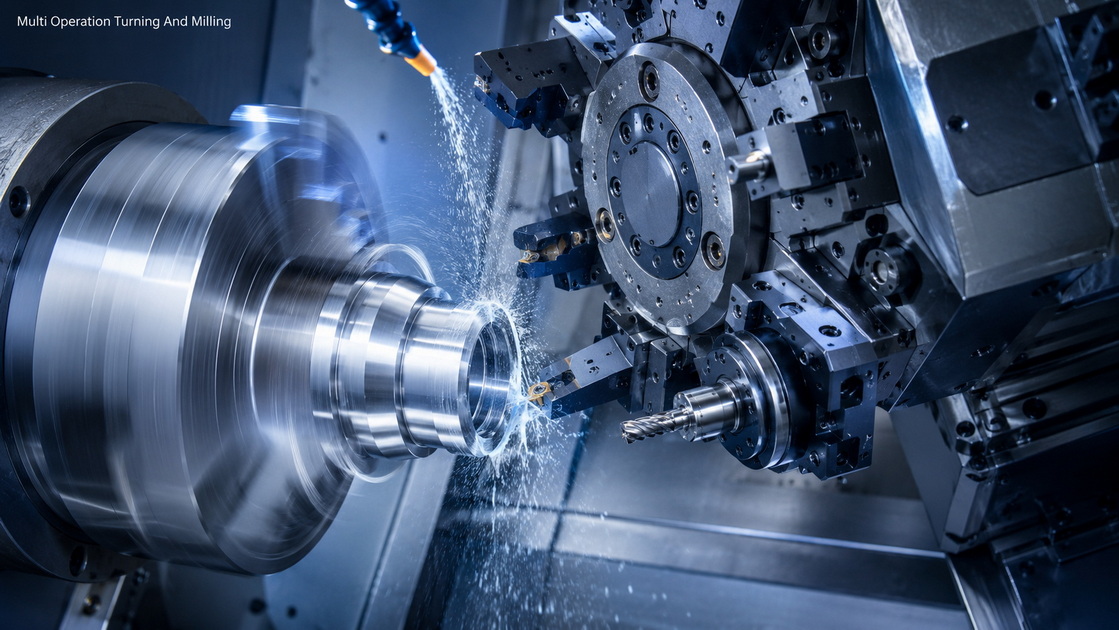

The turret is the "tool carrier" of a CNC lathe, and its configuration has a huge impact on both flexibility and productivity. When we support OEM clients, we always map their part families against the turret capability to ensure there are enough live tools, stations, and index positions to cover all required operations without excessive setups. [community.xometry]
Important turret factors:
- Number of stations – Defines how many tools can be loaded at once
- Live tooling capability – Enables drilling, tapping, and milling operations on the lathe
- Tool interface and rigidity – Affects chatter, surface finish, and tool life
- Indexing speed and accuracy – Impacts cycle time and feature alignment
In one electronics customer project, moving from a basic 8-station turret to a live-tool 12-station system allowed us to combine turning, cross drilling, and light milling in a single setup, cutting overall cycle time by more than 20% while reducing handling risk. [community.xometry]
Guideways and linear axes control how smoothly and precisely the cutting tool moves relative to the workpiece. OEM buyers often overlook this subsystem because it is less visible in a sales brochure, but in our experience, the axis design and condition play a critical role in long-term stability. [hubs]
Key aspects we check:
- Guideway type – Box ways vs linear rails (tradeoff between rigidity and speed)
- Axis travel and stroke – Whether complex or longer parts can be fully machined
- Positioning and repeatability – Directly related to cumulative tolerance control
- Thermal compensation – How the system handles heat and maintains accuracy
For heavy industrial parts with deep cuts and tough materials, box-way machines offer higher damping and rigidity, which translates into more stable dimensions and better surface finish at the cost of some speed. For high-speed machining of small precision components, linear guides often provide the best combination of speed and accuracy. [protolabs]
The CNC control is the brain of the machine – it interprets G-code, manages servo motion, and integrates probing, bar feeders, robots, and in-process measurement. From a sourcing perspective, control choice affects not only ease of programming, but also integration with your digital workflow and quality system. [community.xometry]
When our engineering team reviews a new project, we evaluate the control and automation interfaces for:
- Supported functions – Canned cycles, threading, live-tooling support, rigid tapping
- User interface – Ease of setup, macro programming, error diagnostics
- Connectivity – DNC, Ethernet, OPC UA, integration with MES/QMS
- Automation options – Bar feeders, gantry loaders, robotic loading, in-cycle probing
For OEM customers in medical or automotive sectors, we increasingly deploy in-process probing and automated offset adjustments to stabilize dimensions across long production runs and reduce manual inspection load. [community.xometry]
From the outside, CNC lathe selection looks like a pure technical decision. Inside a real OEM/ODM project, it is a structured risk management process combining engineering, finance, and supply chain. Drawing on our experience in China's CNC ecosystem, we use a 3-layer selection framework:
1. Part requirements and risk – Dimensional tolerance, critical features, surface finish, functional loads
2. Process and capacity – Batch size, takt time, changeover frequency, upstream/downstream operations
3. Supplier maturity – QC system, documentation, communication, on-time performance
Here is a simplified view of how these considerations map to the five critical CNC lathe parts:
| Decision aspect | What we look at | Linked lathe part | Practical outcome |
|---|---|---|---|
| Tight tolerances and concentricity | IT6–IT8 features, long shafts | Spindle, chuck, guideways | Stable runout and repeatability for shafts and sleeves |
| Complex geometries | Slots, cross holes, milled flats | Turret with live tools, control | Fewer setups, lower handling risk, shorter lead time |
| Thin-walled or delicate parts | Low stiffness, deformation risk | Workholding, guideways | Custom fixtures, lower clamping force, controlled feed |
| High-volume production | 10k–100k+ pieces per year | Turret, automation, control | Lower cycle time, predictable tool life, consistent quality |
| Multi-material portfolio | Aluminum, brass, steel, plastics | Spindle power, coolant, tooling | Balanced configuration across all materials |
To add more actionable value than typical blog posts, here is a concise checklist our engineers use when reviewing new RFQs for CNC turned parts. You can adapt this directly for your sourcing process or internal documentation.
Step 1 – Clarify part function and risk
- What is the part's function in the final assembly?
- Which features are safety or performance critical?
- What are the tightest tolerances and surface finish requirements?
Step 2 – Match part geometry to lathe capability
- Maximum diameter and length vs chuck size and axis travel
- Required operations (turning, threading, drilling, milling) vs turret and live tools
- Need for sub-spindle or Y-axis to complete all features in one setup
Step 3 – Confirm material, volume, and cost targets
- Material type (e.g., 6061, 304, brass), hardness, and machinability
- Prototype, pilot, or mass production volume
- Target piece price and allowed process complexity
Step 4 – Validate supplier process and control system
- Control brand and its support for desired cycles and automation
- QC plan: in-process checks vs final inspection only
- Data and documentation: inspection reports, traceability, PPAP/FAI if required
Position this section with bullets and numbered steps near the middle of the article to improve scannability and engagement, and consider adding a downloadable PDF checklist as a gated asset for lead generation. [enstreamsolutions.wordpress]

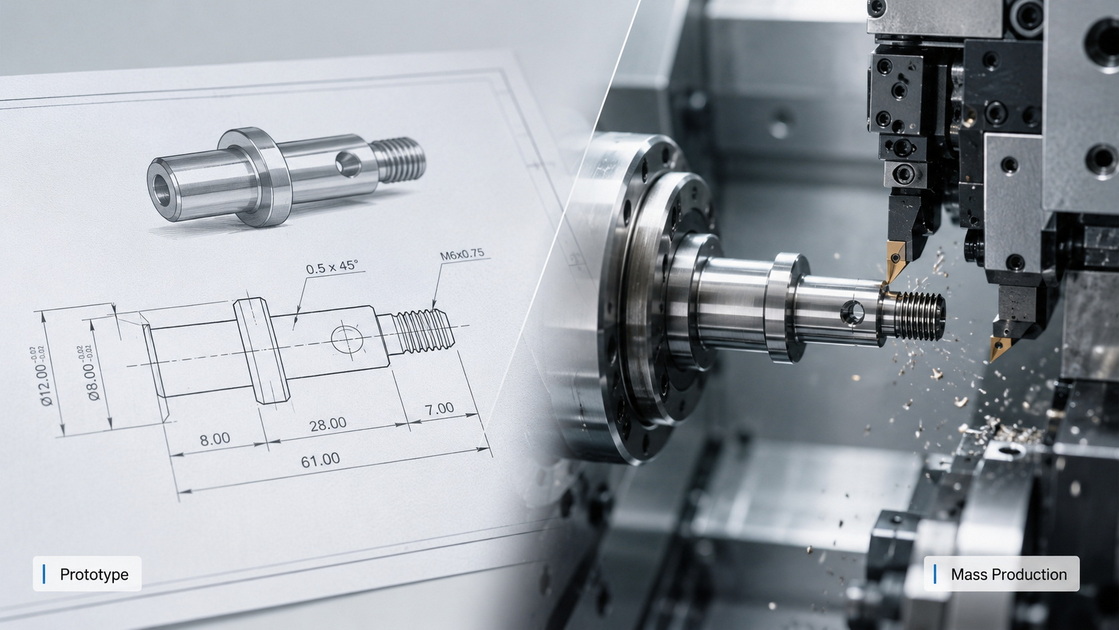

Generic articles often describe CNC components in isolation, but OEM/ODM buyers care about how these choices work over the whole product life cycle. Here is a real-world style scenario similar to many projects we handle in China's Pearl River Delta.
Scenario overview
- Product: Precision aluminum connector sleeve for an industrial sensor
- Requirements: Tight concentricity between bore and outer diameter, cosmetic finish on visible surfaces
- Volume: 200 prototypes, scaling to 30,000 pieces annually
Engineering approach
- Spindle and chuck – Selected a lathe with adequate speed for aluminum and low runout; used custom soft jaws to clamp on non-critical features and protect cosmetic surfaces
- Turret and live tools – Loaded turning, boring, and chamfer tools plus a live-mill tool to add a small flat for anti-rotation in the final assembly
- Guideways – Used a high-precision linear-guide machine to maintain repeatable tolerance across long runs
- Control system – Implemented probing cycles to auto-compensate tool wear for the critical bore diameter
The result: we transitioned from prototype to mass production on the same machine platform with minimal re-qualification, keeping both unit cost and defect rate under the customer's target thresholds. Adding case-driven sections like this strengthens perceived expertise and gives readers a concrete mental model of your capabilities. [kal-mfg]
For UX, supporting this section with:
- Before/after photos of prototype vs mass production parts
- A simple timeline graphic of prototyping, pilot run, and scale-up
will both improve dwell time and demonstrate real manufacturing experience.
Share your drawings and annual volume targets, and our engineering team will recommend an optimized CNC lathe process plan – including spindle, tooling, and workholding strategy – before you commit to tooling.
1. Which CNC lathe part has the biggest impact on accuracy?
In most turned components, the combination of spindle quality, workholding, and guideway stability has the strongest influence on dimensional accuracy and concentricity, especially over long production runs. [hubs]
2. Do I always need live tooling on a CNC lathe?
Not always; live tooling becomes critical when your part includes cross holes, flats, or secondary features that would otherwise require a second setup on a mill, increasing cost and risk. For simple shafts or bushings, a standard turret may be sufficient. [hubs]
3. How early should I involve my CNC supplier in product design?
Industry best practice is to involve your machining partner during the concept or early design phase so they can perform a DFM review, suggest tolerance optimization, and avoid features that drive up cost without adding functional value. [asianstarcnc]
4. What documentation should I expect from a professional CNC lathe parts supplier?
At minimum, you should expect clear quotations, process descriptions, inspection reports, and material certifications; for regulated industries, PPAP or first article inspection reports are often required. [mansfield]
5. How do CNC machining SEO strategies relate to technical content like this?
Search studies show that detailed, technically accurate content – including part names, process descriptions, and case insights – helps CNC machining websites rank better for long-tail, high-intent keywords and attract higher-quality OEM buyers. [blog.thomasnet]
