Views: 222 Author: Feifan Hardware Publish Time: 2026-04-17 Origin: Site
As someone who has spent years working with brass CNC machining for European and North American OEM customers, I can tell you this material sits in a sweet spot: it machines fast, holds tight tolerances, and delivers a premium look that buyers instantly recognize. When your goal is stable quality, predictable lead times, and cost‑effective precision parts, few metals perform as consistently as brass in CNC production. [tfgusa]
Brass CNC machining is a subtractive manufacturing process where CNC lathes, mills, and multi‑axis centers use carbide tools and programmed toolpaths to cut away material from brass bars, billets, or castings until a finished part is formed. Because brass is dimensionally stable and highly machinable, it is an ideal choice when you need tight tolerances and repeatable results across medium to large batches. [3erp]
From an engineering standpoint, brass is a copper–zinc alloy that may also contain elements like lead, tin, aluminum, iron, or silicon, each added to tune machinability, strength, or corrosion resistance. For CNC projects, the most widely used grades are free‑cutting alloys designed specifically to run fast on automated equipment without sacrificing surface finish or tool life. [wisensemachining]

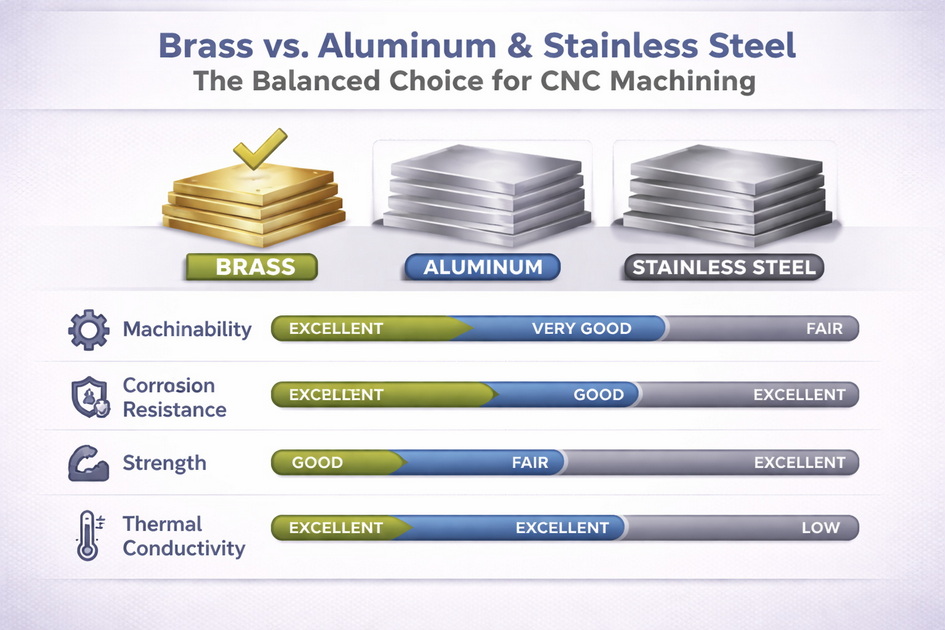

Several material properties make brass stand out compared with aluminum or stainless steel in CNC machining. [3erp]
- High machinability: Leaded brass grades can achieve very short cycle times and excellent chip control, which is why they are standard for turned fittings, fasteners, and connectors. [3erp]
- Low cutting forces: Brass cuts easily, so you can run higher spindle speeds and feed rates without overloading tools or spindles. [ptsmake]
- Dimensional stability: Brass tends to warp less from cutting forces or residual stresses, which helps keep tolerances tight on thin‑walled or long parts. [tfgusa]
- Good thermal conductivity: Heat flows away from the cutting zone quickly, reducing the risk of thermal distortion and tool wear. [wisensemachining]
From a machinist's perspective, brass is one of the few materials where you can both speed up production and still improve the cosmetic finish, which is rare in metals manufacturing. [ptsmake]
The typical property range for brass alloys used in CNC machining looks like this:
| Property | Typical Brass Range |
|---|---|
| Melting point | 885–890 °C |
| Density | 8.5 g/cm³ |
| Modulus of elasticity | 97 GPa |
| Thermal conductivity | 115 W/m·K |
| Electrical resistivity | 6.3 × 10⁻⁸ Ω·m |
These numbers translate into real‑world benefits:
- Electrical & thermal conductivity: Ideal for terminals, connectors, and heat sinks that must dissipate heat efficiently. [3erp]
- Corrosion resistance: Suitable for plumbing, marine, and outdoor hardware exposed to moisture or mild chemicals. [worthyhardware]
- Malleability and ductility: Supports complex geometries, deep drawing, and post‑machining forming operations. [3erp]
- Strength and hardness: While not as hard as steel, many brass alloys are sufficiently strong for valves, fittings, and structural inserts when properly designed. [worthyhardware]
For buyers, these properties mean you can design multi‑functional parts (mechanical, electrical, and decorative) in a single material and simplify your supply chain. [ptsmake]
Choosing the right brass grade is one of the most important early decisions in a CNC project. Two grades dominate CNC work: [3erp]
C360, often called free‑machining brass, is the benchmark for high‑speed CNC turning and milling. It typically contains about 3% lead, which dramatically improves chip breaking and surface finish. [3erp]
- Advantages
- Excellent machinability and short cycle times. [3erp]
- Good tensile strength and corrosion resistance for general hardware.
- Ideal for soldering and brazing operations.
- Limitations
- Lead content makes it unsuitable for some medical or food‑contact applications. [3erp]
- Susceptible to stronger acids if not properly protected.
C260 contains about 70% copper and 30% zinc and is known for its ductility and cold‑working ability. [wisensemachining]
- Advantages
- One of the most ductile brass grades, ideal for deep drawing and bending.
- Excellent corrosion resistance for electrical, consumer, and architectural components. [3erp]
- Limitations
- Not recommended for use with acetic, hydrochloric, or nitric acids, or strong ammonia solutions. [wisensemachining]
| Requirement | Recommended Grade | Notes |
|---|---|---|
| Maximum machinability, low cost | C360 (3erp) | High‑volume turning and milling |
| Deep drawing / forming + machining | C260 (wisensemachining) | Shells, cases, hardware |
| Premium appearance + corrosion control | C260 or plated C360 (worthyhardware) | Combine with surface finish |
| Lead-restricted applications | Low‑lead brasses (ptsmake) | Confirm regulations by market |
When we work with overseas customers on OEM brass parts, we usually start with the application environment, regulatory requirements, and annual volume, then propose 1–2 material options with cost and lead‑time comparisons. [zhongzhengmilling.en.made-in-china]
Based on both industry data and real production experience, a few process rules consistently deliver better results in brass CNC machining. [tfgusa]
- Use sharp carbide tools with a positive rake angle to avoid burrs and to get a clean surface. [linkedin]
- Prefer polished cutting edges designed for non‑ferrous metals, which reduce built‑up edge and improve chip evacuation. [3erp]
- Control tool overhang to reduce chatter, especially on slender parts. [reddit]
While exact numbers depend on machine rigidity and tool brand, a practical starting window for brass is: [tfgusa]
- Spindle speed: 500–3,000 RPM on larger diameters; much higher on small diameters if the machine allows it. [wisensemachining]
- Feed rate: 10–15 in/min as a baseline, then optimized per tool and operation. [wisensemachining]
- Depth of cut: 0.01–0.125 in per pass is typical for stable machining. [wisensemachining]
Because brass cuts easily, it is tempting to push speeds aggressively, but excessive cutting speed can cause chatter, premature tool wear, and dimensional drift. [tfgusa]
- A slightly higher cutting speed combined with a moderate depth of cut and positive rake can help generate short, manageable chips. [ptsmake]
- Keep tools sharp and do not skip preset tool‑life limits; most burr problems on brass appear toward the end of tool life. [linkedin]
- For critical sealing surfaces or threads, plan a light finishing pass to remove residual burrs. [worthyhardware]
- Many brass operations can be run with reduced coolant, but a stable coolant strategy still improves tool life and dimensional stability. [tfgusa]
- Because brass conducts heat well, you can often prioritize chip evacuation and cleanliness over heavy flood cooling. [wisensemachining]
For overseas clients, we typically document a complete process sheet (cutting parameters, tools, and inspection plan) during sampling, so mass production remains stable across batches. [ecodcn.en.made-in-china]
Brass CNC machining supports a wide range of industries that need a mix of electrical performance, corrosion resistance, and a premium look. [worthyhardware]
- Electronics & Electrical: Connectors, terminals, pins, standoffs, and housings that rely on brass's conductivity and solderability. [3erp]
- Plumbing & Fluid Control: Valves, fittings, couplings, and manifolds where corrosion resistance and leak‑tight threads are essential. [worthyhardware]
- Automotive & Transportation: Precision inserts, sensor bodies, fuel system components, and decorative interior hardware. [ptsmake]
- Aerospace & Defense: Specialized connectors and hardware where signal integrity and reliability are critical. [ptsmake]
- Consumer Products & Luxury Goods: Handles, knobs, watch components, and design elements that benefit from brass's aesthetic appeal. [worthyhardware]
From the perspective of an OEM buyer, the big advantage is that a single supplier can often cover multiple SKUs across these applications using similar material and process platforms, which simplifies qualification and ongoing quality management. [zhongzhengmilling.en.made-in-china]

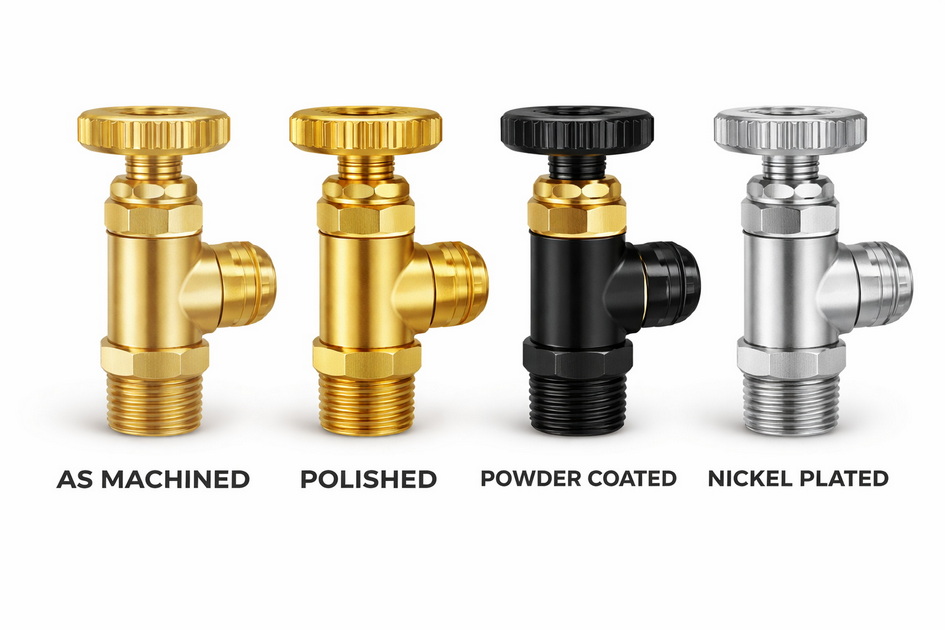

Brass parts often leave the machine with a natural golden surface, but surface finishing is a strategic lever for both performance and branding. [worthyhardware]
- As machined: No additional finish, used when function outruns appearance or when cost is extremely sensitive.
- Polishing / honing: Removes tool marks and surface imperfections while improving straightness and roundness.
- Powder coating: Adds a colored, durable layer that boosts corrosion resistance and impact resistance. [worthyhardware]
- Electroplating: Applies metals such as chrome, nickel, zinc, silver, or gold for enhanced corrosion protection and cosmetic appeal. [worthyhardware]
For international brands, we often combine brass with nickel or chrome plating to create a stable, fingerprint‑resistant finish that aligns with high‑end product positioning. [zhongzhengmilling.en.made-in-china]
One of the easiest ways to reduce cost and lead time is to design brass parts that are CNC‑friendly from day one. [enstreamsolutions.wordpress]
Use this concise checklist:
1. Standardize features
- Use common thread sizes and tap depths where possible.
- Avoid unnecessary undercuts and ultra‑deep holes.
2. Respect tool access
- Provide adequate radii in internal corners for milling.
- Minimize extremely narrow slots that require micro‑tools.
3. Optimize tolerances
- Reserve ultra‑tight tolerances only for functional surfaces.
- Relax cosmetic and non‑critical dimensions to reduce inspection and scrap.
4. Plan for finishing
- Add allowance for polishing or plating thickness where required.
- Avoid sharp corners that can become weak points after finishing.
When we review drawings from overseas customers, we typically provide DFM (Design for Manufacturability) feedback before sampling, which often cuts machining time and scrap rate without changing the part's function. [ecodcn.en.made-in-china]
The brass machining market is being reshaped by both technology and regulatory trends. [datainsightsmarket]
- Advanced CNC technologies: Multi‑axis machining, live‑tooling lathes, and integrated CAD/CAM workflows allow complex brass parts to be produced in a single setup, improving accuracy and reducing handling. [mdaltd]
- Automation & AI: Automated loading, in‑process measurement, and data‑driven optimization are reducing variation and making it easier to maintain consistent quality across long production runs. [mdaltd]
- New alloy formulations: Low‑lead and lead‑free brasses are gaining traction in markets with stricter environmental and health regulations, such as the EU. [datainsightsmarket]
- Sustainability focus: Brass is highly recyclable, and many buyers are now asking suppliers to report scrap recycling rates and energy efficiency as part of vendor audits. [datainsightsmarket]
For buyers, partnering with a supplier that already operates modern CNC equipment and understands export compliance can significantly reduce project risk. [ecodcn.en.made-in-china]
As a China-based precision CNC manufacturer, the value we bring to foreign brands, wholesalers, and manufacturers typically centers on three areas: [zhongzhengmilling.en.made-in-china]
- Flexible OEM/ODM support: From drawing‑based machining to full design optimization for brand‑new products.
- Scalable capacity: Ability to scale from prototypes to millions of pieces per month with consistent tolerances. [ecodcn.en.made-in-china]
- Integrated quality control: Raw‑material inspection, in‑process monitoring, and final inspection with CMM, hardness testers, and roughness testers for critical dimensions and surfaces. [zhongzhengmilling.en.made-in-china]
If you are coordinating brass parts for a new product launch, this combination of process capability and quality infrastructure can make your supply chain much more predictable. [ecodcn.en.made-in-china]
If you are planning a new brass component—or looking to consolidate current suppliers—it is critical to work with a team that understands both material behavior and mass‑production realities. [datainsightsmarket]
Share your drawings, 3D models, or even a physical sample, and request a DFM review plus a quotation. With OEM and ODM experience for international brands, a modern CNC equipment base, and robust quality control, a specialist brass machining partner can help you move from prototype to stable repeat orders with fewer surprises and lower total cost. [zhongzhengmilling.en.made-in-china]
1. Is brass CNC machining more expensive than aluminum?
Brass raw material is generally more expensive than common aluminum grades, but its higher machinability often reduces cycle time and tool wear, which can offset material cost in many projects. [tfgusa]
2. Can brass parts be used outdoors without additional coating?
Many brass alloys have good corrosion resistance and can be used outdoors, especially in plumbing and architectural hardware, but aggressive environments may still require plating or coatings. [worthyhardware]
3. What tolerances are realistic for brass CNC parts?
With proper process control and inspection, tolerances of ±0.01 mm are achievable on critical features, but it is best to reserve the tightest bands only for functional surfaces. [zhongzhengmilling.en.made-in-china]
4. Are leaded brasses allowed in all markets?
Some regions and applications (such as medical or drinking‑water systems) restrict lead content, so you may need low‑lead or lead‑free brass grades to comply with local regulations. [datainsightsmarket]
5. How should I choose a surface finish for brass parts?
If appearance and corrosion resistance matter, electroplating or powder coating is recommended, while purely functional parts may be left as‑machined or lightly polished to control cost. [worthyhardware]
